| Certificate: | CE | Warranty: | 18 Months |
|---|---|---|---|
| Flange Standard: | DIN,BS,ANSI | Flange Material: | Carbon Steel,Stainless Steel |
| Burst Pressure: | 5.0Mpa | Max Working Pressure: | 3.0Mpa |
| Working Temperature: | -25~110Degree | In Stock: | 50000 |
| Company Type: | Factory | Product Name: | Reduced Rubber Connector |
| High Light: | rubber expansion bellows,pump expansion joint |
||

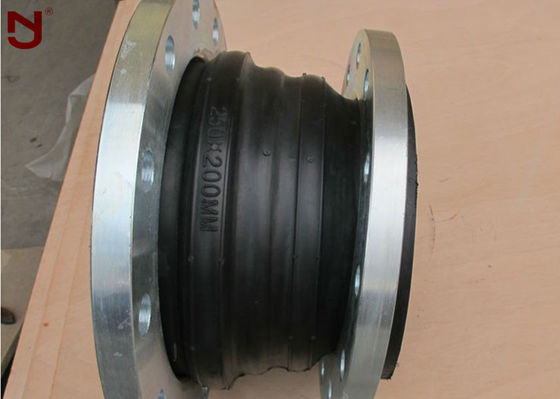

Best selling carbon steel flange rubber reducer expansion joint with various size
Reducer rubber bellows expansion joint is made up of fabric reinforced rubber main body and metal flange or wire buckle joint, which is used for vibration reduction, noise reduction and displacement compensation of pipeline. It is related to: JGD single sphere rubber joint, jgd-a double sphere, jgd-b wire buckle connection double sphere, etc., it is A high elasticity, medium resistance and weather resistance pipe joint. It is also known as rubber soft joint, shock absorber, pipe shock absorber, shock absorber throat, size head, variable-diameter joint, but the name is different, but refers to reducer rubber bellows expansion joint.
Specifications of stainless steel flanged concentric reducing rubber expansion joint
|
Material List |
||
|
No. |
Name |
Material |
|
1 |
Outer rubber layer |
IIR, CR, EPDM, NR, NBR |
|
2 |
Inner rubber layer |
IIR, CR, EPDM, NR, NBR |
|
3 |
Frame layer |
Polyester cord fabric |
|
4 |
Flange |
Q235 304 316L |
|
5 |
Reinforcement ring |
Bead ring |
|
specification |
DN50~300 |
DN350~600 |
|
Working pressure (MPa) |
0.25~1.6 |
|
|
Bursting pressure (MPa) |
≤4.8 |
|
|
Vacuum (KPa) |
53.3(400) |
44.9(350) |
|
Temperature (℃) |
-20~+115(for special condition -30~+250) |
|
|
Applicable medium |
Air, compressed air, water, seawater, hot water, oil, acid-base, etc.. |
|
|
DN(large)×DN(small) |
Length |
Axial |
Axial |
Radial |
Deflecting |
|
(a1+a2)° |
|||||
|
50×32 |
180 |
15 |
18 |
45 |
35° |
|
50×40 |
180 |
15 |
18 |
45 |
35° |
|
65×32 |
180 |
15 |
18 |
45 |
35° |
|
65×40 |
180 |
15 |
18 |
45 |
35° |
|
65×50 |
180 |
15 |
18 |
45 |
35° |
|
80×32 |
220 |
15 |
18 |
45 |
35° |
|
80×50 |
180 |
20 |
30 |
45 |
35° |
|
80×65 |
180 |
20 |
30 |
45 |
35° |
|
100×40 |
220 |
20 |
30 |
45 |
35° |
|
100×50 |
180 |
20 |
30 |
45 |
35° |
|
100×65 |
180 |
22 |
30 |
45 |
35° |
|
100×80 |
180 |
22 |
30 |
45 |
35° |
|
125×50 |
220 |
22 |
30 |
45 |
35° |
|
125×65 |
180 |
22 |
30 |
45 |
35° |
|
125×80 |
180 |
22 |
30 |
45 |
35° |
|
125×100 |
200 |
22 |
30 |
45 |
35° |
|
150×50 |
240 |
22 |
30 |
45 |
35° |
|
150×65 |
200 |
22 |
30 |
45 |
35° |
|
150×80 |
180 |
22 |
30 |
45 |
35° |
|
150×100 |
200 |
22 |
30 |
45 |
35° |
|
150×125 |
200 |
22 |
30 |
45 |
35° |
|
200×80 |
260 |
22 |
30 |
45 |
35° |
|
200×100 |
200 |
25 |
35 |
40 |
30° |
|
200×125 |
220 |
25 |
35 |
40 |
30° |
|
200×150 |
200 |
25 |
35 |
40 |
30° |
|
250×100 |
260 |
25 |
35 |
40 |
30° |
|
250×125 |
220 |
25 |
35 |
40 |
30° |
|
250×150 |
220 |
25 |
35 |
40 |
30° |
|
250×200 |
220 |
25 |
35 |
40 |
30° |
|
300×125 |
260 |
25 |
35 |
40 |
30° |
|
300×150 |
220 |
25 |
35 |
40 |
30° |
|
300×200 |
220 |
25 |
35 |
40 |
30° |
|
300×250 |
220 |
25 |
35 |
40 |
30° |
|
350×200 |
230 |
28 |
38 |
35 |
26° |
|
350×250 |
230 |
28 |
38 |
35 |
26° |
|
350×300 |
230 |
25 |
38 |
40 |
26° |
|
400×200 |
230 |
25 |
38 |
40 |
26° |
|
400×250 |
240 |
28 |
38 |
35 |
26° |
|
400×300 |
240 |
28 |
38 |
35 |
26° |
|
400×350 |
260 or |
28 |
38 |
35 |
26° |
|
285 |
|||||
|
450×250 |
280 |
28 |
38 |
35 |
26° |
|
450×300 |
240 |
28 |
38 |
35 |
26° |
|
450×350 |
240 |
28 |
38 |
35 |
26° |
|
450×400 |
240 |
28 |
38 |
35 |
26° |
|
500×250 |
280 |
28 |
38 |
35 |
26° |
|
500×300 |
280 |
28 |
38 |
35 |
26° |
|
500×350 |
240 |
28 |
38 |
35 |
26° |
|
500×400 |
230 |
28 |
38 |
35 |
26° |
|
500×450 |
240 |
28 |
38 |
35 |
26° |
|
600×400 |
240 |
28 |
38 |
35 |
26° |
|
600×450 |
240 |
28 |
38 |
35 |
26° |
|
600×500 |
240 |
28 |
38 |
35 |
26° |
