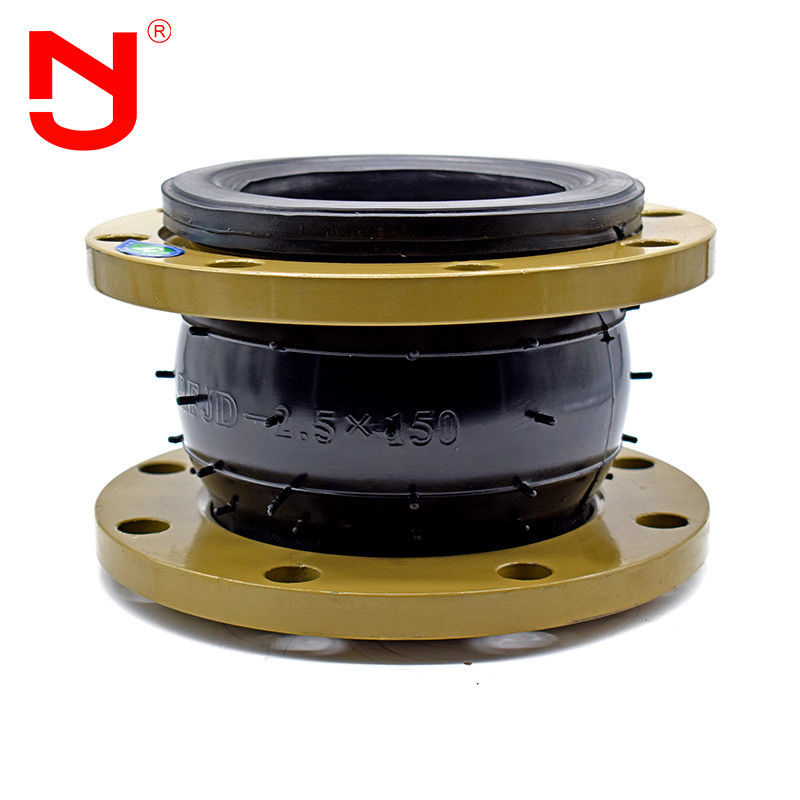

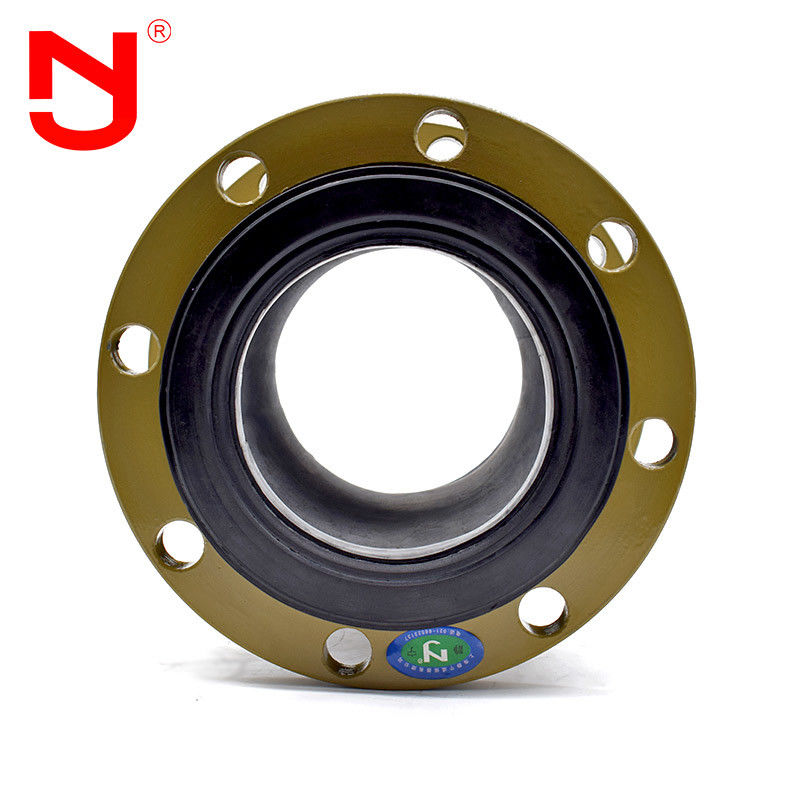

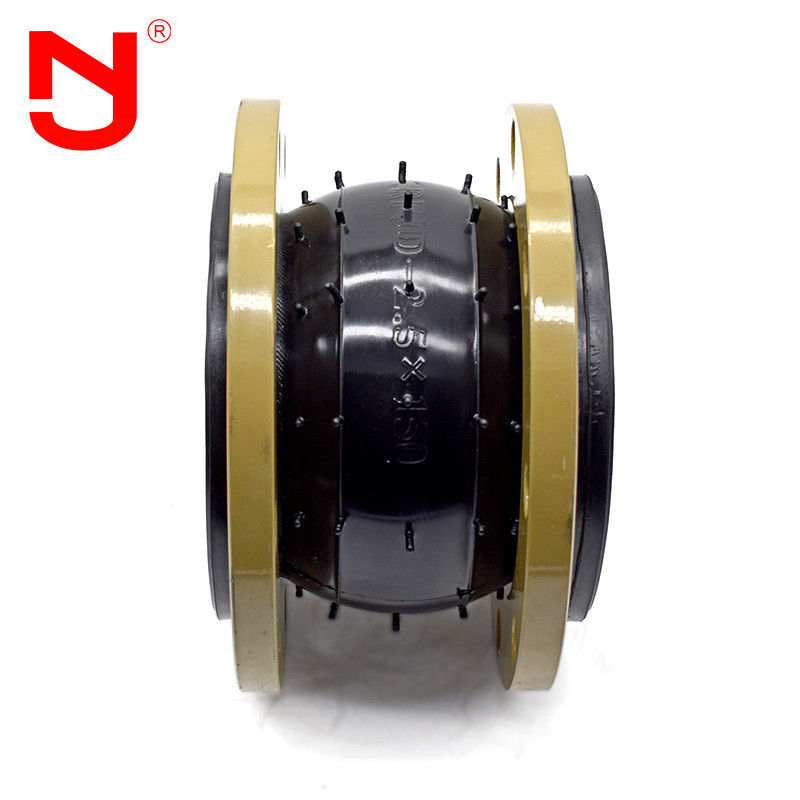

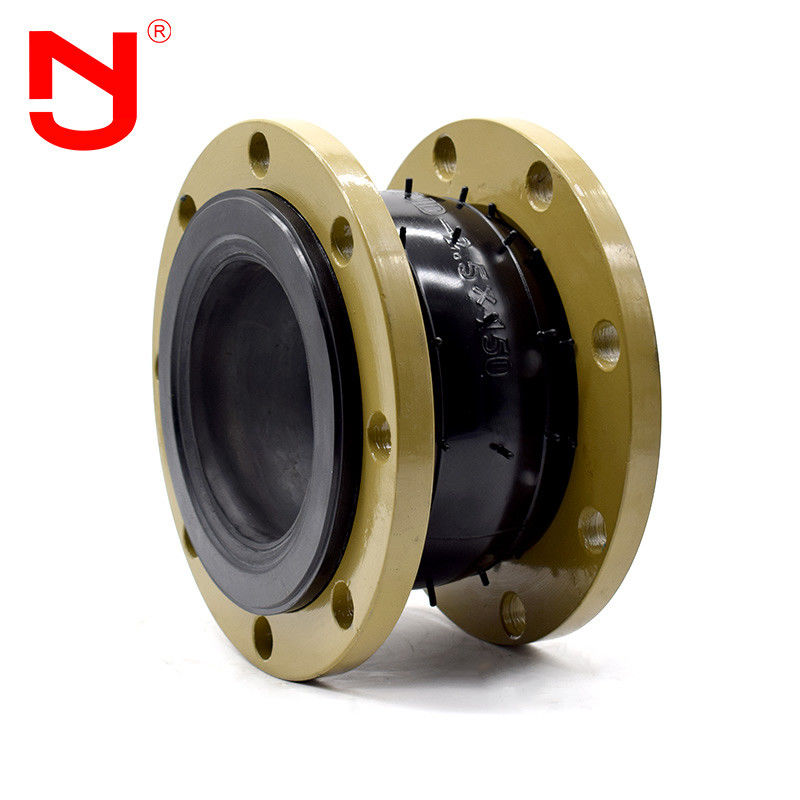

6 Inch PN25 Single Sphere Flexible Rubber Expansion Joint
Flexible rubber expansion joint consists of rubber body and metal flanges or screw thread, which is used in metal pipe system for vibration isolation, reducing noise and displacement compensation. The flexible rubber expansion joint consists of inner layer rubber, reinforcing layer with polyester cord fabric and outside layer rubber with compounded rubber pipeline. flexible rubber expansion joint can choose any kind of inner layer rubber material and outer material, such as IIR, CR, EPDM, NR, NBR and so on. The external and internal layers of rubber material can be different. But skeleton layer of rubber joint are produced by polyester fabric and enhancement layer has a steel wire ring. Flange material is also diverse, common material is like Q235 SS304 and SS316.
Performance characteristics
1. Small volume, light weight, good elasticity and convenient equipment repair;
2. Lateral, axial and angular displacement can occur, and it is not bound by the non centering of pipeline and non parallel flange.
3. With the increase of temperature, the flexible rubber joint will expand and contract;
4. It can reduce the noise transmitted by the structure and has strong vibration absorption ability;
5. According to different scenes, the use of different rubber materials can more effectively prevent the corrosion of corrosive media on the inner wall of the rubber joint, and improve the service life.
|
GENERAL CHARACTRISTICS |
|
|
Nominal Diameter |
DN25-DN1600 |
|
Working Pressure |
PN6-PN25 |
|
Working Temperature |
-20℃-130℃ |
|
Working Medium |
Water,Oil,Acid,Alkali,Etc |
Part of technical data
|
Main data of rubber expansion joint
|
||||||
|
Nominal diameter(DN) |
Length |
Axial displacement(mm) |
Horizontal displacement |
Deflexion angle |
||
|
mm |
inch |
mm |
Extension |
Compression |
mm |
(a1+a2)° |
|
32 |
1 1/4 |
95 |
6 |
9 |
9 |
15° |
|
40 |
1 1/2 |
95 |
6 |
10 |
9 |
15° |
|
50 |
2 |
105 |
7 |
10 |
10 |
15° |
|
65 |
2 1/2 |
115 |
7 |
13 |
11 |
15° |
|
80 |
3 |
135 |
8 |
15 |
12 |
15° |
|
100 |
4 |
150 |
10 |
19 |
13 |
15° |
|
125 |
5 |
165 |
12 |
19 |
13 |
15° |
|
150 |
6 |
180 |
12 |
20 |
14 |
15° |
|
200 |
8 |
210 |
16 |
25 |
22 |
15° |
|
250 |
10 |
230 |
16 |
25 |
22 |
15° |
|
300 |
12 |
245 |
16 |
25 |
22 |
15° |
|
350 |
14 |
255 |
16 |
25 |
22 |
15° |
|
400 |
16 |
255 |
16 |
25 |
22 |
15° |
|
450 |
18 |
255 |
16 |
25 |
22 |
15° |
|
500 |
20 |
255 |
16 |
25 |
22 |
15° |
|
600 |
24 |
260 |
16 |
25 |
22 |
15° |
Note: 1. Special requirements can be customized according to the user's drawings. The flange standard is GB / t9115.1-2000. A variety of flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. Rubber spheres can be used as natural rubber, EPDM, chloroprene rubber, butyl rubber, butadiene green rubber, fluororubber, etc.2. When the suspended water supply uses products above DN200, the pipeline must have fixed support or fixed bracket, otherwise the product should be installed with anti pull off device.
Details show
Production Flow
Do you know how is a high quality rubber expansion joint made?Let's see with JINGNING.
It is very important to select the appropriate flexible rubber expansion joint of the pipeline, understand the compatibility of the medium with the selected material, the full temperature, pressure and vacuum range, the required movement and the size between the pipeline flanges. With this information, Jingning application engineers can help determine the ideal expansion joint for any application.
Product advantages
1.Factory price
2.16 years of manufacturing experience, 5 years of export experience
3.Strict quality inspection, the quality far exceeds the industry standard.
4.Mold a variety of specifications, support customization, OEM
5.Provide free samples
6.Large inventory
Application
Because of its good comprehensive performance,flexible rubber expansion joint is widely used in chemical engineering, construction, water supply, drainage, petroleum, industry, refrigeration, sanitation, water heating, fire protection, electric power and other basic engineering.
FAQ
Q1What`s the rubber material of flexible rubber expansion joints?
A1: EPDM,CR,NBR,etc .It depends on the working enviroment and media.
Q2: Is the flange galvaized of flexible rubber expansion joints?
A2: Yes,we have electronic galvanized and hot dip galvanized flanges.We also have painted flanges.
Q3: Can I get a sample?
A3: Of cause. We could delivery by Express,by air or by sea.
Q4: What is the MOQ of flexible rubber expansion joints?
A4: 1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us .
