Shanghai Songjiang Jingning Shock Absorber Co.,Ltd.
Home ProductsThreaded Expansion Joint

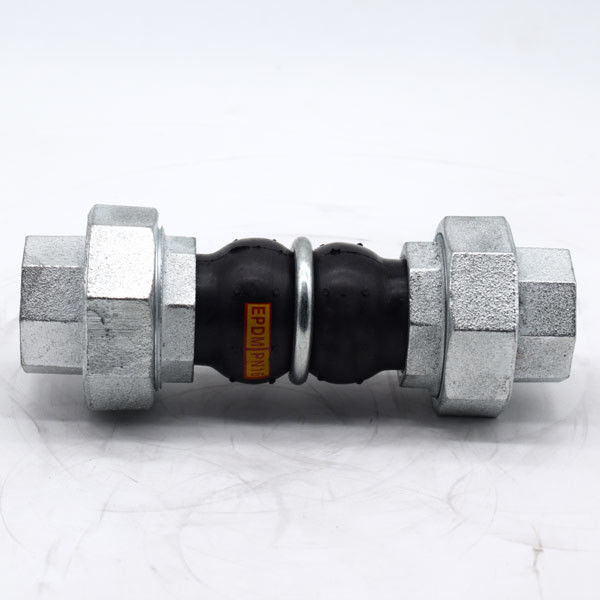

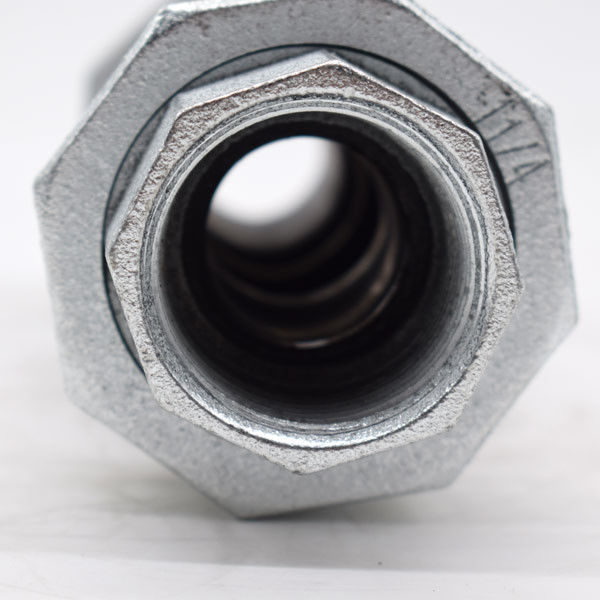

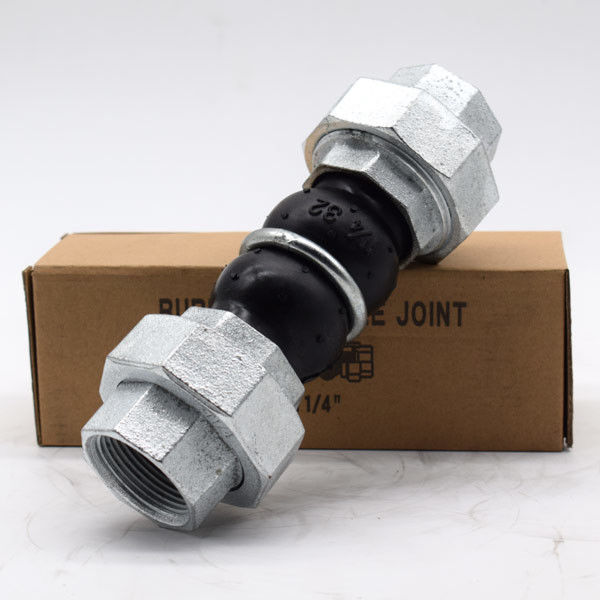

3" Ship Piping BSPT EPDM Threaded Expansion Joint

China Shanghai Songjiang Jingning Shock Absorber Co.,Ltd. certification
China Shanghai Songjiang Jingning Shock Absorber Co.,Ltd. certification
Timely delivery,good quality products

—— Manul

We received rubber expansion joints,then test.Good quality!

—— Mike

Good quality and good price!

—— Sofia

I'm Online Chat Now

3" Ship Piping BSPT EPDM Threaded Expansion Joint

3" Ship Piping BSPT EPDM Threaded Expansion Joint
3" Ship Piping BSPT EPDM Threaded Expansion Joint 3" Ship Piping BSPT EPDM Threaded Expansion Joint 3" Ship Piping BSPT EPDM Threaded Expansion Joint

Large Image :  3" Ship Piping BSPT EPDM Threaded Expansion Joint

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: RLJS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton or Wooden
Detailed Product Description
Size: 1/2"~3" Rubber Material: EPDM,NBR,CR
Union Material: Iron,Stainless Steel Union Standard: BSPT,NPT
Usage: Water ,Oil,Gas Temperature: -20~110 ℃
Test: PED 2014/68/EU Burst Pressure: 10.0Mpa
Product Name: Threaded Union Rubber Expansion Joints Other Name: Threaded Rubber Expansion Joints
High Light:

EPDM Threaded Expansion Joint

,

BSPT Threaded Expansion Joint

,

Screw Thread Rubber Joint

Threaded Union Molded Rubber Expansion Joints EPDM NBR BSPT Standard



EPDM Thread-Connection expansion joint for high vibration absorbing ability after surface and treatment and inspection of finished products.



Screw thread rubber joint is the soft joint of metal pipes, and consists of inner rubber, nylon cord fabric, outer rubber compound rubber ball and metal lap joint flanges. The product can endure high pressure, maintain good elasticity, have large displacement to balance pipe deviation, absorb vibration and make less noise and have easy installation, etc.

Screw thread rubber joint can be widely used in the pipe system of water supply, drainage, circulating water, HVAC, fire protection, paper making, pharmacy, petroleum chemical industry, ship piping system, water pump, compressor and fan etc. The normal type is used to transport air ranges from - 15 °C to 115 °C, compressed air, water, sea water, oil, acid and alkali etc. The special type is used to transport the media above ranges from - 30 °C to 250 °C above, oil or strong alkali, strong acid and solid material.



Screw thread rubber Flexible Expansion Joint , also known as flexible joint, rubber expansion joint, rubber flexible joint, pipe expansion joint, soft rubber joint etc.

We introduce advanced technology from abroad, and combine it with Chinese production experience. In the manufacturing operation, the inner side endures high pressure; nylon cord fabrics and the inner rubber are better combined and can work under higher pressure than normal flexible rubber joint. Its characteristics are that the inner adhesive layer united perfectly, bright, clean and seamless; the tag adopts the vulcanization process, perfectly matches the product.





3" Ship Piping BSPT EPDM Threaded Expansion Joint 0

3" Ship Piping BSPT EPDM Threaded Expansion Joint 1

Threaded union rubber expansion joint Advantage:


A: 15 minutes zinc plating, high pressure resistance, high temperature resistance, oil resistance, wear resistance, corrosion resistance, acid and alkali resistance.

B: Connect with pump, valve, fire fighting equipment, pipe which vibrate big, pipe which hot and cold change frequently.

C: Natural rubber content of forty-seven percent, can continue to use for 15 years without aging.



Product Details
3" Ship Piping BSPT EPDM Threaded Expansion Joint 2




3" Ship Piping BSPT EPDM Threaded Expansion Joint 3

3" Ship Piping BSPT EPDM Threaded Expansion Joint 4

EPDM Thread-Connection expansion joint for high vibration absorbing ability can be customized DN15-DN80.

Rubber expansion joints are generally composed of smooth wave shape compensation element with rubber flange at both ends and metal flange. A loose sleeve structure is often used for metal flange.



3" Ship Piping BSPT EPDM Threaded Expansion Joint 5



The surface of the wave shape compensating element is rubber, and the inner layer is made from multilayer of strong fiber or steel band (wire). The layers of fiber or steel band (wire) has been extended to the ends of the rubber flange, the flange has a hard steel wire skeleton. The rubber expansion joint has a larger displacement compensation ability, which can compensate the axial, lateral and angular displacement, which can reduce the noise, absorb the vibration and has anti corrosion ability. Rubber expansion joints have excellent high pressure resistance, good elasticity, large displacement compensation, nice vibration absorption and noise reduction capability, convenient installation, widely used in water supply and drainage, HVAC, fire control, compressor, paper, pharmaceutical, ship, water pump, fan and other piping systems.
