Stainless Steel NPT 10.0Mpa Threaded Expansion Joint

Stainless Steel NPT 10.0Mpa Threaded Expansion Joint
Stainless Steel NPT 10.0Mpa Threaded Expansion Joint Stainless Steel NPT 10.0Mpa Threaded Expansion Joint

Large Image :  Stainless Steel NPT 10.0Mpa Threaded Expansion Joint

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: RLJS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton or Wooden
Detailed Product Description
Size: 1/2"~3" Rubber Material: EPDM,NBR,CR
Union Material: Iron,Stainless Steel Union Standard: BSPT,NPT
Usage: Water ,Oil,Gas Temperature: -20~110 ℃
Test: PED 2014/68/EU Burst Pressure: 10.0Mpa
Product Name: Threaded Union Rubber Expansion Joints Other Name: Threaded Rubber Expansion Joints
High Light:

10.0Mpa Threaded Expansion Joint

,

NPT Threaded Expansion Joint

,

Flexible Threaded Expansion Joint

Threaded Union Rubber Expansion Joint With Reinforced Stainless Steel Rings



Threaded union rubber expansion joints are the choice when an economical threaded pipe connection is needed. The Threaded union rubber expansion joints is engineered to absorb thermal movement, offset and misalignment in piping systems. The Threaded union rubber expansion joints style is an excellent choice to absorb and isolate vibration. Use the Threaded union rubber expansion joints to protect your system from start-up forces as well as system surges. There is no need to worry about Electrolysis when using a Threaded union rubber expansion joints. Due to the design of the Threaded union rubber expansion joints having a rubber body it eliminates metal to metal contact stopping the electrolytic process.



EPDM Thread-Connection expansion joint for high vibration absorbing ability after surface and treatment and inspection of finished products.



Screw thread rubber joint is the soft joint of metal pipes, and consists of inner rubber, nylon cord fabric, outer rubber compound rubber ball and metal lap joint flanges. The product can endure high pressure, maintain good elasticity, have large displacement to balance pipe deviation, absorb vibration and make less noise and have easy installation, etc.

Screw thread rubber joint can be widely used in the pipe system of water supply, drainage, circulating water, HVAC, fire protection, paper making, pharmacy, petroleum chemical industry, ship piping system, water pump, compressor and fan etc. The normal type is used to transport air ranges from - 15 °C to 115 °C, compressed air, water, sea water, oil, acid and alkali etc. The special type is used to transport the media above ranges from - 30 °C to 250 °C above, oil or strong alkali, strong acid and solid material.

Screw thread rubber Flexible Expansion Joint , also known as flexible joint, rubber expansion joint, rubber flexible joint, pipe expansion joint, soft rubber joint etc.

We introduce advanced technology from abroad, and combine it with Chinese production experience. In the manufacturing operation, the inner side endures high pressure; nylon cord fabrics and the inner rubber are better combined and can work under higher pressure than normal flexible rubber joint. Its characteristics are that the inner adhesive layer united perfectly, bright, clean and seamless; the tag adopts the vulcanization process, perfectly matches the product.

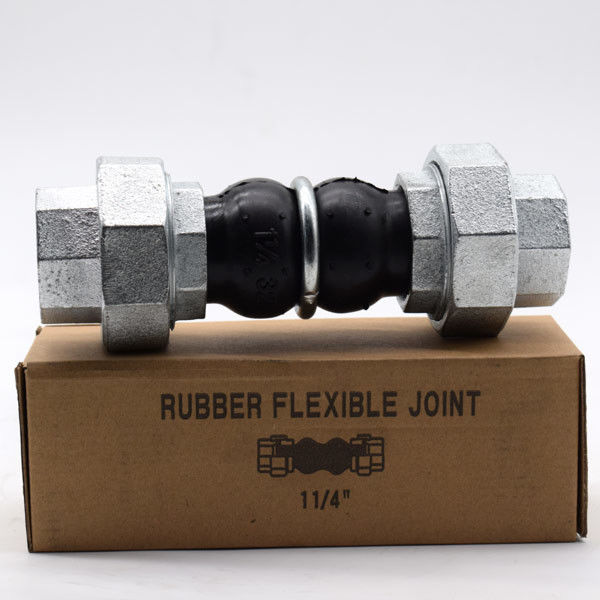

Stainless Steel NPT 10.0Mpa Threaded Expansion Joint 0

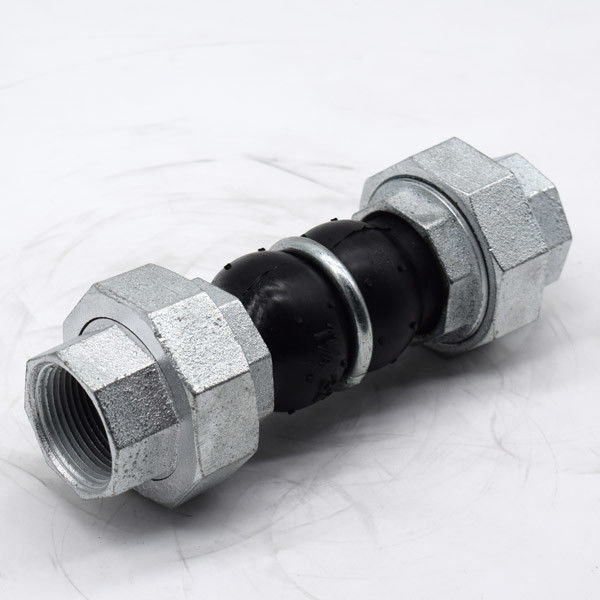

Stainless Steel NPT 10.0Mpa Threaded Expansion Joint 1

Threaded union rubber expansion joint Advantage:


A: 15 minutes zinc plating, high pressure resistance, high temperature resistance, oil resistance, wear resistance, corrosion resistance, acid and alkali resistance.

B: Connect with pump, valve, fire fighting equipment, pipe which vibrate big, pipe which hot and cold change frequently.

C: Natural rubber content of forty-seven percent, can continue to use for 15 years without aging.



Product Details

Stainless Steel NPT 10.0Mpa Threaded Expansion Joint 2




Stainless Steel NPT 10.0Mpa Threaded Expansion Joint 3

Stainless Steel NPT 10.0Mpa Threaded Expansion Joint 4

EPDM Thread-Connection expansion joint for high vibration absorbing ability can be customized DN15-DN80.

Rubber expansion joints are generally composed of smooth wave shape compensation element with rubber flange at both ends and metal flange. A loose sleeve structure is often used for metal flange.

Stainless Steel NPT 10.0Mpa Threaded Expansion Joint 5

The surface of the wave shape compensating element is rubber, and the inner layer is made from multilayer of strong fiber or steel band (wire). The layers of fiber or steel band (wire) has been extended to the ends of the rubber flange, the flange has a hard steel wire skeleton. The rubber expansion joint has a larger displacement compensation ability, which can compensate the axial, lateral and angular displacement, which can reduce the noise, absorb the vibration and has anti corrosion ability. Rubber expansion joints have excellent high pressure resistance, good elasticity, large displacement compensation, nice vibration absorption and noise reduction capability, convenient installation, widely used in water supply and drainage, HVAC, fire control, compressor, paper, pharmaceutical, ship, water pump, fan and other piping systems.
