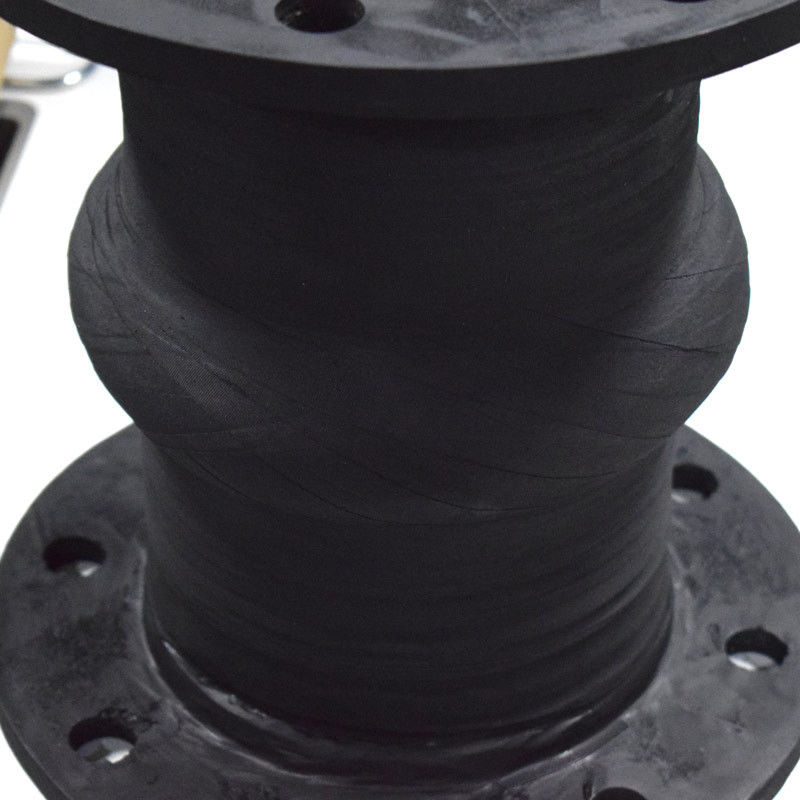

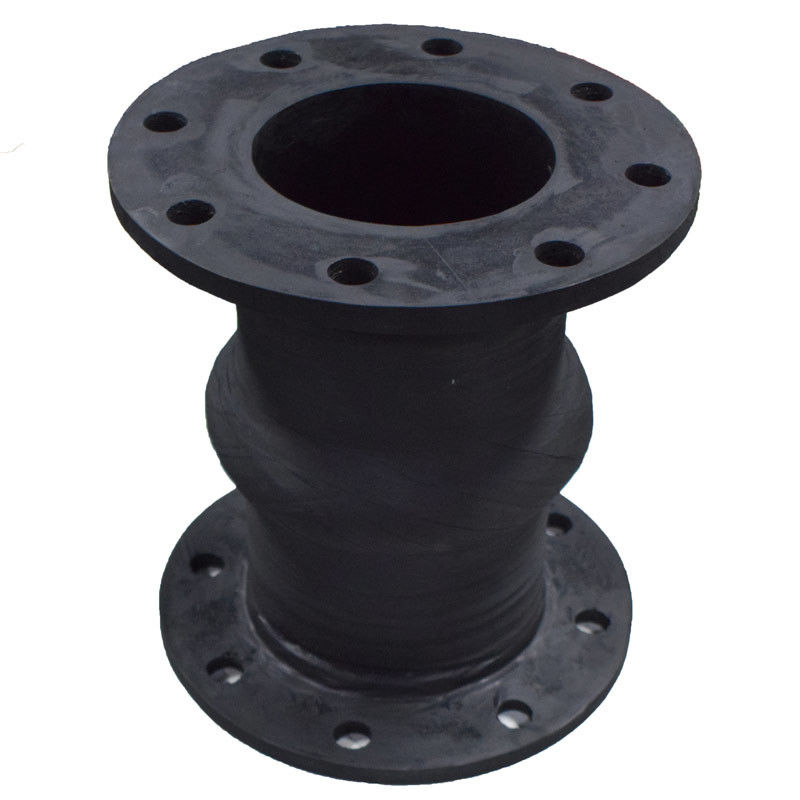

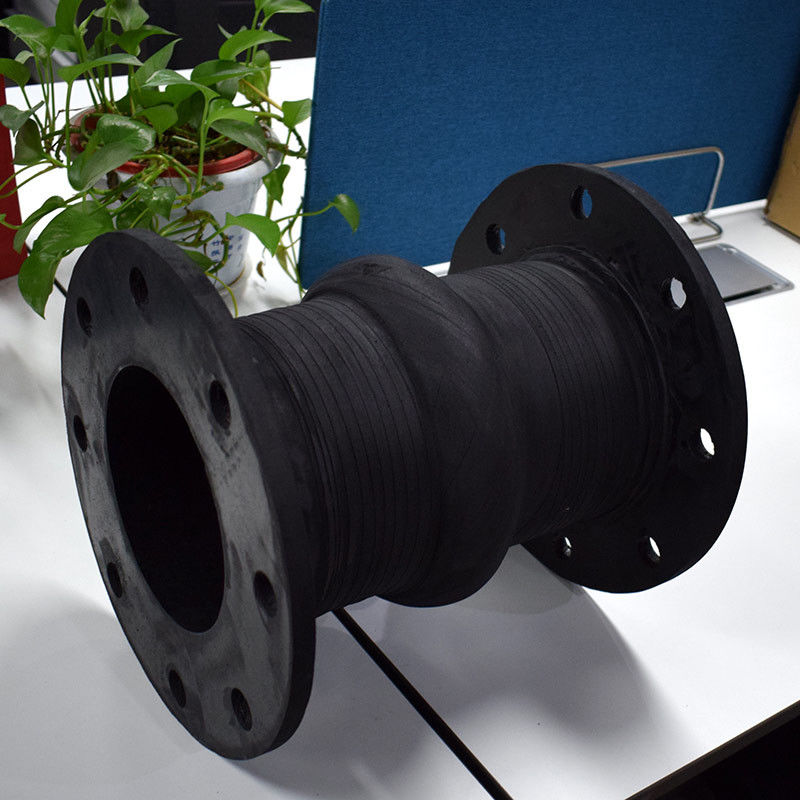

Wide Open Arch DN15 Single Sphere Rubber Expansion Joint

Wide Open Arch DN15 Single Sphere Rubber Expansion Joint
Wide Open Arch DN15 Single Sphere Rubber Expansion Joint Wide Open Arch DN15 Single Sphere Rubber Expansion Joint Wide Open Arch DN15 Single Sphere Rubber Expansion Joint

Large Image :  Wide Open Arch DN15 Single Sphere Rubber Expansion Joint

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE,ISO
Model Number: RFJD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: carton or wooden
Delivery Time: 5--15 working days
Payment Terms: Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability: 10000 sets per week
Detailed Product Description
Size: From 1" To 60" Material: EPDM,NBR,SBR,NR,CR
Flange Standard: Carbon Steel,Stainless Steel,Ductile Iron Working Pressure: -0.2~5.5Mpa
Working Temperature: -30~130℃ Length: 4",5",6",7"
Businese Type: Rubber Expansion Joints Manufacturer OEM Experience: 15 Years
Main Market: America,Europe Product Name: Expansion Joints Manufacturer
High Light:

DN15 Rubber Expansion Joint

,

Pipework Expansion Joints

,

5.5Mpa Rubber Expansion Joint

Hand wrapped single sphere wide open arch full face rubber expansion joint



JINGNING Expansion Joints offer superior performance, reliability, and service life, resulting in improved plant safety and increased mechanical integrity of equipment. As specifically engineered products that are inserted in a rigid piping system, JINGNING Rubber Expansion Joints will:

  • Absorb movement
  • Improve thermal stability
  • Relieve system strain due to thermal change, load stress, pumping surges, wear of settling
  • Reduce mechanical noise
  • Compensate for misalignment
  • Eliminate electrolysis between dissimilar metals

All of our expansion joints carry safety ratings that exceed product specifications in areas such as pressure and movement. Non-metallic expansion joints and flexible couplings are ideally suited for a wide variety of industries.



                   GENERAL CHARACTRISTICS
Nominal Diameter DN15-DN3000
Working Pressure PN6-PN25
Working Temperature -20℃-140℃
Working Medium Water,Oil,Acid,Alkali





Part of technical data

Main data of rubber expansion joint
Nominal diameter(DN)
Length
Axial displacement(mm)
Horizontal displacement
Deflexion angle
mm
inch
mm
Extension
Compression
mm
(a1+a2)°
32
1 1/4
95
6
9
9
15°
40
1 1/2
95
6
10
9
15°
50
2
105
7
10
10
15°
65
2 1/2
115
7
13
11
15°
80
3
135
8
15
12
15°
100
4
150
10
19
13
15°
125
5
165
12
19
13
15°
150
6
180
12
20
14
15°
200
8
210
16
25
22
15°
250
10
230
16
25
22
15°
300
12
245
16
25
22
15°
350
14
255
16
25
22
15°
400
16
255
16
25
22
15°
450
18
255
16
25
22
15°
500
20
255
16
25
22
15°
600
24
260
16
25
22
15°



  • Available in a metallic and non-metallic reinforced design
  • Wide arch type features greater movements than the standard spool arch type
  • The non-metallic wide arch type carcass does not contain wire or a metal ring
  • Available with a filled arch design


Do you know how is a high quality rubber expansion joint made?Let's see with JINGNING.
