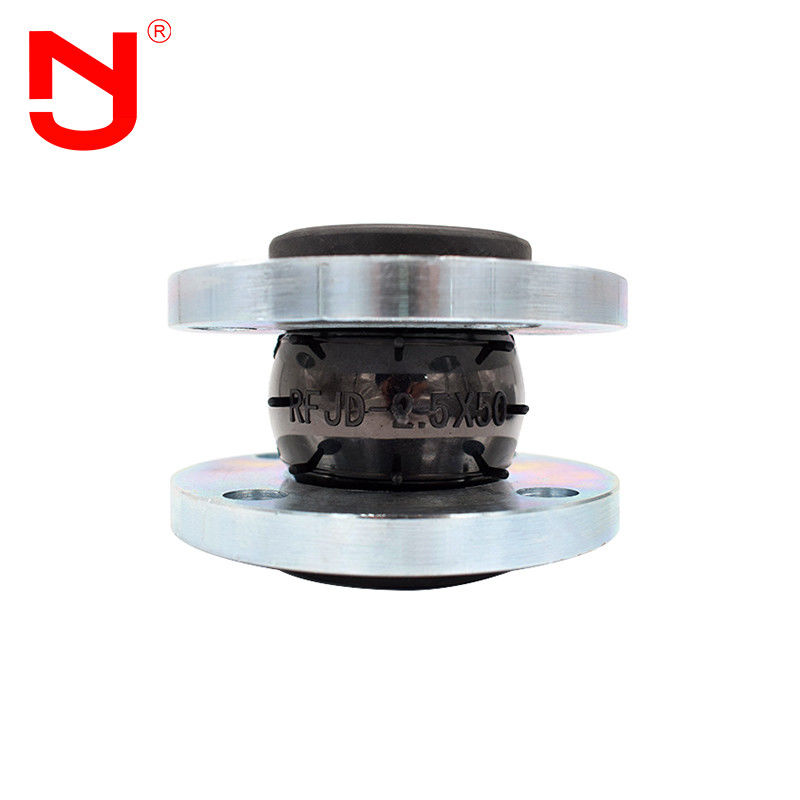

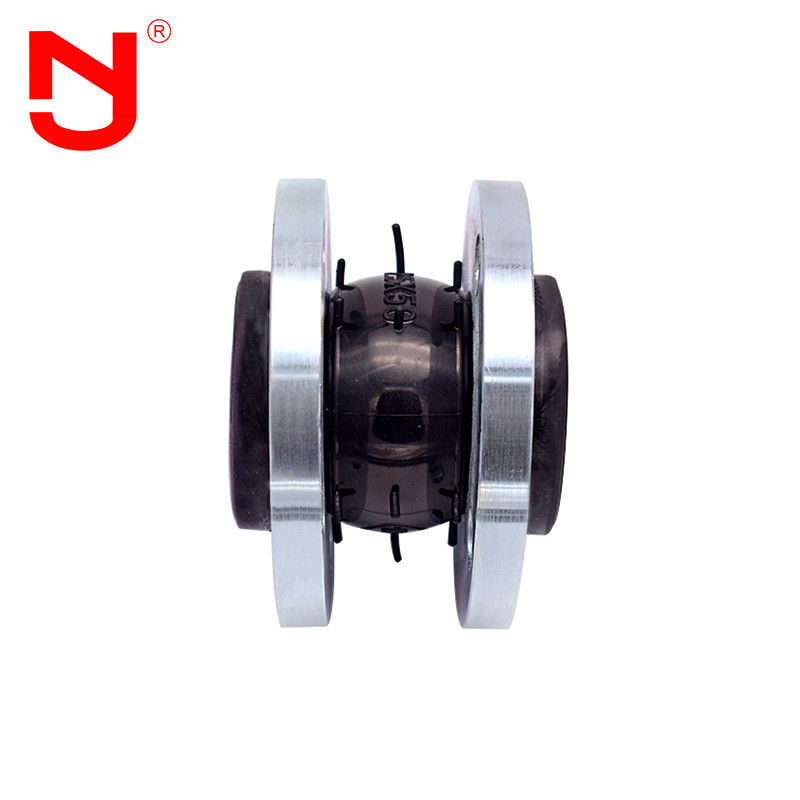

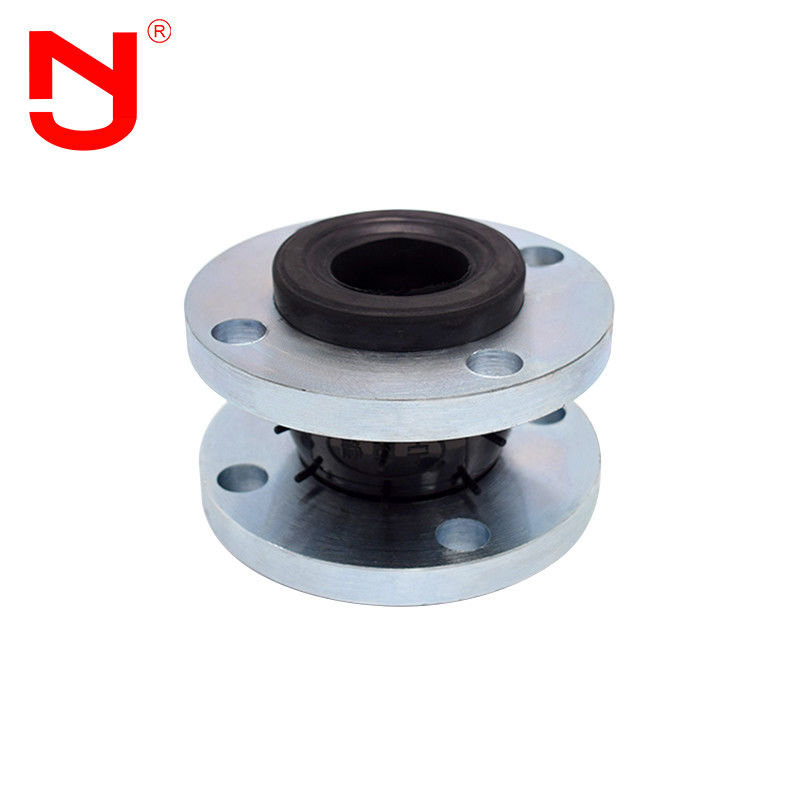

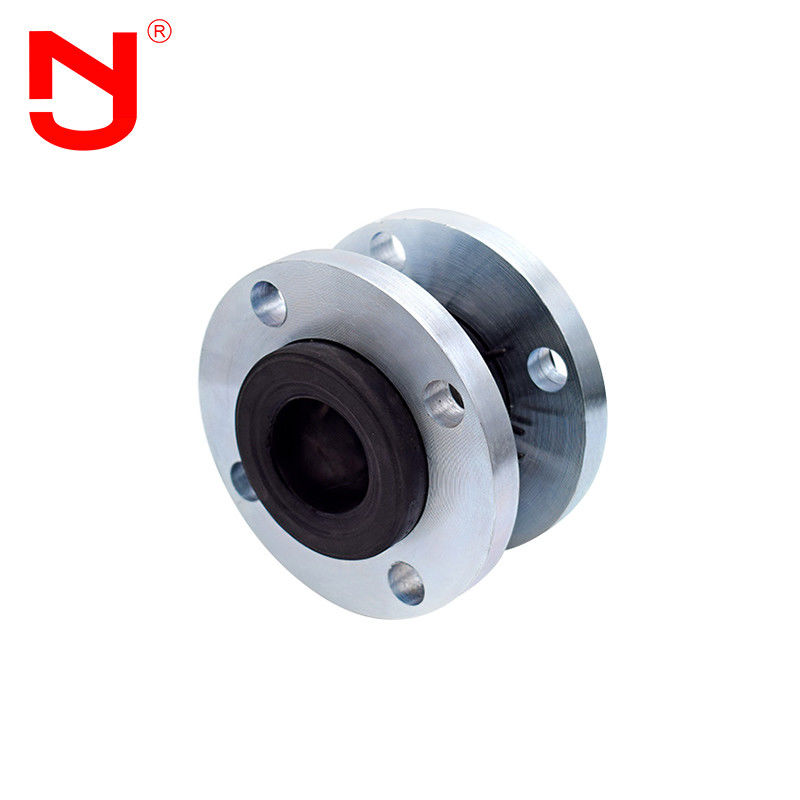

Flanged Connector Pipe Single Sphere Rubber Expansion Joint 10 Inch

Flanged Connector Pipe Single Sphere Rubber Expansion Joint 10 Inch

10" Single Sphere Rubber Expansion Joint

12" Single Sphere Rubber Expansion Joint

10 Inch rubber bellow expansion joint

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Businese Type:
17Years' Experience
Product Name:
Flanged Connector Pipe Expansion Joint EPDM Flexible Rubber Expansion Joint
Flange Standard:
Pipe Expansion Joint
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
carton or wooden
Delivery Time
5--15 working days
Payment Terms
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability
10000 sets per week
Product Description

Flanged Connector Pipe Expansion Joint EPDM Flexible Rubber Expansion Joint


Pipe expansion joint is used for hollow rubber products with flexible connection between metal pipes. Pipe expansion joint is a kind of pipe joint with high elasticity, high air tightness, medium resistance and weather resistance. The pipe expansion joint takes advantage of the elasticity, high air tightness, medium resistance, weather resistance and radiation resistance of the rubber. The pipe expansion joint is made of polyester cord fabric with high strength and strong cold and hot stability, which is obliquely crossed and compounded, and then vulcanized by high pressure and high temperature mold. Pipe expansion joints are widely used in various pipeline systems.


Performance characteristics of pipe expansion joint


1. The pipe expansion joint has high internal density, can bear high pressure and good elastic deformation effect.

2. Pipe expansion joint can reduce vibration and noise, product design is light and convenient for installation and maintenance.

3. When the pipe expansion joint works, it can reduce the structure transmission noise and has strong vibration absorption ability


Technical data of pipe expansion joint


Main data of pipe expansion joint

Nominal diameter(DN) Length Axial displacement(mm) Horizontal displacement Deflexion angle
mm inch mm Extension Compression mm (a1+a2)°
32 1 1/4 95 6 9 9 15°
40 1 1/2 95 6 10 9 15°
50 2 105 7 10 10 15°
65 2 1/2 115 7 13 11 15°
80 3 135 8 15 12 15°
100 4 150 10 19 13 15°
125 5 165 12 19 13 15°
150 6 180 12 20 14 15°
200 8 210 16 25 22 15°
250 10 230 16 25 22 15°
300 12 245 16 25 22 15°
350 14 255 16 25 22 15°
400 16 255 16 25 22 15°
450 18 255 16 25 22 15°
500 20 255 16 25 22 15°
600 24 260 16 25 22 15°

Note: 1. The special requirements of pipe expansion joint can be customized according to user's drawing. Flange standard is GB / t9115.1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The rubber ball of pipe expansion joint can be used as natural rubber, EPDM, chloroprene rubber, butyl rubber, butadiene rubber, fluororubber, etc. when the pipe expansion joint above DN200 is used for suspension water supply, the pipeline must have fixed support or fixed support, otherwise the pipe expansion joint shall be installed with anti falling device.


Pipe expansion joint details show


Flanged Connector Pipe Single Sphere Rubber Expansion Joint 10 Inch 0


Pipe expansion joint production Flow


Do you know how is a pipe expansion joint made?Let's see with JINGNING.


Flanged Connector Pipe Single Sphere Rubber Expansion Joint 10 Inch 1


It is very important to select the appropriate pipe expansion joint, to understand the compatibility of the medium and the selected material of the pipe expansion joint, the range of full temperature, full pressure and full vacuum, the amount of movement required, and the size between the pipe flanges. With this information, JINGNING application engineers can help determine the ideal pipe expansion joint for any application.


Pipe expansion joint advantage


1. Factory price of  pipe expansion joint.

2. 16 years of manufacturing experience, 5 years of export experience.

3. Strict quality inspection, the quality far exceeds the industry standard.

4. Pipe expansion joint mold has a variety of specifications, support customization, OEM.

5. Provide free samples of pipe expansion joint.

6. Pipe expansion joint are in large stock.


Pipe expansion joint application


Pipe expansion joint is widely used in chemical engineering, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, sanitation, water heating, fire control, electric power and other basic projects because of its good comprehensive performance. Pipe expansion joint can be made of various materials, such as acid resistant, alkali resistant, anti-corrosion, anti-aging, anti-corrosion, anti radiation, etc.



Q1What`s the rubber material of pipe expansion joint?

A1: EPDM,CR,NBR,etc .It depends on the working enviroment and media.


Q2: Is the flange galvaized of pipe expansion joint?

A2: Yes,we have electronic galvanized and hot dip galvanized flanges.We also have painted flanges


Q3: Can I get a sample?

A3: Of cause. We could delivery by Express,by air or by sea.


Q4: What is the MOQ of pipe expansion joint?

A4: 1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us .
