Place of Origin:
China
Brand Name:
JINGNING
Certification:
CE，ISO
Model Number:
RLJS
Contact Us

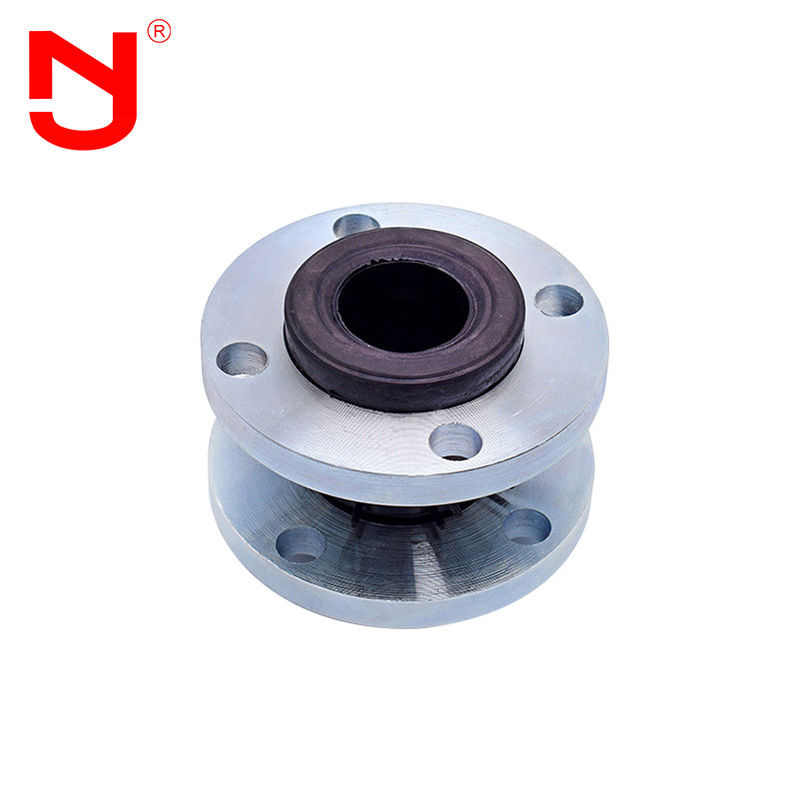

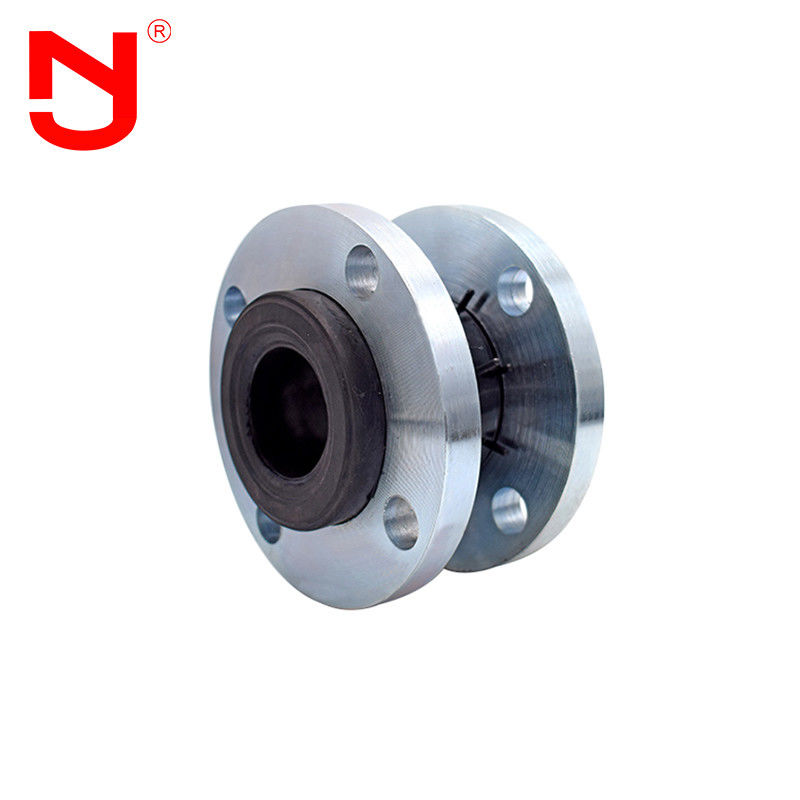

DN40-600 Flex Expansion Joint Rubber EPDM Single Sphere Rubber Joint
Rubber joint can also be called: expansion joint rubber, rubber flexible joint, soft joint, flexible rubber joint, rubber expansion joint, shock absorption throat, shock absorber, etc. Expansion joint rubber is a pipe connector with high elasticity, high air tightness, medium resistance and weather resistance, The expansion joint rubber is usually made of inner rubber layer, which can reduce the vibration and noise of the pipeline and compensate the thermal expansion and cold contraction caused by the temperature change.
Performance characteristics of expansion joint rubber
1. The expansion joint rubber has the advantages of small size, light weight, good ductility and convenient installation and maintenance.
2. Expansion joint rubber installation can cause horizontal, radial, angular offset, will not be limited by the pipe plug center, flange uneven surface.
3. When the expansion joint rubber is working, it can reduce the structure transmission noise and has strong vibration absorption ability.
Technical data of expansion joint rubber
|
Main data of expansion joint rubber |
||||||
| Nominal diameter(DN) | Length | Axial displacement(mm) | Horizontal displacement | Deflexion angle | ||
| mm | inch | mm | Extension | Compression | mm | (a1+a2)° |
| 32 | 1 1/4 | 95 | 6 | 9 | 9 | 15° |
| 40 | 1 1/2 | 95 | 6 | 10 | 9 | 15° |
| 50 | 2 | 105 | 7 | 10 | 10 | 15° |
| 65 | 2 1/2 | 115 | 7 | 13 | 11 | 15° |
| 80 | 3 | 135 | 8 | 15 | 12 | 15° |
| 100 | 4 | 150 | 10 | 19 | 13 | 15° |
| 125 | 5 | 165 | 12 | 19 | 13 | 15° |
| 150 | 6 | 180 | 12 | 20 | 14 | 15° |
| 200 | 8 | 210 | 16 | 25 | 22 | 15° |
| 250 | 10 | 230 | 16 | 25 | 22 | 15° |
| 300 | 12 | 245 | 16 | 25 | 22 | 15° |
| 350 | 14 | 255 | 16 | 25 | 22 | 15° |
| 400 | 16 | 255 | 16 | 25 | 22 | 15° |
| 450 | 18 | 255 | 16 | 25 | 22 | 15° |
| 500 | 20 | 255 | 16 | 25 | 22 | 15° |
| 600 | 24 | 260 | 16 | 25 | 22 | 15° |
Note: 1. The special requirements of expansion joint rubber can be customized according to user's drawing. Flange standard is GB / t9115.1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The rubber ball of expansion joint rubber can be used as natural rubber, EPDM, chloroprene rubber, butyl rubber, butadiene rubber, fluororubber, etc. when the expansion joint rubber above DN200 is used for suspension water supply, the pipeline must have fixed support or fixed support, otherwise the expansion joint rubber shall be installed with anti falling device.

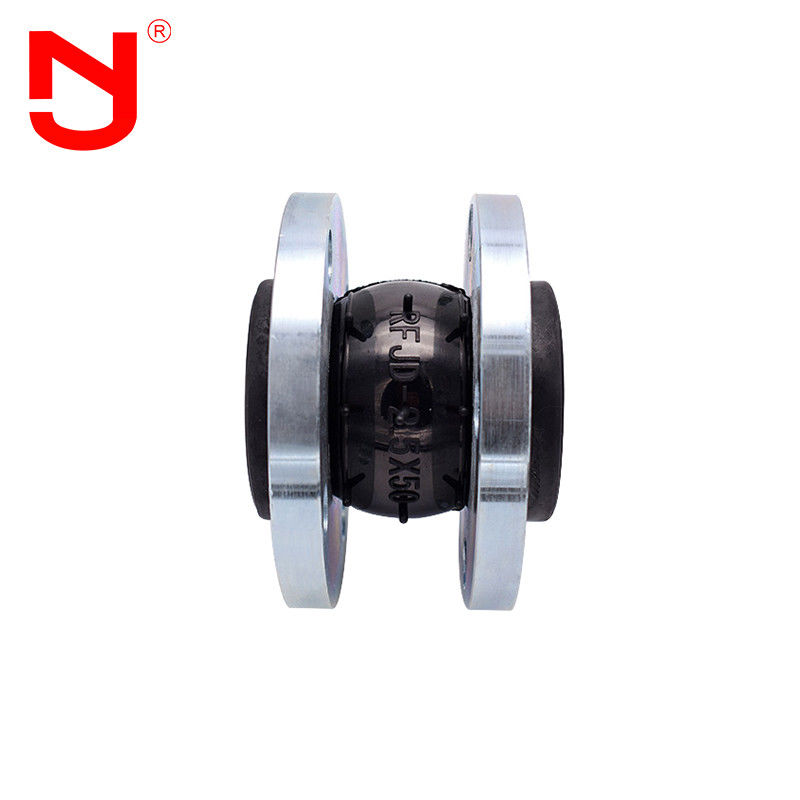

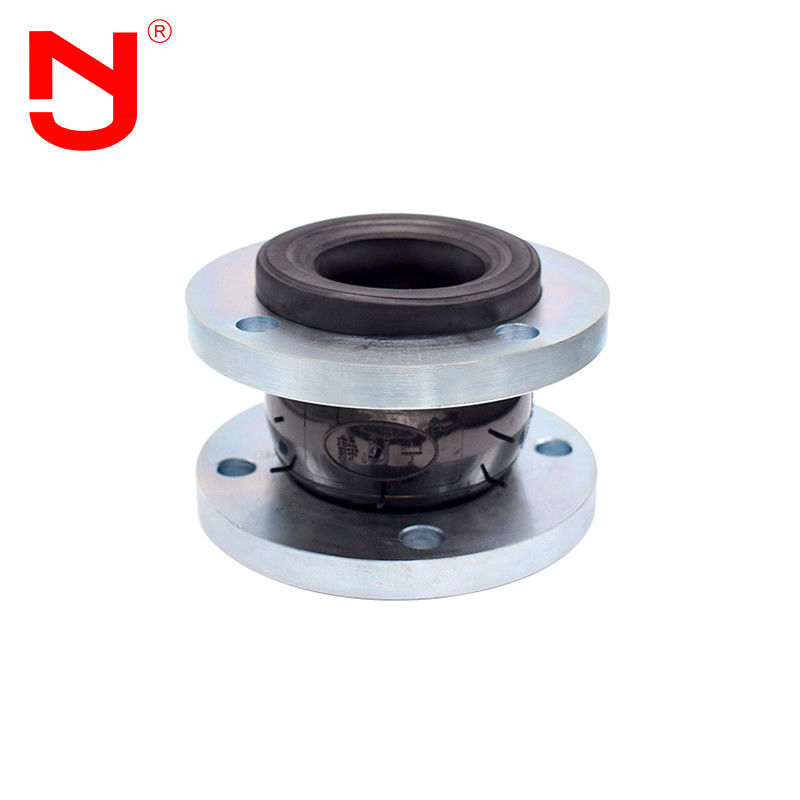

Expansion joint rubber details show
Expansion joint rubber production Flow
Do you know how is a expansion joint rubber made?Let's see with JINGNING.
It is very important to know the compatibility between the medium of expansion joint rubber and the selected expansion joint rubber material, the range of full temperature, full pressure and full vacuum, the required movement of expansion joint rubber, and the size between pipe flanges when selecting the appropriate expansion joint rubber. With this information, Jingning application engineers can help determine the ideal expansion joint rubber for any application.
Expansion joint rubber advantage
1. Factory price of expansion joint rubbert.
2. 16 years of manufacturing experience, 5 years of export experience.
3. Strict quality inspection, the quality far exceeds the industry standard.
4. Expansion joint rubber mold has a variety of specifications, support customization, OEM.
5. Provide free samples of expansion joint rubber.
6. Expansion joint rubber are in large stock.
Expansion joint rubber application
Expansion joint rubber is widely used in chemical engineering, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, sanitation, water heating, fire protection, electric power and other basic projects because of its good comprehensive performance. According to the different rubber materials of expansion joint rubber, it can be made into various varieties, such as acid resistance, alkali resistance, corrosion resistance, oil resistance, high temperature resistance, radiation resistance, wear resistance, aging resistance, etc. the expansion joint rubber can adapt to a variety of media and environment.
FAQ
Q1What`s the rubber material of expansion joint rubber?
A1: EPDM,CR,NBR,etc .It depends on the working enviroment and media.
Q2: Is the flange galvaized of expansion joint rubber?
A2: Yes,we have electronic galvanized and hot dip galvanized flanges.We also have painted flanges.
Q3: Can I get a sample?
A3: Of cause. We could delivery by Express,by air or by sea.
Q4: What is the MOQ of expansion joint rubber?
A4: 1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us .
