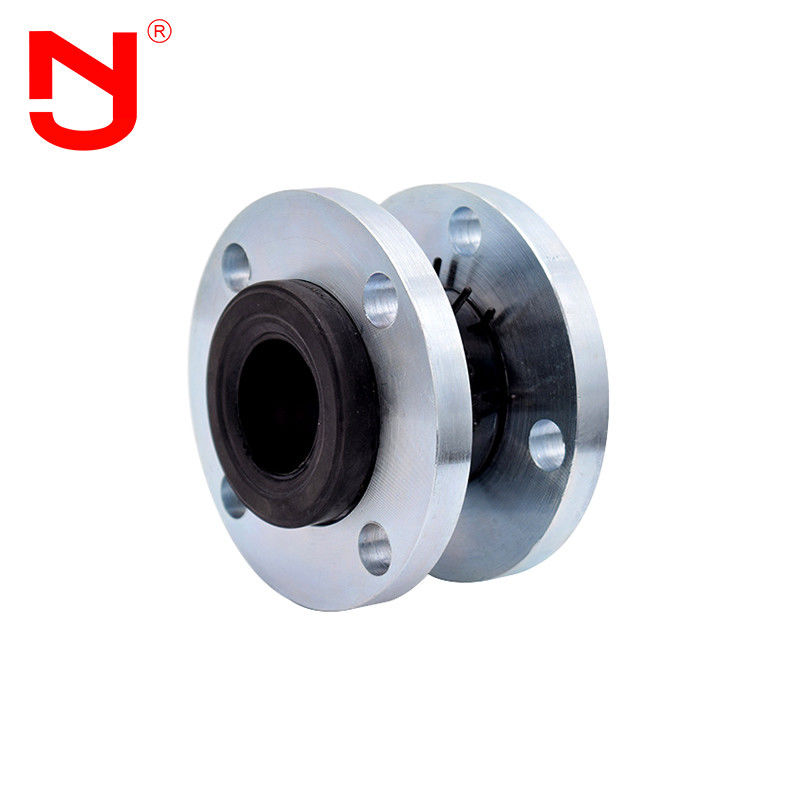

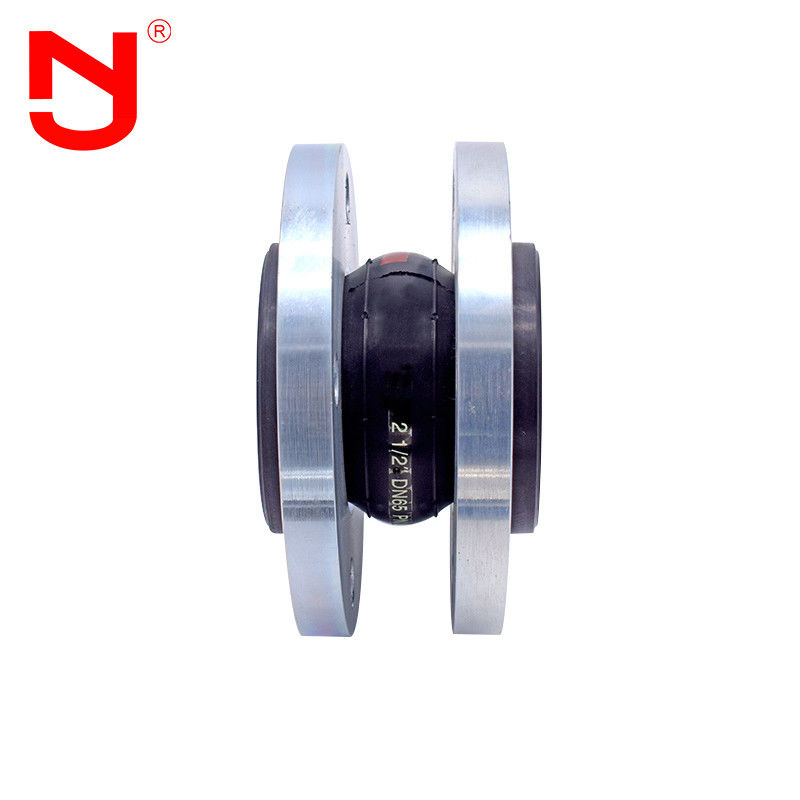

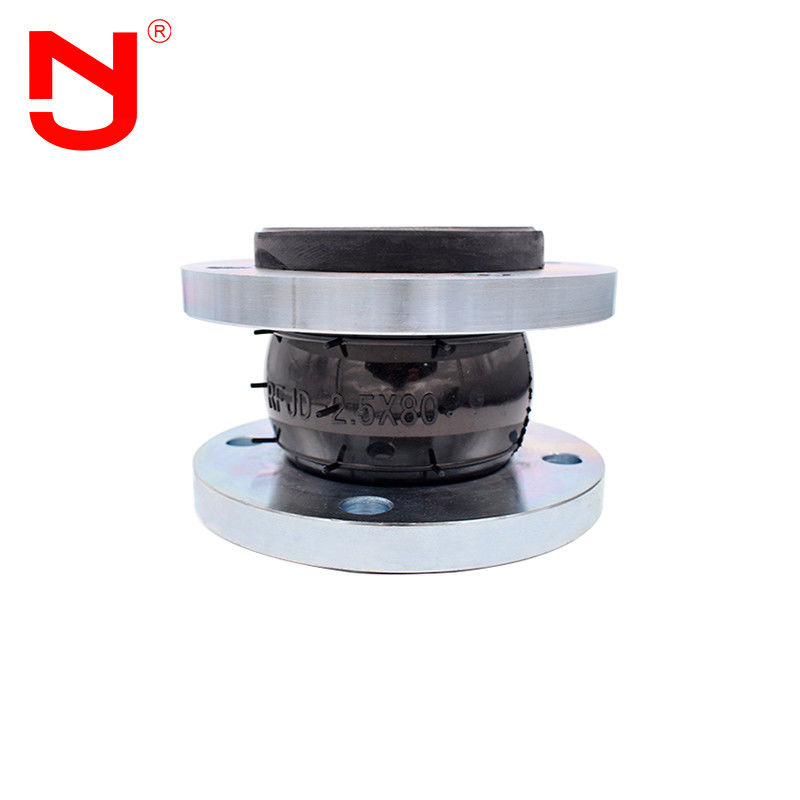

China High Quality Single Sphere Rubber Pipe Flexible Connector
Pipe flexible connector is commonly known as rubber joint. Pipe flexible connector is widely used in water, electricity, chemical industry and ship mooring system. The pipe flexible connector can be automatically extended with the natural change of weather during use. The structural material of the pipe flexible connector is nylon cord fabric, and the inner and outer surfaces are made of high strength aging resistant polar rubber. In order to prevent the natural shrinkage and reduce the aging fracture of pipe flexible connector in long-term use, steel wire is used for multiple protection.
Performance characteristics of pipe flexible connector
Pipe flexible connectors can be divided into three categories: general, special and heat-resistant
1. Universal pipe flexible connector: suitable for transporting water at - 15 ℃ ~ 80 ℃ and acid or alkali solution with concentration less than 10%.
2. Special pipe flexible connector: suitable for special functions, such as oil resistance, plug resistance, ozone resistance, wear resistance or chemical corrosion resistance.
3. Heat resistant pipe flexible connector: suitable for transporting water with temperature higher than 80 ℃.
Technical data of pipe flexible connector
|
Main data of pipe flexible connector |
||||||
| Nominal diameter(DN) | Length | Axial displacement(mm) | Horizontal displacement | Deflexion angle | ||
| mm | inch | mm | Extension | Compression | mm | (a1+a2)° |
| 32 | 1 1/4 | 95 | 6 | 9 | 9 | 15° |
| 40 | 1 1/2 | 95 | 6 | 10 | 9 | 15° |
| 50 | 2 | 105 | 7 | 10 | 10 | 15° |
| 65 | 2 1/2 | 115 | 7 | 13 | 11 | 15° |
| 80 | 3 | 135 | 8 | 15 | 12 | 15° |
| 100 | 4 | 150 | 10 | 19 | 13 | 15° |
| 125 | 5 | 165 | 12 | 19 | 13 | 15° |
| 150 | 6 | 180 | 12 | 20 | 14 | 15° |
| 200 | 8 | 210 | 16 | 25 | 22 | 15° |
| 250 | 10 | 230 | 16 | 25 | 22 | 15° |
| 300 | 12 | 245 | 16 | 25 | 22 | 15° |
| 350 | 14 | 255 | 16 | 25 | 22 | 15° |
| 400 | 16 | 255 | 16 | 25 | 22 | 15° |
| 450 | 18 | 255 | 16 | 25 | 22 | 15° |
| 500 | 20 | 255 | 16 | 25 | 22 | 15° |
| 600 | 24 | 260 | 16 | 25 | 22 | 15° |
Note: 1. The special requirements of pipe flexible connector can be customized according to user's drawing. Flange standard is GB / t9115.1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The rubber ball of pipe flexible connector can be used as natural rubber, EPDM, chloroprene rubber, butyl rubber, butadiene rubber, fluororubber, etc. when the pipe flexible connector above DN200 is used for suspension water supply, the pipeline must have fixed support or fixed support, otherwise the pipe flexible connector shall be installed with anti falling device.
Pipe flexible connector details show
Pipe flexible connector production Flow
Do you know how is a pipe flexible connector made?Let's see with JINGNING.
It is very important to select the appropriate pipe flexible connector, to understand the compatibility of the medium and the selected material of the pipe flexible connector, the range of full temperature, full pressure and full vacuum, the amount of movement required, and the size between the pipe flanges. With this information, JINGNING application engineers can help determine the ideal pipe flexible connector for any application.
Pipe flexible connector advantage
1. Factory price of pipe flexible connector.
2. 16 years of manufacturing experience, 5 years of export experience.
3. Strict quality inspection, the quality far exceeds the industry standard.
4. Pipe flexible connector mold has a variety of specifications, support customization, OEM.
5. Provide free samples of pipe flexible connector.
6. Pipe flexible connector are in large stock.
Pipe flexible connector application
Pipe flexible connectors are widely used in various pipeline systems, such as the connection of pipe flexible connectors with pumps and valves, fire-fighting equipment and pipelines with large vibration. Pipes with frequent changes of heat and cold. It is mainly used for remote water and sewage lifting and transportation, water supply and cooling circulating water of thermal power plant, pipeline transportation of metallurgical industry, condensate water, chemical industry, cooling and dilution of petrochemical industry, and flexible connection between long and short distance pipelines in other industries. Because the pipe flexible connector has high wear resistance, it is also suitable for all industries of granular and powdery and gas low temperature.
