Product Description

China Jingning Dn30-Dn3000 Flange Rubber Flexible Connector Expansion Joint


Rubber flexible connector can also be called: flexible rubber joint, rubber soft joint, soft joint, flexible rubber joint, etc. Rubber flexible connector is a pipe connector with high elasticity, high air tightness, medium resistance and weather resistance. Rubber flexible connector is a kind of composite rubber pipe which is composed of inner rubber layer, fabric reinforcement layer (the reinforcement layer has multi-layer scraped nylon cord), middle rubber layer, outer rubber layer, end reinforced metal ring or steel ring, and loose combination with metal flange or parallel joint after high temperature and high pressure vulcanization. The rubber flexible connector makes use of the advantages of rubber, such as high elasticity, high gas resistance, medium resistance, weather resistance and radiation resistance. Rubber flexible connector can reduce the vibration and noise of the pipeline, and compensate the thermal expansion and cold contraction caused by temperature change.


Performance characteristics of rubber flexible connector


1. The decompression effect of rubber flexible connector is reliable, and the outlet pressure is not affected by the inlet pressure and flow rate. It can reduce both dynamic pressure and static pressure, and keep the set outlet pressure constant.

2. The rubber flexible connector is easy to adjust and operate. Just adjust the adjusting screw of the pilot rubber joint to obtain accurate and stable outlet pressure.

3. The rubber flexible connector has good energy saving effect. The rubber joint body adopts full channel streamline DC design, with small pressure loss, large flow, small volume and light weight.

4. The rubber flexible connector has a long service life, and the important parts are made of special materials, so there is no need for maintenance.


Technical data of rubber flexible connector


Main data of rubber flexible connector

Nominal diameter(DN) Length Axial displacement(mm) Horizontal displacement Deflexion angle
mm inch mm Extension Compression mm (a1+a2)°
32 1 1/4 95 6 9 9 15°
40 1 1/2 95 6 10 9 15°
50 2 105 7 10 10 15°
65 2 1/2 115 7 13 11 15°
80 3 135 8 15 12 15°
100 4 150 10 19 13 15°
125 5 165 12 19 13 15°
150 6 180 12 20 14 15°
200 8 210 16 25 22 15°
250 10 230 16 25 22 15°
300 12 245 16 25 22 15°
350 14 255 16 25 22 15°
400 16 255 16 25 22 15°
450 18 255 16 25 22 15°
500 20 255 16 25 22 15°
600 24 260 16 25 22 15°

Note: 1. The special requirements of rubber flexible connector can be customized according to user's drawing. Flange standard is GB / t9115.1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The rubber ball of rubber flexible connector can be used as natural rubber, EPDM, chloroprene rubber, butyl rubber, butadiene rubber, fluororubber, etc. when the rubber flexible connectorabove DN200 is used for suspension water supply, the pipeline must have fixed support or fixed support, otherwise the rubber flexible connector shall be installed with anti falling device.

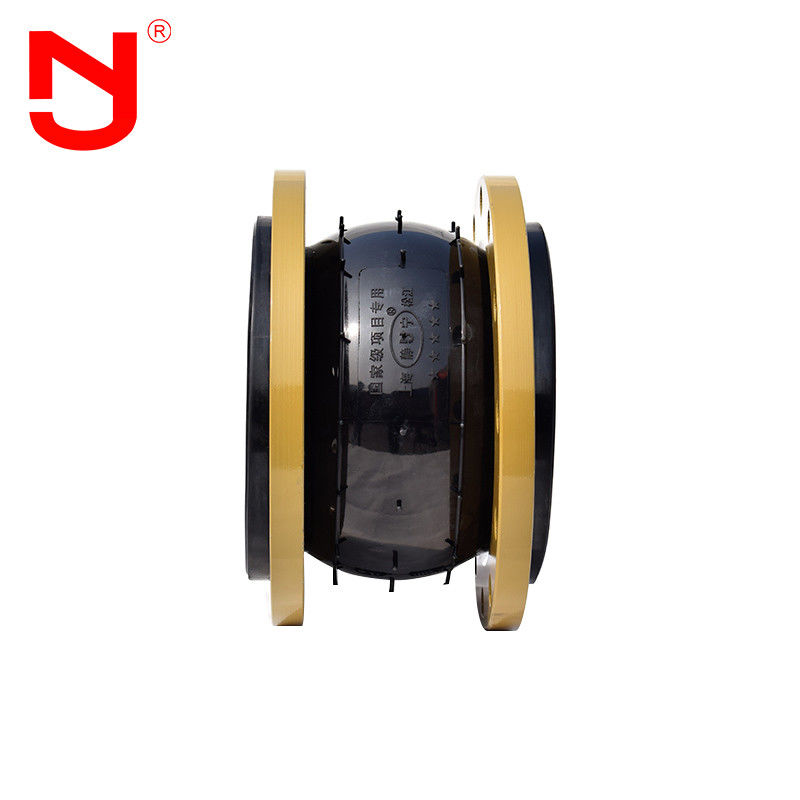

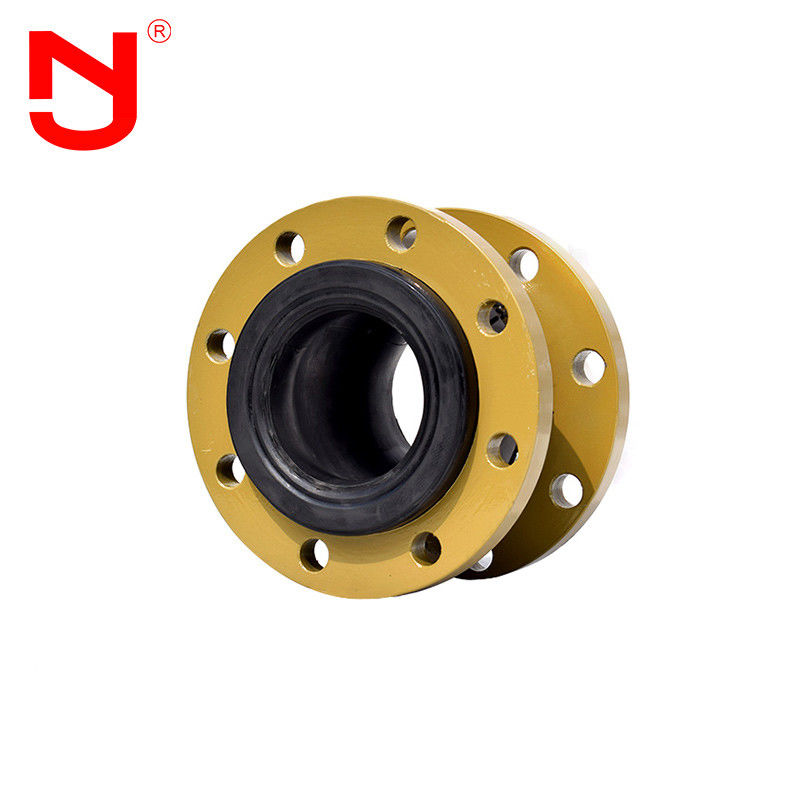

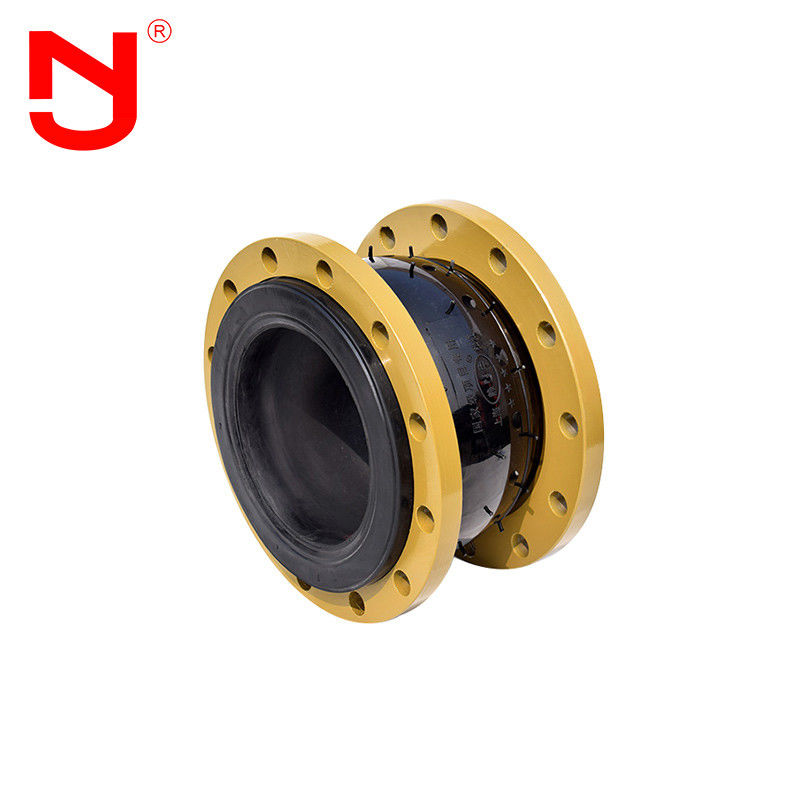

Flexible joint pipe details show


Jingning Dn30-Dn3000 Flange Flexible Rubber Expansion Joint Connector 0


Rubber flexible connector production Flow


Do you know how is a rubber flexible connector made?Let's see with JINGNING.


Jingning Dn30-Dn3000 Flange Flexible Rubber Expansion Joint Connector 1


It is very important to know the compatibility between the medium of rubber flexible connector and the selected rubber flexible connector material, the range of full temperature, full pressure and full vacuum, the required movement of rubber flexible connector, and the size between pipe flanges when selecting the appropriate rubber flexible connector. With this information, Jingning application engineers can help determine the ideal rubber flexible connector for any application.


Rubber flexible connector advantage


1. Factory price of  rubber flexible connector.

2. 16 years of manufacturing experience, 5 years of export experience.

3. Strict quality inspection, the quality far exceeds the industry standard.

4. Rubber flexible connector mold has a variety of specifications, support customization, OEM.

5. Provide free samples of rubber flexible connector.

6. Rubber flexible connector are in large stock.


Rubber flexible connector application


Rubber flexible connector is widely used in chemical engineering, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, sanitation, water heating, fire protection, electric power and other basic projects because of its good comprehensive performance. According to the different rubber materials of rubber flexible connector, Rubber flexible connector can be made into various varieties, such as acid resistance, alkali resistance, corrosion resistance, oil resistance, high temperature resistance, radiation resistance, wear resistance, aging resistance, etc. the rubber flexible connector can adapt to a variety of media and environment.




Q1:What`s the rubber material of rubber flexible connector?

A1: EPDM,CR,NBR,etc .It depends on the working enviroment and media.


Q2: Is the flange galvaized of rubber flexible connector?

A2: Yes,we have electronic galvanized and hot dip galvanized flanges.We also have painted flanges


Q3: Can I get a sample?

A3: Of cause. We could delivery by Express,by air or by sea.


Q4: What is the MOQ of rubber flexible connector?

A4: 1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us .
