DN32 Rubber Expansion Joints For Pipe Stainless Steel Coupling Pipe Bellows Compensator

China Shanghai Songjiang Jingning Shock Absorber Co.,Ltd. certification
China Shanghai Songjiang Jingning Shock Absorber Co.,Ltd. certification
Timely delivery,good quality products

—— Manul

We received rubber expansion joints,then test.Good quality!

—— Mike

Good quality and good price!

—— Sofia

I'm Online Chat Now

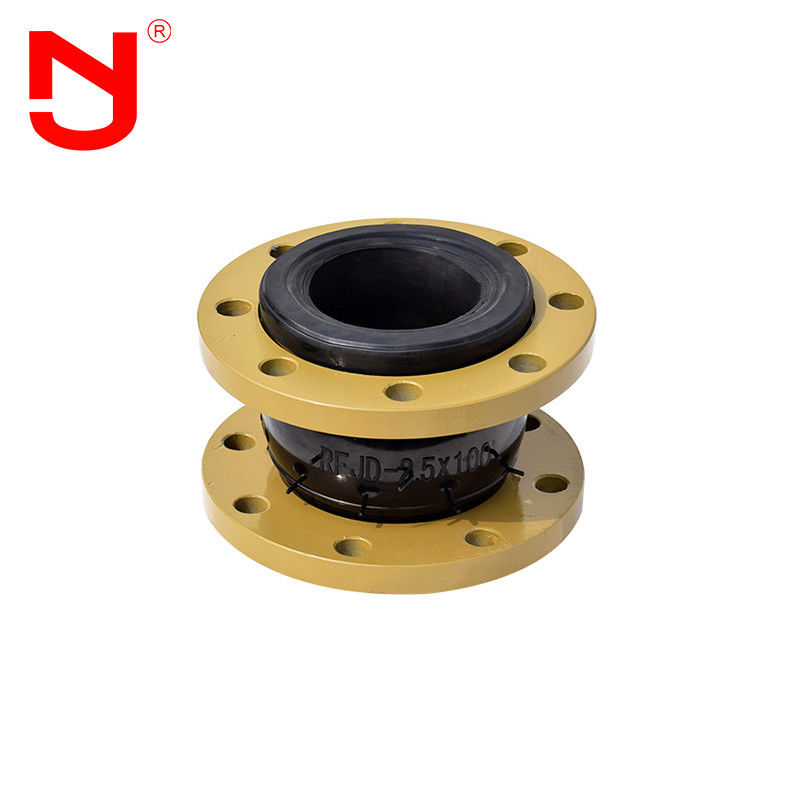

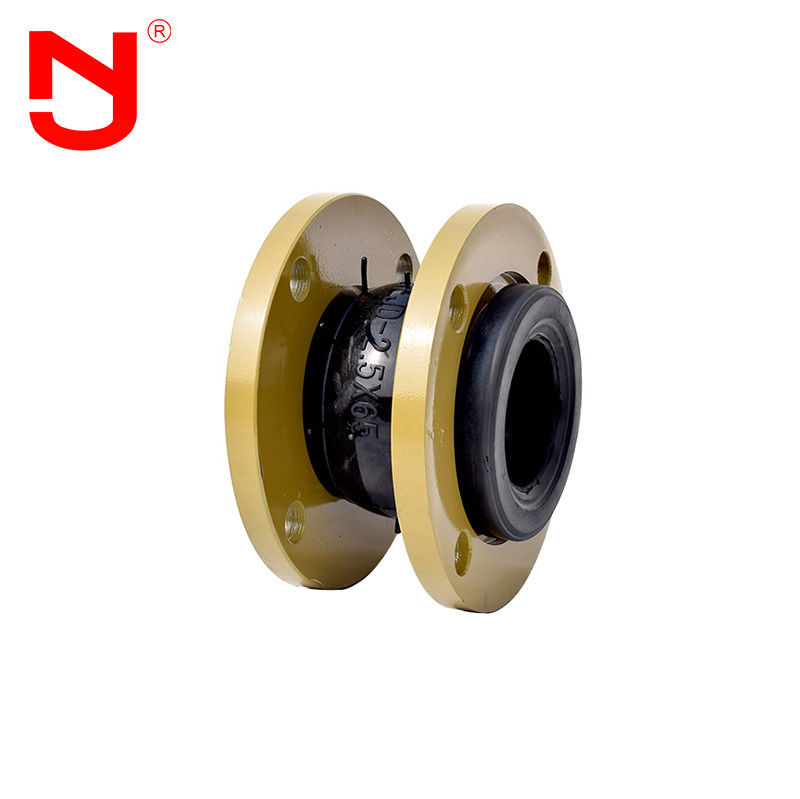

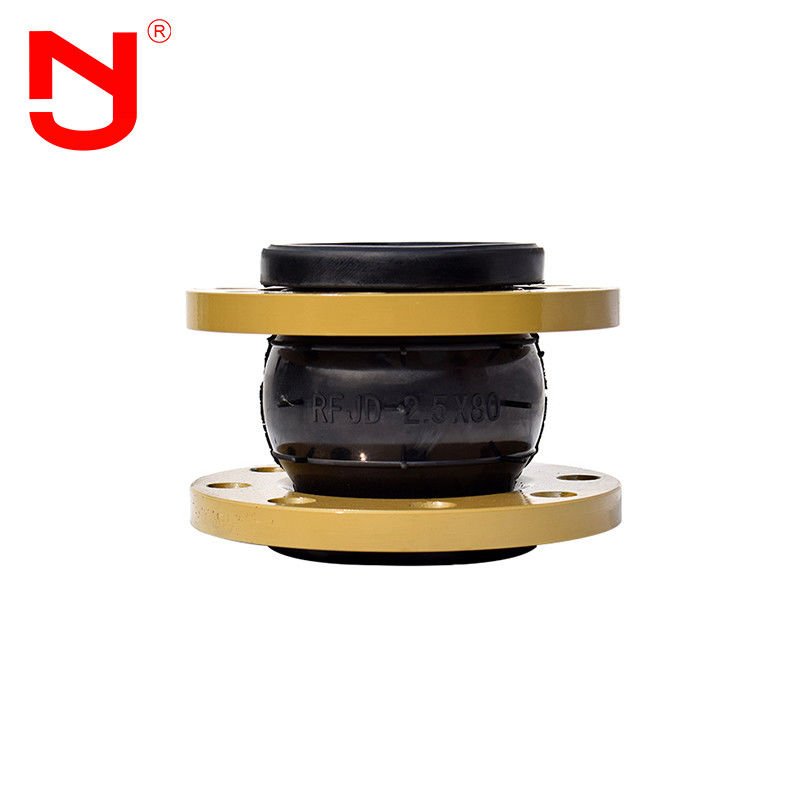

DN32 Rubber Expansion Joints For Pipe Stainless Steel Coupling Pipe Bellows Compensator

DN32 Rubber Expansion Joints For Pipe Stainless Steel Coupling Pipe Bellows Compensator
DN32 Rubber Expansion Joints For Pipe Stainless Steel Coupling Pipe Bellows Compensator
video play

Large Image :  DN32 Rubber Expansion Joints For Pipe Stainless Steel Coupling Pipe Bellows Compensator

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE,ISO
Model Number: RLJS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: carton or wooden
Delivery Time: 5--15 working days
Payment Terms: Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability: 10000 sets per week
Detailed Product Description
OEM: 17Years' Experience Product Name: Rubber Expansion Joints For Pipe Stainless Steel Coupling Pipe Bellows Compensator
Working Pressure: -0.2~4.5Mpa Keyword: Rubber Expansion Joints For Pipe
Working Temperature: -30~130℃ Material: EPDM,NBR,SBR,NR,PTFE,FKM,IIR,CR
Burst Pressure: 6.0Mpa Technical: Vulcanized,Casting
High Light:

DN32 Rubber Expansion Joints

,

Compensator Rubber Expansion Joints

,

DN32 epdm rubber expansion joint

Rubber Expansion Joints For Pipe Stainless Steel Coupling Pipe Bellows Compensator



The rubber expansion joints for pipe is made of high-strength, cold and hot stable polyester cord, which is cross-linked by high-pressure and high-temperature molding. The internal density of the rubber expansion joints for pipe is high, and rubber expansion joints for pipe can withstand high pressure. The elastic deformation effect of the rubber expansion joints for pipe is excellent. The product structure is designed with high end arc and long curve, and the rubber expansion joints for pipe has a large number of displacement functions.



Performance characteristics of rubber expansion joints for pipe



1. The rubber expansion joints for pipe has the advantages of small volume, light weight, good elasticity and convenient installation and maintenance.

2. The rubber expansion joints for pipe can produce transverse, axial and angular displacement when it is installed, which is not limited by the pipe centerless and non parallel flange.

3. When the rubber expansion joints for pipe works, it can reduce the structure transmission noise and has strong vibration absorption ability.



Technical data of rubber expansion joints for pipe



Main data of rubber expansion joints for pipe

Nominal diameter(DN) Length Axial displacement(mm) Horizontal displacement Deflexion angle
mm inch mm Extension Compression mm (a1+a2)°
32 1 1/4 95 6 9 9 15°
40 1 1/2 95 6 10 9 15°
50 2 105 7 10 10 15°
65 2 1/2 115 7 13 11 15°
80 3 135 8 15 12 15°
100 4 150 10 19 13 15°
125 5 165 12 19 13 15°
150 6 180 12 20 14 15°
200 8 210 16 25 22 15°
250 10 230 16 25 22 15°
300 12 245 16 25 22 15°
350 14 255 16 25 22 15°
400 16 255 16 25 22 15°
450 18 255 16 25 22 15°
500 20 255 16 25 22 15°
600 24 260 16 25 22 15°

Note: 1. The special requirements of rubber expansion joints for pipe can be customized according to user's drawing. Flange standard is GB / t9115.1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The rubber ball of rubber expansion joints for pipe can be used as natural rubber, EPDM, chloroprene rubber, butyl rubber, butadiene rubber, fluororubber, etc. when the rubber expansion joints for pipe above DN200 is used for suspension water supply, the pipeline must have fixed support or fixed support, otherwise the rubber expansion joints for pipe shall be installed with anti falling device.

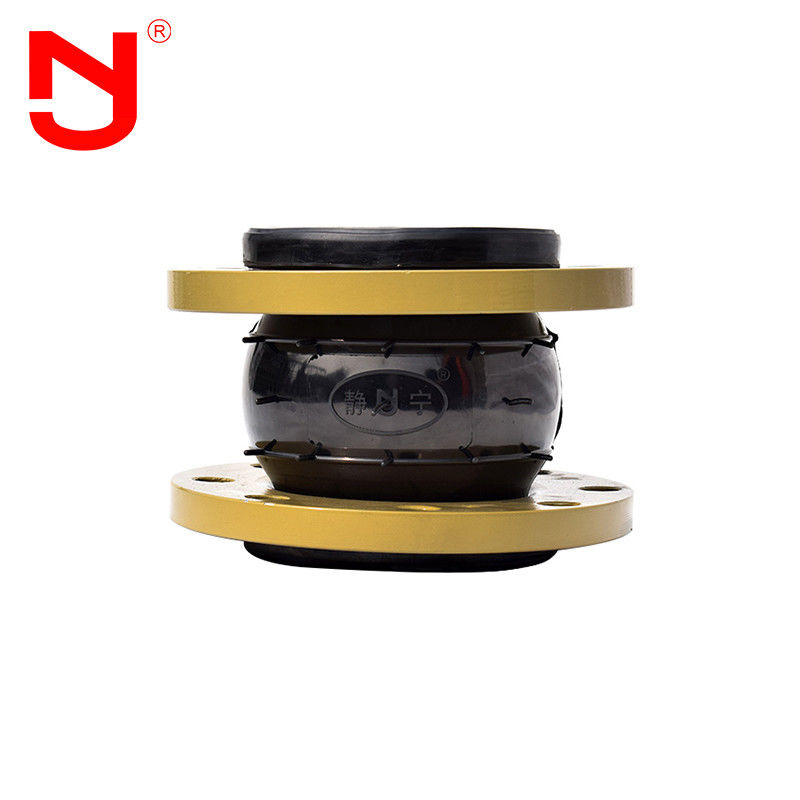

Rubber expansion joints for pipe details show



DN32 Rubber Expansion Joints For Pipe Stainless Steel Coupling Pipe Bellows Compensator 0



Rubber expansion joints for pipe production Flow



Do you know how is a Rubber expansion joints for pipe made?Let's see with JINGNING.



DN32 Rubber Expansion Joints For Pipe Stainless Steel Coupling Pipe Bellows Compensator 1



It is very important to know the compatibility between the medium of rubber expansion joints for pipe and the selected rubber expansion joints for pipe material, the range of full temperature, full pressure and full vacuum, the required movement of rubber expansion joints for pipe, and the size between pipe flanges when selecting the appropriate rubber expansion joints for pipe. With this information, Jingning application engineers can help determine the ideal rubber expansion joints for pipe for any application.



Rubber expansion joints for pipe advantage



1. Factory price of  rubber expansion joints for pipe.

2. 16 years of manufacturing experience, 5 years of export experience.

3. Strict quality inspection, the quality far exceeds the industry standard.

4. Rubber expansion joints for pipe mold has a variety of specifications, support customization, OEM.

5. Provide free samples of rubber expansion joints for pipe.

6. Rubber expansion joints for pipe are in large stock.



Rubber expansion joints for pipe application



Because of rubber expansion joints for pipe has good comprehensive performance, rubber expansion joints for pipe is especially suitable for the connection of pumps and valves, pipelines with large vibration, and pipelines with frequent changes of cold and heat. Rubber expansion joints for pipes are commonly used in seawater, fresh water, cold and hot water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, product oil, air, gas, steam and particle powder fields.



FAQ



Q1:What`s the rubber material of rubber expansion joints for pipe?

A1: EPDM,CR,NBR,etc .It depends on the working enviroment and media.



Q2: Is the flange galvaized of rubber expansion joints for pipe?

A2: Yes,we have electronic galvanized and hot dip galvanized flanges.We also have painted flanges



Q3: Can I get a sample?

A3: Of cause. We could delivery by Express,by air or by sea.



Q4: What is the MOQ of rubber expansion joints for pipe?

A4: 1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us .
