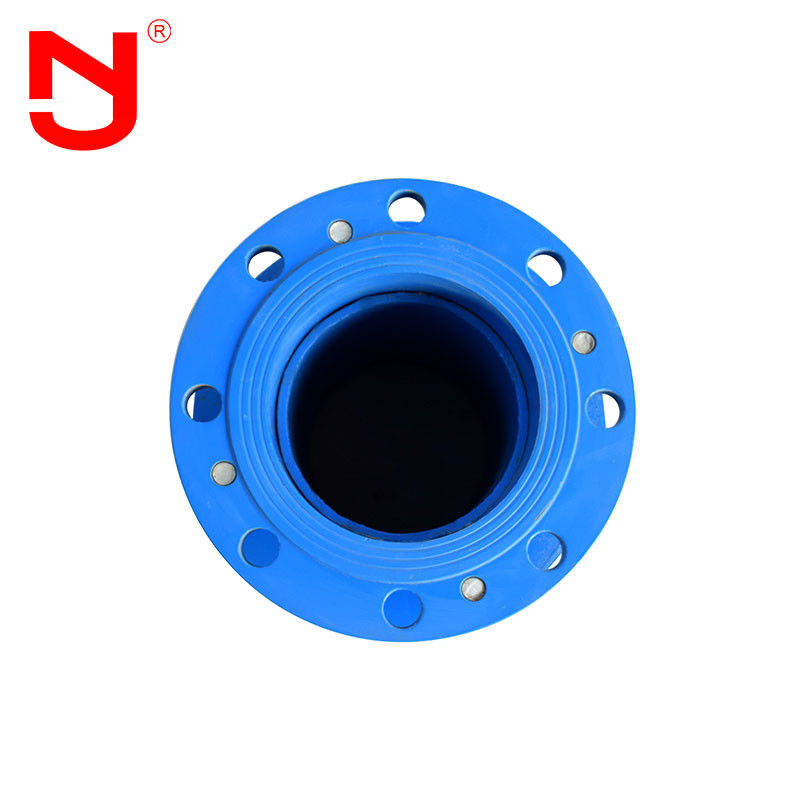

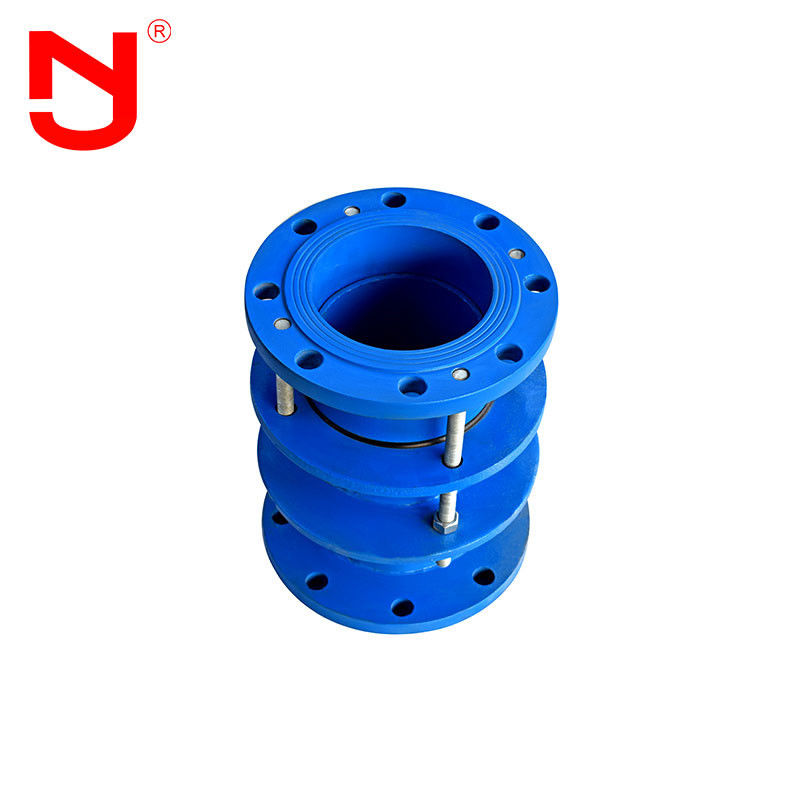

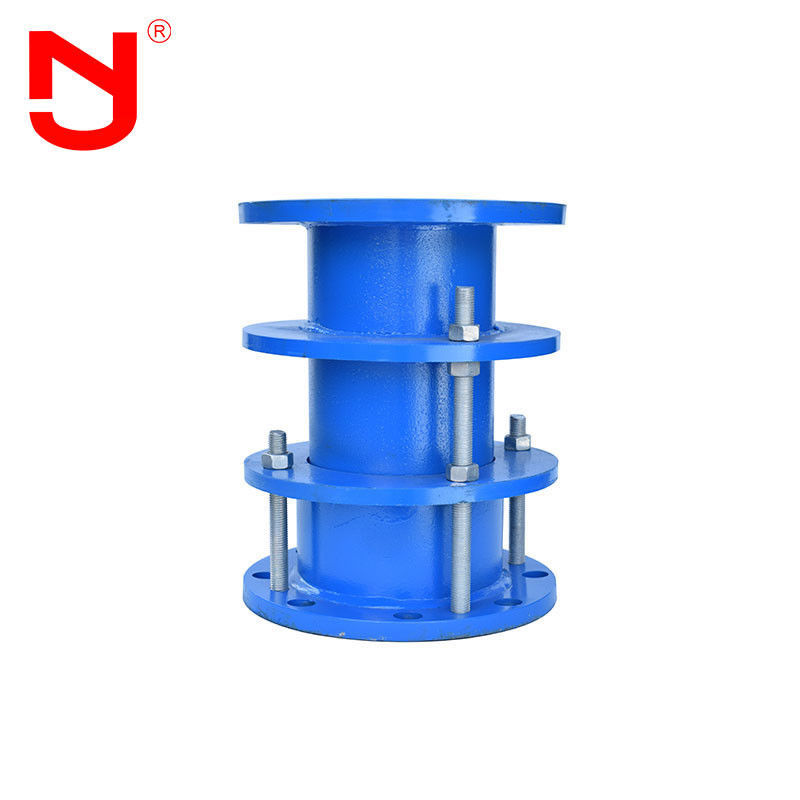

Double Flange Limit Metal Expansion Joint Metallic For Water Engineering

Double Flange Limit Metal Expansion Joint Metallic For Water Engineering

Double Flange Metal Expansion Joint

Water Engineering Metal Expansion Joint

DN3000 expansion joint pipe

Place of Origin:

China

Brand Name:

JINGNING

Certification:

CE

Model Number:

VSSJAF

Contact Us

Request A Quote
Product Details
OEM:
17Years' Experience
Product Name:
Double Flange Limit Expansion Joint Metallic For Water Engineering
Size:
DN80----DN3000
Material:
Carbon Steel,Stainless Steel
Working Pressure:
0-6Mpa
Flange Standard:
DIN,ANSI,BS,JIS,AS
Payment & Shipping Terms
Minimum Order Quantity
1
Product Description

Double Flange Limit Expansion Joint Metallic For Water Engineering



The double flange limit expansion joint consists of the main body, the sealing ring, the gland, the telescopic short pipe and other main parts. aDouble flange limit expansion joint is a new product that connects pumps, valves and other equipment with pipelines. Double flange limit expansion joint connects them into a whole through full bolts, and has a certain displacement. In this way, Double flange limit expansion joint can be adjusted according to the installation size on site during installation and maintenance, and the axial thrust can be transferred back to the whole pipeline during work. This not only improves work efficiency, but also plays a certain protective role for pumps, valves and other equipment.



Performance of double flange limit expansion joint



1. The double flange limit expansion joint should have high compression capacity to ensure the operation of the pipeline during the crustal movement. It has high corrosion resistance, and the expansion joint is buried underground all the year round, so it has high requirements for corrosion resistance.
2. The double flange limit expansion joint can move axially, which can eliminate the stress of thermal expansion and cold contraction caused by seasonal changes or different media. The steel expansion joint is made of steel, and the rubber joint has strong corrosion resistance and flange connection.
3. The double flange limit expansion joint is easy to install and maintain to avoid unnecessary trouble during welding. Special design process is adopted and limit bolts are reinforced to make the pipeline more reliable in operation.


Double flange limit expansion joint structure



Double Flange Limit Metal Expansion Joint Metallic For Water Engineering 0

Technical data of double flange limit expansion joint



Main data of double flange limit expansion joint

Nominal

iameter DN

External

diameter Dw

Length

Compen

-sation

△L

Flange connecting dimension
0.6Map 1.0Map
L L1 D D1 n-do D D1 n-do
65 76 340 105 50 160 130 4-Φ14 185 145 4-Φ18
80 89 190 150 4-Φ18 200 160 8-Φ18
100 108 210 170 220 180 8-Φ18
114 220 180 8-Φ18
125 133 265 200 8-Φ18 250 210 8-Φ18
140 250 210 8-Φ18
150 159 375 225 8-Φ18 285 240 8-Φ22
168 285 240 8-Φ22
200 219 321 280 340 295 8-Φ22
250 273 375 335 12-Φ18 395 350 12-Φ22
300 325 350 130 65 440 395 12-Φ22 445 400 12-Φ22
350 377 490 445 505 460 16-Φ26
400 426 540 495 16-Φ22 565 515 16-Φ26
450 480 595 550 615 565 20-Φ26
500 530 645 600 20-Φ22 670 620 20-Φ26
600 630 775 705 20-Φ26 780 725 20-Φ30
700 720 860 810 24-Φ26 895 840 24-Φ30
800 820 590 220 130 950 920 24-Φ30 1015 950 24-Φ33
900 920 1075 1020 1115 1050 28-Φ33
1000 1020 1175 1120 28-Φ30 1230 1160 28-Φ36
1200 1220 1405 1340 32-Φ33 1455 1380 32-Φ40
1400 1420 1630 1500 36-Φ36 1675 1590 36-Φ42
1500 1520 1730 1660 36-Φ36 36-Φ42
1600 1620 1830 1760 40-Φ40 1915 1820 40-Φ48
1810 1820 2045 1970 44-Φ42 2115 2020 44-Φ48
2000 2020 2265 2180 48-Φ42 2320 2230 48-Φ48
2200 2220 2475 2390 52-Φ42 2550 2440 52-Φ56
2400 2420 2685 2600 56-Φ42 2760 2650 60-Φ56
2600 2620 600 240 140 2905 2810 60-Φ48 2960 3070 64-Φ56
2800 2820 3115 3020 64-Φ48 3180 3290 68-Φ60
3000 3020 3315 3220 68-Φ48 3405
3200 3220 3525 3430 72-Φ48
3400 3420 3735 3640 76-Φ48
3600 3620 3970 3860 80-Φ56

Note:Double flange limit expansion joint is suitable for connecting both sides with flange. During installation, adjust the connecting length of both ends of the product, tighten the gland bolts in turn and adjust the limit nuts. In this way, the pipeline can expand freely, lock the expansion, and ensure the safe operation of the pipeline.



Double flange limit expansion joint production flow



Double Flange Limit Metal Expansion Joint Metallic For Water Engineering 1



Double flange limit expansion joint advantage



1. Factory price of double flange limit expansion joint.

2. 16 years of manufacturing experience, 5 years of export experience.

3. Strict quality inspection, the quality far exceeds the industry standard.

4. Double flange limit expansion joint mold has a variety of specifications, support customization, OEM.

5. Provide free samples of double flange limit expansion joint.

6. Double flange limit expansion joint​s are in large stock.



Double flange limit expansion joint application



In the installation process of double flange limit expansion joint, when the temperature changes or the pipe vibrates, the double flange limit expansion joint can play the role of expansion compensation. When the foundation settlement, the double flange limit expansion joint can compensate the displacement to a certain extent to ensure that there is no leakage in the seal. Secondly, the installation and removal of the double flange limit expansion joint is very convenient, which makes it connected to the water supply and drainage pipeline, water tower, The installation and disassembly of the pump water meter provides great convenience.



FAQ

Q1:Can the double flange limit expansion joint be marked with customized logo?

A1:Yes,the double flange limit expansion joint can be marked with your logo. We could provide OEM&ODM service for double flange limit expansion joint.



Q2:What’s the face to face length of double flange limit expansion joint?

A2:The face to face length of double flange limit expansion joint can be L130, L152,L203... We also could accept customized length according to your requirements.



Q3:Can you provide drawings of double flange limit expansion joint?

A3:Yes,we could provide drawings of double flange limit expansion joint for you.Please contact us to get the drawing of double flange limit expansion joint.



Q4:What certificates of double flange limit expansion joint can you provide?

A4:We could provide CE,ISO certificate for our double flange limit expansion joint.



Q5:Can we get a sample of double flange limit expansion joint?

A5:Yes,we could provide samples for you to test the quality of our double flange limit expansion joint.



Q6:What’s the warranty period of double flange limit expansion joint?

A6:We provide 18 months’ warranty for our double flange limit expansion joint.
