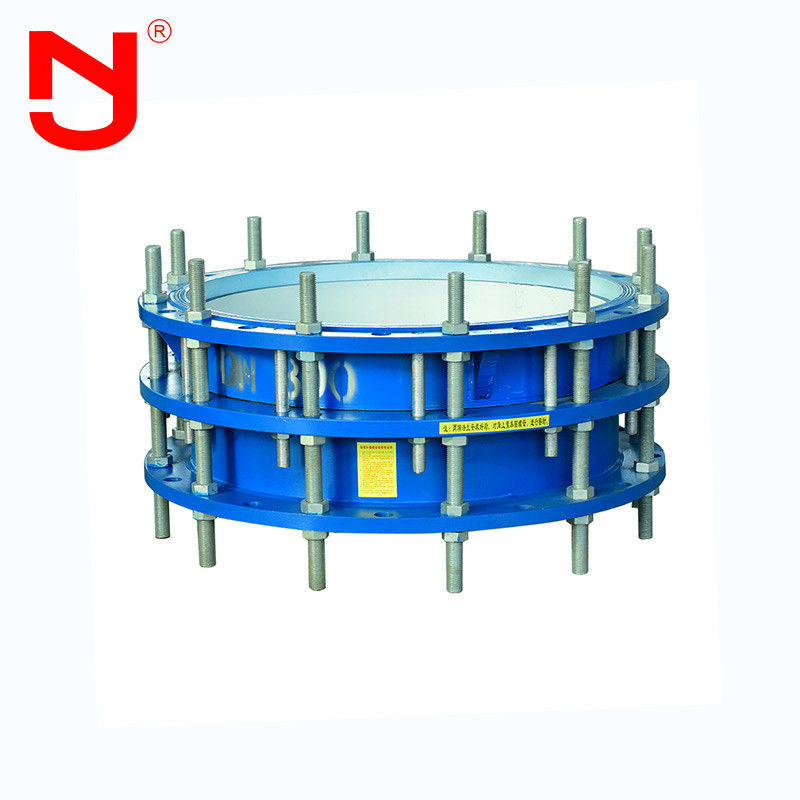

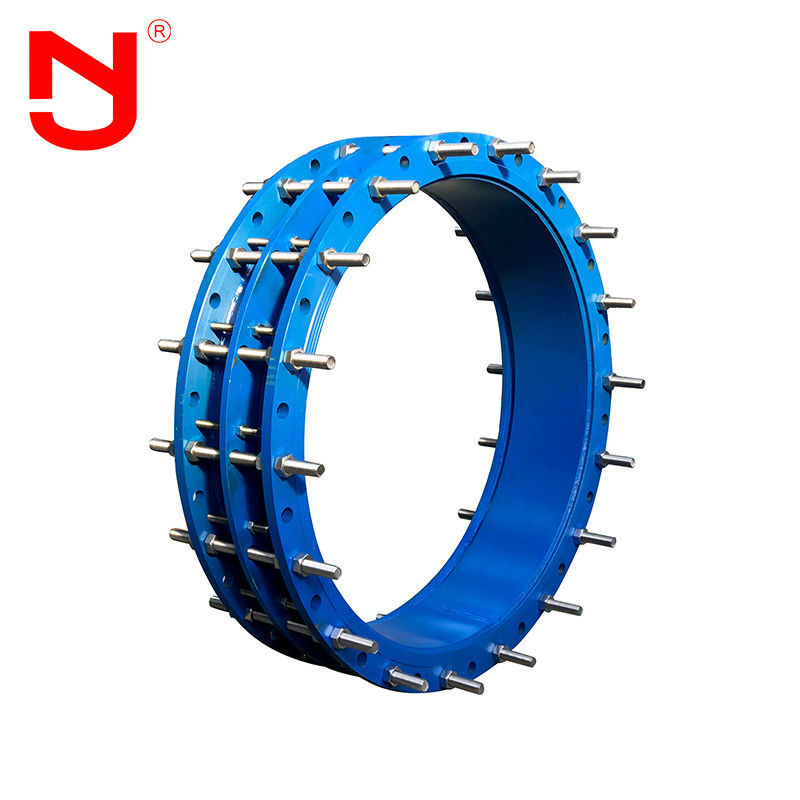

Single Flange Power Delivery Joint For Pipe Or System New Material

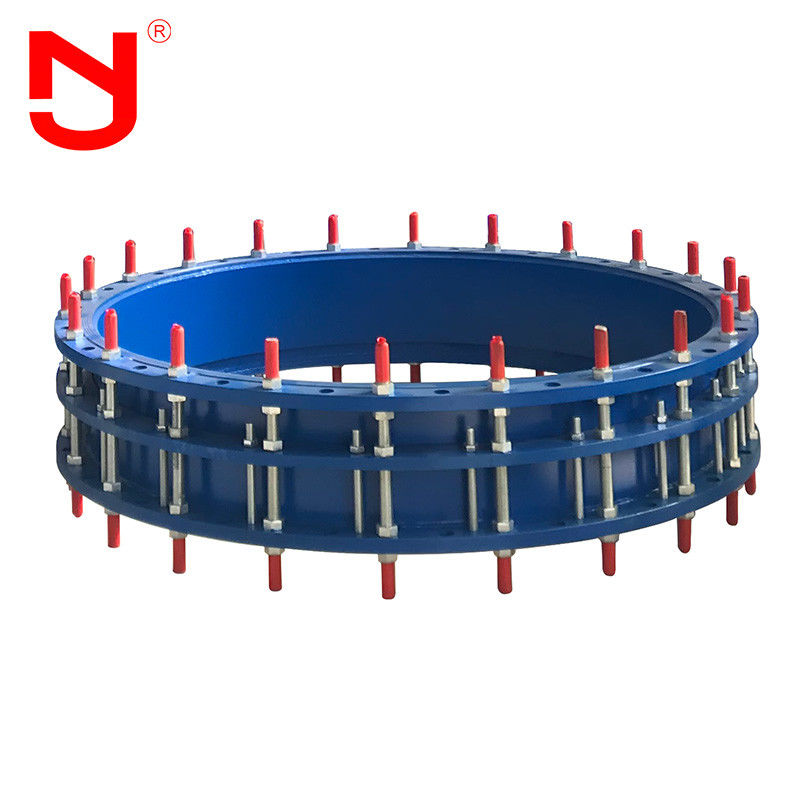

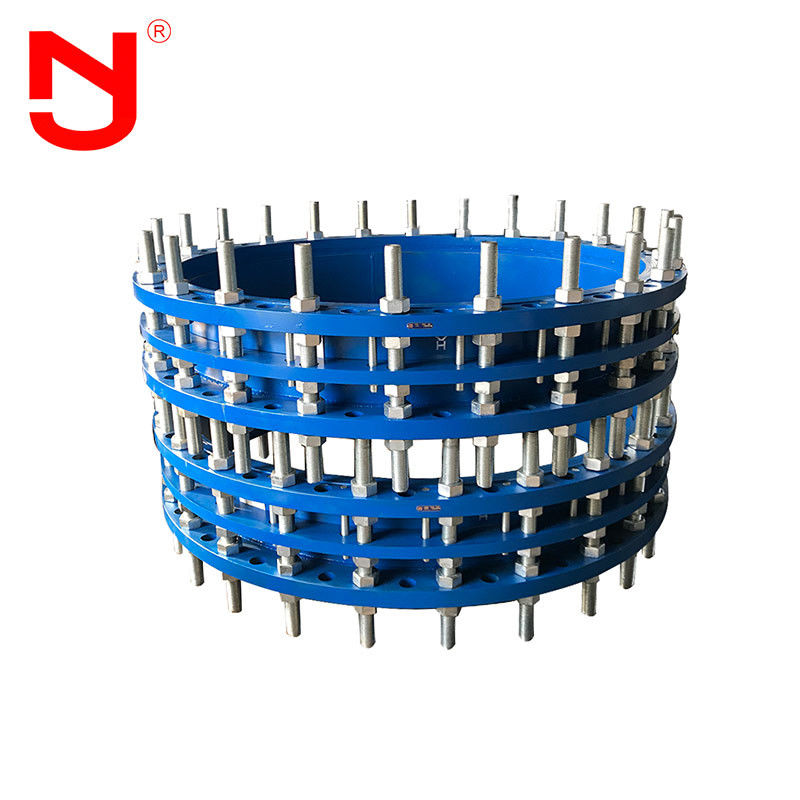

Single Flange Power Delivery Joint For Pipe Or System New Material
Single Flange Power Delivery Joint For Pipe Or System New Material
video play

Large Image :  Single Flange Power Delivery Joint For Pipe Or System New Material

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: VSSJAFG
Payment & Shipping Terms:
Minimum Order Quantity: 1
Detailed Product Description
OEM: 17Years' Experience Product Name: Double Flange Limit Expansion Joint Metallic For Water Engineering
Size: DN65--DN3200 Material: Carbon Steel,Stainless Steel
Working Pressure: 0-6Mpa Flange Standard: DIN,ANSI,BS,JIS,AS
High Light:

Single Flange Power Delivery Joint

,

Pipe Power Delivery Joint

,

DN65 Power Delivery Joint

New material single flange power delivery joint for pipe or system​



Single flange power delivery joint is also called flange loose sleeve compensation joint and flange loose sleeve expansion joint. The single flange power delivery joint is composed of body, gland, sealing ring and fastener. The single flange power delivery joint adopts the same sealing principle as the gland loose sleeve expansion joint. One end of the connection mode is flange connection, and the other end is socket connection, which is suitable for the connection of valves and other equipment with pipelines. The single flange power delivery joint can compensate the axial displacement of the pipe while connecting, so as to protect the valve and other equipment.



Performance of single flange power delivery joint



1. The single flange power delivery joint can compensate the axial displacement of pipeline.

2. The single flange power delivery joint can reduce the vibration and noise to a certain extent and protect the pipeline.

3. The single flange power delivery joint has the advantages of simple structure, convenient installation and easy maintenance.

4. High quality material selection of single flange power delivery joint is the basic guarantee of products.



Single flange power delivery joint structure



Single Flange Power Delivery Joint For Pipe Or System New Material 0



Technical data of single flange power delivery joint



Main data of single flange power delivery joint

Nominal

iameter DN

External

diameter Dw

Length Flange connecting dimension
L1 △L 0.6Map 1.0Map
B D D1 n-Th B D D1 n-Th
65 76 400 40 16 160 130 4-M12 20 185 145 4-M16
80 89 18 190  150 4-M16

22 200 160 8-M16
100 114 210 170 24 220 180
125 140 20 240 200 8-M16 26 250 210
150 168 265 225 285 240 8-M20
200 219 22 320 280 28 340 295
250 273 24 375 335 12-M16 395 350 12-M20
300 325 420 50 440 395 12-M20

445 400
350 377 26 490 445 30 505 460 16-M20
400 426 28 540 495 32 565 515 16-M24
450 480 595 550 615 565 20-M24
530 530 30 645 600 20-M20 34 670 620
600 630 440 755 705 20-M24 36 780 725 20-M27
700 720 32 860 810 24-M24 40 895 840 24-M27
800 820 600   34 975 920 24-M27

44 1015 950 24-M30
900 920 36 1075 1020 46 1115 1050 28-M30
1000 1020   1175 1120 28-M27 50 1230 1160 28-M33
The size meets standard GB/T124665-2002;Production size can be up to 3200, if there are special requirements to see the drawing production.



Single flange power delivery joint production flow



Single Flange Power Delivery Joint For Pipe Or System New Material 1



Single flange power delivery joint​: single flange power delivery joint is suitable for one side to be connected with flange and the other side to be welded with pipeline. When installing the single flange power delivery joint, adjust the installation length between the two ends of the product and the pipeline or flange. After the installation and welding of the single flange power delivery joint, tighten the gland bolts diagonally and evenly to form one. There is a certain displacement to facilitate the installation and maintenance, and adjust according to the site size. The single flange power delivery joint can transfer the time axial thrust to the whole pipeline when it works.



Single flange power delivery joint advantage



1. Factory price of single flange power delivery joint.

2. 16 years of manufacturing experience, 5 years of export experience.

3. Strict quality inspection, the quality far exceeds the industry standard.

4. Single flange power delivery joint mold has a variety of specifications, support customization, OEM.

5. Provide free samples of single flange power delivery joint.

6. Single flange power delivery joint​s are in large stock.



Single flange power delivery joint application



Single flange power delivery joint is suitable for conveying seawater, fresh water, cold and hot water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, product oil, air, gas, steam and particle powder with temperature not higher than 250 ℃. Single flange power delivery joint products are metal products, which have high tensile and compressive strength, superior soft sealing performance, convenient loading and unloading and other functions. Single flange power delivery joint is widely used in electric power, metallurgy, chemical industry, water supply and drainage, sewage treatment and other industries. Single flange power delivery joint is mainly used for the connection between valve and pipeline of water pump.
