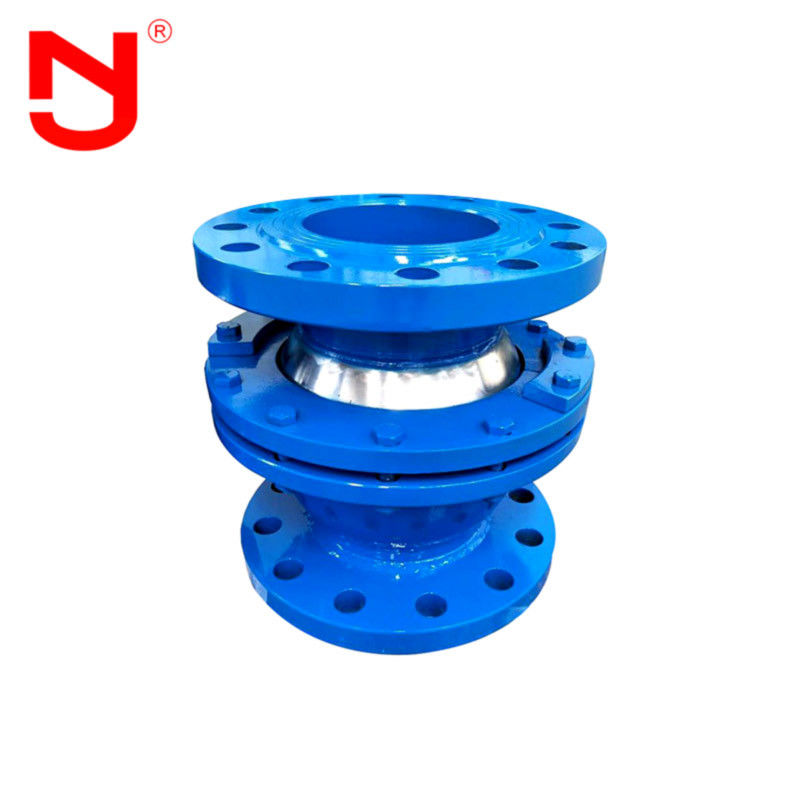

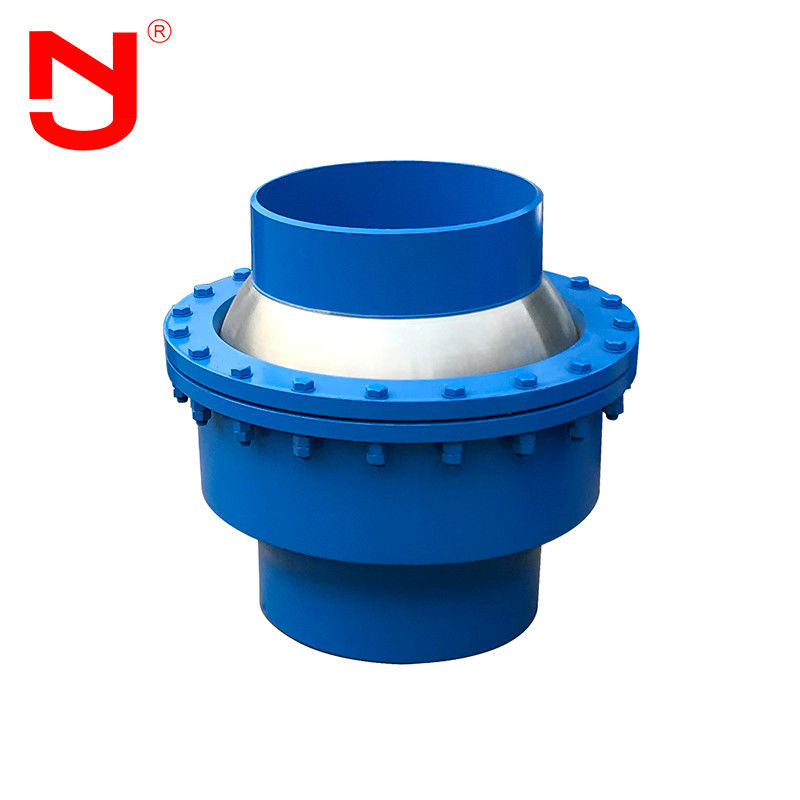

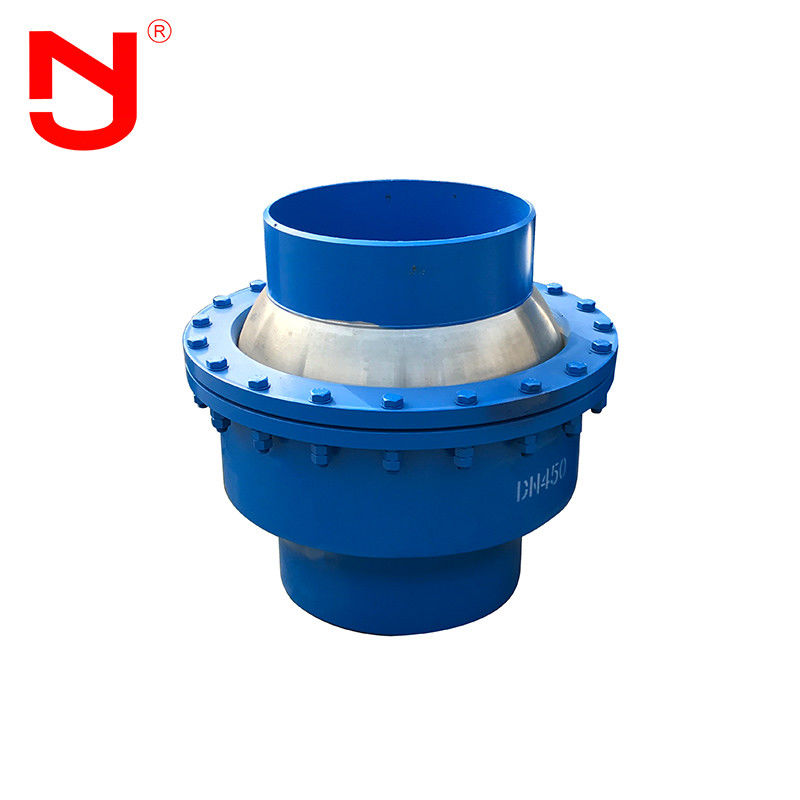

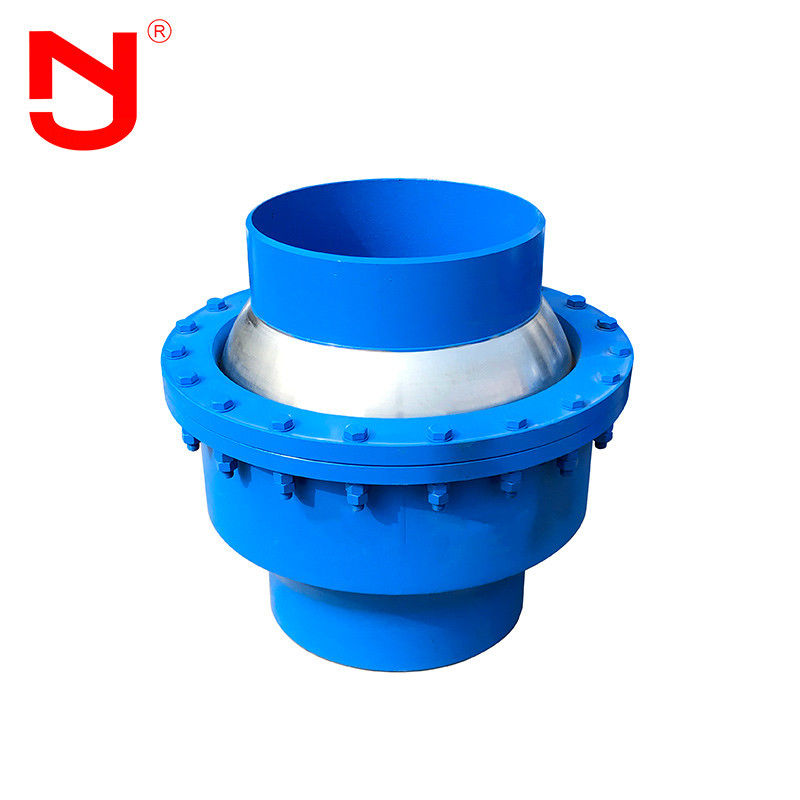

Flexible Pipe Dismantling Joint Spherical Pipe Compensator In Thermal Pipeline

Flexible Pipe Dismantling Joint Spherical Pipe Compensator In Thermal Pipeline
Flexible Pipe Dismantling Joint Spherical Pipe Compensator In Thermal Pipeline Flexible Pipe Dismantling Joint Spherical Pipe Compensator In Thermal Pipeline Flexible Pipe Dismantling Joint Spherical Pipe Compensator In Thermal Pipeline Flexible Pipe Dismantling Joint Spherical Pipe Compensator In Thermal Pipeline

Large Image :  Flexible Pipe Dismantling Joint Spherical Pipe Compensator In Thermal Pipeline

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: VSSJAFG
Payment & Shipping Terms:
Minimum Order Quantity: 1
Detailed Product Description
OEM: 17Years' Experience Product Name: Spherical Compensator
Working Medium: Steam, Hot Oil, Hot Water, Etc. Working Temperature: ≤ 350 ℃ / ≤ 500 ℃
Specification And Model: QB41/61SA-10/16/25/40C Working Pressure: (1.0~4.0)MPa
High Light:

Flexible Pipe Dismantling Joint

,

Spherical Pipe Compensator

,

Thermal Pipe Compensator

China Flexible Joint Of Spherical Compensator In Thermal Pipeline



Spherical compensators mainly rely on the angular displacement of the sphere to absorb or compensate the lateral displacement of the pipeline in one or more directions. Spherical compensators should be used in pairs, and single compensator has no compensation capacity, but spherical compensators can be used as universal joints of the pipeline. Therefore, the spherical compensator has the advantages of large compensation capacity, small fluid resistance and deformation stress, no blind plate force and small force on the fixed support. At the same time, the advanced technology of filling device is added to the spherical compensator, which makes the sealing performance of the equipment more stable and reliable.



Performance of spherical compensator



1. The spherical compensator has strong compensation ability.

2. The spherical compensator has small fluid resistance and small deformation stress.

3. The spherical compensator has no blind force and little support force for fixing.

4. The sealing performance of spherical compensator is more stable and reliable.

5. The spherical compensator can be maintained without stopping gas decompression, which is very convenient.



Spherical compensator structure

Flexible Pipe Dismantling Joint Spherical Pipe Compensator In Thermal Pipeline 0

Technical data of spherical compensator



Main data of spherical compensator
Nominal diameter DN(mm)

Max

radial size

D(mm)

Globe distance E(mm) Torque(KN.M) Size of joint end dxs(mm)

Total

length

L(mm)

Weight
1.0Mpa 1.6Mpa 2.5Mpa

1.0

Mpa

1.6

Mpa

2.5

Mpa

4.0

Mpa

connection flange connection tube Flange connection tube Flange

connection

tube

Flange
50 180 114 0.07 0.11 0.17 0.28 φ59×3.5 200 18 23 18.8 23.8 23 29
65 198 152 0.14 0.23 0.36 0.58 φ73×4 260 26 31 27 33 32 39
80 225 168 0.32 0.51 0.80 1.28 φ89×4 292 37 45 38 46 45 53
100 260 178 0.54 0.86 1.34 2.15 φ108×4 310 56 66 58 68 70 82
125 300 206 1.04 1.67 2.61 4.18 φ133×4 350 77 87 79 91 95 111
150 375 254 1.52 2.43 3.80 6.08 φ159×4.5 440 85 99 87 101 105 125
200 440 236 2.15 3.45 5.39 8.63 φ219×5 435 118 137 121 141 145 176
250 540 315 4.22 6.75 10.55 16.88 φ273×6 584 238 262 243 271 290 330
300 608 275 6.34 10.15 15.86 25.38 φ325×6 602 331 360 338 375 405 457
350 685 370 8.31 13.30 20.78 33.25 φ377×8 670 503 546 514 569 615 696
400 780 420 10.83 17.32 27.06 43.30 φ426×8 757 584 645 596 665 715 822
450 825 435 15.34 24.55 38.36 61.38 φ480×8 822 846 911 864 956 820 947
500 900 336 20.81 33.30 52.03 13.25 φ529×8 728 965 1045 985 1111 1150 1315
600 1055 448 26.22 41.95 65.55 104.87 φ630×8 900 1345 1449 1375 1640 1647 1895
700 1300 710 31.78 50.84 79.44 127.10 φ720×8 1290 1524 -- 1555 -- 1866

--

800 1450 830 38.26 61.22 95.65 153.05 φ820×10 1480 1700 -- 1735 -- 2080 --
900 1630 950 45.20 72.32 113.05 180.80 φ920×10 1650 1876 -- 1915 -- 2298 --
1000 1810 1100 52.74 84.38 131.84 210.95 φ1020×10 1810 2058 -- 2100 -- 2520 --
1100 1990 1350 60.91 97.46 152.28 243.65 φ1120×12 2050 2370 -- 2425 -- 2880 --
1200 2170 1550 69.78 111.65 174.45 279.45 φ1220×14 2280 2795 -- 2860 -- 3280 --


Spherical compensator advantage



1. Factory price of spherical compensator.

2. 16 years of manufacturing experience, 5 years of export experience.

3. Strict quality inspection, the quality far exceeds the industry standard.

4. Spherical compensator mold has a variety of specifications, support customization, OEM.

5. Provide free samples of spherical compensator.

6. Spherical compensators are in large stock.



Spherical compensator application



Spherical compensator is a kind of equipment to solve the problem of heat expansion and cold contraction of pipeline, which can be widely used in metallurgy, petroleum, chemical industry, electric power, light industry, textile, construction and national defense construction industries

1. The spherical compensator is used in thermal pipeline to compensate thermal expansion, and its compensation capacity is 5-10 times of that of "冂" compensator.

2. Spherical compensator is used in rocket launching pad and aircraft exhaust facilities to compensate impact expansion.

3. Spherical compensator is used as universal joint in the vaporization cooling system of metallurgical equipment (such as blast furnace, converter, electric furnace, heating furnace, etc.).

4. Spherical compensator is used in all kinds of pipelines of buildings to prevent pipeline damage caused by uneven settlement of foundation or earthquake.



FAQ



Q1:Can the spherical compensator marked with customized logo?

A1:Yes,the spherical compensator can be marked with your logo. We could provide OEM&ODM service for spherical compensator.



Q2:What’s the face to face length of spherical compensator?

A2:The face to face length of spherical compensator can be L130, L152,L203... We also could accept customized length according to your requirements.



Q3:Can you provide drawings of spherical compensator?

A3:Yes,we could provide drawings of spherical compensator for you.Please contact us to get the drawing of spherical compensator.



Q4:What certificates of spherical compensator can you provide?

A4:We could provide CE,ISO certificate for our spherical compensator.



Q5:Can we get a sample of spherical compensator?

A5:Yes,we could provide samples for you to test the quality of our spherical compensator.



Q6:What’s the warranty period of spherical compensator?

A6:We provide 18 months’ warranty for our spherical compensator.
