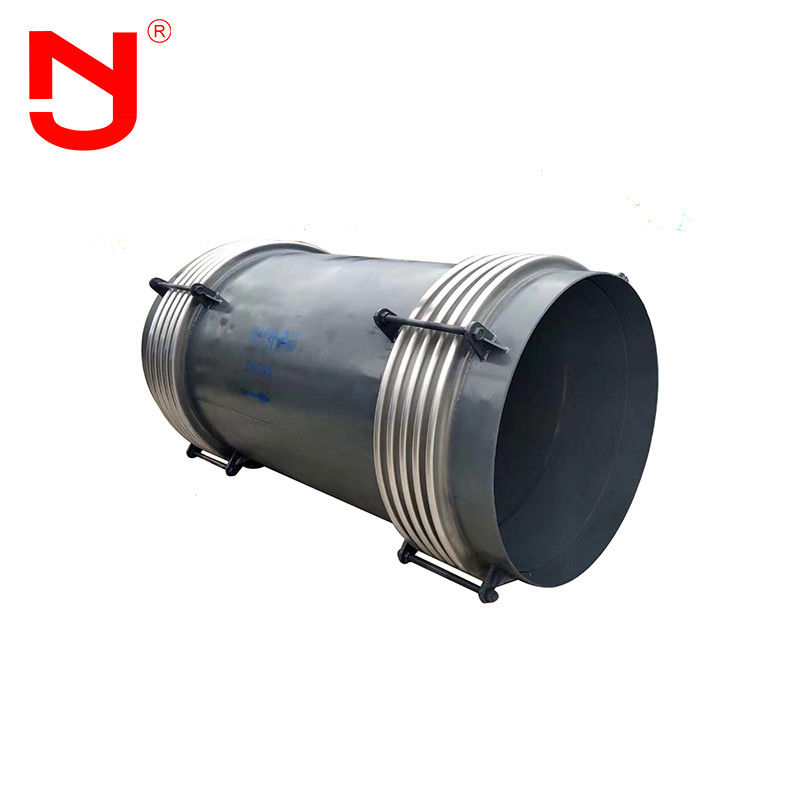

Small Pull Rod Transverse Corrugated Compensator DN65--DN3200

Small Pull Rod Transverse Corrugated Compensator DN65--DN3200
Small Pull Rod Transverse Corrugated Compensator DN65--DN3200 Small Pull Rod Transverse Corrugated Compensator DN65--DN3200 Small Pull Rod Transverse Corrugated Compensator DN65--DN3200

Large Image :  Small Pull Rod Transverse Corrugated Compensator DN65--DN3200

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: JXH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Detailed Product Description
OEM: 17Years' Experience Product Name: Small Pull Rod Transverse Corrugated Compensator
Size: DN65--DN3200 Material: Carbon Steel,Stainless Steel
Working Pressure: 0-6Mpa Flange Standard: DIN,ANSI,BS,JIS,AS
High Light:

DN65 Transverse Corrugated Compensator

,

DN3200 Transverse Corrugated Compensator

,

pull rod transverse corrugated compensator

High Quality Small Pull Rod Transverse Corrugated Compensator



Small pull rod transverse corrugated compensator is also called small pull rod corrugated expansion joint, or expansion joint. The small pull rod transverse corrugated compensator is composed of bellows (an elastic element) and end pipe, bracket, flange, conduit and other accessories. The small pull rod transverse corrugated compensator belongs to a compensation element. The small pull rod transverse corrugated compensator uses the effective expansion deformation of its main body bellows to absorb the size changes of pipelines, conduits, containers, etc. caused by thermal expansion and cold contraction, or to compensate the axial, transverse and angular displacement of pipelines, conduits, containers, etc. The small tie rod transverse corrugated compensator can also be used for noise reduction and vibration reduction. It is widely used in modern industry.



Performance of small pull rod transverse corrugated compensator



1. The small pull rod transverse corrugated compensator has high elastic limit, tensile strength and fatigue strength to ensure the normal operation of the bellows.

2. The small pull rod transverse corrugated compensator has good plasticity, which is convenient for the processing and forming of bellows, and can obtain enough hardness and strength through the subsequent treatment process (cold work hardening, heat treatment, etc.).

3. The small pull rod transverse corrugated compensator has good corrosion resistance, which can meet the working requirements of bellows in different environments.

4. The small pull rod transverse corrugated compensator has good welding performance, which can meet the welding process requirements of bellows in the manufacturing process.



Small pull rod transverse corrugated compensatorstructure



Small Pull Rod Transverse Corrugated Compensator DN65--DN3200 0



Technical data of small pull rod transverse corrugated compensator

Main data of small pull rod transverse corrugated compensator

Nominal

Diameter

DN

Pressure 0.6Mpa

Pressure 1.0Mpa

Pressure 1.6Mpa

Available

area cm2

Soldering

end ring

d × t

mm

Total length

L

mm

重量

kg

F/H

Axial

displacement/Axial Stiffness

Horizontal

displacement/Horizontal stiffness

Axial

displacement/Axial Stiffness

Horizontal displacement/Horizontal stiffness

Axial displacement/Axial Stiffness

Horizontal displacement/Horizontal stiffness

100
32/210
96/8.0
28/252
86/9.6
26/302
Dec-78
154
108 × 4
1000
30
200/2.0
180/2.5
162/3.1
1500
36
306/0.89
275/1.1
248/1.3
2000
41
411/0.50
370/0.6
333/0.75
2500
47
125
33/170
83/18
31/204
78/21.6
29/245
75/25.9
180
133 × 4
1000
39
115/6.8
109/8.2
103/9.8
1500
43
198/3.5
188/4.2
178/5.0
2000
51
269/1.8
255/2.2
242/2.6
2500
62
150
32/290
65/21
30/348
61/25.2
27/417
58/30.2
299
159 × 4.5
1000
42
136/5.4
129/6.5
122/7.8
1500
53
107/2.4
197/2.9
186/3.5
2000
63
279/1.4
265/1.68
251/2.1
2500
74
200
48/326
72/47
43/391
68/56.4
40/469
65/70.5
531
219 × 6
1000
72
160/11
152/13.2
144/16.5
1500
89
250/5.0
237/6.0
225/7.5
2000
106
341/2.8
324/3.4
291/4.1
2500
123
250
46/400
127/20
43/480
114/25
38/576
108/30
774
273 × 8
1500
121
199/9.0
179/10.8
170/13.5
2000
150
271/5.0
257/6.0
231/7.5
2500
178
343/3.2
325/3.8
293/4.6
3000
206
300
59/336
134/25
56/403
127/30
50/483
121/36
1069
325 × 8
1500
146
213/11
202/13.2
192/15.8
2000
179
292/6.0
277/7.2
263/8.6
2500
213
372/3.8
353/4.6
335/5.4
3000
246
350
58/366
107/40
55/402
102/44
52/442
96/48
1263
377 × 8
1500
171
178/16
169/18
161/22
2000
208
250/8.5
237/10
226/12
2500
245
322/5.3
306/6.9
290/9.6
3000
282
400
57/415
92/58
54/48
87/63
51/492
83/69
1612
426 × 8
1500
192
154/23
142/25
135/27
2000
235
215/12
204/13
196/15
2500
278
278/7.7
264/9
250/11
3000
321
450
55/415
81/80
52/456
77/88
49/484
73/96
1995
478 × 8
1500
218
135/32
128/35
122/38
2000
268
189/17
180/19
171/21
2500
319
243/11
230/12
218/13
3000
370
500
90/746
36/241
72/895
32/260
58/984
29/281
2625
529 × 10
1400
535
68/89
62/96
56/104
1700
581
102/42
92/45
83/49
2000
627
126/28
113/30
102/32
2200
658
166/18
149/19
134/21
2500
704
198/12
178/13
160/14
2800
750
600
94/820
42/208
85/886
38/224
75/948
34/242
3590
630 × 10
1500
648
71/102
64/110
58/118
1800
702
106/47
95/51
86/55
2200
775
135/30
121/32
111/35
2500
830
168/21
156/23
141/25
2800
884
199/14
183/15
168/17
3200
957

Note: products larger than DN600 can be customized


Small pull rod transverse corrugated compensator advantage



1. The small pull rod corrugated compensator compensates the axial, transverse and angular cold and hot deformation of absorption pipeline.

2. The expansion and contraction of the small pull rod corrugated compensator is convenient for the installation and disassembly of the valve pipeline.

3. Small pull rod corrugated compensator can absorb equipment vibration and reduce the influence of equipment vibration on pipeline.

4. The small pull rod corrugated compensator can absorb the deformation of pipeline caused by earthquake and ground subsidence.



Small pull rod transverse corrugated compensator application



The small pull rod transverse corrugated compensator uses the effective expansion deformation of its main body bellows to absorb the size changes of pipelines, conduits, containers, etc. caused by thermal expansion and cold contraction, or to compensate the axial, transverse and angular displacement of pipelines, conduits, containers, etc. The small tie rod transverse corrugated compensator can also be used for noise reduction and vibration reduction. Small tie rod transverse corrugated compensator is widely used in modern industry. The product is suitable for transporting seawater, fresh water, cold and hot water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, product oil, air, gas, steam and particle powder with temperature not higher than 250 ℃.



FAQ



Q1:Can the small pull rod transverse corrugated compensator marked with customized logo?

A1:Yes,the small pull rod transverse corrugated compensator can be marked with your logo. We could provide OEM&ODM service for small pull rod transverse corrugated compensator.



Q2:What’s the face to face length of small pull rod transverse corrugated compensator?

A2:The face to face length of small pull rod transverse corrugated compensator can be L130, L152,L203... We also could accept customized length according to your requirements.



Q3:Can you provide drawings of small pull rod transverse corrugated compensator?

A3:Yes,we could provide drawings of small pull rod transverse corrugated compensator for you.Please contact us to get the drawing of small pull rod transverse corrugated compensator.



Q4:What certificates of small pull rod transverse corrugated compensatorcan you provide?

A4:We could provide CE,ISO certificate for our small pull rod transverse corrugated compensator.



Q5:Can we get a sample of small pull rod transverse corrugated compensator?

A5:Yes,we could provide samples for you to test the quality of our small pull rod transverse corrugated compensator.



Q6:What’s the warranty period of small pull rod transverse corrugated compensator?

A6:We provide 18 months’ warranty for our small pull rod transverse corrugated compensator.
