Payment & Shipping Terms:
|Businese Type:||Factory||Product Name:||Pipe Flexible Fittings DN150 Rubber Expansion Joint Seal With Flange|
|Flange Standard:||EN,DIN,ANSI,JIS,GOST||Keyword:||Flexible Fittings|
|Working Pressure:||-0.2~4.5Mpa||Working Temperature:||-30~130℃|
DN150 Rubber Expansion Joint,
Flange Rubber Expansion Joint,
DN150 rubber bellow with flange

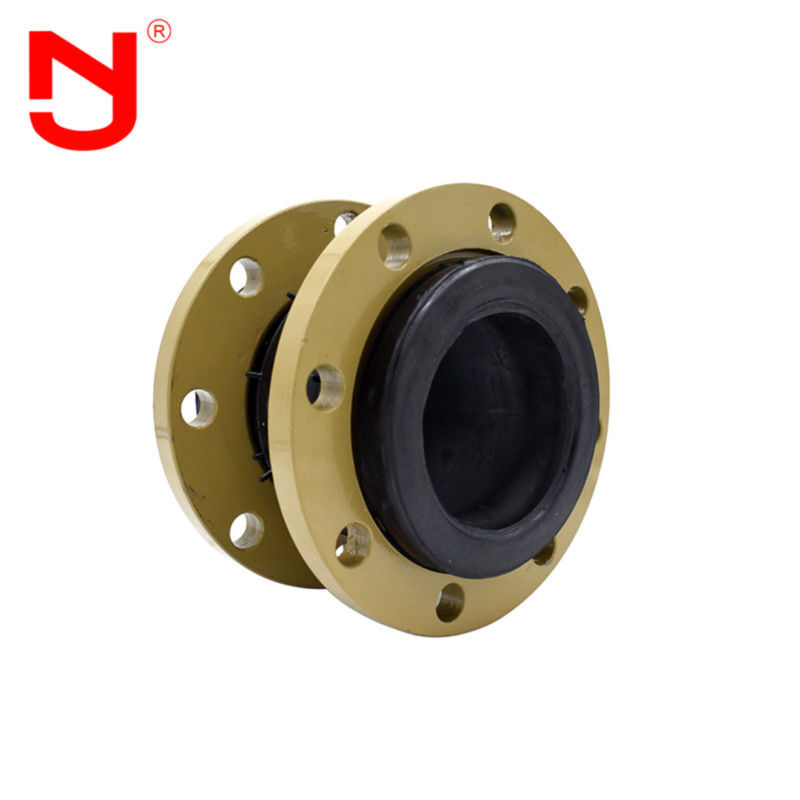

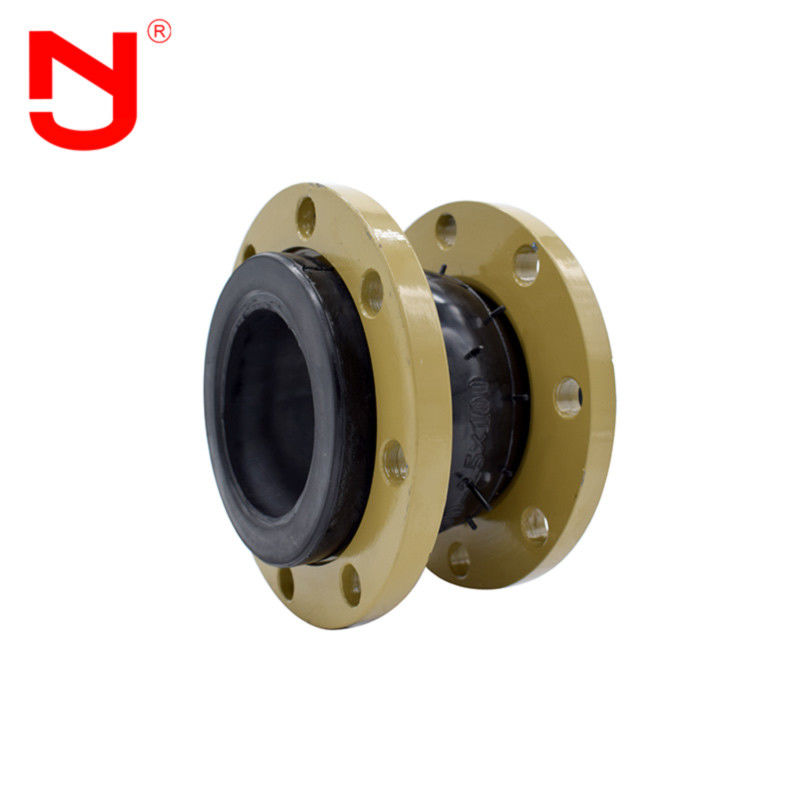

Pipe Flexible Fittings DN150 Rubber Expansion Joint Seal With Flange
The flexible fittings is composed of inner layer and outer layer of rubber, cord layer and wire ring. After vulcanization, it is combined with metal flange or parallel joint. Flexible fittings can reduce vibration and noise, and can compensate the thermal expansion and contraction caused by temperature changes. Flexible fittings have been widely used in various pipeline systems.According to different media, the rubber materials used in flexible fittings are also different, including NR, SBR, IIR, NBR, EPDM, Cr, fkr, etc. It has heat resistance, acid resistance, alkali resistance, corrosion resistance and oil resistance.
Performance characteristics of flexible fittings
1. The flexible fittings has the advantages of small size, light weight, good ductility and convenient installation and maintenance.
2. Flexible fittings installation can cause horizontal, radial, angular offset, will not be limited by the pipe plug center, flange uneven surface.
3. When the flexible fittings is working, it can reduce the structure transmission noise and has strong vibration absorption ability.
Technical data of flexible fittings
Main data of flexible fittings
|Nominal diameter(DN)||Length||Axial displacement(mm)||Horizontal displacement||Deflexion angle|
Note: 1. The special requirements of flexible fittings can be customized according to user's drawing. Flange standard is GB / t9115.1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The rubber ball of flexible fittingscan be used as natural rubber, EPDM, chloroprene rubber, butyl rubber, butadiene rubber, fluororubber, etc. when the flexible fittings above DN200 is used for suspension water supply, the pipeline must have fixed support or fixed support, otherwise the flexible fittings shall be installed with anti falling device.

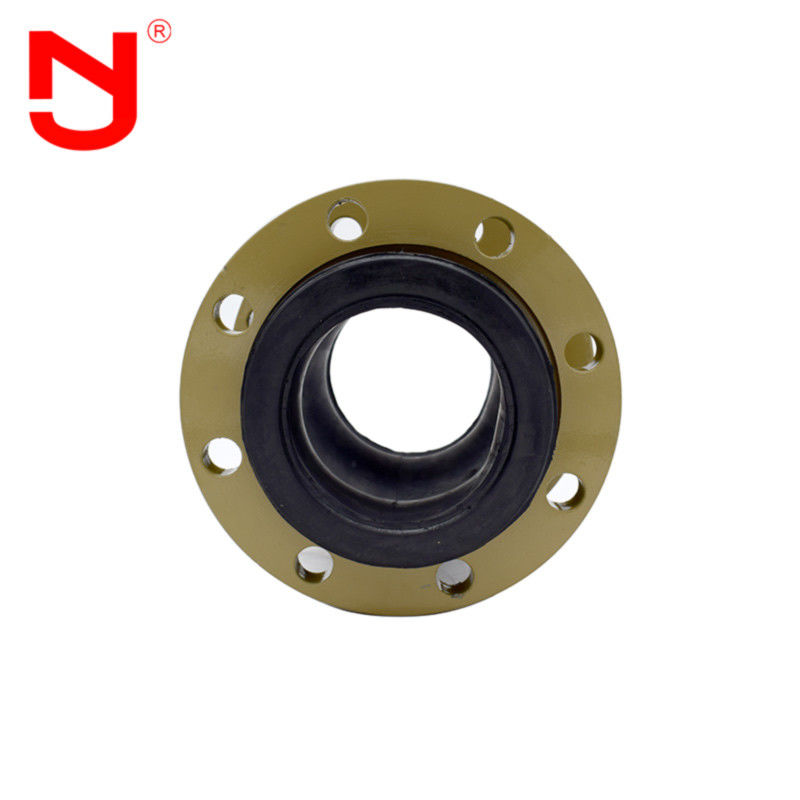

Flexible fittings details show
Flexible fittings production Flow
Do you know how is a flexible fittings made?Let's see with JINGNING.
It is very important to select the appropriate flexible fittings, to understand the compatibility of the medium and the selected material of the flexible fittings, the range of full temperature, full pressure and full vacuum, the amount of movement required, and the size between the pipe flanges. With this information, Jingning application engineers can help determine the ideal flexible fittings for any application.
Flexible fittings advantage
1. Factory price of flexible fittings.
2. 16 years of manufacturing experience, 5 years of export experience.
3. Strict quality inspection, the quality far exceeds the industry standard.
4. Flexible fittings mold has a variety of specifications, support customization, OEM.
5. Provide free samples of flexible fittings.
6. Flexible fittings are in large stock.
Flexible fittings application
Flexible fittings is widely used in chemical engineering, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, sanitation, water heating, fire protection, electric power and other basic projects because of its good comprehensive performance. According to the different rubber materials of flexible fittings, it can be made into various varieties, such as acid resistance, alkali resistance, corrosion resistance, oil resistance, high temperature resistance, radiation resistance, wear resistance, aging resistance, etc. the flexible fittings can adapt to a variety of media and environment.
Q1:Can the flexible fittings be marked with customized logo?
A1:Yes,the flexible fittings can be marked with your logo. We could provide OEM&ODM service for flexible fittings.
Q2:What’s the face to face length of flexible fittings?
A2:The face to face length of flexible fittings can be L130, L152,L203... We also could accept customized length according to your requirements.
Q3:Can you provide drawings of flexible fittings?
A3:Yes,we could provide drawings of flexible fittings for you.Please contact us to get the drawing of flexible fittings.
Q4:What certificates of flexible fittings can you provide?
A4:We could provide CE,ISO certificate for our flexible fittings.
Q5:Can we get a sample of flexible fittings?
A5:Yes,we could provide samples for you to test the quality of our flexible fittings.
