Place of Origin:
China
Brand Name:
JINGNING
Certification:
CE、ZTC
Model Number:
JDZ
Contact Us

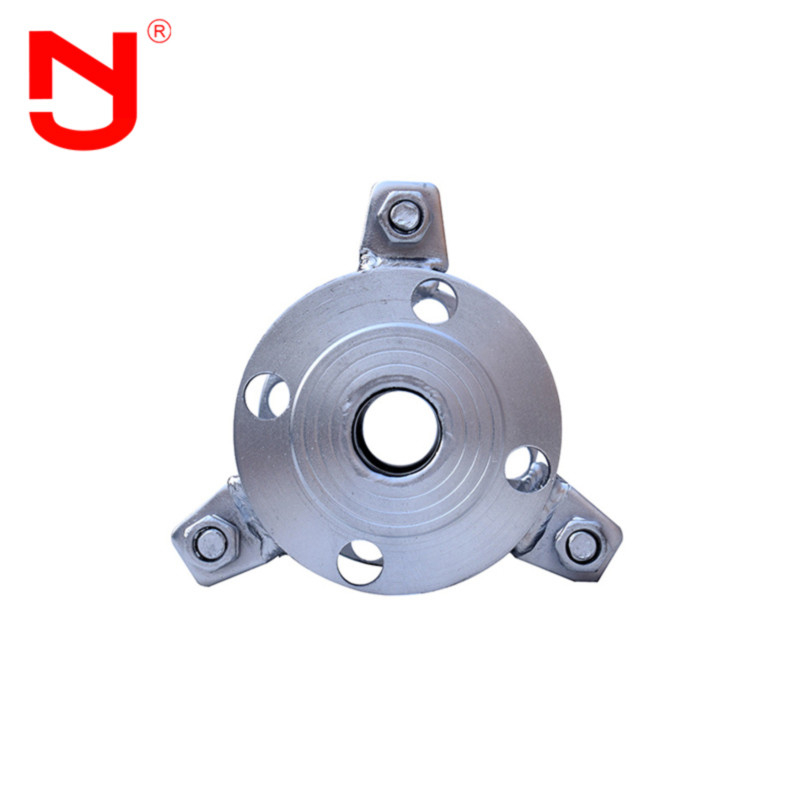

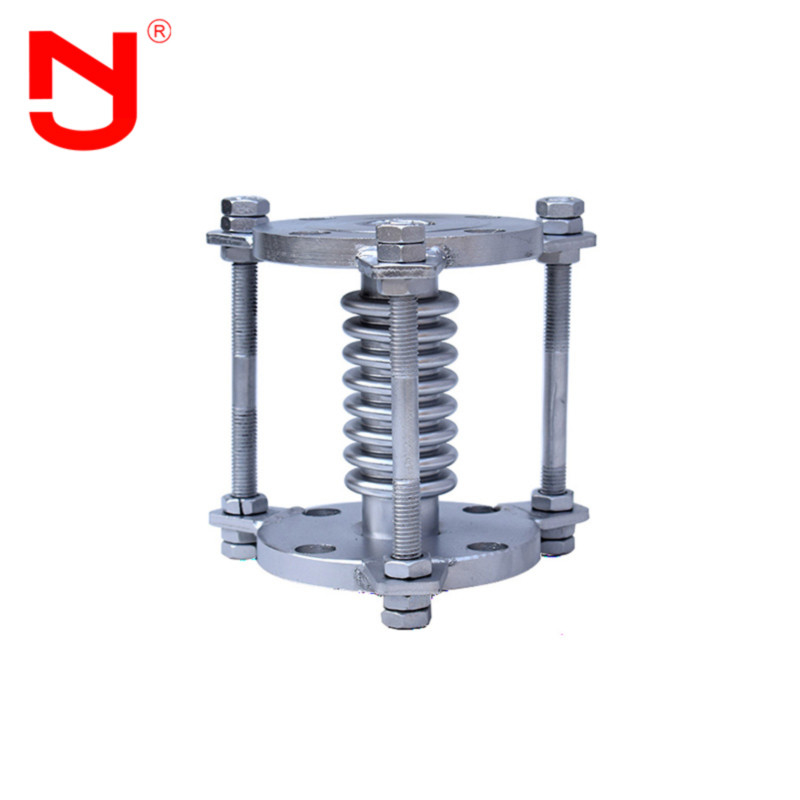

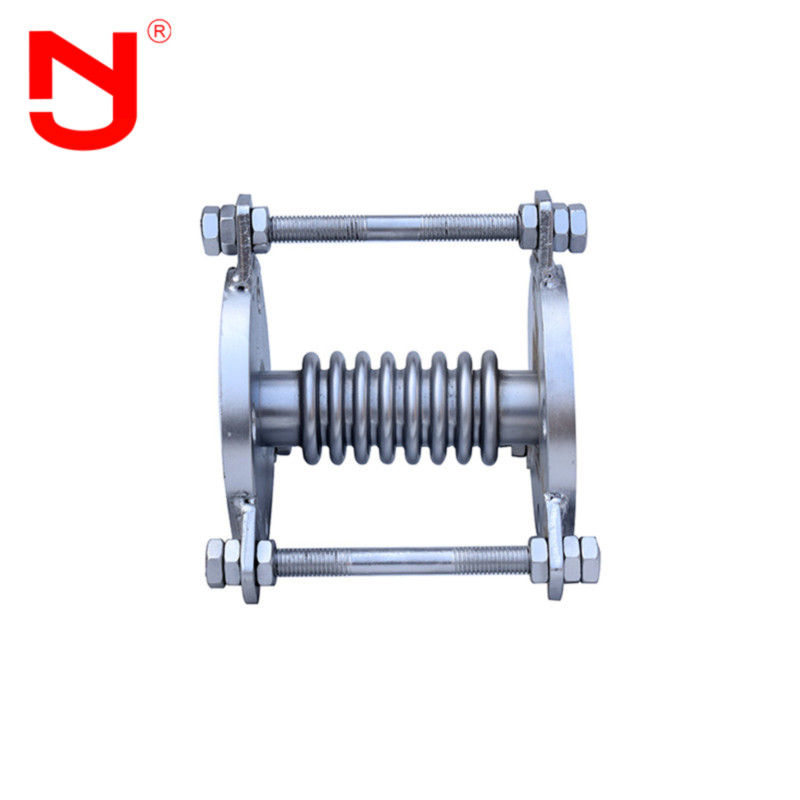

Steam Air Flanged Ends Compensator Pressure Resistance Ss304 Flex Metallic Joint
Metallic joint, also known as expansion joint, metallic jointis composed of metal bellows and components, mainly to ensure the safe operation of the pipeline. Metallic joint is a flexible thin-walled transverse bellows device with expansion function,. The principle of metallic joint is to use its elastic expansion function to compensate the axial displacement, angular displacement, lateral displacement and combined displacement caused by thermal deformation, mechanical deformation and various mechanical vibration. Metallic joints have the functions of pressure resistance, sealing, corrosion resistance, temperature resistance, impact resistance, vibration and noise reduction. The metallic joint can reduce the deformation of the pipeline and improve the service life of the pipeline.
Performance of metallic joint
The main elastic element of metallic joint is stainless steel bellows. Metallic joint compensates the pipeline in axial, transverse and angular directions through the expansion and bending of bellows. Metallic joint can play the following roles:
1. The metallic joint to absorb the axial, transverse and angular thermal deformation of the pipeline.
2. Metallic joint can absorb equipment vibration and reduce the impact of equipment vibration on the pipeline.
3. Metallic joint can absorb pipeline deformation caused by earthquake and land subsidence.
4. Through certain structural design, the metal metallic joint can reduce the seal failure caused by scaling.
Technique Parameter of metallic joint
|
Diameter (mm)
|
Pressure grade |
Available Area of Bellows (c㎡)
|
Max Size of External Diameter
|
Length |
|||
|
1.0 |
1.6 |
2.5 |
Flange
|
Tube
|
|||
|
32
|
20/26
|
18/63
|
15/98
|
16
|
225
|
160/250
|
264/280
|
|
40
|
20/24
|
18/89
|
15/98
|
23
|
244
|
164/259
|
269/289
|
|
50
|
20/70
|
18/70
|
15/106
|
37
|
259
|
172/276
|
282/306
|
|
65
|
26/44
|
22/55
|
15/138
|
55
|
270
|
215/294
|
300/322
|
|
80
|
34/33
|
28/41
|
19/68
|
81
|
284
|
240/338
|
344/366
|
|
100
|
40/75
|
35/93
|
25/54
|
121
|
304
|
235/317
|
323/345
|
|
125
|
38/59
|
34/74
|
29/117
|
180
|
334
|
282/314
|
316/342
|
|
150
|
40/62
|
34/78
|
29/92
|
257
|
364
|
282/339
|
338/367
|
|
200
|
59/52
|
53/58
|
46/65
|
479
|
442
|
340/402
|
402/426
|
|
250
|
87/35
|
79/39
|
48/78
|
769
|
507
|
393/459
|
493/399
|
|
300
|
87/37
|
79/41
|
71/47
|
1105
|
562
|
464/525
|
564/565
|
|
350
|
87/44
|
79/48
|
71/45
|
1307
|
622
|
509/564
|
609/604
|
|
400
|
87/43
|
79/47
|
71/47
|
1611
|
562
|
522/566
|
622/628
|
|
450
|
87/37
|
79/41
|
47/75
|
1972
|
700
|
403/498
|
503/523
|
|
500
|
87/68
|
79/75
|
71/45
|
2445
|
760
|
431/523
|
531/554
|
|
600
|
87/85
|
79/94
|
71/82
|
3534
|
835
|
478/548
|
578/588
|
|
700
|
87/77
|
79/85
|
71/103
|
4717
|
1110
|
490
|
590
|
|
800
|
102/102
|
94/112
|
71/95
|
5822
|
1265
|
502
|
602
|
|
900
|
102/97
|
94/107
|
80/123
|
7620
|
1186
|
/
|
698
|
|
1000
|
102/105
|
94/106
|
82/117
|
9043
|
1286
|
/
|
692
|
Production process of metallic joint
Do you know how is a high quality metallic joint made?Let's see with JINGNING.
Jingning has more than 17 years of design experience in the manufacturing of rubber expansion joint, metallic joint, disassembly joint, pipeline and other industrial pipe fittings. The metallic joints meet the international standards such as GB, ISO, DIN, ANSI, BS, JIS and the special requirements of customers.
Bellows expansion advantages
1. Metallic joint is ex factory price
2. 17 years manufacturing experience, 5 years export experience
3. The metallic joint has strict quality inspection, and the quality far exceeds the industry standard.
4. Various specifications of metallic joint mold base customization and OEM
5. Free metallic joint samples
6. Large inventory of metallic joint
Metallic joint application
1. Metallic joints are used for pipes with large deformation and limited space.
2. Metallic joint is used for large diameter, large deformation, large displacement and low working pressure pipeline.
3. Metallic joints are used for equipment that needs to limit the nozzle load.
4. Metallic joint is used to absorb or isolate high frequency mechanical vibration.
5. Metallic joint is used for pipeline to absorb earthquake or foundation settlement.
FAQ
Q1:What`s the rubber material of metallic joint?
A1: EPDM,CR,NBR,etc .It depends on the working enviroment and media.
Q2: Is the flange galvaized of metallic joint?
A2: Yes,we have electronic galvanized and hot dip galvanized flanges.We also have painted flanges.
Q3: Can I get a sample?
A3: Of cause. We could delivery by Express,by air or by sea.
Q4: What is the MOQ of metallic joint?
A4: 1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us.
