Stainless Steel Wire Braided Corrugated Metal Hose Flexible Expansion Joint

Stainless Steel Wire Braided Corrugated Metal Hose Flexible Expansion Joint
Stainless Steel Wire Braided Corrugated Metal Hose Flexible Expansion Joint Stainless Steel Wire Braided Corrugated Metal Hose Flexible Expansion Joint Stainless Steel Wire Braided Corrugated Metal Hose Flexible Expansion Joint Stainless Steel Wire Braided Corrugated Metal Hose Flexible Expansion Joint

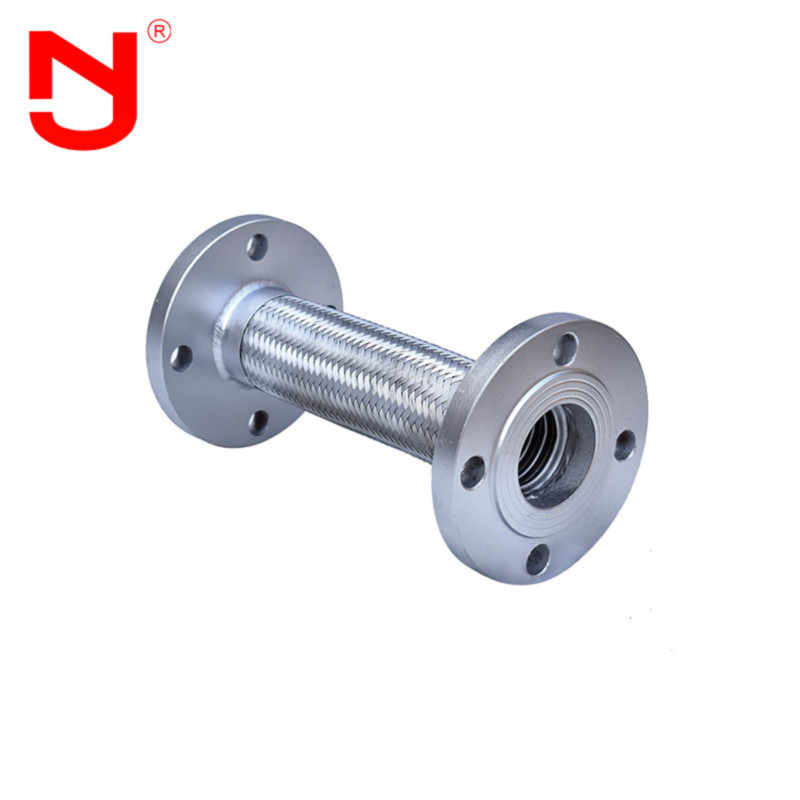

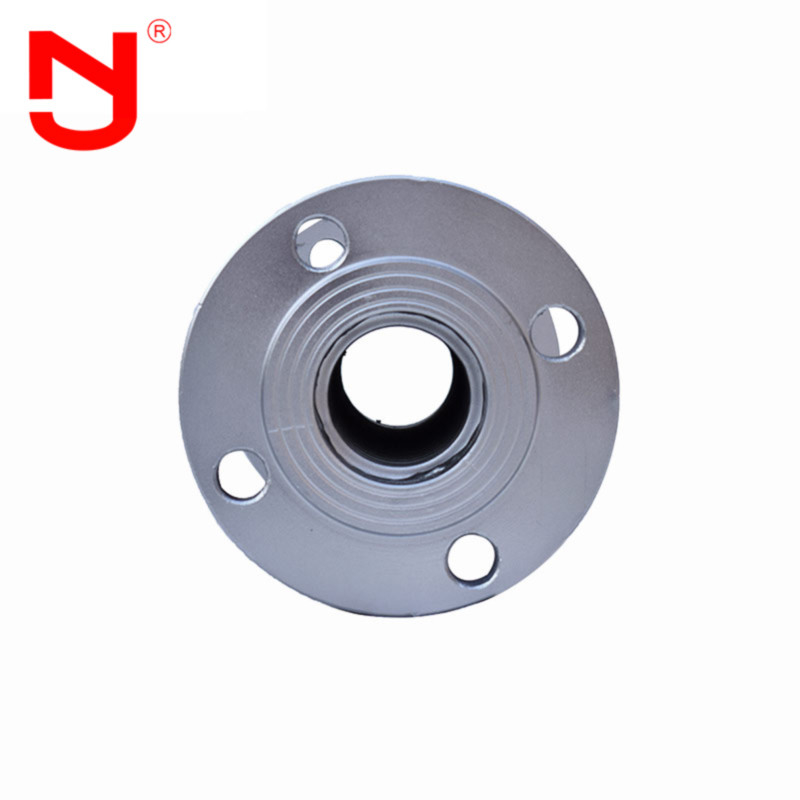

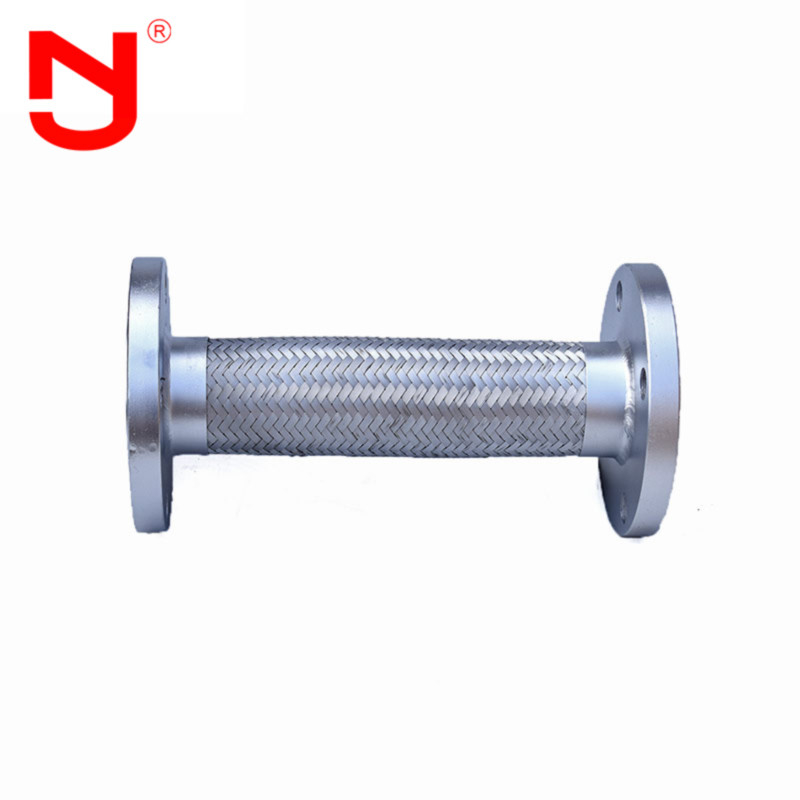

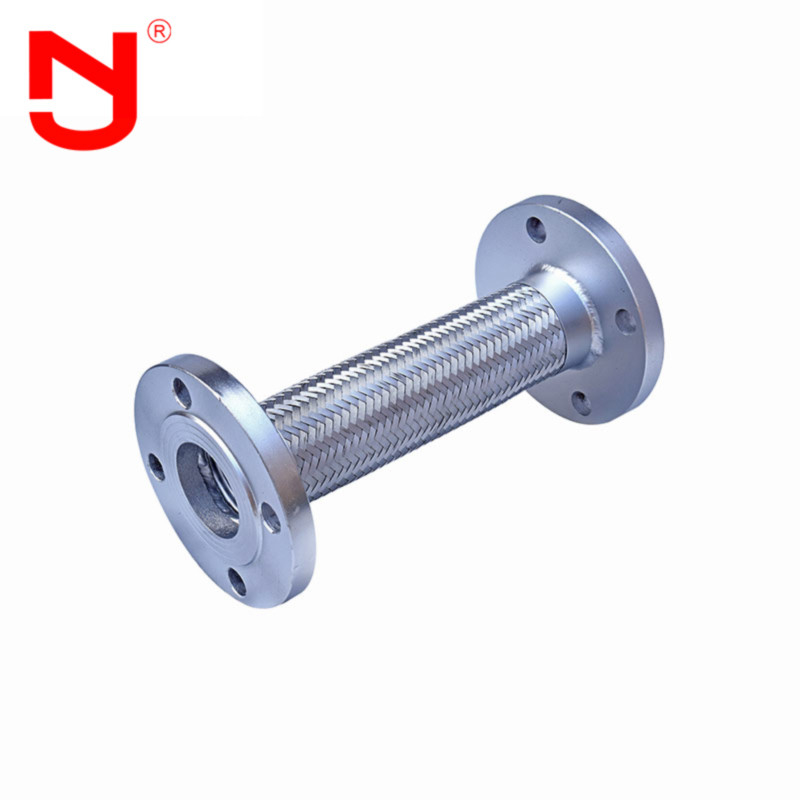

Large Image :  Stainless Steel Wire Braided Corrugated Metal Hose Flexible Expansion Joint

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE、ZTC
Model Number: JDZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Detailed Product Description
Company Type: Factory Product Name: Metal Braided Hose
Certificate: CE ZTC Bellows Material: SS304,SS316,SS321
OEM&ODM: Support Flange Material: Stainless Steel,Carbon Steel
High Light:

Wire Braided Corrugated Metal Hose

,

Expansion Joint Corrugated Metal Hose

,

Wire Braided expansion joint pipe

stainless steel wire braided flexible expansion joint corrugated metal hose



Metal braided hose is a kind of high-quality hose in modern industry. The inner pipe of metal braided hose is spiral or circular thin-walled stainless steel bellows. The outer braided net of bellows is composed of stainless steel wire and steel strip according to certain parameters. The joints or flanges at both ends of metal braided hose match with the joints or flanges of customers' pipes.Metal braided hose is composed of bellows, net cover and joint. Bellows is the body of metal braided hose, which plays a flexible role; The mesh sleeve plays the role of strengthening and shielding in the metal braided hose; The joint of rubber joint plays the role of connection. The metal braided hose is the main pressure bearing part of the hose installed in the pressure pipeline, and it also acts as a sheath for the bellows. According to the pressure in the pipeline and the application place, the metal braided hose can choose one or more layers of stainless steel wire or steel strip for weaving.



Technique Parameter of metal braided hose

Technical parameter of metal braided hose
Nominal diameter DN

Inner diameter

(mm)

Outer diameter Minimum bending radius Working pressure
Bellows Braid mesh Static Dynamic Single braid mesh Double braid mesh
8 8.8 13.2 14.4 50 110 15 20
10 11.7 16.5 17.7 65 145 185 20
15 13.5 19.5 21.1 80 180 18 20
20 20.0 27 28.6 120 270 10 15
25 27.0 34.5 36.1 160 360 6.3 10
32 32.0 40 41.6 175 400 4.0 6.3
40 39.6 52 53.6 225 510 4.0 6.3
50 49.7 62 63.6 280 640 3.0 5.0
65 61.2 80.2 81.8 410 915 3.0 5.0
80 79.0 96.3 97.9 486 1030 3.0 5.0
100 101.2 119.6 121.2 610 1340 2.5 4.0
125 124.1 145.3 146.9 700 1540 2.5 4.0
150 149.4 180.8 182.4 810 1780 2.5 4.0
200 176.0 240 243.2 1000 2000 2.5 4.0
250 248.0 290 294 1250 2500 2.5 4.0
300 298.0 350 354 1500 3000 1.6 2.5
350 347.0 400 404.8 1750 3500 1.6 2.5
400 397.6 460 464.8 2000 4000 1.6 2.5



Production process of metal braided hose

Do you know how is a high quality metal braided hose made?Let's see with JINGNING.

Stainless Steel Wire Braided Corrugated Metal Hose Flexible Expansion Joint 0

Metal braided hose inner Core: Corrugated Stainless Steel

  • Flexible metal hose stainless steel core strengths are available in 304, 321 and 316L stainless steel
  • Stainless steel tubing formed into corrugations parallel to one another

Helical / Convoluted option available upon request

Metal braided hose inner outer Core:Braided Stainless Steel Layers

  • Purchase corrugated core hose with no layers, single or double braided
  • Flexible metal hose outer braid layers made from 304 stainless steel

JINGNING has more than 17 years of design experience in manufacturing metal braided hose , rubber expansion joint, metal expansion joint, disassembly joint, pipeline and other industrial pipe fittings. The metal braided hose meets the international standards such as GB, ISO, DIN, ANSI, BS, JIS and the special requirements of customers.



Metal braided hose advantages

1. Metal braided hose is ex factory price

2.17 years of manufacturing experience, 5 years of export experience

3. The metal bellows compensator has strict quality inspection, and the quality far exceeds the industry standard.

4. Various specifications of metal braided hose mould support customization and OEM

5. Provide free samples of metal braided hose.

6. The inventory of metal braided hose is large.



Metal braided hose application

Metal braided hose products include oil suction hose, steam hose, sand blasting hose, acid-base hose, food hose, oxygen blowing hose and various special-shaped hose. Metal braided hose is widely used in machinery, chemical industry, petroleum, metallurgy, food and other industries. Metal braided hose is resistant to corrosion, high temperature and low temperature (- 196 ℃ ~ + 420 ℃), light weight, small volume and good flexibility. Metal braided hose is widely used in aviation, aerospace, petroleum, chemical, metallurgy, power, paper, wood, textile, construction, medicine, food, tobacco, transportation and other industries.



FAQ

Q1:Can the metal braided hose be marked with customized logo?

A1:Yes,the metal braided hose can be marked with your logo. We could provide OEM&ODM service for metal braided hose.


Q2:What’s the face to face length of metal braided hose?

A2:The face to face length of metal braided hose can be L130, L152,L203... We also could accept customized length according to your requirements.


Q3:Can you provide drawings of metal braided hose?

A3:Yes,we could provide drawings of metal braided hose for you.Please contact us to get the drawing of metal braided hose.


Q4:What certificates of metal braided hose can you provide?

A4:We could provide CE,ISO certificate for our metal braided hose.


Q5:What’s the warranty period of metal braided hose.

A5:We provide 18 months’ warranty for our metal braided hose.
