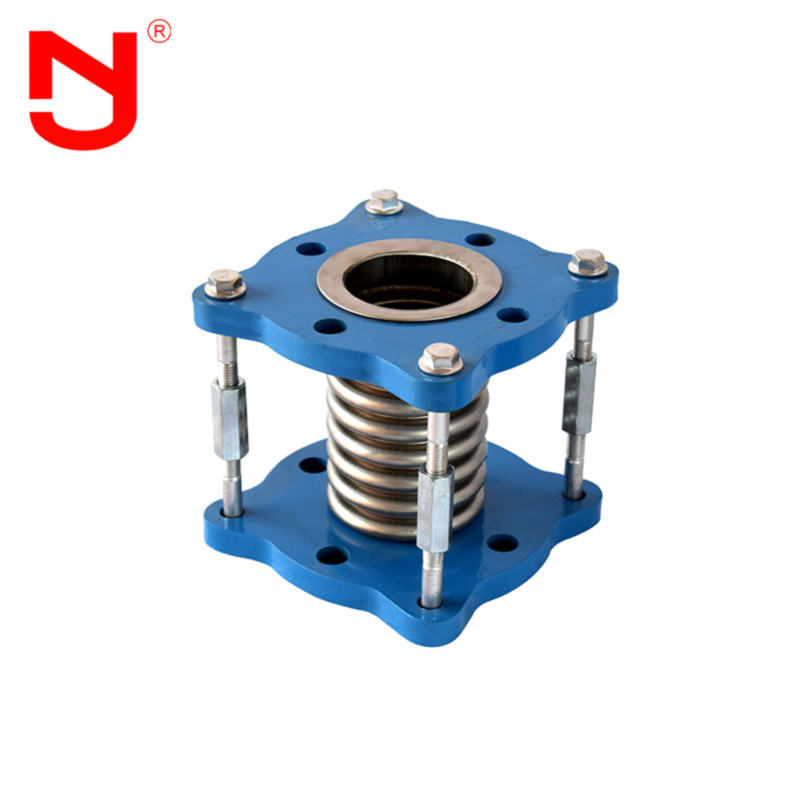

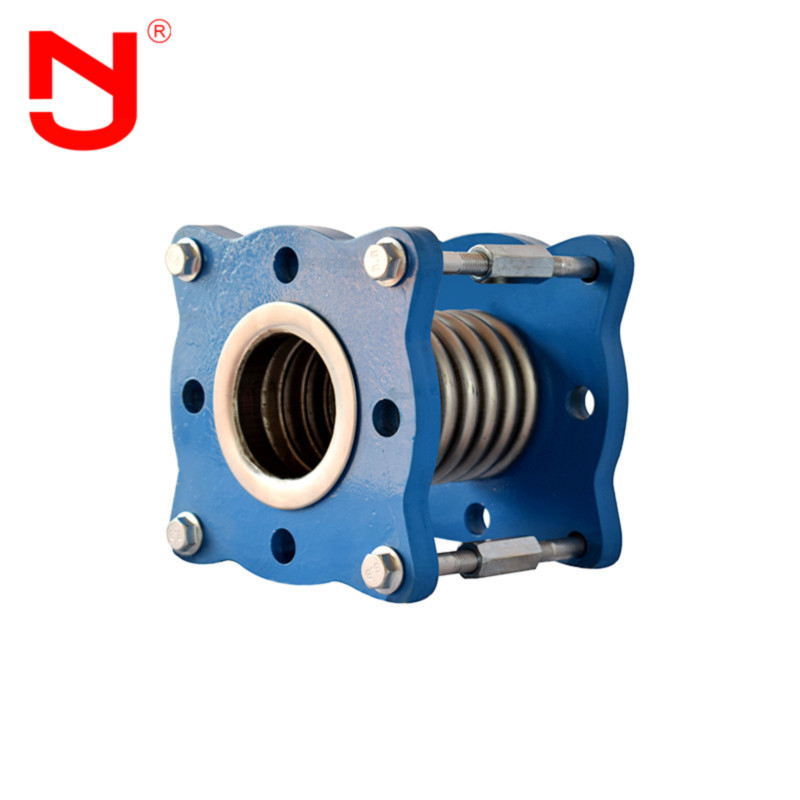

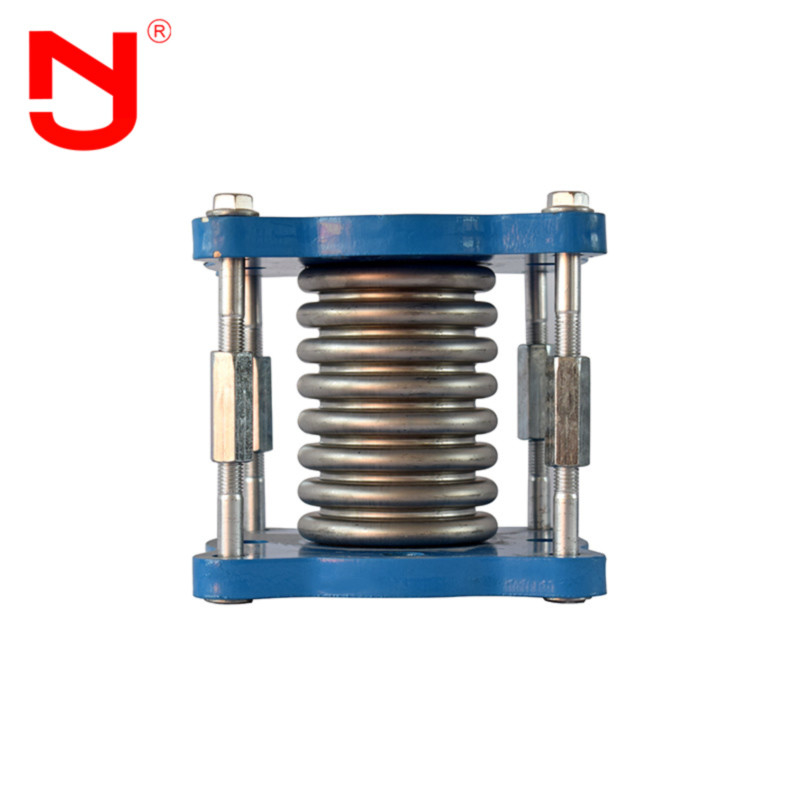

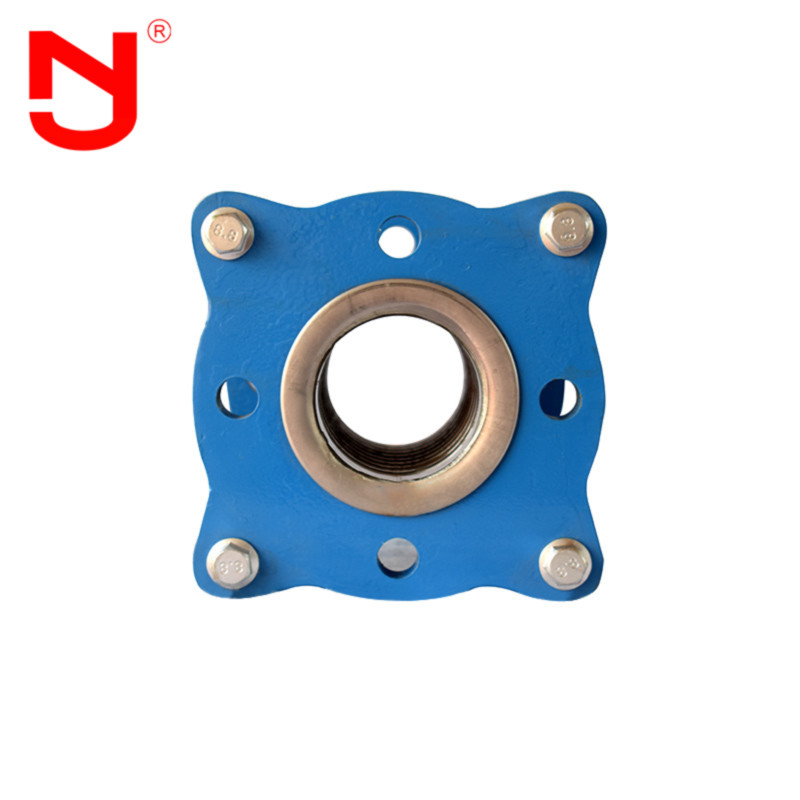

304/316L Stainless Steel Expansion Joint Metal Bellows Compensator For Pipeline

304/316L Stainless Steel Expansion Joint Metal Bellows Compensator For Pipeline
304/316L Stainless Steel Expansion Joint Metal Bellows Compensator For Pipeline 304/316L Stainless Steel Expansion Joint Metal Bellows Compensator For Pipeline 304/316L Stainless Steel Expansion Joint Metal Bellows Compensator For Pipeline 304/316L Stainless Steel Expansion Joint Metal Bellows Compensator For Pipeline

Large Image :  304/316L Stainless Steel Expansion Joint Metal Bellows Compensator For Pipeline

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE、ZTC
Model Number: JDZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Detailed Product Description
Company Type: Factory Product Name: 304/316L Stainless Steel Expansion Joint Metal Compensators For Pipeline
Certificate: CE ZTC Working Pressure: 0---6.0Mpa
Bellows Material: SS304,SS316,SS321 OEM&ODM: Support
Flange Material: Stainless Steel,Carbon Steel Flange Standard: ANSI,DIN,BS,AS,JIS
High Light:

316L Stainless Steel Expansion Joint

,

304 Stainless Steel Expansion Joint

,

316L Metal Bellows Compensator

Limit Metal Bellows Joint

As a kind of flexible pressure pipe fittings, limit metal bellows joint is installed in the liquid conveying system to compensate the mutual displacement of pipeline, machine and equipment. Limit metal bellows joint absorbs vibration energy and can play the role of vibration reduction and silencing. The pitch of limit metal bellows joint is flexible and has good scalability, without blocking and stiffness; The limit metal bellows joint can be freely bent into various angles and radius of curvature, and has the same softness and durability in all directions.



Technique Parameter of limit metal bellows joint



Main data of limit metal bellows joint



Diameter
(mm)
Pressure grade
(Mpa)

Available Area

of Bellows

(c㎡)



Max Size of

External Diameter

(mm)



Length
(mm)

1.0

1.6

2.5

Flange
Tube
32
20/26
18/63
15/98
16
225
160/250
264/280
40
20/24
18/89
15/98
23
244
164/259
269/289
50
20/70
18/70
15/106
37
259
172/276
282/306
65
26/44
22/55
15/138
55
270
215/294
300/322
80
34/33
28/41
19/68
81
284
240/338
344/366
100
40/75
35/93
25/54
121
304
235/317
323/345
125
38/59
34/74
29/117
180
334
282/314
316/342
150
40/62
34/78
29/92
257
364
282/339
338/367
200
59/52
53/58
46/65
479
442
340/402
402/426
250
87/35
79/39
48/78
769
507
393/459
493/399
300
87/37
79/41
71/47
1105
562
464/525
564/565
350
87/44
79/48
71/45
1307
622
509/564
609/604
400
87/43
79/47
71/47
1611
562
522/566
622/628
450
87/37
79/41
47/75
1972
700
403/498
503/523
500
87/68
79/75
71/45
2445
760
431/523
531/554
600
87/85
79/94
71/82
3534
835
478/548
578/588
700
87/77
79/85
71/103
4717
1110
490
590
800
102/102
94/112
71/95
5822
1265
502
602
900
102/97
94/107
80/123
7620
1186
/
698
1000
102/105
94/106
82/117
9043
1286
/
692



Limit metal bellows joint details show

304/316L Stainless Steel Expansion Joint Metal Bellows Compensator For Pipeline 0



Production process of limit metal bellows joint

Do you know how is a high quality limit metal bellows joint made?Let's see with JINGNING.

304/316L Stainless Steel Expansion Joint Metal Bellows Compensator For Pipeline 1

JINGNING has more than 17 years of design experience in the manufacturing of rubber expansion joint, limit metal bellows joint, disassembly joint, pipeline and other industrial pipe fittings. The limit metal bellows joints meet the international standards such as GB, ISO, DIN, ANSI, BS, JIS and the special requirements of customers.



Limit metal bellows joint advantages

1.Limit metal bellows joint is ex factory price.

2.17 years of manufacturing experience, 5 years of export experience.

3. The metal compensator has strict quality inspection, and the quality far exceeds the industry standard.

4. Various specifications of limit metal bellows joint mould support customization and OEM.

5. Provide free samples of limit metal bellows joint.

6. The inventory of limit metal bellows joint is large.



Limit metal bellows joints application

Due to the limited flexibility of the metal bellows joint, the metal bellows joint can compensate the temperature difference deformation or other deformation between the equipment and the pipeline, prevent vibration, reduce the thrust of the pipeline on the equipment, and adapt to the uneven settlement of the oil tank foundation. Limit metal bellows joints can be widely used in chemical industry, oil refining, electric power, light industry, atomic energy, metallurgy, machinery, instrumentation, shipbuilding, aerospace and other departments. With the wide application of power pipeline and heat pipeline in industrial and civil fields, the requirements for limit metal bellows joints are higher and higher.



FAQ



Q1:What’s the material of limit metal bellows joint?

A1:The material of limit metal bellows joint can be EPDM,NBR,CR,SBR..It depends on the working conditions of limit metal bellows joint.



Q2:What’s the working temperature of limit metal bellows joint?

A2:The working temperature of limit metal bellows joint is -20℃~100℃



Q3:Can the limit metal bellows joint be marked with customized logo?

A3:Yes,the limit metal bellows joint can be marked with your logo. We could provide OEM&ODM service for limit metal bellows joint.



Q4:Can you provide drawings of limit metal bellows joint?

A4:Yes,we could provide drawings of limit metal bellows joint for you.Please contact us to get the drawing of limit metal bellows joint.



Q5:Can we get a sample of limit metal bellows joint?

A5:Yes,we could provide samples for you to test the quality of our limit metal bellows joint.



Q6:What’ the MOQ of limit metal bellows joint?

A6:1 pc. We could delivery any quantity according to your requirements.
