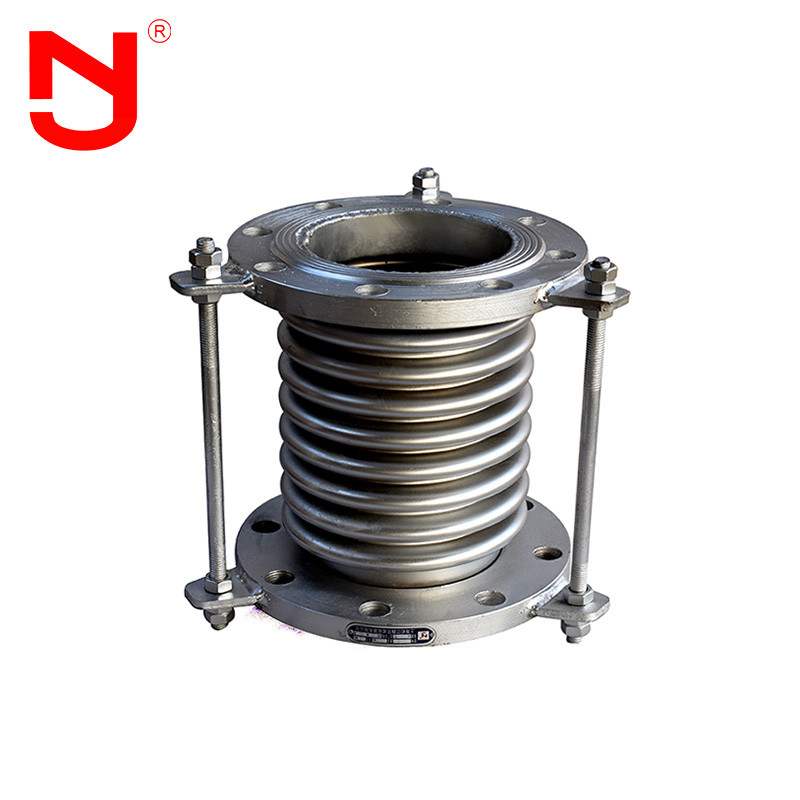

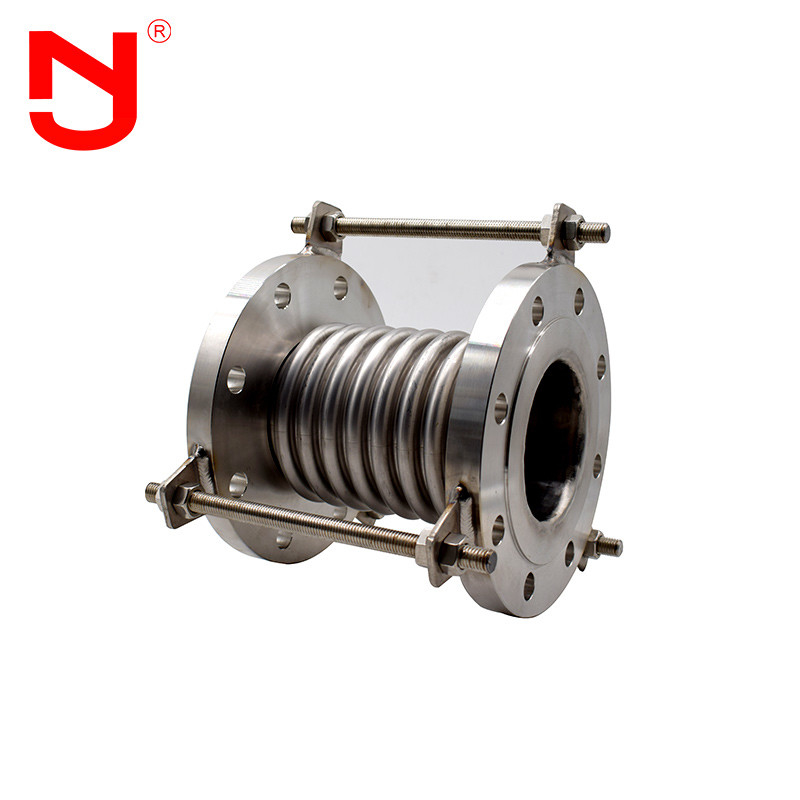

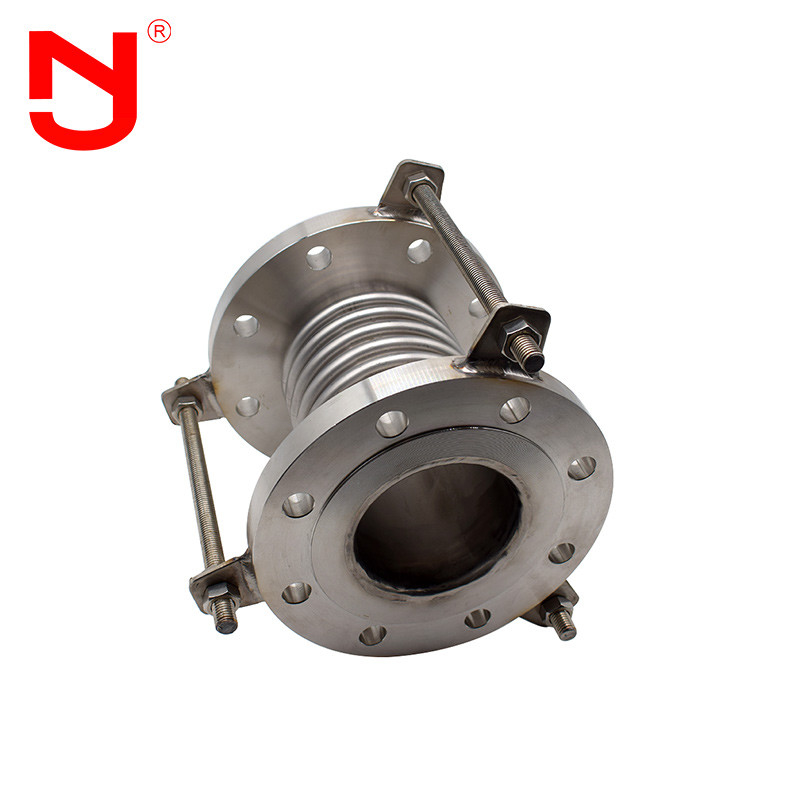

Single Bellows Metal Compensator Expansion Joint For Industrial Pipeline

Single Bellows Metal Compensator Expansion Joint For Industrial Pipeline
Single Bellows Metal Compensator Expansion Joint For Industrial Pipeline Single Bellows Metal Compensator Expansion Joint For Industrial Pipeline Single Bellows Metal Compensator Expansion Joint For Industrial Pipeline Single Bellows Metal Compensator Expansion Joint For Industrial Pipeline

Large Image :  Single Bellows Metal Compensator Expansion Joint For Industrial Pipeline

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE、ZTC
Model Number: JDZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Detailed Product Description
Bellows Material: SS304,SS316,SS321 Company Type: Factory
OEM&ODM: Support Product Name: Single Bellows Metal Compensator Expansion Joint For Industrial Pipeline
Flange Material: Stainless Steel Working Pressure: 0---6.0Mpa
High Light:

Single Bellows Compensator Expansion Joint

,

Compensator Expansion Joint For Industrial Pipeline

,

DN32 pipe expansion compensators

single bellows metal compensator expansion joint for industrial pipeline



Bellows metal, also known as expansion joint, bellows metal is composed of metal bellows and components, mainly to ensure the safe operation of the pipeline. Bellows Metal is a flexible thin-walled transverse bellows device with expansion function,. The principle of bellows Metal is to use its elastic expansion function to compensate the axial displacement, angular displacement, lateral displacement and combined displacement caused by thermal deformation, mechanical deformation and various mechanical vibration. Bellows metals have the functions of pressure resistance, sealing, corrosion resistance, temperature resistance, impact resistance, vibration and noise reduction. The bellows metal can reduce the deformation of the pipeline and improve the service life of the pipeline.



Performance of bellows metal



The main elastic element of bellows metal is stainless steel bellows. Bellows metal compensates the pipeline in axial, transverse and angular directions through the expansion and bending of bellows. Bellows metal can play the following roles:

1. The bellows metal to absorb the axial, transverse and angular thermal deformation of the pipeline.

2. Bellows metal can absorb equipment vibration and reduce the impact of equipment vibration on the pipeline.

3. Bellows metal can absorb pipeline deformation caused by earthquake and land subsidence.

4. Through certain structural design, the metal bellows metal can reduce the seal failure caused by scaling.





Technique Parameter of bellows metal





Main data of bellows metal



Diameter

(mm)



Pressure grade
(Mpa)

Available Area of Bellows

(c㎡)



Max Size of External Diameter
(mm)



Length
(mm)



1.0

1.6

2.5

Flange
Tube
32
20/26
18/63
15/98
16
225
160/250
264/280
40
20/24
18/89
15/98
23
244
164/259
269/289
50
20/70
18/70
15/106
37
259
172/276
282/306
65
26/44
22/55
15/138
55
270
215/294
300/322
80
34/33
28/41
19/68
81
284
240/338
344/366
100
40/75
35/93
25/54
121
304
235/317
323/345
125
38/59
34/74
29/117
180
334
282/314
316/342
150
40/62
34/78
29/92
257
364
282/339
338/367
200
59/52
53/58
46/65
479
442
340/402
402/426
250
87/35
79/39
48/78
769
507
393/459
493/399
300
87/37
79/41
71/47
1105
562
464/525
564/565
350
87/44
79/48
71/45
1307
622
509/564
609/604
400
87/43
79/47
71/47
1611
562
522/566
622/628
450
87/37
79/41
47/75
1972
700
403/498
503/523
500
87/68
79/75
71/45
2445
760
431/523
531/554
600
87/85
79/94
71/82
3534
835
478/548
578/588
700
87/77
79/85
71/103
4717
1110
490
590
800
102/102
94/112
71/95
5822
1265
502
602
900
102/97
94/107
80/123
7620
1186
/
698
1000
102/105
94/106
82/117
9043
1286
/
692



Production process of bellows metal



Do you know how is a high quality bellows metal made?Let's see with JINGNING.

Single Bellows Metal Compensator Expansion Joint For Industrial Pipeline 0

Jingning has more than 17 years of design experience in the manufacturing of rubber expansion joint, bellows metal, disassembly joint, pipeline and other industrial pipe fittings. The bellows metals meet the international standards such as GB, ISO, DIN, ANSI, BS, JIS and the special requirements of customers.



Bellows metal advantages



1.  Bellows metal is ex factory price

2. 17 years manufacturing experience, 5 years export experience

3. The bellows metal has strict quality inspection, and the quality far exceeds the industry standard.

4. Various specifications of bellows metal mold base customization and OEM

5. Free bellows metal samples

6. Large inventory of bellows metal



Bellows metal application



1. Bellows metals are used for pipes with large deformation and limited space.

2. Bellows metal is used for large diameter, large deformation, large displacement and low working pressure pipeline.

3. Bellows metals are used for equipment that needs to limit the nozzle load.

4. Bellows metal is used to absorb or isolate high frequency mechanical vibration.

5. Bellows metal is used for pipeline to absorb earthquake or foundation settlement.



FAQ



Q1:Can the bellows metal be marked with customized logo?

A1:Yes,the bellows metal can be marked with your logo. We could provide OEM&ODM service for bellows metal.



Q2:What’s the face to face length of bellows metal?

A2:The face to face length of bellows metal can be L130, L152,L203... We also could accept customized length according to your requirements.



Q3:Can you provide drawings of bellows metal?

A3:Yes,we could provide drawings of bellows metal for you.Please contact us to get the drawing of bellows metal.



Q4:What certificates of bellows metal can you provide?

A4:We could provide CE,ISO certificate for our bellows metal.



Q5:Can we get a sample of bellows metal?

A5:Yes,we could provide samples for you to test the quality of our bellows metal.
