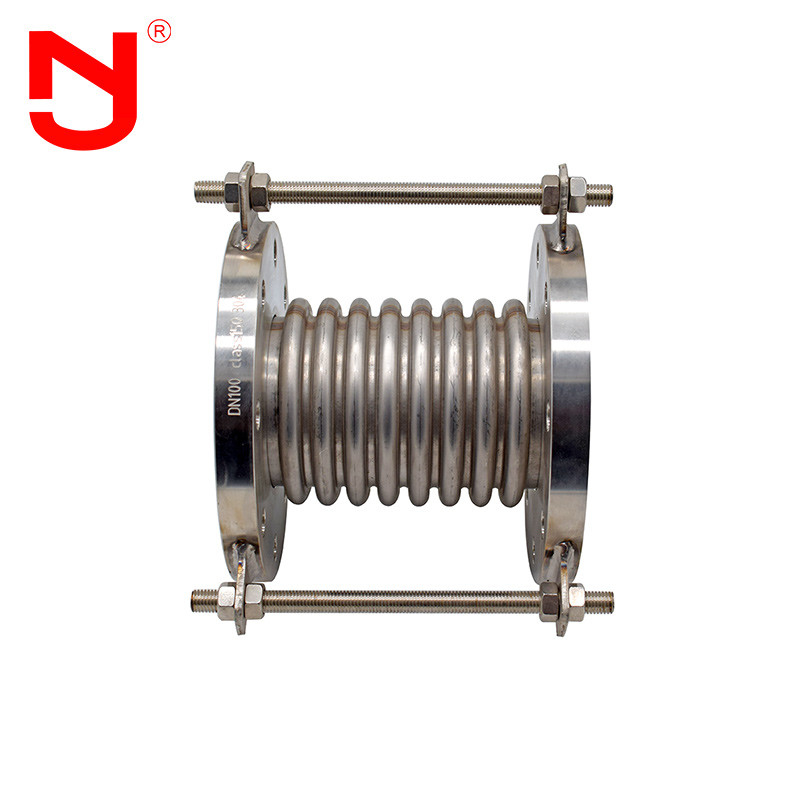

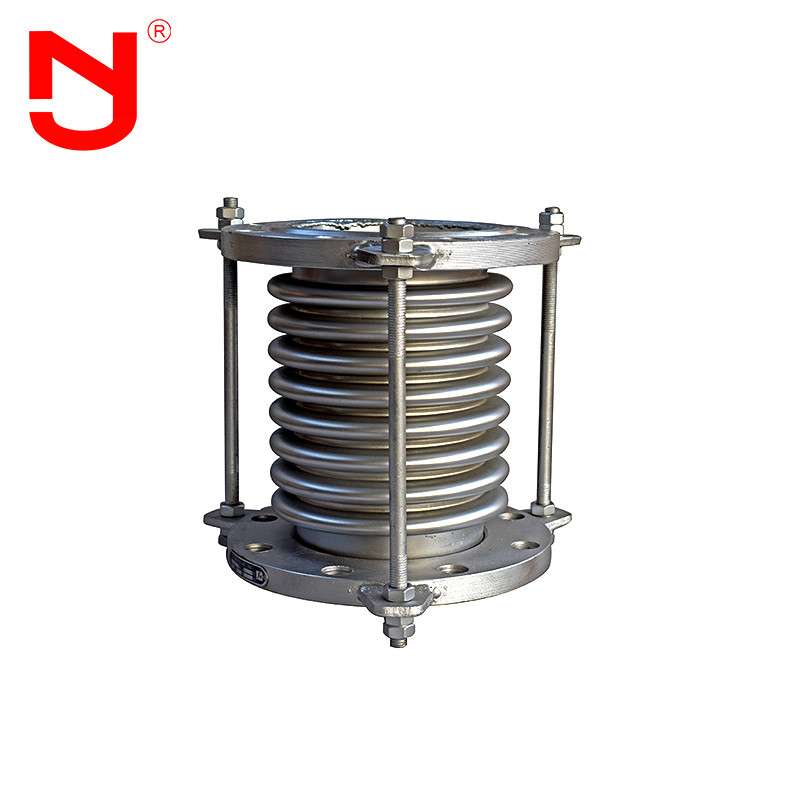

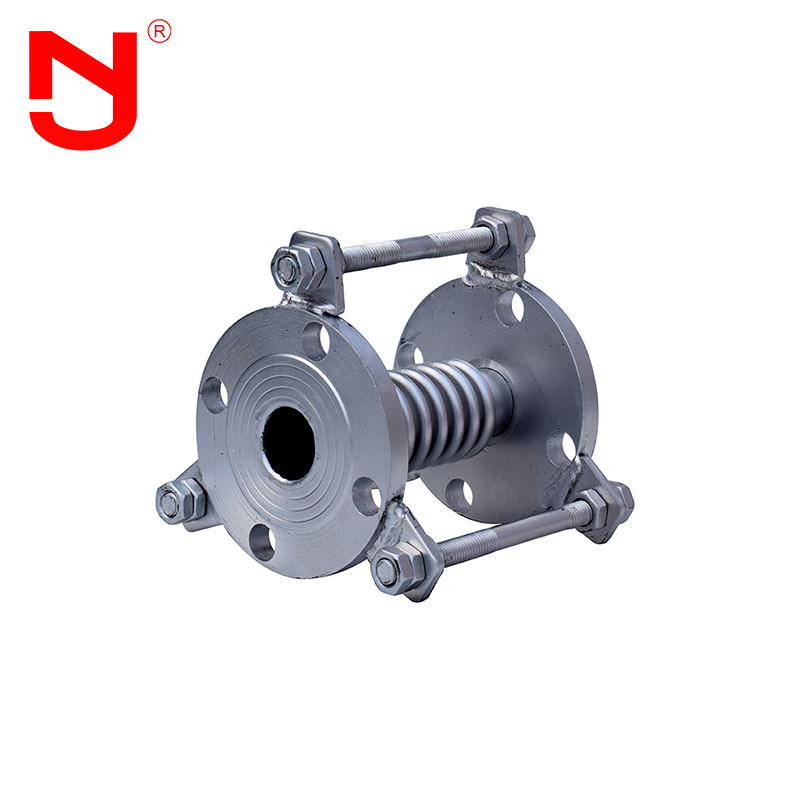

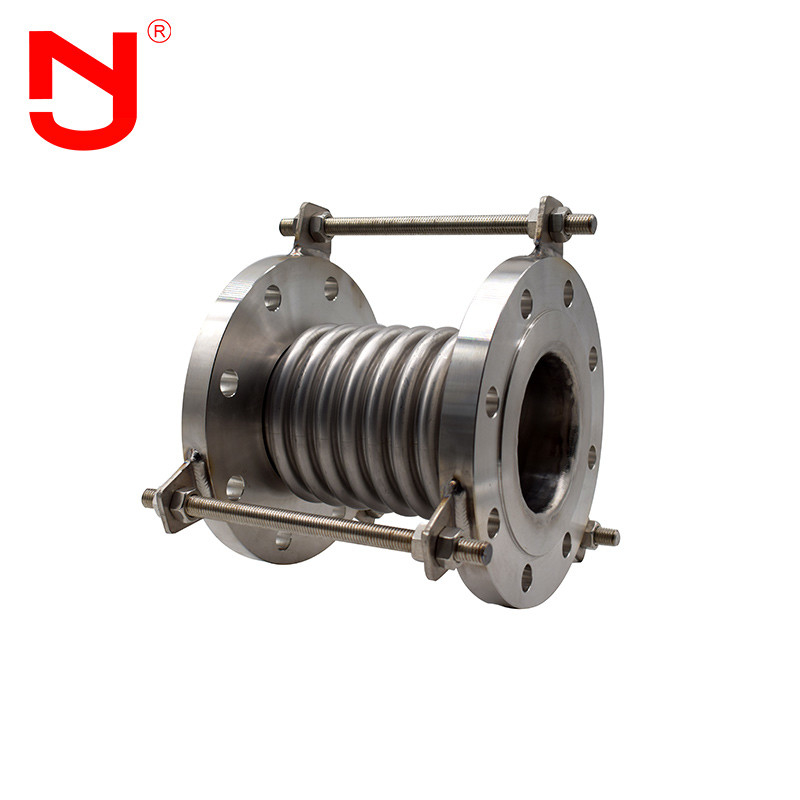

Stainless Steel Flexible Metal Steam Expansion Bellows Ss 316 Joint

Stainless Steel Flexible Metal Steam Expansion Bellows Ss 316 Joint
Stainless Steel Flexible Metal Steam Expansion Bellows Ss 316 Joint Stainless Steel Flexible Metal Steam Expansion Bellows Ss 316 Joint Stainless Steel Flexible Metal Steam Expansion Bellows Ss 316 Joint Stainless Steel Flexible Metal Steam Expansion Bellows Ss 316 Joint

Large Image :  Stainless Steel Flexible Metal Steam Expansion Bellows Ss 316 Joint

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE、ZTC
Model Number: JDZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Detailed Product Description
Company Type: Factory Product Name: Stainless Steel Flexible Metal Steam Expansion Bellows Ss 316 Joint
Certificate: CE ZTC Working Pressure: 0---6.0Mpa
OEM&ODM: Support Flange Standard: ANSI,DIN,BS,AS,JIS
High Light:

Ss 316 Steam Expansion Bellows

,

6.0Mpa Steam Expansion Bellows

,

6.0Mpa steam bellows expansion joints

Stainless steel flexible metal steam expansion bellows ss 316 joint



As a kind of flexible pressure pipe fittings, expansion bellows are installed in the liquid conveying system to compensate the mutual displacement of pipeline, machine and equipment. expansion bellows absorbs vibration energy and can play the role of vibration reduction and silencing. The pitch of expansion bellows is flexible and has good scalability, without blocking and stiffness; The expansion bellows can be freely bent into various angles and radius of curvature, and has the same softness and durability in all directions.



Technique Parameter of expansion bellows



Main data of expansion bellows



Diameter
(mm)
Pressure grade
(Mpa)

Available Area

of Bellows

(c㎡)



Max Size of

External Diameter

(mm)



Length
(mm)

1.0

1.6

2.5

Flange
Tube
32
20/26
18/63
15/98
16
225
160/250
264/280
40
20/24
18/89
15/98
23
244
164/259
269/289
50
20/70
18/70
15/106
37
259
172/276
282/306
65
26/44
22/55
15/138
55
270
215/294
300/322
80
34/33
28/41
19/68
81
284
240/338
344/366
100
40/75
35/93
25/54
121
304
235/317
323/345
125
38/59
34/74
29/117
180
334
282/314
316/342
150
40/62
34/78
29/92
257
364
282/339
338/367
200
59/52
53/58
46/65
479
442
340/402
402/426
250
87/35
79/39
48/78
769
507
393/459
493/399
300
87/37
79/41
71/47
1105
562
464/525
564/565
350
87/44
79/48
71/45
1307
622
509/564
609/604
400
87/43
79/47
71/47
1611
562
522/566
622/628
450
87/37
79/41
47/75
1972
700
403/498
503/523
500
87/68
79/75
71/45
2445
760
431/523
531/554
600
87/85
79/94
71/82
3534
835
478/548
578/588
700
87/77
79/85
71/103
4717
1110
490
590
800
102/102
94/112
71/95
5822
1265
502
602
900
102/97
94/107
80/123
7620
1186
/
698
1000
102/105
94/106
82/117
9043
1286
/
692



Expansion bellows details show

Stainless Steel Flexible Metal Steam Expansion Bellows Ss 316 Joint 0



Production process of expansion bellows



Do you know how is a high quality expansion bellows made?Let's see with JINGNING.

Stainless Steel Flexible Metal Steam Expansion Bellows Ss 316 Joint 1

Expansion bellows can be processed into different types according to different needs

Expansion bellows compensator Bellow Body: Stainless Steel 304, 316L.
Expansion bellows flange Materials: Q235 carbon steel, 304, 316L stainless steel.

Jingning has more than 17 years of design experience in manufacturing expansion bellows, rubber expansion joint, metal bellows joint, disassembly joint, pipeline and other industrial pipe fittings. The expansion bellows meets the international standards such as GB, ISO, DIN, ANSI, BS, JIS and the special requirements of customers.



Expansion bellows advantages



1. Expansion bellows are ex factory price.

2.17 years of manufacturing experience, 5 years of export experience.

3. The metal compensator has strict quality inspection, and the quality far exceeds the industry standard.

4. Various specifications of expansion bellows mould support customization and OEM.

5. Provide free samples of expansion bellows.

6. The inventory of expansion bellows is large.



Expansion bellows application



Due to the limited flexibility of the metal bellows joint, the metal bellows joint can compensate the temperature difference deformation or other deformation between the equipment and the pipeline, prevent vibration, reduce the thrust of the pipeline on the equipment, and adapt to the uneven settlement of the oil tank foundation. Expansion bellows can be widely used in chemical industry, oil refining, electric power, light industry, atomic energy, metallurgy, machinery, instrumentation, shipbuilding, aerospace and other departments. With the wide application of power pipeline and heat pipeline in industrial and civil fields, the requirements for expansion bellows are higher and higher.



FAQ



Q1:What’s the warranty period of expansion bellows?

A1:We provide 18 months’ warranty for our expansion bellows



Q2:Can you provide material certificate 3.1 of expansion bellows?

A2:Yes,we could provide material certificate 3.1 for our expansion bellows .Please contact us to get the sample of material certificate 3.1 for expansion bellows.



Q3:What’s the antirust technology of expansion bellows flange?

A3:The antirust technology of expansion bellows flange can be galvanizing, painting, plastic powder coating,epoxy resin spraying.



Q4:What certificates of expansion bellows can you provide?

A4:We could provide CE,ISO certificate for our expansion bellows.



Q5:Can we get a sample of expansion bellows?

A5:Yes,we could provide samples for you to test the quality of our expansion bellows.
