Place of Origin:
China
Brand Name:
JINGNING
Certification:
CE、ZTC
Model Number:
JDZ
Contact Us
Video

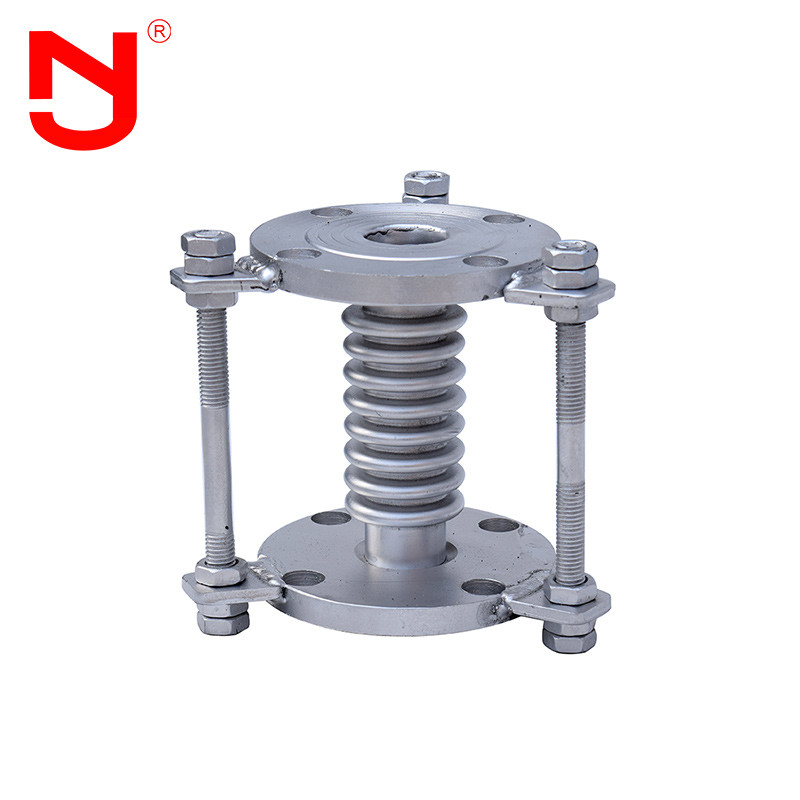

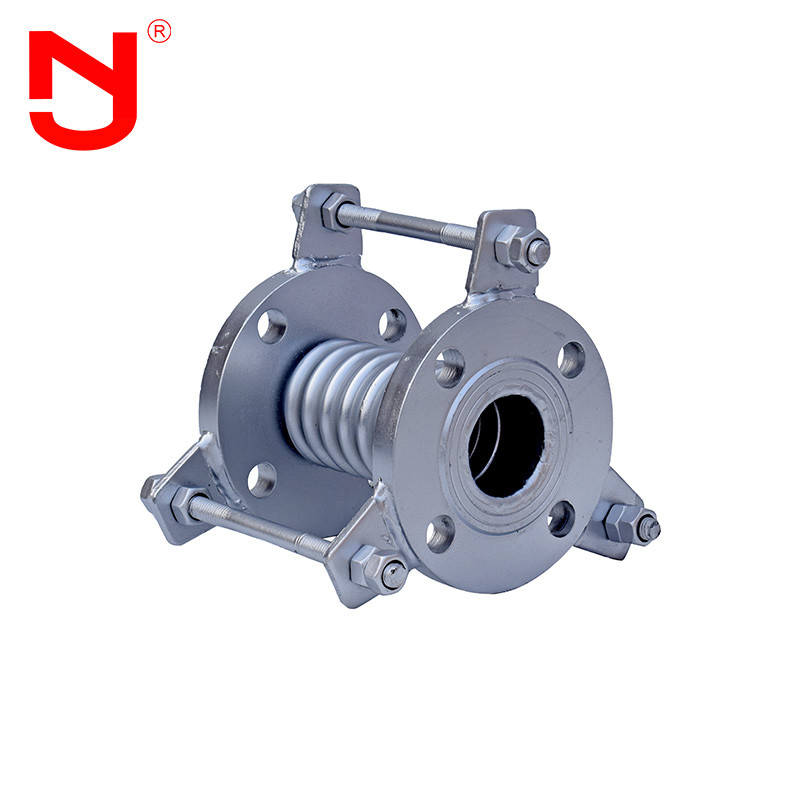

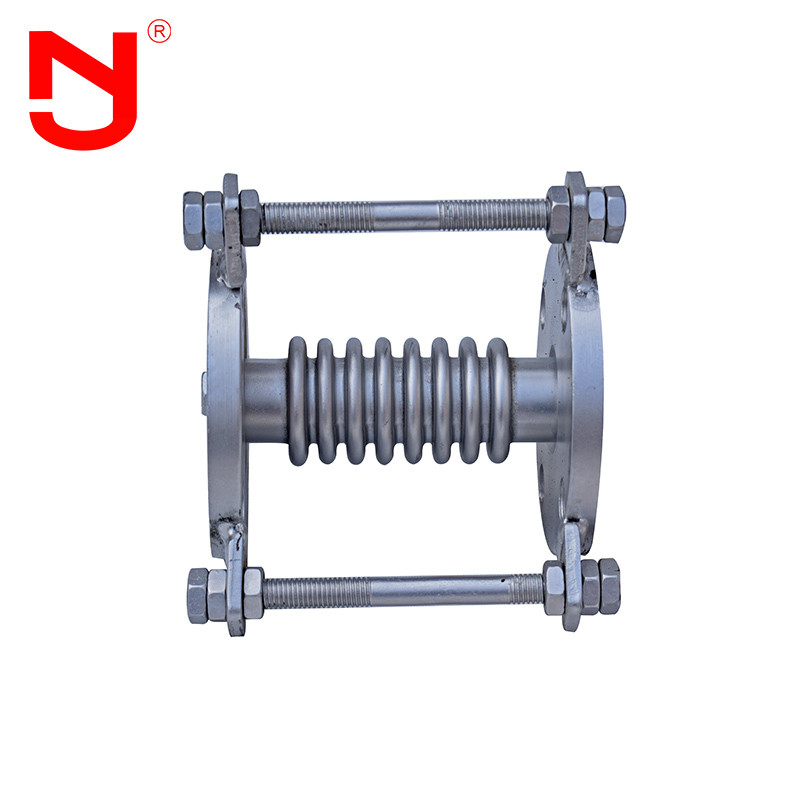

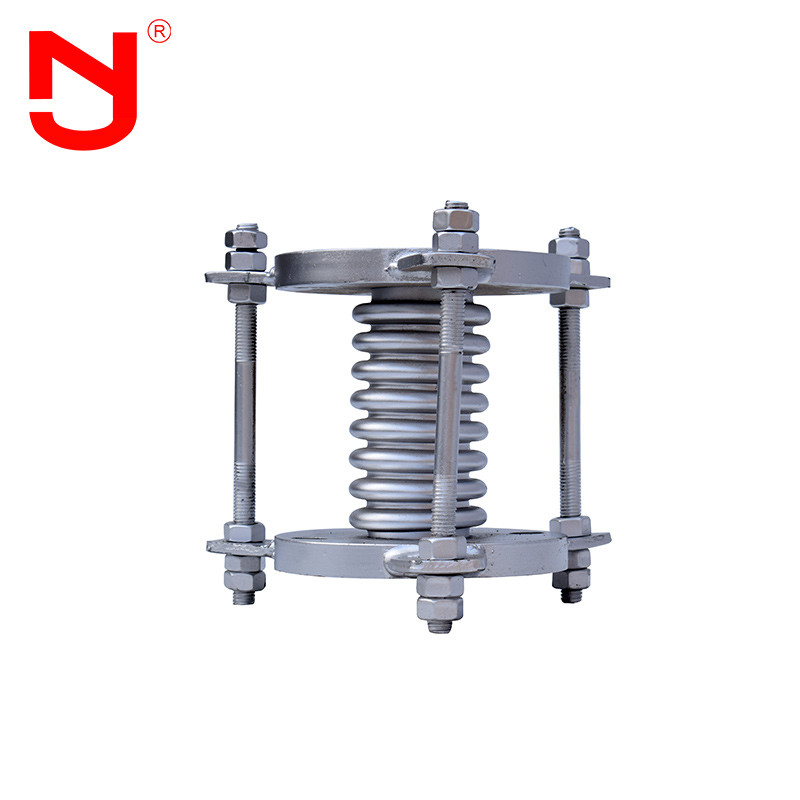

Ripple compensator stainless steel flexible joint pipe
Flexible joint pipe, also known as expansion joint, flexible joint pipe is composed of metal bellows and components, mainly to ensure the safe operation of the pipeline. Flexible joint pipe is a flexible thin-walled transverse bellows device with expansion function,. The principle of flexible joint pipe is to use its elastic expansion function to compensate the axial displacement, angular displacement, lateral displacement and combined displacement caused by thermal deformation, mechanical deformation and various mechanical vibration. Flexible joint pipes have the functions of pressure resistance, sealing, corrosion resistance, temperature resistance, impact resistance, vibration and noise reduction. The flexible joint pipe can reduce the deformation of the pipeline and improve the service life of the pipeline.
Performance of flexible joint pipe
The main elastic element of flexible joint pipe is stainless steel bellows. Through the expansion and bending of bellows, the joint expansions the pipeline in axial, transverse and angular directions. Metal bellows can play the following roles:
1. The flexible joint pipe absorbs the axial, transverse and angular thermal deformation of the pipeline.
2. Flexible joint pipe can absorb equipment vibration and reduce the influence of equipment vibration on pipeline.
3. Flexible joint pipe can absorb the pipeline deformation caused by earthquake and land subsidence.
Technique Parameter of flexible joint pipe
|
Diameter (mm)
|
Pressure grade |
Available Area of Bellows (c㎡)
|
Max Size of External Diameter
|
Length |
|||
|
1.0 |
1.6 |
2.5 |
Flange
|
Tube
|
|||
|
32
|
20/26
|
18/63
|
15/98
|
16
|
225
|
160/250
|
264/280
|
|
40
|
20/24
|
18/89
|
15/98
|
23
|
244
|
164/259
|
269/289
|
|
50
|
20/70
|
18/70
|
15/106
|
37
|
259
|
172/276
|
282/306
|
|
65
|
26/44
|
22/55
|
15/138
|
55
|
270
|
215/294
|
300/322
|
|
80
|
34/33
|
28/41
|
19/68
|
81
|
284
|
240/338
|
344/366
|
|
100
|
40/75
|
35/93
|
25/54
|
121
|
304
|
235/317
|
323/345
|
|
125
|
38/59
|
34/74
|
29/117
|
180
|
334
|
282/314
|
316/342
|
|
150
|
40/62
|
34/78
|
29/92
|
257
|
364
|
282/339
|
338/367
|
|
200
|
59/52
|
53/58
|
46/65
|
479
|
442
|
340/402
|
402/426
|
|
250
|
87/35
|
79/39
|
48/78
|
769
|
507
|
393/459
|
493/399
|
|
300
|
87/37
|
79/41
|
71/47
|
1105
|
562
|
464/525
|
564/565
|
|
350
|
87/44
|
79/48
|
71/45
|
1307
|
622
|
509/564
|
609/604
|
|
400
|
87/43
|
79/47
|
71/47
|
1611
|
562
|
522/566
|
622/628
|
|
450
|
87/37
|
79/41
|
47/75
|
1972
|
700
|
403/498
|
503/523
|
|
500
|
87/68
|
79/75
|
71/45
|
2445
|
760
|
431/523
|
531/554
|
|
600
|
87/85
|
79/94
|
71/82
|
3534
|
835
|
478/548
|
578/588
|
|
700
|
87/77
|
79/85
|
71/103
|
4717
|
1110
|
490
|
590
|
|
800
|
102/102
|
94/112
|
71/95
|
5822
|
1265
|
502
|
602
|
|
900
|
102/97
|
94/107
|
80/123
|
7620
|
1186
|
/
|
698
|
|
1000
|
102/105
|
94/106
|
82/117
|
9043
|
1286
|
/
|
692
|
Production process of flexible joint pipe
Do you know how is a high quality flexible joint pipe made?Let's see with JINGNING.
Jingning has more than 17 years of design experience in the manufacturing of flexible joint pipe, metal expansion joint, disassembly joint, pipeline and other industrial pipe fittings. The flexible joint pipes meet the international standards such as GB, ISO, DIN, ANSI, BS, JIS and the special requirements of customers.
Joint expansion advantages
1. flexible joint pipe is ex factory price
2. 17 years manufacturing experience, 5 years export experience
3. The flexible joint pipe has strict quality inspection, and the quality far exceeds the industry standard.
4. Various specifications of flexible joint pipe mold base customization and OEM
5. Free flexible joint pipe samples
6. Large inventory of flexible joint pipe
Flexible joint pipe application
1. Pipeline deformation and deformation with large deformation of flexible joint pipe and limited space position.
2. Large diameter pipeline with flexible joint pipe has large deformation and displacement and low working pressure.
3. Flexible joint pipes require devices to limit nozzle load.
4. Flexible joint pipes are required to absorb or isolate high-frequency mechanical vibration.
5. Flexible joint pipes are pipes required to absorb earthquake or foundation settlement.
FAQ
Q1:Can we get a sample of flexible joint pipe?
A1:Yes,we could provide samples for you to test the quality of our flexible joint pipe.
Q2:What’s the warranty period of flexible joint pipe?
A2:We provide 18 months’ warranty for our flexible joint pipe
Q3:What’ the MOQ of flexible joint pipe?
A3:1 pc. We could delivery any quantity according to your requirements.
Q4:Can you provide material certificate 3.1 of flexible joint pipe?
A4:Yes,we could provide material certificate 3.1 for our flexible joint pipe .Please contact us to get the sample of material certificate 3.1 for flexible joint pipe.
Q5:What’s the material of flange ( retaining rings ) for flexible joint pipe can you provide?
A5:The material of flexible joint pipe flange can be carbon steel, stainless steel and ductile iron.
Q6:What’s the antirust technology of flexible joint pipe flange?
A6:The antirust technology of flexible joint pipe flange can be galvanizing, painting, plastic powder coating,epoxy resin spraying.
