Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE,ISO
Model Number: RLJS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: carton or wooden
Delivery Time: 5--15 working days
Payment Terms: Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability: 10000 sets per week
Detailed Product Description
Product Name: Industrial Pipe Dn65 Flexible Bellows Expansion Joint Screwed Union Keyword: Bellows Expansion Joint
Working Pressure: -0.2~4.5Mpa Material: EPDM,NBR,SBR,NR,PTFE,FKM,IIR,CR
Working Temperature: -30~130℃ Technical: Vulcanized,Casting
High Light:

Dn65 Flexible Bellows Expansion Joint

,

Industrial Pipe Flexible Bellows Expansion Joint

,

DN65 Threaded Expansion Joint

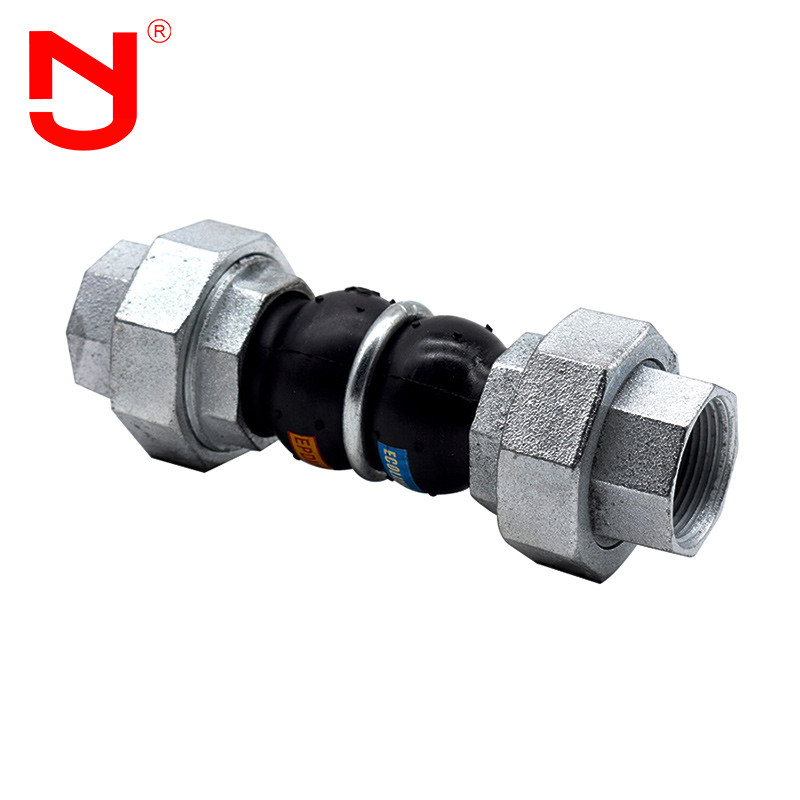

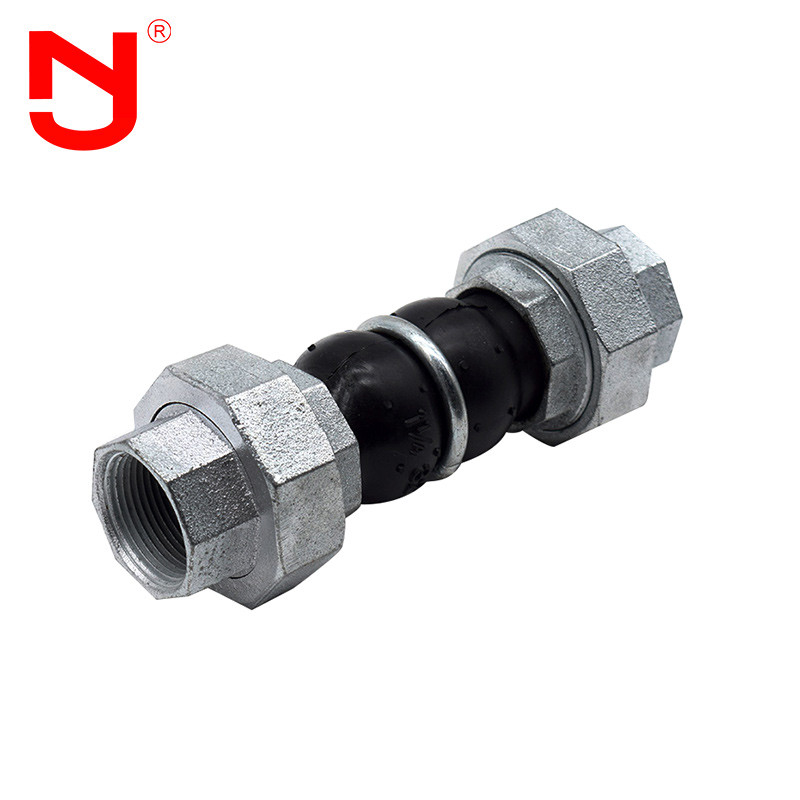

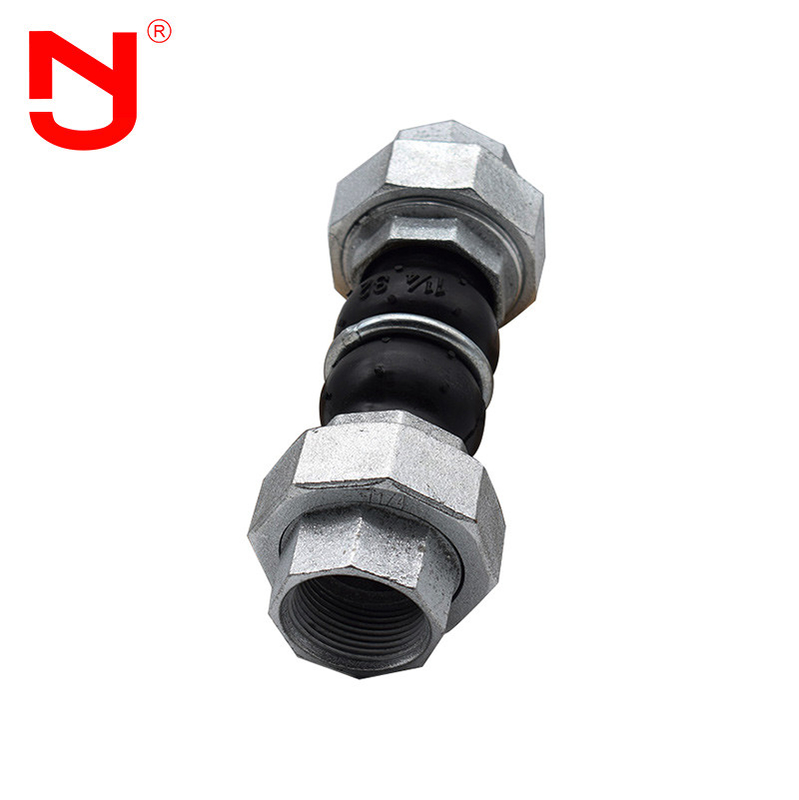

Industrial pipe dn65 flexible bellows expansion joint screwed union



The bellows expansion joint is composed of elastic rubber joint, plane movable joint, loose metal flange or threaded pipe flange, which is used for vibration isolation, noise reduction and displacement compensation. Bellows expansion joint is a kind of pipe joint with high elasticity, high air tightness, medium resistance and weather resistance. The flexible rubber expansion joint is composed of inner rubber, polyester cord reinforcing layer, outer rubber and composite rubber hose. The outer and inner layers of rubber materials can be different. However, the frame layer of bellows expansion joint is made of polyester fabric, and the reinforcing layer has a steel ring.



Performance characteristics of bellows expansion joint



1. High pressure of bellows expansion joint

2. The bellows expansion joint has good elasticity

3. The bellows expansion joint has large deflection displacement

4. Aging resistance of bellows expansion joint

5. Good vibration absorption of bellows expansion joint



Technical data of bellows expansion joint



Main data of bellows expansion joint

Nominal diameter(DN)

Length

Axial displacement(mm)

Horizontal displacement

Deflexion angle

mm

inch

mm

Extension

Compression

mm

(a1+a2)°

15

1/2

200

5-6

22

22

45°

20

 3/4

200

5-6

22

22

45°

25

1

200

5-6

22

22

45°

32

1 1/4

200

5-6

22

22

45°

40

1 1/2

200

5-6

22

22

45°

50

2

200

5-6

22

22

45°

65

2 1/2

265

8-10

24

24

45°

80

3

285

8-10

24

24

45°

Note: 1. The special requirements of bellows expansion joint can be customized according to the user's drawing. Flange standard is GB / t9115.1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The rubber ball of bellows expansion joint can be used as natural rubber, ethylene propylene diene monomer rubber, chloroprene rubber, butyl rubber, butadiene rubber, fluorine rubber, etc. When the bellows expansion joint above DN200 is used for suspended water supply, the pipe must have fixed support or fixed support, otherwise the bellows expansion joint shall be installed with anti falling device.



Bellows expansion joint details show

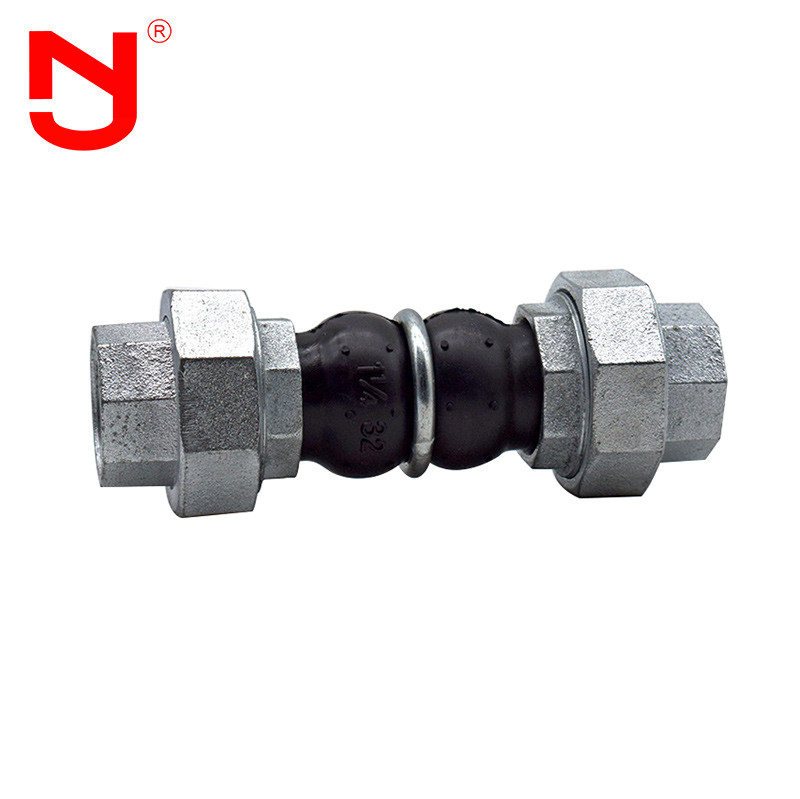

Industrial Pipe Dn65 Flexible Bellows Expansion Joint Screwed Union 0



Bellows expansion joint production Flow



Do you know how is a bellows expansion joint made?Let's see with JINGNING.



Industrial Pipe Dn65 Flexible Bellows Expansion Joint Screwed Union 1



It is very important to select the appropriate bellows expansion joint of the pipeline, understand the compatibility of the medium with the selected material, the full temperature, pressure and vacuum range, the required movement and the size between the pipeline flanges. With this information, Jingning application engineers can help determine the ideal bellows expansion joint for any application.



Bellows expansion joint advantage



1. The bellows expansion joint is galvanized for 15 minutes, resistant to high pressure, high temperature, oil, wear, corrosion, acid and alkali.

2. Bellows expansion joint are connected with pumps, valves, fire-fighting equipment, pipes with large vibration and pipes with frequent changes of cold and heat.

3. The natural rubber content of bellows expansion joint is 47%, which can be used continuously for 15 years without aging.

We introduce foreign advanced technology and combine with China's production experience. In the bellows expansion joint manufacturing operation, the inner side bears high pressure, and the nylon cord and the inner side rubber are combined better, which can bear higher pressure than the ordinary bellows expansion joint. Bellows expansion joint is characterized by perfect combination of inner rubber layer, bright, clean and seamless; the label of bellows expansion joint adopts vulcanization process, which perfectly matches the ball of bellows expansion joint.



bellows expansion joint application



The bellows expansion joint is suitable for connecting the inlet and outlet pipes of all kinds of fan coil units for air conditioning in hotels and other guest rooms. Bellows expansion joints are also suitable for factory and residential plumbing systems, as well as circulating water pipes, sanitary pipes, chemical anti-corrosion and freezing pipes, etc.



FAQ





Q1:Can the bellows expansion joint be marked with customized logo?

A1:Yes,the bellows expansion joint can be marked with your logo. We could provide OEM&ODM service for bellows expansion joint.


Q2:What’s the face to face length of bellows expansion joint?

A2:The face to face length of bellows expansion joint can be L130, L152,L203... We also could accept customized length according to your requirements.


Q3:Can you provide drawings of bellows expansion joint?

A3:Yes,we could provide drawings of bellows expansion joint for you.Please contact us to get the drawing of bellows expansion joint.


Q4:What certificates of bellows expansion joint can you provide?

A4:We could provide CE,ISO certificate for our bellows expansion joint.



Q5:Can we get a sample of bellows expansion joint?

A5:Yes,we could provide samples for you to test the quality of our bellows expansion joint.


Q6:What’s the warranty period of bellows expansion joint?

A6:We provide 18 months’ warranty for our bellows expansion joint.
