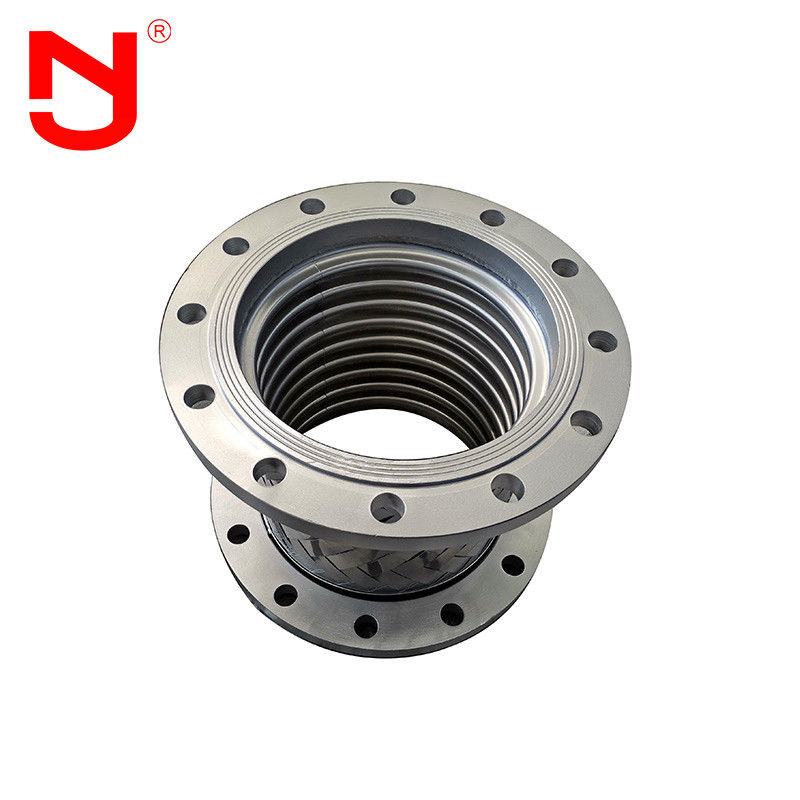

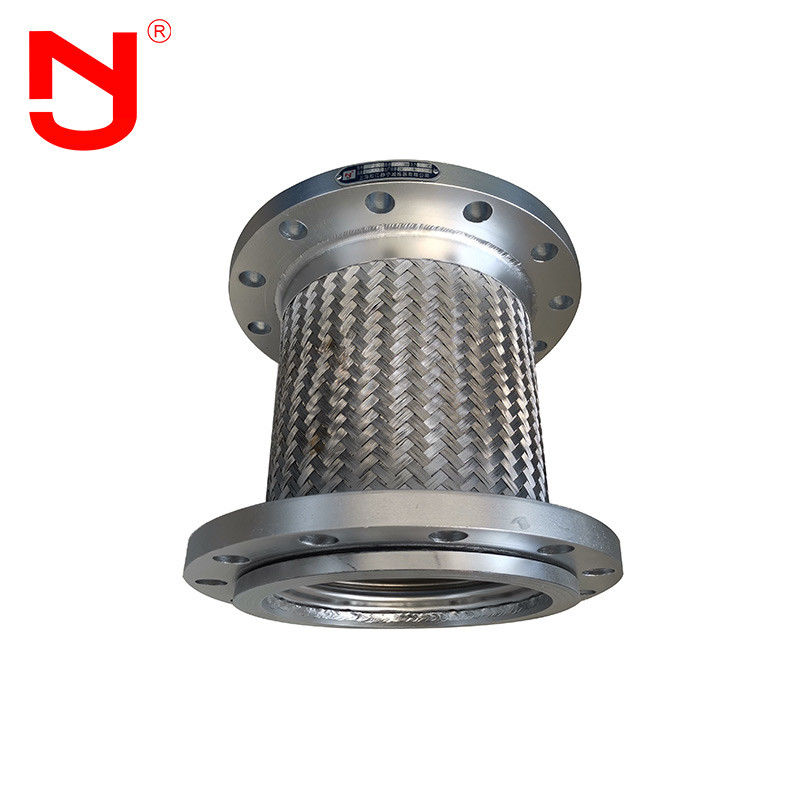

stainless steel metal flexible connectors
Flexible connectors are an important part of a wide range of systems that require flexibility in fluid transfer. They are constructed from lengths of corrugated stainless steel bellows which are covered with flexible stainless steel braiding to add strength.
Performance of flexible connectors
1. Corrosion resistance
2. High and low temperature resistance (- 196 ℃ to 420 ℃)
3. Light weight
4. Small volume
Technique Parameter of flexible connectors
|
Main data of flexible connectors |
|||||||
|
Nominal diameter DN |
Inner diameter (mm) |
Outer diameter | Minimum bending radius | Working pressure | |||
| Bellows | Braid mesh | Static | Dynamic | Single braid mesh | Double braid mesh | ||
| 8 | 8.8 | 13.2 | 14.4 | 50 | 110 | 15 | 20 |
| 10 | 11.7 | 16.5 | 17.7 | 65 | 145 | 185 | 20 |
| 15 | 13.5 | 19.5 | 21.1 | 80 | 180 | 18 | 20 |
| 20 | 20.0 | 27 | 28.6 | 120 | 270 | 10 | 15 |
| 25 | 27.0 | 34.5 | 36.1 | 160 | 360 | 6.3 | 10 |
| 32 | 32.0 | 40 | 41.6 | 175 | 400 | 4.0 | 6.3 |
| 40 | 39.6 | 52 | 53.6 | 225 | 510 | 4.0 | 6.3 |
| 50 | 49.7 | 62 | 63.6 | 280 | 640 | 3.0 | 5.0 |
| 65 | 61.2 | 80.2 | 81.8 | 410 | 915 | 3.0 | 5.0 |
| 80 | 79.0 | 96.3 | 97.9 | 486 | 1030 | 3.0 | 5.0 |
| 100 | 101.2 | 119.6 | 121.2 | 610 | 1340 | 2.5 | 4.0 |
| 125 | 124.1 | 145.3 | 146.9 | 700 | 1540 | 2.5 | 4.0 |
| 150 | 149.4 | 180.8 | 182.4 | 810 | 1780 | 2.5 | 4.0 |
| 200 | 176.0 | 240 | 243.2 | 1000 | 2000 | 2.5 | 4.0 |
| 250 | 248.0 | 290 | 294 | 1250 | 2500 | 2.5 | 4.0 |
| 300 | 298.0 | 350 | 354 | 1500 | 3000 | 1.6 | 2.5 |
| 350 | 347.0 | 400 | 404.8 | 1750 | 3500 | 1.6 | 2.5 |
| 400 | 397.6 | 460 | 464.8 | 2000 | 4000 | 1.6 | 2.5 |
Production process of flexible connectors
Do you know how is a high quality flexible connectors made?Let's see with JINGNING.
Inner Core: Corrugated Stainless Steel
Flexible connectors stainless steel core strengths are available in 304, 321 and 316L stainless steel ;Stainless steel tubing formed into corrugations parallel to one another.
Outer Core:Braided Stainless Steel Layers
Purchase corrugated core hose with no layers, single or double braided;Flexible connectors outer braid layers made from 304 stainless steel.
Jingning has more than 17 years of design experience in manufacturing flexible connectors , rubber expansion joint, metal expansion joint, disassembly joint, pipeline and other industrial pipe fittings. The flexible connectors meets the international standards such as GB, ISO, DIN, ANSI, BS, JIS and the special requirements of customers.
Flexible connectors advantages
1. Flexible connectors is ex factory price
2.17 years of manufacturing experience, 5 years of export experience
3. The flexible connectors has strict quality inspection, and the quality far exceeds the industry standard.
4. Various specifications of flexible connectors mould support customization and OEM
5. Provide free samples of flexible connectors
6. The inventory of flexible connectors is large
Flexible connectors application
Flexible connectors can be widely used in aviation, aerospace, petroleum, chemical industry, metallurgy, electric power, paper making, wood, textile, construction, medicine, food, tobacco, communication and other industries.
