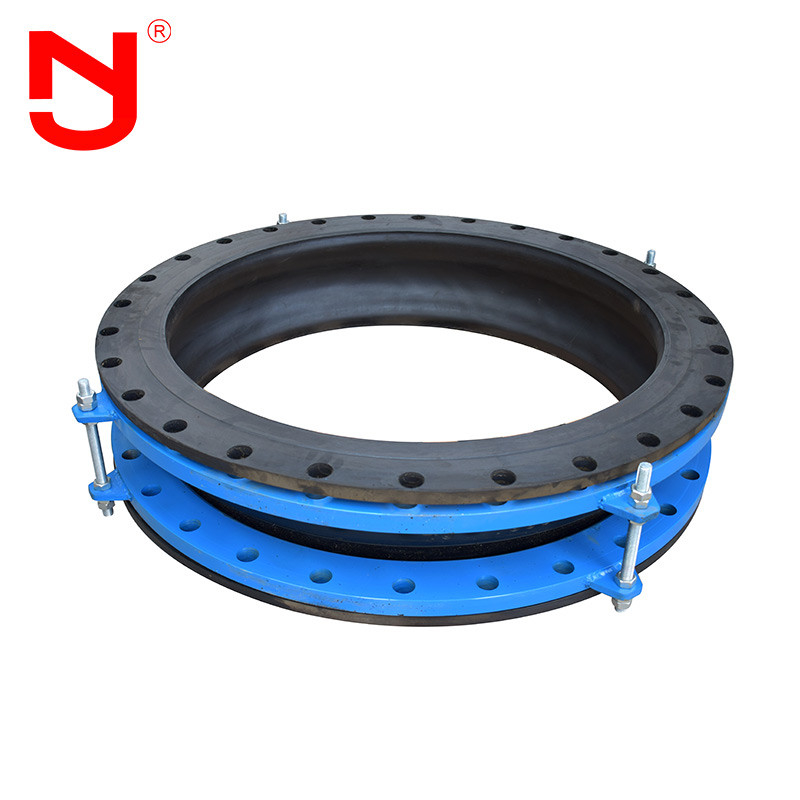

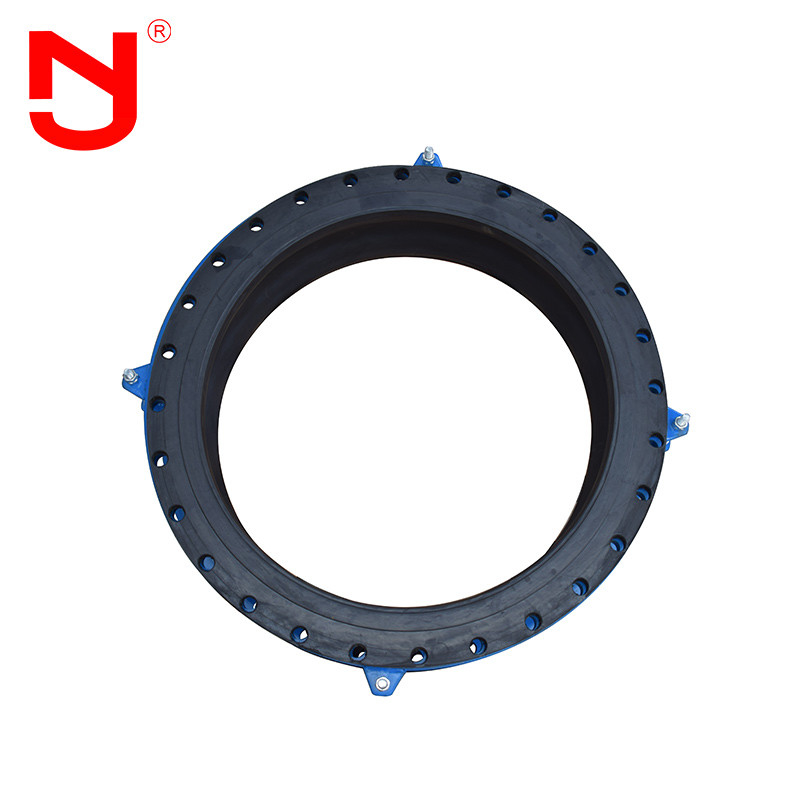

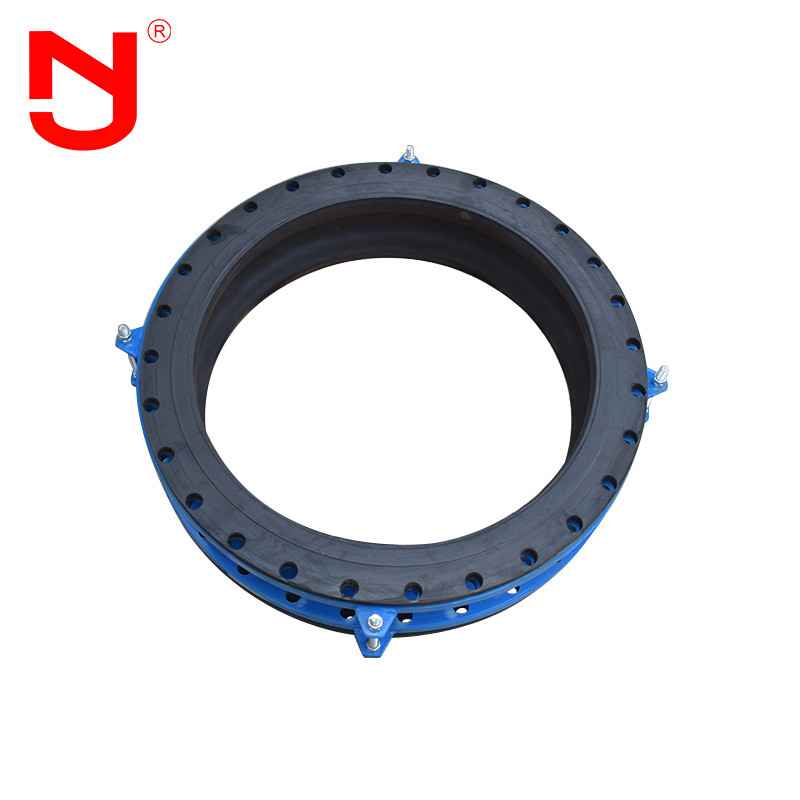

Large size flexible rubber expansion joint with tie rod control
ADVANTAGES
1.Outstanding pressure resistance
It excels in pressure resistance by the combination of spherical structure with super stability against internal pressure and strong special reinforcing nylon.JINGNING flexible connector display an outstanding pressure resistance of bursting pressure.
2.Superior absorption of vibration-noise-shock
JINGNING single sphere flexible rubber joint are engineered to reduce vibration ,noise and movenment inherent in piping systems.JINGNING will enable the isolated equipment to move freely ,eliminating vibration and repelling sound which is prevalent in metallic type joint.
3.Compensate greater elongation, compression , lateral and angular movement
Equipment such as pump ,chillers,cooling tower,compressors and piping systems move out of alignment due to wear,load stress and during the setting of foundation blocks.JINGNING flexible connector for lateral ,torsional and angular movement to prevent damage ,which elimate costly downtime in plant operation.
| GENERAL CHARACTRISTICS | |
| Nominal Diameter | DN15-DN3000 |
| Working Pressure | PN6-PN25 |
| Working Temperature | -20℃-140℃ |
| Working Medium | Water,Oil,Acid,Alkali |
|
Main data of rubber expansion joint
|
||||||
|
Nominal diameter(DN)
|
Length
|
Axial displacement(mm)
|
Horizontal displacement
|
Deflexion angle
|
||
|
mm
|
inch
|
mm
|
Extension
|
Compression
|
mm
|
(a1+a2)°
|
|
32
|
1 1/4
|
95
|
6
|
9
|
9
|
15°
|
|
40
|
1 1/2
|
95
|
6
|
10
|
9
|
15°
|
|
50
|
2
|
105
|
7
|
10
|
10
|
15°
|
|
65
|
2 1/2
|
115
|
7
|
13
|
11
|
15°
|
|
80
|
3
|
135
|
8
|
15
|
12
|
15°
|
|
100
|
4
|
150
|
10
|
19
|
13
|
15°
|
|
125
|
5
|
165
|
12
|
19
|
13
|
15°
|
|
150
|
6
|
180
|
12
|
20
|
14
|
15°
|
|
200
|
8
|
210
|
16
|
25
|
22
|
15°
|
|
250
|
10
|
230
|
16
|
25
|
22
|
15°
|
|
300
|
12
|
245
|
16
|
25
|
22
|
15°
|
|
350
|
14
|
255
|
16
|
25
|
22
|
15°
|
|
400
|
16
|
255
|
16
|
25
|
22
|
15°
|
|
450
|
18
|
255
|
16
|
25
|
22
|
15°
|
|
500
|
20
|
255
|
16
|
25
|
22
|
15°
|
|
600
|
24
|
260
|
16
|
25
|
22
|
15°
|
To select the proper piping expansion joint, it is critical to understand the media compatibility with the materials selected, full temperature, pressure and vacuum ranges, movements required, and dimensions between pipe flanges. With this information, JINGNING application engineers can assist in determining the ideal expansion joint for any application.
Do you know how is a high quality rubber expansion joint made?Let's see with JINGNING.
Q1:Can we get a sample of large size flexible rubber expansion joint?
A1:Yes,we could provide samples for you to test the quality of our large size flexible rubber expansion joint.
Q2:What’s the warranty period of large size flexible rubber expansion joint?
A2:We provide 18 months’ warranty for our large size flexible rubber expansion joint
Q3:What’ the MOQ of large size flexible rubber expansion joint?
A3:1 pc. We could delivery any quantity according to your requirements.
Q4:Can you provide material certificate 3.1 of large size flexible rubber expansion joint?
A4:Yes,we could provide material certificate 3.1 for our large size flexible rubber expansion joint.Please contact us to get the sample of material certificate 3.1 for large size flexible rubber expansion joint.
Q5:What’s the material of flange ( retaining rings ) for large size flexible rubber expansion joint can you provide?
A5:The material of large size flexible rubber expansion joint flange can be carbon steel, stainless steel and ductile iron.
Q6:What’s the antirust technology of large size flexible rubber expansion joint flange?
A6:The antirust technology of large size flexible rubber expansion joint flange can be galvanizing, painting, plastic powder coating,epoxy resin spraying.
Send your inquiry directly to us
