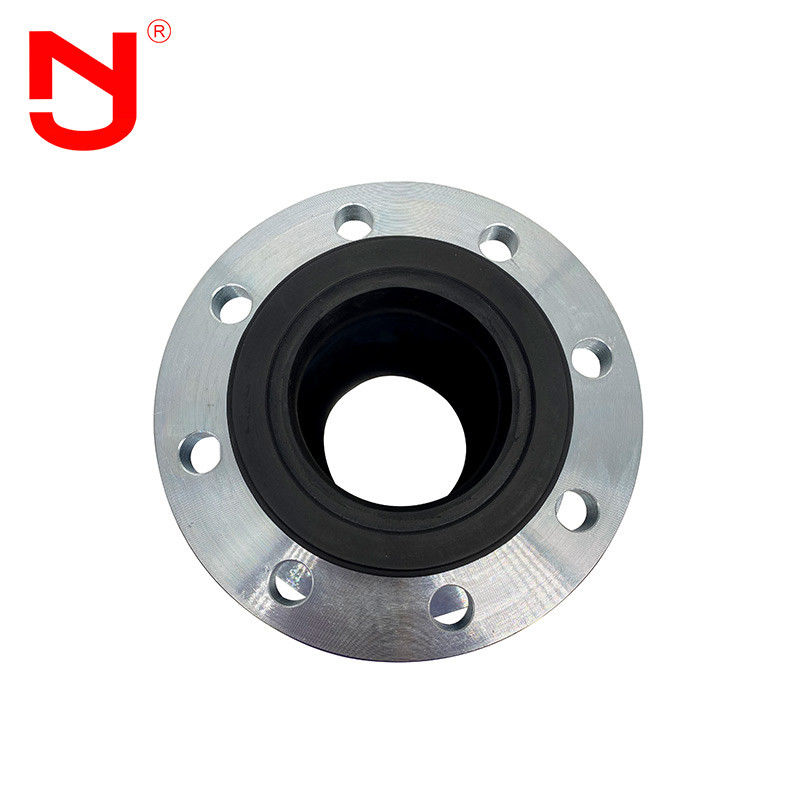

Epdm Flexible Single Sphere Rubber Expansion Joint Bellow Connector Flange Type

Epdm Flexible Single Sphere Rubber Expansion Joint Bellow Connector Flange Type

single sphere flex connector

Epdm single sphere expansion joint

single sphere rubber joint

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Produce Name:
Flexible Expansion Joint
Flange Standard:
Working Pressure:
Working Medium:
Payment & Shipping Terms
Minimum Order Quantity
USD 10--2000
Packaging Details
carton or wooden
Delivery Time
5--15 working days
Payment Terms
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability
10000 sets per week
Product Description

EPDM single bellow flexible flange type flexible expansion joint


Flexible expansion joints are often referred to as rubber joints. Flexible expansion joints are widely used in water, electricity, chemical industry and ship mooring systems. According to different media, the rubber materials used in flexible expansion joints are also different, including NR, SBR, IIR, NBR, EPDM, Cr, fkr, etc. Flexible expansion joints have heat resistance, acid resistance, alkali resistance, corrosion resistance and oil resistance. The structural material of the rubber joint is nylon cord fabric, and the inner and outer surfaces are made of high-strength aging resistant polar rubber. In order to prevent natural shrinkage of flexible expansion joints in long-term use and reduce aging and fracture, steel wires are used for multiple protection of rubber joints.


Performance characteristics of flexible expansion joint


1. The flexible expansion joint has the advantages of small size, light weight, good ductility and convenient installation and maintenance.

2. Flexible expansion joint installation can cause horizontal, radial, angular offset, will not be limited by the pipe plug center, flange uneven surface.

3. When the flexible expansion joint is working, it can reduce the structure transmission noise and has strong vibration absorption ability.


Technical data of flexible expansion joint


Main data of flexible expansion joint
Nominal diameter(DN) Length Axial displacement(mm) Horizontal displacement Deflexion angle
mm inch mm Extension Compression mm (a1+a2)°
32 1 1/4 95 6 9 9 15°
40 1 1/2 95 6 10 9 15°
50 2 105 7 10 10 15°
65 2 1/2 115 7 13 11 15°
80 3 135 8 15 12 15°
100 4 150 10 19 13 15°
125 5 165 12 19 13 15°
150 6 180 12 20 14 15°
200 8 210 16 25 22 15°
250 10 230 16 25 22 15°
300 12 245 16 25 22 15°
350 14 255 16 25 22 15°
400 16 255 16 25 22 15°
450 18 255 16 25 22 15°
500 20 255 16 25 22 15°
600 24 260 16 25 22 15°

Note: 1. The special requirements of flexible expansion joint can be customized according to user's drawing. Flange standard is GB / t9115.1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The rubber ball of flexible expansion joint can be used as natural rubber, EPDM, chloroprene rubber, butyl rubber, butadiene rubber, fluororubber, etc. when the flexible expansion joint above DN200 is used for suspension water supply, the pipeline must have fixed support or fixed support, otherwise the flexible expansion joint shall be installed with anti falling device.


Flexible expansion joint details show


Epdm Flexible Single Sphere Rubber Expansion Joint Bellow Connector Flange Type 0


flexible expansion joint production Flow


Do you know how is a flexible expansion joint made?Let's see with JINGNING.

Epdm Flexible Single Sphere Rubber Expansion Joint Bellow Connector Flange Type 1


It is very important to select the appropriate flexible expansion joint, to understand the compatibility of the medium and the selected material of the flexible expansion joint, the range of full temperature, full pressure and full vacuum, the amount of movement required, and the size between the pipe flanges. With this information, Jingning application engineers can help determine the ideal flexible expansion joint for any application.


Flexible expansion joint advantage


1. Factory price of flexible expansion joint.

2. 16 years of manufacturing experience, 5 years of export experience.

3. Strict quality inspection, the quality far exceeds the industry standard.

4. Flexible expansion joint mold has a variety of specifications, support customization, OEM.

5. Provide free samples of flexible expansion joint.

6. Flexible expansion joints are in large stock.


Flexible expansion joint application


Flexible expansion joint is widely used in chemical engineering, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, sanitation, water heating, fire protection, electric power and other basic projects because of its good comprehensive performance. According to the different rubber materials of flexible expansion joint, it can be made into various varieties, such as acid resistance, alkali resistance, corrosion resistance, oil resistance, high temperature resistance, radiation resistance, wear resistance, aging resistance, etc. the flexible fittings can adapt to a variety of media and environment.




Q1:Can the flexible expansion joint be marked with customized logo?

A1:Yes,the flexible expansion joint can be marked with your logo. We could provide OEM&ODM service for flexible expansion joint.

Q2:What’s the face to face length of flexible expansion joint?

A2:The face to face length of flexible expansion joint can be L130, L152,L203... We also could accept customized length according to your requirements.

Q3:Can you provide drawings of flexible expansion joint?

A3:Yes,we could provide drawings of flexible expansion joint for you.Please contact us to get the drawing of flexible expansion joint.

Q4:What certificates of flexible expansion joint can you provide?

A4:We could provide CE,ISO certificate for our flexible expansion joint.


Q5:Can we get a sample of flexible expansion joint?

A5:Yes,we could provide samples for you to test the quality of our flexible expansion joint.
