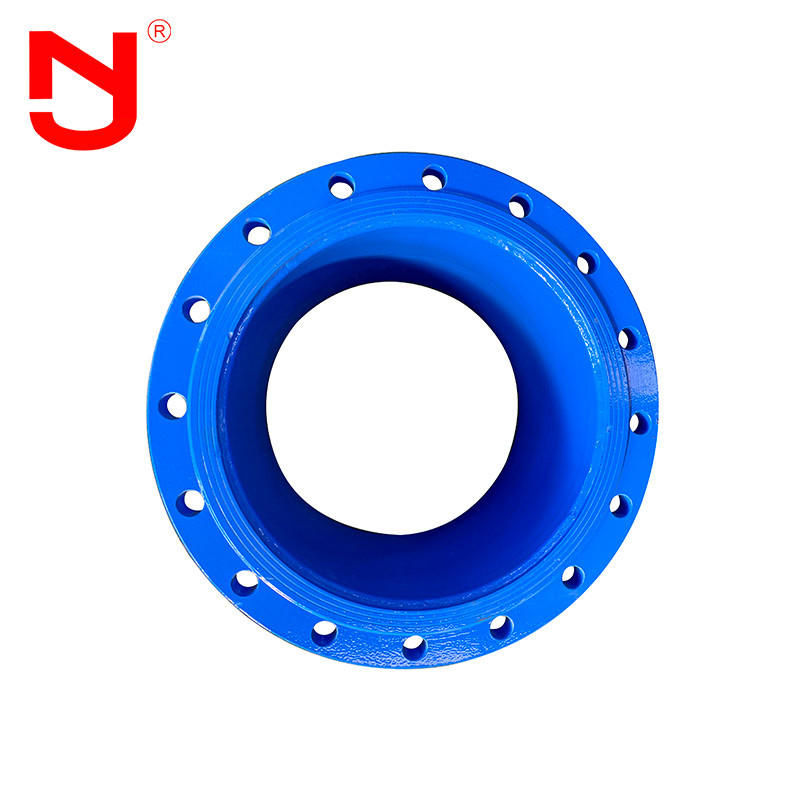

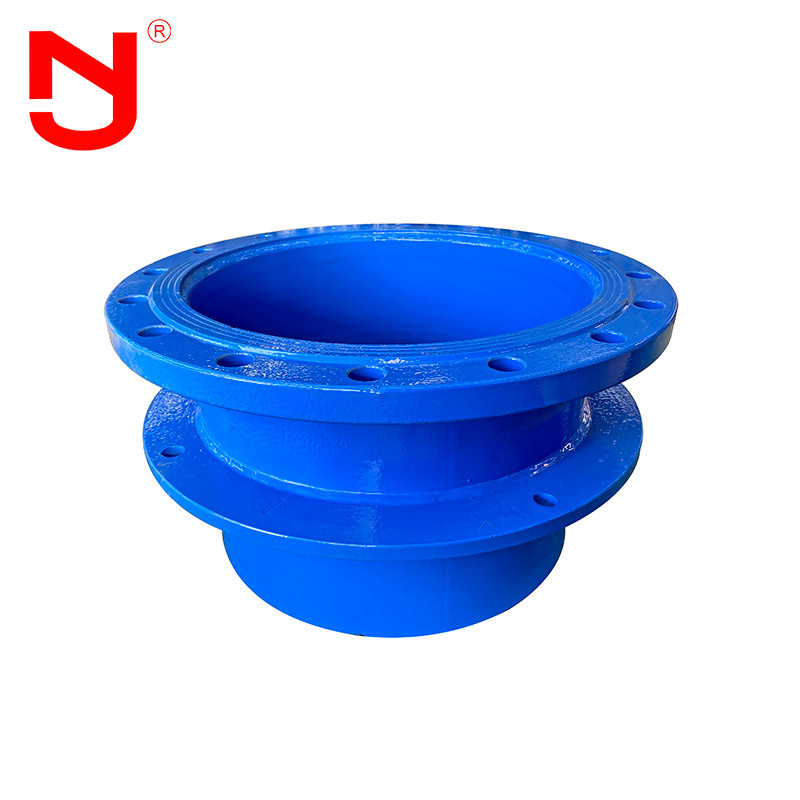

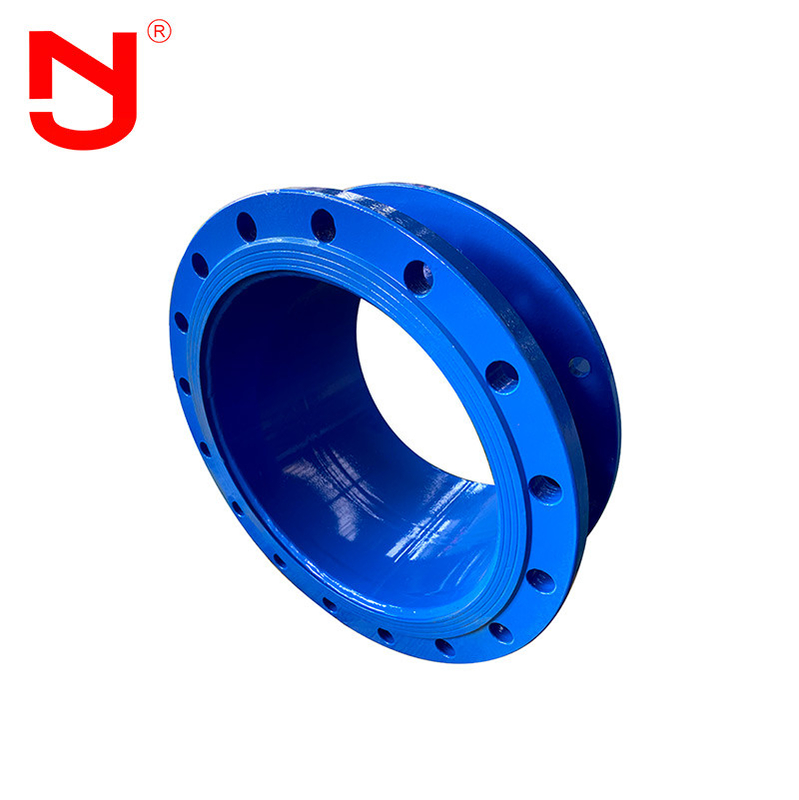

Single Flange Limit
Single flange limit expansion joint: This product is used to connect with the flange while welding with the pipeline. During the installation of single flange limit expansion joint, adjust the installation length between both ends of the product and the pipeline or flange, tighten the gland bolts diagonally and evenly, and then adjust the limit nut, so that the pipeline can expand and contract by itself within the expansion range and lock the expansion amount, Safe operation of pipelines.
Performance of single flange limit expansion joint
Single flange limit expansion joint structure
Technical data of single flange limit expansion joint
|
Main data of single flange limit expansion joint |
||||||||||
|
Nominal iameter DN |
External diameter Dw |
Length |
Compen -sation △L |
Flange connecting dimension | ||||||
| 0.6Map | 1.0Map | |||||||||
| L | L1 | D | D1 | n-do | D | D1 | n-do | |||
| 65 | 76 | 340 | 105 | 50 | 160 | 130 | 4-Φ14 | 185 | 145 | 4-Φ18 |
| 80 | 89 | 190 | 150 | 4-Φ18 | 200 | 160 | 8-Φ18 | |||
| 100 | 108 | 210 | 170 | 220 | 180 | 8-Φ18 | ||||
| 114 | 220 | 180 | 8-Φ18 | |||||||
| 125 | 133 | 265 | 200 | 8-Φ18 | 250 | 210 | 8-Φ18 | |||
| 140 | 250 | 210 | 8-Φ18 | |||||||
| 150 | 159 | 375 | 225 | 8-Φ18 | 285 | 240 | 8-Φ22 | |||
| 168 | 285 | 240 | 8-Φ22 | |||||||
| 200 | 219 | 321 | 280 | 340 | 295 | 8-Φ22 | ||||
| 250 | 273 | 375 | 335 | 12-Φ18 | 395 | 350 | 12-Φ22 | |||
| 300 | 325 | 350 | 130 | 65 | 440 | 395 | 12-Φ22 | 445 | 400 | 12-Φ22 |
| 350 | 377 | 490 | 445 | 505 | 460 | 16-Φ26 | ||||
| 400 | 426 | 540 | 495 | 16-Φ22 | 565 | 515 | 16-Φ26 | |||
| 450 | 480 | 595 | 550 | 615 | 565 | 20-Φ26 | ||||
| 500 | 530 | 645 | 600 | 20-Φ22 | 670 | 620 | 20-Φ26 | |||
| 600 | 630 | 775 | 705 | 20-Φ26 | 780 | 725 | 20-Φ30 | |||
| 700 | 720 | 860 | 810 | 24-Φ26 | 895 | 840 | 24-Φ30 | |||
| 800 | 820 | 590 | 220 | 130 | 950 | 920 | 24-Φ30 | 1015 | 950 | 24-Φ33 |
| 900 | 920 | 1075 | 1020 | 1115 | 1050 | 28-Φ33 | ||||
| 1000 | 1020 | 1175 | 1120 | 28-Φ30 | 1230 | 1160 | 28-Φ36 | |||
| 1200 | 1220 | 1405 | 1340 | 32-Φ33 | 1455 | 1380 | 32-Φ40 | |||
| 1400 | 1420 | 1630 | 1500 | 36-Φ36 | 1675 | 1590 | 36-Φ42 | |||
| 1500 | 1520 | 1730 | 1660 | 36-Φ36 | 36-Φ42 | |||||
| 1600 | 1620 | 1830 | 1760 | 40-Φ40 | 1915 | 1820 | 40-Φ48 | |||
| 1810 | 1820 | 2045 | 1970 | 44-Φ42 | 2115 | 2020 | 44-Φ48 | |||
| 2000 | 2020 | 2265 | 2180 | 48-Φ42 | 2320 | 2230 | 48-Φ48 | |||
| 2200 | 2220 | 2475 | 2390 | 52-Φ42 | 2550 | 2440 | 52-Φ56 | |||
| 2400 | 2420 | 2685 | 2600 | 56-Φ42 | 2760 | 2650 | 60-Φ56 | |||
| 2600 | 2620 | 600 | 240 | 140 | 2905 | 2810 | 60-Φ48 | 2960 | 3070 | 64-Φ56 |
| 2800 | 2820 | 3115 | 3020 | 64-Φ48 | 3180 | 3290 | 68-Φ60 | |||
| 3000 | 3020 | 3315 | 3220 | 68-Φ48 | 3405 | |||||
| 3200 | 3220 | 3525 | 3430 | 72-Φ48 | ||||||
| 3400 | 3420 | 3735 | 3640 | 76-Φ48 | ||||||
| 3600 | 3620 | 3970 | 3860 | 80-Φ56 | ||||||
Note:Single flange limit expansion joint is suitable for connecting both sides with flange. During installation, adjust the connecting length of both ends of the product, tighten the gland bolts in turn and adjust the limit nuts. In this way, the pipeline can expand freely, lock the expansion, and ensure the safe operation of the pipeline.
Single flange limit expansion joint production flow
Single flange limit expansion joint advantage
1. Factory price of single flange limit expansion joint.
2. 16 years of manufacturing experience, 5 years of export experience.
3. Strict quality inspection, the quality far exceeds the industry standard.
4. Single flange limit expansion joint mold has a variety of specifications, support customization, OEM.
5. Provide free samples of single flange limit expansion joint.
6. Single flange limit expansion joints are in large stock.
Single flange limit expansion jointapplication
In the installation process of single flange limit expansion joint, when the temperature changes or the pipe vibrates, the single flange limit expansion joint can play the role of expansion compensation. When the foundation settlement, the single flange limit expansion joint can compensate the displacement to a certain extent to ensure that there is no leakage in the seal. Secondly, the installation and removal of the single flange limit expansion joint is very convenient, which makes it connected to the water supply and drainage pipeline, water tower, The installation and disassembly of the pump water meter provides great convenience.
FAQ
Q1:Can the single flange limit expansion joint be marked with customized logo?
A1:Yes,the single flange limit expansion joint can be marked with your logo. We could provide OEM&ODM service for single flange limit expansion joint .
Q2:What’s the face to face length of single flange limit expansion joint ?
A2:The face to face length of single flange limit expansion joint can be L130, L152,L203... We also could accept customized length according to your requirements.
Q3:Can you provide drawings of single flange limit expansion joint?
A3:Yes,we could provide drawings of single flange limit expansion joint for you.Please contact us to get the drawing of single flange limit expansion joint.
Q4:What certificates of single flange limit expansion joint can you provide?
A4:We could provide CE,ISO certificate for our single flange limit expansion joint.
Q5:Can we get a sample of single flange limit expansion joint?
A5:Yes,we could provide samples for you to test the quality of our single flange limit expansion joint.
Q6:What’s the warranty period of single flange limit expansion joint ?
A6:We provide 18 months’ warranty for our single flange limit expansion joint .
