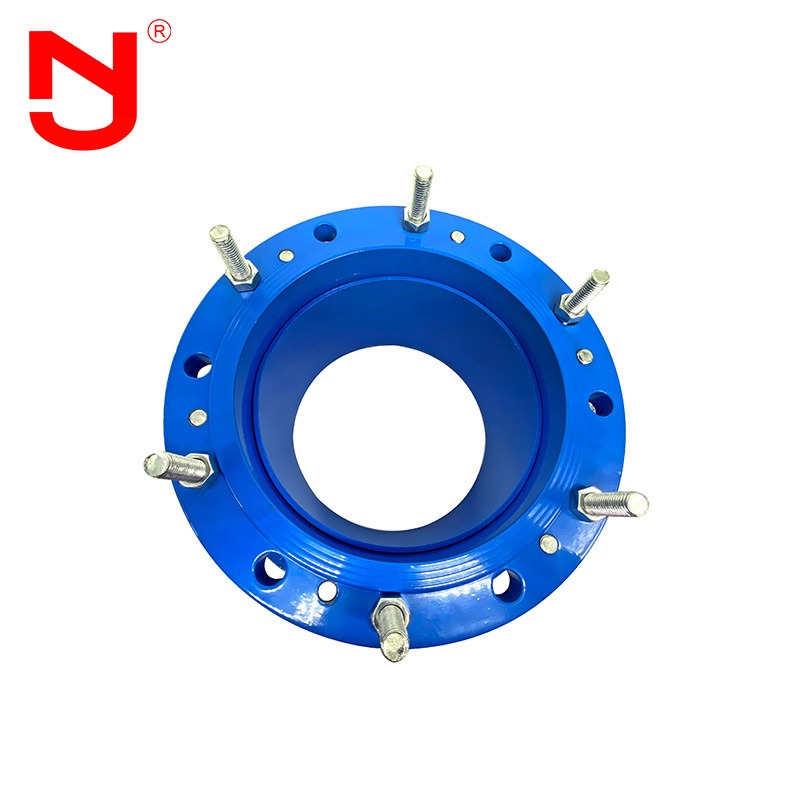

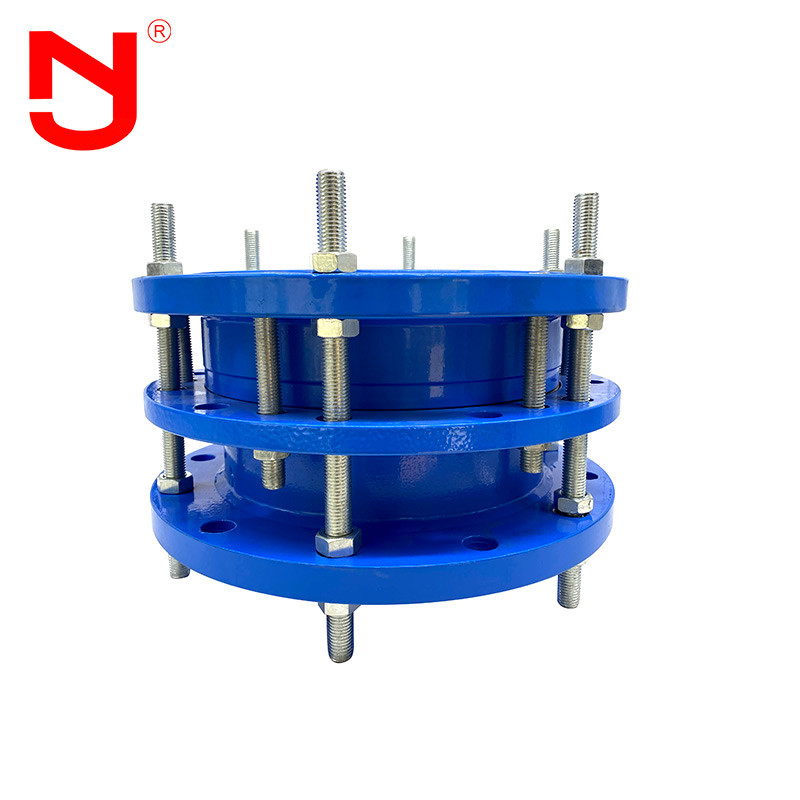

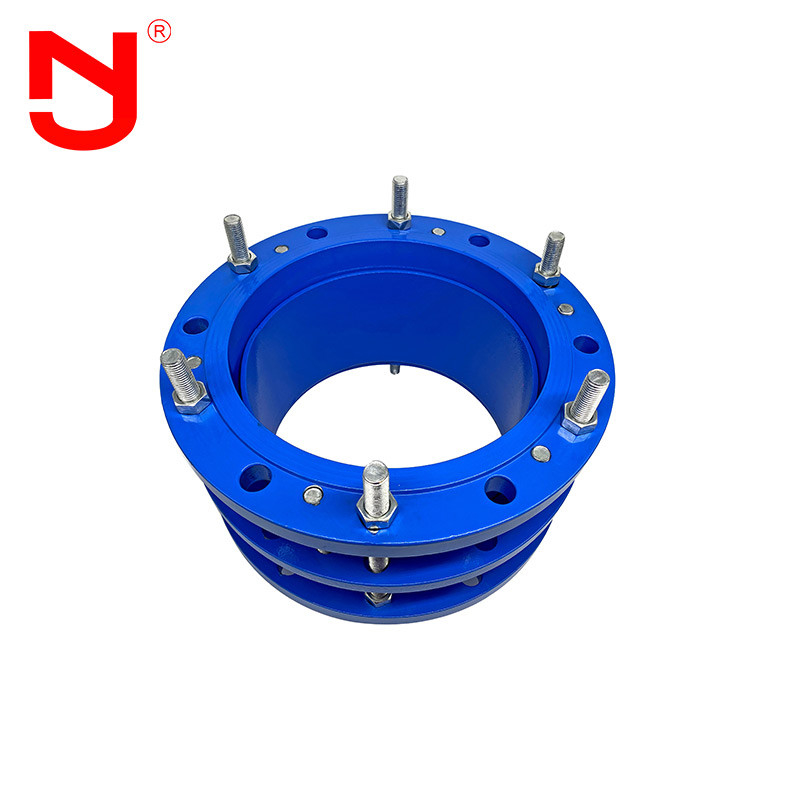

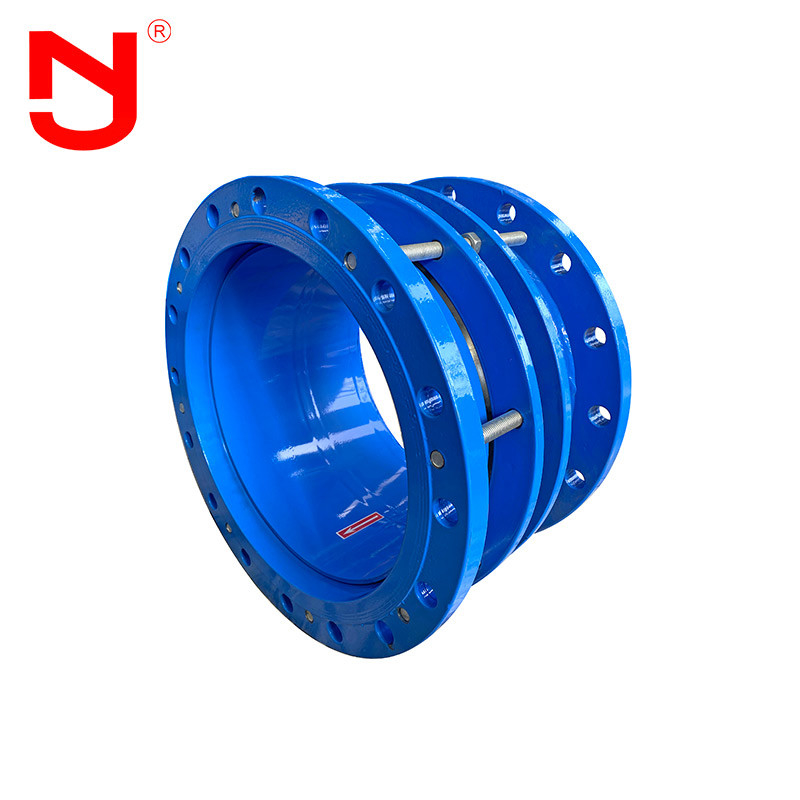

VSSJAF Dismantling Double Flanges Transmission Joint Stainless Steel

VSSJAF Dismantling Double Flanges Transmission Joint Stainless Steel
VSSJAF Dismantling Double Flanges Transmission Joint Stainless Steel
video play

Large Image :  VSSJAF Dismantling Double Flanges Transmission Joint Stainless Steel

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: VSSJAF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Detailed Product Description
Product Name: Dismantling Double Flanges Transmission Joint Keyword: Dismantling Double Flanges Transmission Joint
Size: DN80----DN3000 Material: Carbon Steel,Stainless Steel
Working Pressure: 0-6Mpa Flange Standard: DIN,ANSI,BS,JIS,AS
High Light:

Double Flanges Transmission Joint

,

Dismantling Transmission Joint

,

Stainless Steel Pipe Dismantling Joint

Dismantling double flanges transmission joint



Dismantling double flanges transmission joint : after the dismantling double flanges transmission joint is installed on the pipeline, limit the position according to the required expansion distance, tighten the nut, and the elastic sealing ring is tightly pressed by mutual Inclination under the action of the nut gland to seal and connect the outer ring of the pipe. The dismantling double flanges transmission joint is mainly connected with the pipeline valve, which not only plays the role of pipeline compensation, It is more convenient for the maintenance and replacement of the valve.



Performance of dismantling double flanges transmission joint

1. The dismantling double flanges transmission joint should have high compression capacity to ensure the operation of the pipeline during the crustal movement. It has high corrosion resistance, and the expansion joint is buried underground all the year round, so it has high requirements for corrosion resistance.
2. The dismantling double flanges transmission joint can move axially, which can eliminate the stress of thermal expansion and cold contraction caused by seasonal changes or different media. The steel expansion joint is made of steel, and the rubber joint has strong corrosion resistance and flange connection.
3. The dismantling double flanges transmission joint is easy to install and maintain to avoid unnecessary trouble during welding. Special design process is adopted and limit bolts are reinforced to make the pipeline more reliable in operation.


Dismantling double flanges transmission joint structure

VSSJAF Dismantling Double Flanges Transmission Joint Stainless Steel 0

NO.

Name Quantity Material
1

Body

1 QT400-15,Q235A,ZG230-450,20
2 Gasket 1 NBR
3 Follower 1 QT400-15,Q235A,ZG230-450,20
4 Limited short pipe 1 Q235A,20,16Mn
5 Bolt n Q235A,35,1Cr8Ni9Ti
6 Nut 5n Q235A,20,1Cr8Ni9Ti





Technical data of double flange transmission joint



Main data of dismantling double flanges transmission joint

Nominal

iameter DN

External

diameter Dw

Length

Compen

-sation

△L

Flange connecting dimension
0.6Map 1.0Map
L L1 D D1 n-do D D1 n-do
65 76 340 105 50 160 130 4-Φ14 185 145 4-Φ18
80 89 190 150 4-Φ18 200 160 8-Φ18
100 108 210 170 220 180 8-Φ18
114 220 180 8-Φ18
125 133 265 200 8-Φ18 250 210 8-Φ18
140 250 210 8-Φ18
150 159 375 225 8-Φ18 285 240 8-Φ22
168 285 240 8-Φ22
200 219 321 280 340 295 8-Φ22
250 273 375 335 12-Φ18 395 350 12-Φ22
300 325 350 130 65 440 395 12-Φ22 445 400 12-Φ22
350 377 490 445 505 460 16-Φ26
400 426 540 495 16-Φ22 565 515 16-Φ26
450 480 595 550 615 565 20-Φ26
500 530 645 600 20-Φ22 670 620 20-Φ26
600 630 775 705 20-Φ26 780 725 20-Φ30
700 720 860 810 24-Φ26 895 840 24-Φ30
800 820 590 220 130 950 920 24-Φ30 1015 950 24-Φ33
900 920 1075 1020 1115 1050 28-Φ33
1000 1020 1175 1120 28-Φ30 1230 1160 28-Φ36
1200 1220 1405 1340 32-Φ33 1455 1380 32-Φ40
1400 1420 1630 1500 36-Φ36 1675 1590 36-Φ42
1500 1520 1730 1660 36-Φ36 36-Φ42
1600 1620 1830 1760 40-Φ40 1915 1820 40-Φ48
1810 1820 2045 1970 44-Φ42 2115 2020 44-Φ48
2000 2020 2265 2180 48-Φ42 2320 2230 48-Φ48
2200 2220 2475 2390 52-Φ42 2550 2440 52-Φ56
2400 2420 2685 2600 56-Φ42 2760 2650 60-Φ56
2600 2620 600 240 140 2905 2810 60-Φ48 2960 3070 64-Φ56
2800 2820 3115 3020 64-Φ48 3180 3290 68-Φ60
3000 3020 3315 3220 68-Φ48 3405
3200 3220 3525 3430 72-Φ48
3400 3420 3735 3640 76-Φ48
3600 3620 3970 3860 80-Φ56

Note:dismantling double flanges transmission joint is suitable for connecting both sides with flange. During installation, adjust the connecting length of both ends of the product, tighten the gland bolts in turn and adjust the limit nuts. In this way, the pipeline can expand freely, lock the expansion, and ensure the safe operation of the pipeline.



Dismantling double flanges transmission joint production flow



VSSJAF Dismantling Double Flanges Transmission Joint Stainless Steel 1



Dismantling double flanges transmission joint advantag



1. Factory price of dismantling double flanges transmission joint .

2. 16 years of manufacturing experience, 5 years of export experience.

3. Strict quality inspection, the quality far exceeds the industry standard.

4. dismantling double flanges transmission joint mold has a variety of specifications, support customization, OEM.

5. Provide free samples of dismantling double flanges transmission joint .

6. dismantling double flanges transmission joint s are in large stock.



Dismantling double flanges transmission joint  application



In the installation process of dismantling double flanges transmission joint , when the temperature changes or the pipe vibrates, the dismantling double flanges transmission joint can play the role of expansion compensation. When the foundation settlement, the dismantling double flanges transmission joint can compensate the displacement to a certain extent to ensure that there is no leakage in the seal. Secondly, the installation and removal of the dismantling double flanges transmission joint is very convenient, which makes it connected to the water supply and drainage pipeline, water tower, The installation and disassembly of the pump water meter provides great convenience.



FAQ

Q1:Can the dismantling double flanges transmission joint be marked with customized logo?

A1:Yes,the dismantling double flanges transmission joint can be marked with your logo. We could provide OEM&ODM service for dismantling double flanges transmission joint.


Q2:What’s the face to face length of dismantling double flanges transmission joint?

A2:The face to face length of dismantling double flanges transmission joint can be L130, L152,L203... We also could accept customized length according to your requirements.


Q3:Can you provide drawings of dismantling double flanges transmission joint?

A3:Yes,we could provide drawings of dismantling double flanges transmission joint for you.Please contact us to get the drawing of dismantling double flanges transmission joint.


Q4:What certificates of dismantling double flanges transmission joint can you provide?

A4:We could provide CE,ISO certificate for our dismantling double flanges transmission joint.



Q5:Can we get a sample of dismantling double flanges transmission joint?

A5:Yes,we could provide samples for you to test the quality of our dismantling double flanges transmission joint.


Q6:What’s the warranty period of dismantling double flanges transmission joint?

A6:We provide 18 months’ warranty for our dismantling double flanges transmission joint.
