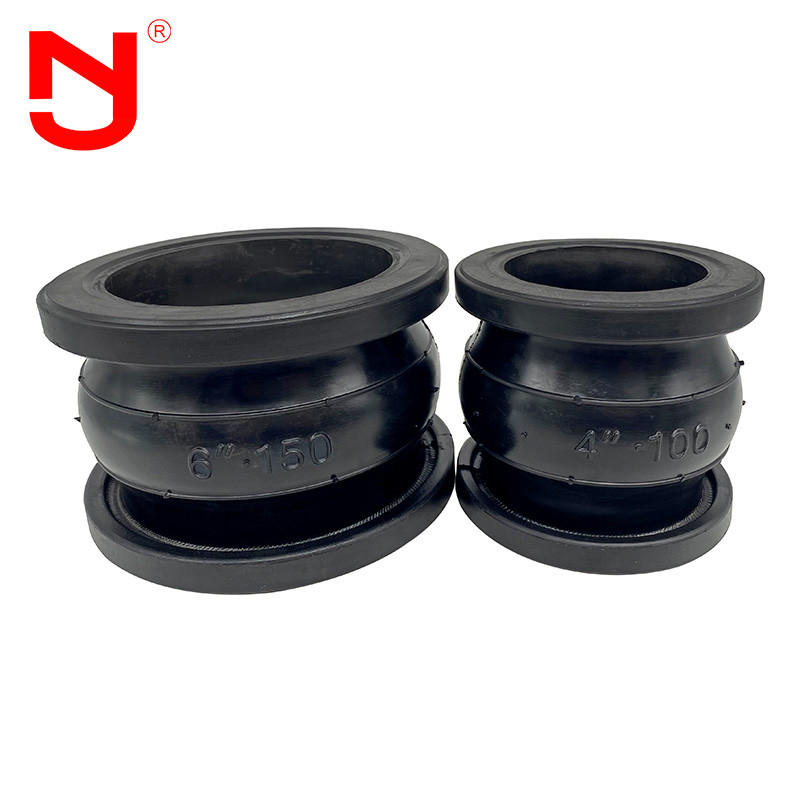

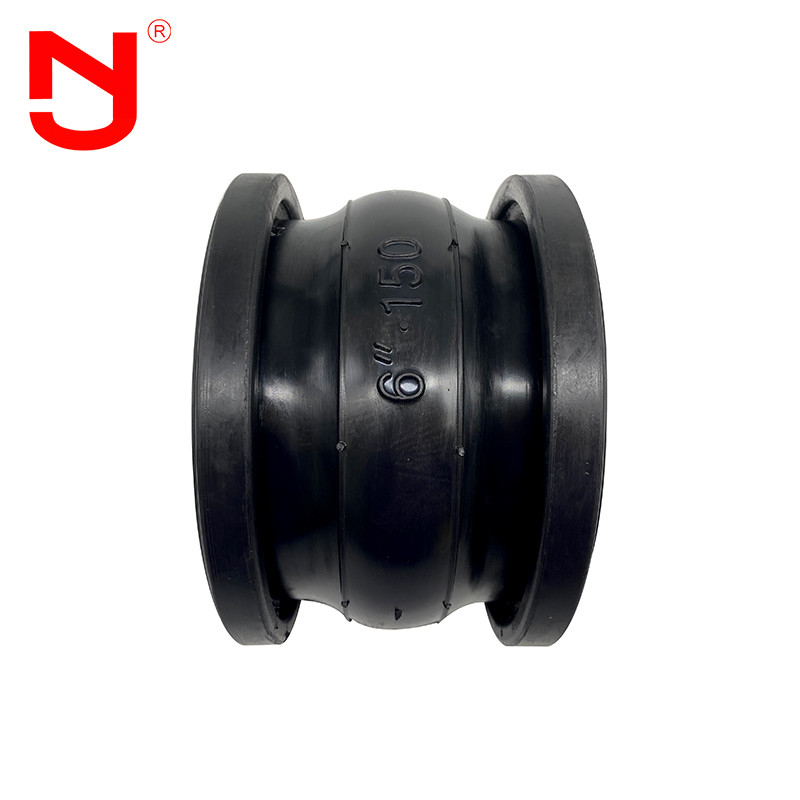

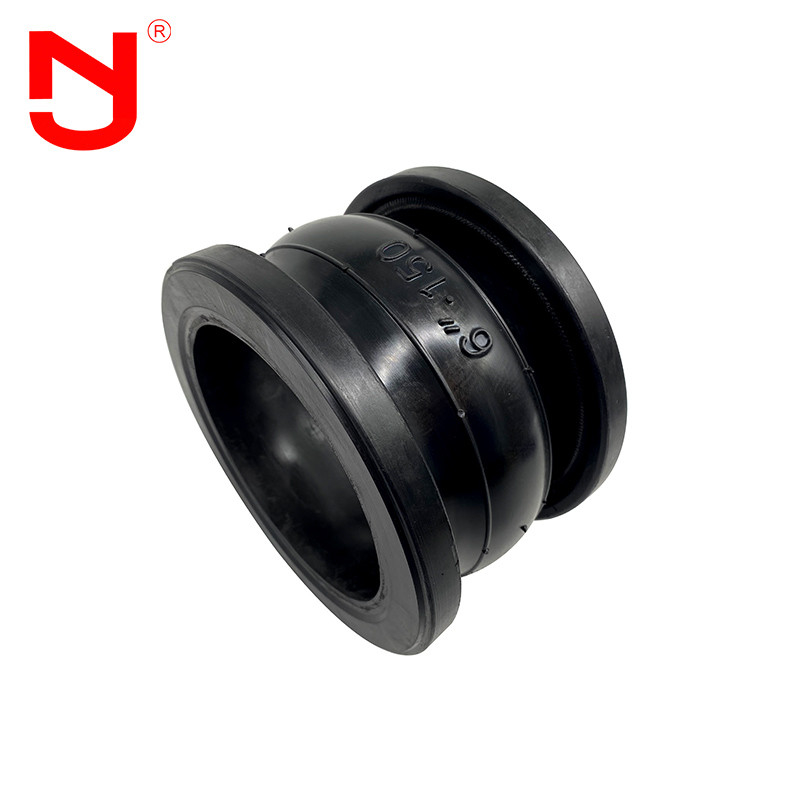

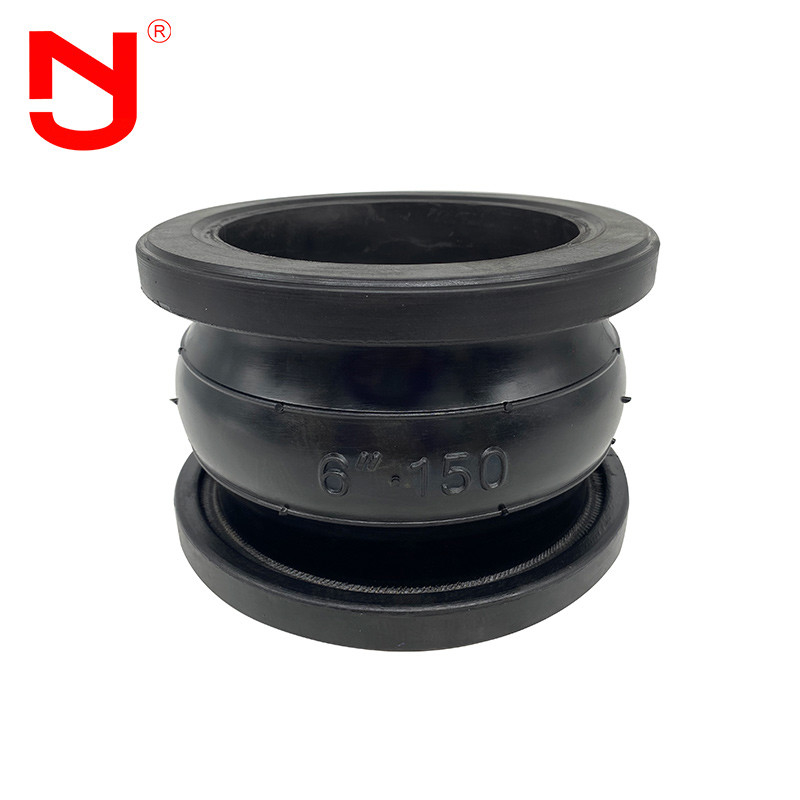

JINGNING Single Sphere Rubber Flexible Connector Expansion Joint Catalogue 6.0Mpa

JINGNING Single Sphere Rubber Flexible Connector Expansion Joint Catalogue 6.0Mpa
JINGNING Single Sphere Rubber Flexible Connector Expansion Joint Catalogue 6.0Mpa
video play

Large Image :  JINGNING Single Sphere Rubber Flexible Connector Expansion Joint Catalogue 6.0Mpa

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE,ISO
Model Number: RLJS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: carton or wooden
Delivery Time: 5--15 working days
Payment Terms: Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability: 10000 sets per week
Detailed Product Description
OEM: 17Years' Experience Product Name: JINGNING Rubber Expansion Joint Catalogue
Keyword: Rubber Expansion Joint Catalogue Material: EPDM,NBR,SBR,NR,PTFE,FKM,IIR,CR
Burst Pressure: 6.0Mpa Technical: Vulcanized,Casting
High Light:

Rubber Flexible Connector Expansion Joint

,

6.0Mpa rubber flexible connector

,

single sphere flexible expansion joints

JINGNING rubber expansion joint catalogue



Rubber expansion joint catalogues are often referred to as rubber joints. rubber expansion joint catalogues are widely used in water, electricity, chemical industry and ship mooring systems. According to different media, the rubber materials used in rubber expansion joint catalogues are also different, including NR, SBR, IIR, NBR, EPDM, Cr, fkr, etc. rubber expansion joint catalogues have heat resistance, acid resistance, alkali resistance, corrosion resistance and oil resistance. The structural material of the rubber joint is nylon cord fabric, and the inner and outer surfaces are made of high-strength aging resistant polar rubber. In order to prevent natural shrinkage of rubber expansion joint catalogue in long-term use and reduce aging and fracture, steel wires are used for multiple protection of rubber joints.



Performance characteristics of rubber expansion joint catalogue



1. The rubber expansion joint catalogue for pipe has high wear resistance, acid and alkali resistance, etc.

2. Rubber expansion joint catalogue for pipe can reduce vibration and reduce pressure, reduce noise.

3. Rubber expansion joint catalogue for pipe has unique properties, such as high elasticity, high air tightness, medium resistance and corrosion resistance.



Technical data of rubber expansion joint catalogue



Main data of rubber expansion joint catalogue

Nominal diameter(DN) Length Axial displacement(mm) Horizontal displacement Deflexion angle
mm inch mm Extension Compression mm (a1+a2)°
32 1 1/4 95 6 9 9 15°
40 1 1/2 95 6 10 9 15°
50 2 105 7 10 10 15°
65 2 1/2 115 7 13 11 15°
80 3 135 8 15 12 15°
100 4 150 10 19 13 15°
125 5 165 12 19 13 15°
150 6 180 12 20 14 15°
200 8 210 16 25 22 15°
250 10 230 16 25 22 15°
300 12 245 16 25 22 15°
350 14 255 16 25 22 15°
400 16 255 16 25 22 15°
450 18 255 16 25 22 15°
500 20 255 16 25 22 15°
600 24 260 16 25 22 15°

Note: 1. The special requirements of rubber expansion joint catalogue can be customized according to user's drawing. Flange standard is GB / t9115.1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The rubber ball of rubber expansion joint catalogue can be used as natural rubber, EPDM, chloroprene rubber, butyl rubber, butadiene rubber, fluororubber, etc. when the rubber expansion joint catalogue above DN200 is used for suspension water supply, the pipeline must have fixed support or fixed support, otherwise the rubber expansion joint catalogue shall be installed with anti falling device.



Rubber expansion joint catalogue details show



JINGNING Single Sphere Rubber Flexible Connector Expansion Joint Catalogue 6.0Mpa 0



Rubber expansion joint catalogue production flow



Do you know how is a rubber expansion joint catalogue made?Let's see with JINGNING.



JINGNING Single Sphere Rubber Flexible Connector Expansion Joint Catalogue 6.0Mpa 1



It is very important to know the compatibility between the medium of rubber expansion joint catalogue and the selected rubber expansion joint catalogue material, the range of full temperature, full pressure and full vacuum, the required movement of rubber expansion joint catalogue, and the size between pipe flanges when selecting the appropriate flexible joint pipe. With this information, JINGNING application engineers can help determine the ideal rubber expansion joint catalogue for any application.



Rubber expansion joint catalogue advantage



1. Factory price of  rubber expansion joint catalogue.

2. 16 years of manufacturing experience, 5 years of export experience.

3. Strict quality inspection, the quality far exceeds the industry standard.

4. Rubber expansion joint catalogue mold has a variety of specifications, support customization, OEM.

5. Provide free samples of rubber expansion joint catalogue.

6. Rubber expansion joint catalogue are in large stock.



Rubber expansion joint catalogue application



Because of its good comprehensive performance, rubber expansion joint catalogue is especially suitable for the connection of pumps and valves, pipelines with large vibration, and pipelines with frequent changes of cold and heat. Rubber expansion joint catalogues are commonly used in seawater, fresh water, cold and hot water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, product oil, air, gas, steam and particle powder fields.



FAQ



Q1:Can the rubber expansion joint catalogue be marked with customized logo?

A1:Yes,the rubber expansion joint catalogue can be marked with your logo. We could provide OEM&ODM service for rubber expansion joint catalogue.


Q2:What’s the face to face length of rubber expansion joint catalogue?

A2:The face to face length of rubber expansion joint catalogue can be L130, L152,L203... We also could accept customized length according to your requirements.


Q3:Can you provide drawings of rubber expansion joint catalogue?

A3:Yes,we could provide drawings of rubber expansion joint catalogue for you.Please contact us to get the drawing of rubber expansion joint catalogue.


Q4:What certificates of rubber expansion joint catalogue can you provide?

A4:We could provide CE,ISO certificate for our rubber expansion joint catalogue.



Q5:Can we get a sample of rubber expansion joint catalogue?

A5:Yes,we could provide samples for you to test the quality of our rubber expansion joint catalogue.
