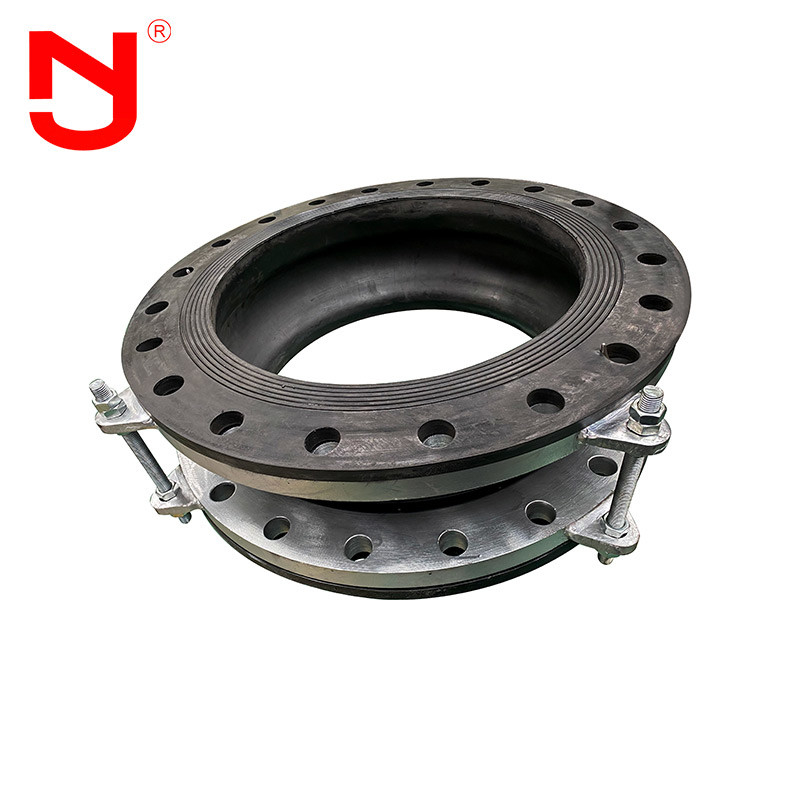

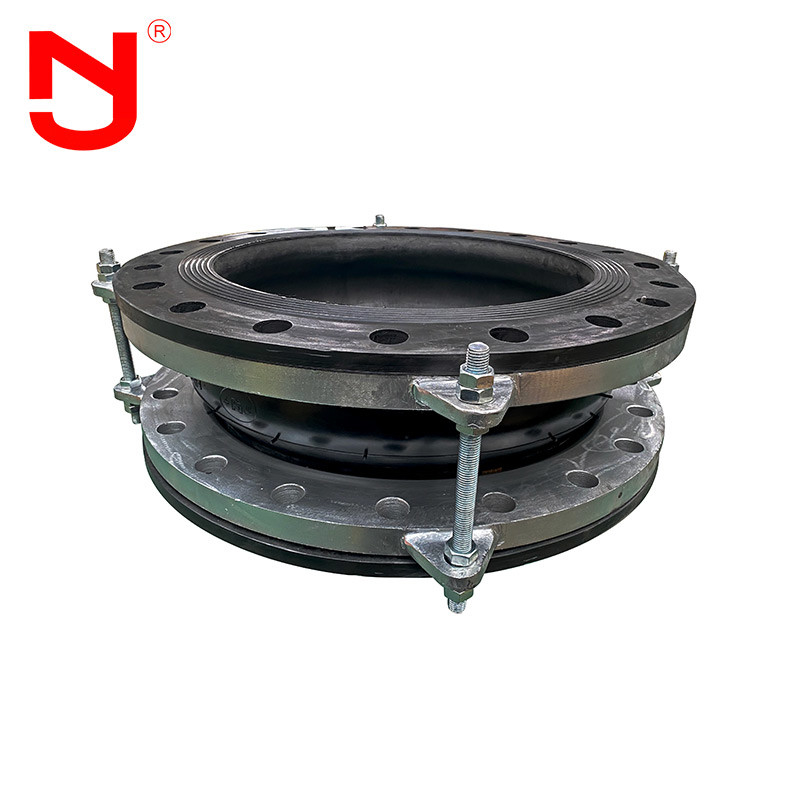

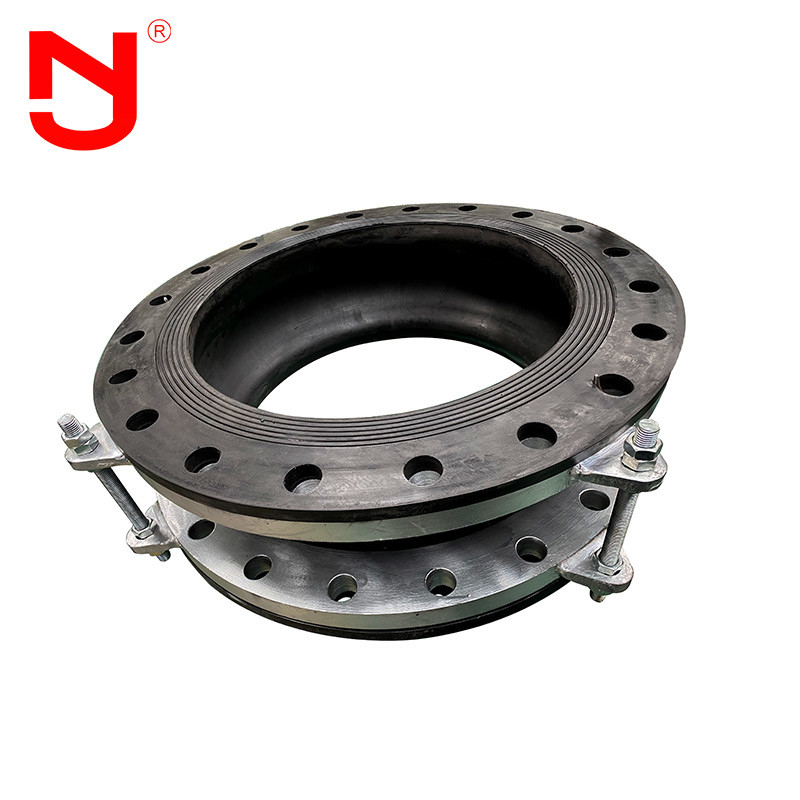

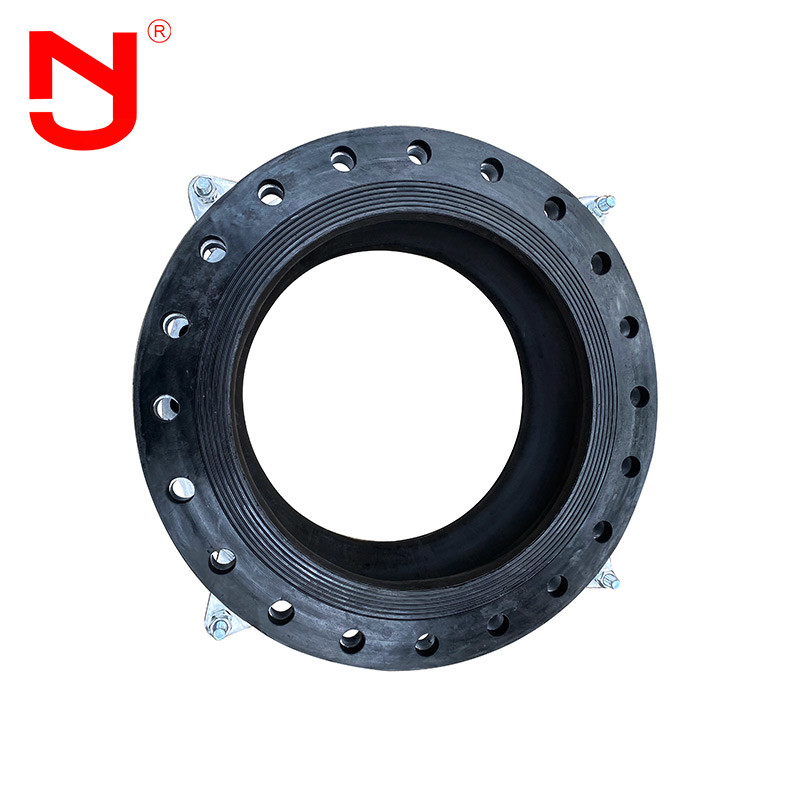

Limit Single Sphere Rubber Flexible Joint Pump Connectors 7.0Mpa Light Weight

Limit Single Sphere Rubber Flexible Joint Pump Connectors 7.0Mpa Light Weight
Limit Single Sphere Rubber Flexible Joint Pump Connectors 7.0Mpa Light Weight Limit Single Sphere Rubber Flexible Joint Pump Connectors 7.0Mpa Light Weight Limit Single Sphere Rubber Flexible Joint Pump Connectors 7.0Mpa Light Weight Limit Single Sphere Rubber Flexible Joint Pump Connectors 7.0Mpa Light Weight

Large Image :  Limit Single Sphere Rubber Flexible Joint Pump Connectors 7.0Mpa Light Weight

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE,ISO
Model Number: RFJD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 10--2000
Packaging Details: carton or wooden
Delivery Time: 5--15 working days
Payment Terms: Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability: 10000 sets per week
Detailed Product Description
Size: DN32---DN3200 Material: EPDM,NBR,SBR
Flange Standard: DIN,ANSI,BS,JIS,AS Working Pressure: -0.2~5.5Mpa
Working Temperature: -30~110℃ Burst Pressure: 7.0Mpa
High Light:

Single Sphere rubber flexible joint

,

rubber flexible pump connectors

,

7.0Mpa Rubber Flexible Joint

Large size limit flexible rubber joint



The limiting device for limit flexible rubber joint shall be reasonably matched with the flexible rubber joint, which can limit the positioning displacement when used in the general connection of pipelines or in the pipeline with displacement requirements. When the flexible rubber joint is connected with pumps and valves, the limiting device shall be equipped on the flexible rubber joint to transfer force, It is an ideal substitute for steel force transmission joint.



Performance characteristics of limit flexible rubber joint



1. The limit flexible rubber joint has the advantages of small size, light weight, good ductility and convenient installation and maintenance.

2. Limit flexible rubber joint installation can cause horizontal, radial, angular offset, will not be limited by the pipe plug center, flange uneven surface.

3. When the limit flexible rubber joint is working, it can reduce the structure transmission noise and has strong vibration absorption ability.



Technical data of limit flexible rubber joint



                   GENERAL CHARACTRISTICS
Nominal Diameter DN15-DN3000
Working Pressure PN6-PN25
Working Temperature -20℃-140℃
Working Medium Water,Oil,Acid,Alkali




Main data of limit flexible rubber joint
Nominal diameter(DN)
Length
Axial displacement(mm)
Horizontal displacement
Deflexion angle
mm
inch
mm
Extension
Compression
mm
(a1+a2)°
32
1 1/4
95
6
9
9
15°
40
1 1/2
95
6
10
9
15°
50
2
105
7
10
10
15°
65
2 1/2
115
7
13
11
15°
80
3
135
8
15
12
15°
100
4
150
10
19
13
15°
125
5
165
12
19
13
15°
150
6
180
12
20
14
15°
200
8
210
16
25
22
15°
250
10
230
16
25
22
15°
300
12
245
16
25
22
15°
350
14
255
16
25
22
15°
400
16
255
16
25
22
15°
450
18
255
16
25
22
15°
500
20
255
16
25
22
15°
600
24
260
16
25
22
15°



Note:To select the proper piping limit flexible rubber joint, it is critical to understand the media compatibility with the materials selected, full temperature, pressure and vacuum ranges, movements required, and dimensions between pipe flanges. With this information, JINGNING application engineers can assist in determining the ideal expansion joint for any application.

Limit flexible rubber joint details show


Limit flexible rubber joint production flow

Do you know how is a high quality limit flexible rubber joint made?Let's see with JINGNING.






Limit flexible rubber joint application



1.Outstanding pressure resistance.It excels in pressure resistance by the combination of spherical structure with super stability against internal pressure and strong special reinforcing nylon.JINGNING flexible connector display an outstanding pressure resistance of bursting pressure.

2.Superior absorption of vibration-noise-shock.JINGNING single sphere flexible rubber joint are engineered to reduce vibration ,noise and movenment inherent in piping systems.JINGNING will enable the isolated equipment to move freely ,eliminating vibration and repelling sound which is prevalent in metallic type joint.

3.Compensate greater elongation, compression , lateral and angular movement.Equipment such as pump ,chillers,cooling tower,compressors and piping systems move out of alignment due to wear,load stress and during the setting of foundation blocks.JINGNING flexible connector for lateral ,torsional and angular movement to prevent damage ,which elimate costly downtime in plant operation.



FAQ



Q1:Can we get a sample of limit flexible rubber joint?

A1:Yes,we could provide samples for you to test the quality of our limit flexible rubber joint.



Q2:What’s the warranty period of limit flexible rubber joint?

A2:We provide 18 months’ warranty for our limit flexible rubber joint.



Q3:What’ the MOQ of limit flexible rubber joint?

A3:1 pc. We could delivery any quantity according to your requirements.



Q4:Can you provide material certificate 3.1 of limit flexible rubber joint?

A4:Yes,we could provide material certificate 3.1 for our limit flexible rubber joint.Please contact us to get the sample of material certificate 3.1 for limit flexible rubber joint.



Q5:What’s the material of flange ( retaining rings ) for limit flexible rubber joint can you provide?

A5:The material of limit flexible rubber joint flange can be carbon steel, stainless steel and ductile iron.



Q6:What’s the antirust technology of limit flexible rubber joint flange?

A6:The antirust technology of limit flexible rubber joint flange can be galvanizing, painting, plastic powder coating,epoxy resin spraying.
