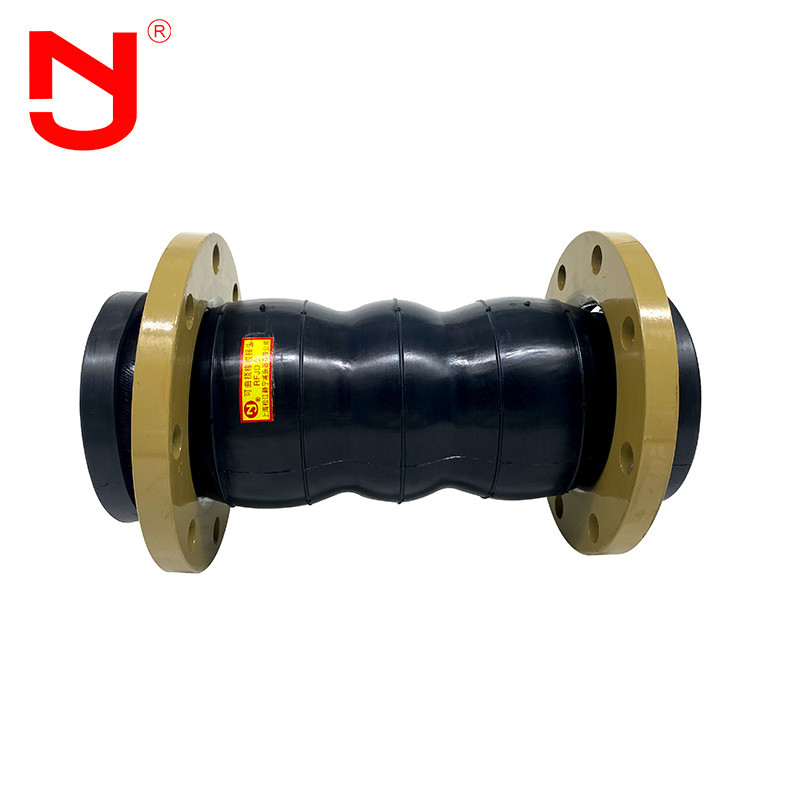

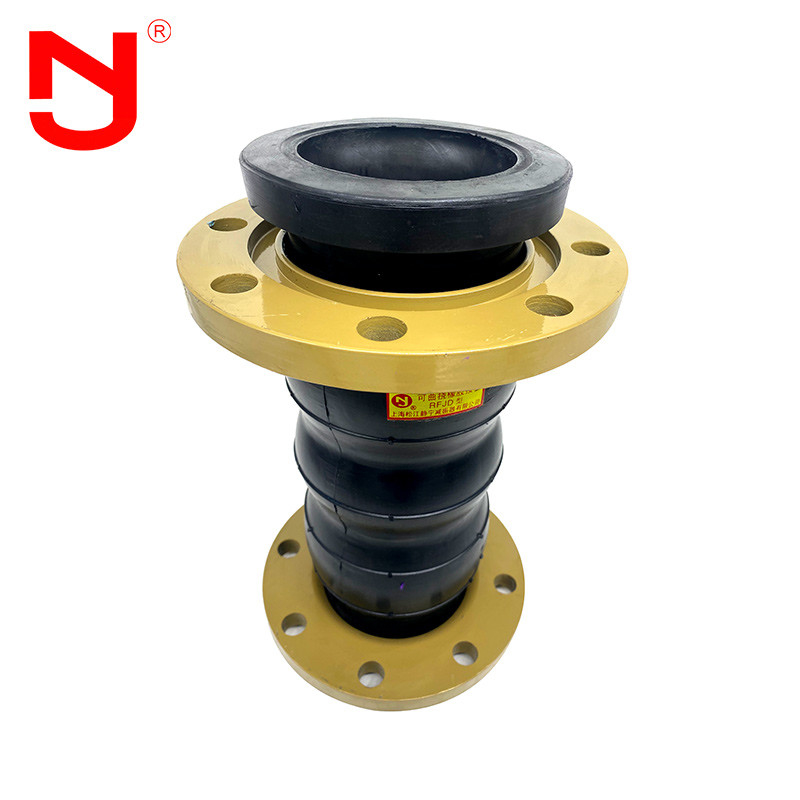

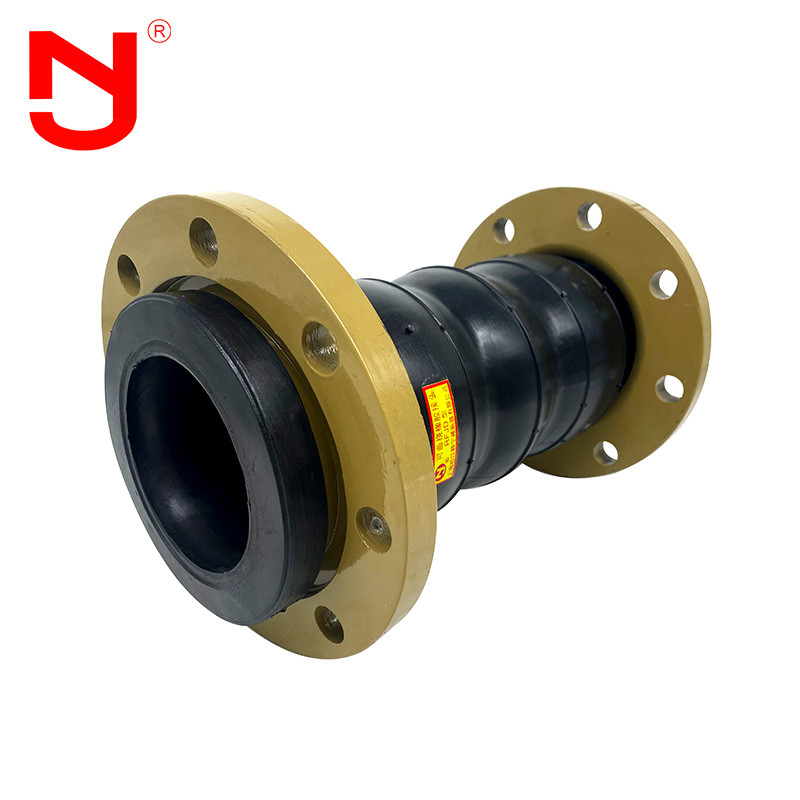

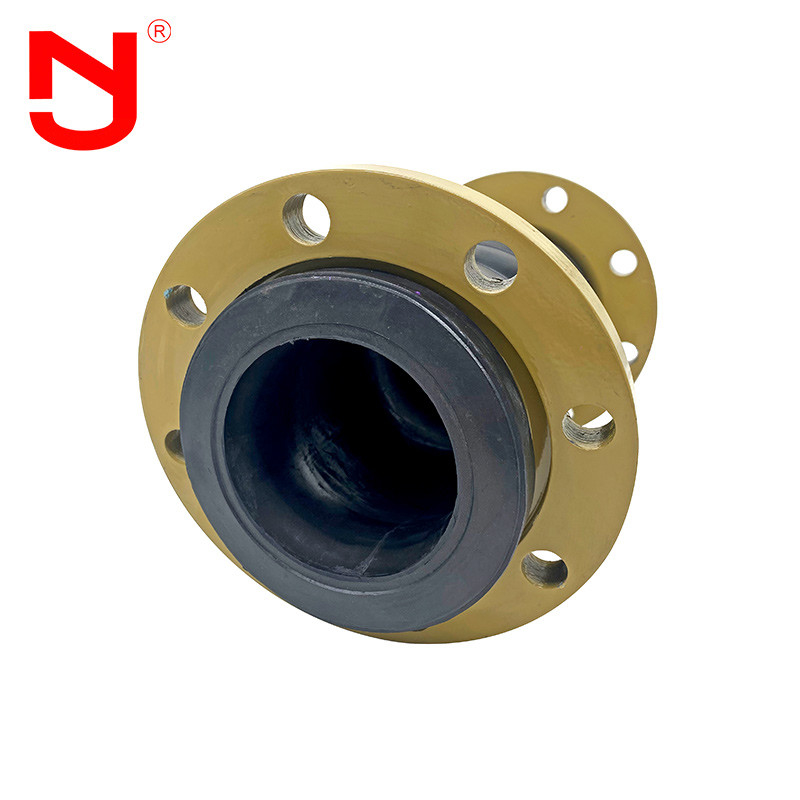

Three ball rubber joint
The three ball rubber joint is composed of rubber body and flange. The rubber material of three ball rubber joint is NR / NBR / EPDM / PTFE. The rubber materials of the double sphere rubber expansion joint are suitable for different media, such as the EPDM with weak acid and weak alkali. Flange material can be galvanized carbon steel, painted ductile iron, stainless steel 304 / 316, etc.
Three ball rubber joint Performance characteristics
1.The three ball rubber joint could primarily reduce the quiver and the noise ofthe piping system; completely solve the different piping problems asdisplacement of jiont, axial flex and etc.
2.According to different material requirement,three ball rubber joint could be made as acid proof,alkali proof,corrosion proof to suit different medium and environment.
3.The material of three ball rubber joint has good sealing performance, light weight, easy to fix and maintain, and long service life. However, please keep away from sharp metal to avoid steel ball breaking.
Part of three ball rubber joint technical data
|
Main data of three ball rubber joint
|
|||||||
|
Nominal diameter(DN) |
Length |
Hole diameter quantitvd |
Axial displacement(mm) |
Horizontal displacement |
Deflexion angle |
||
|
mm |
inch |
mm |
|
Extension |
Compression |
mm |
(a1+a2)° |
|
40 |
1 1/2 |
165 |
18-4 |
30 |
50 |
45 |
15° |
|
50 |
2 |
165 |
18-4 |
30 |
50 |
45 |
15° |
|
65 |
2 1/2 |
175 |
18-4 |
30 |
50 |
45 |
15° |
|
80 |
3 |
175 |
18-8 |
35 |
50 |
45 |
15° |
|
100 |
4 |
225 |
18-8 |
35 |
50 |
40 |
15° |
|
125 |
5 |
225 |
18-8 |
35 |
50 |
40 |
15° |
|
150 |
6 |
225 |
22-8 |
35 |
50 |
40 |
15° |
|
200 |
8 |
325 |
22-8 |
35 |
60 |
40 |
15° |
|
250 |
10 |
325 |
22-12 |
35 |
60 |
35 |
15° |
|
300 |
12 |
325 |
22-12 |
35 |
60 |
35 |
15° |
|
350 |
14 |
330 |
22-16 |
35 |
60 |
35 |
15° |
|
400 |
16 |
330 |
26-16 |
35 |
60 |
35 |
15° |
|
450 |
18 |
330 |
26-20 |
35 |
60 |
35 |
15° |
|
500 |
20 |
350 |
26-20 |
35 |
60 |
35 |
15° |
|
600 |
24 |
350 |
30-20 |
35 |
60 |
35 |
15° |
|
700 |
28 |
350 |
30-24 |
35 |
60 |
35 |
30° |
|
800 |
32 |
400 |
30-24 |
35 |
60 |
35 |
30° |
Note: 1. The special requirements of three ball rubber joint can be customized according to the user's drawing. Flange standard is GB / t9115.1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The rubber ball of three ball rubber joint can be used as natural rubber, ethylene propylene diene monomer rubber, chloroprene rubber, butyl rubber, butadiene rubber, fluorine rubber, etc. when the three ball rubber joint of DN200 and above is used for suspended water supply, the pipeline must have fixed support or fixed support, otherwise three ball rubber joint should be installed with anti falling device.
Three ball rubber joint production flow
Do you know how is a three ball rubber joint made?Let's see with JINGNING.
Three ball rubber joint advantage
1. Factory price of three ball rubber joint.
2. 16 years of manufacturing experience, 5 years of export experience.
3. Strict quality inspection, the quality far exceeds the industry standard.
4. Three ball rubber joint mold has a variety of specifications, support customization, OEM.
5. Provide free samples of three ball rubber joint.
6. Three ball rubber joint are in large stock.
Three ball rubber joint Application
Because of its good comprehensive performance,three ball rubber joint is widely used in chemical engineering, construction, water supply, drainage, petroleum, industry, refrigeration, sanitation, water heating, fire protection, electric power and other basic engineering.
Three ball rubber joint OEM&ODM
How to choose the appropriate three ball rubber joint? It is necessary to know the compatibility of the medium and the selected material, the range of full temperature, full pressure and full vacuum, the amount of movement required and the size between the pipe flanges. With this information, Jingning application engineers can help determine the ideal three ball rubber joint for any application.
Note:The special requirements of three ball rubber joint can be customized.
