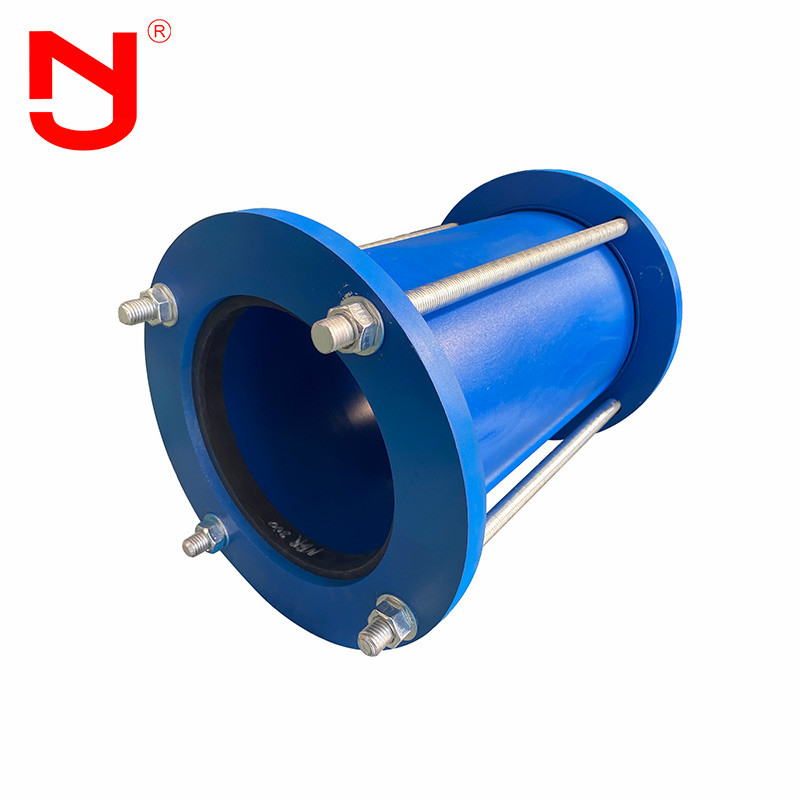

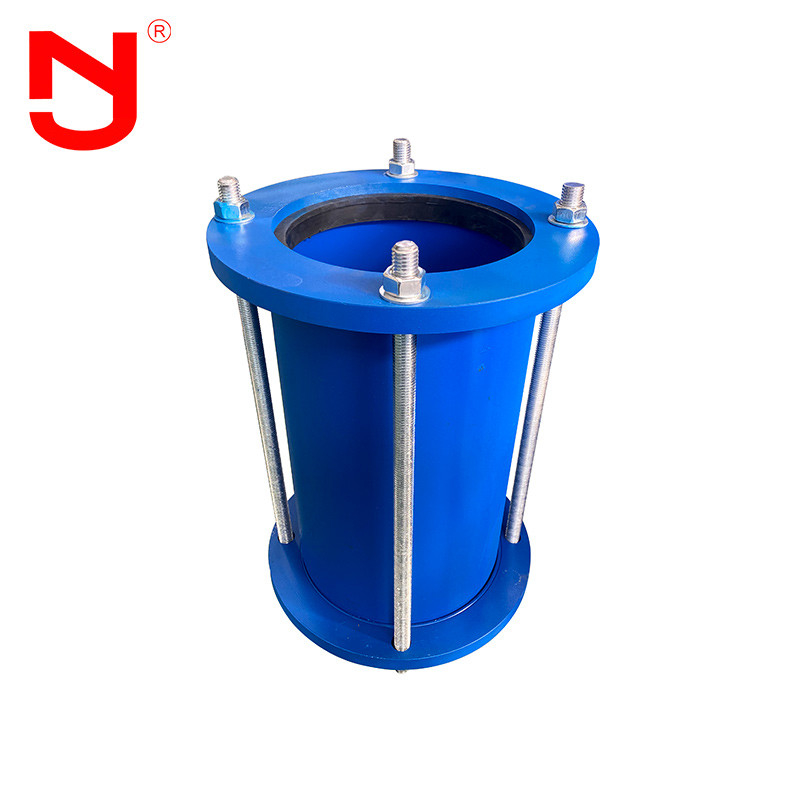

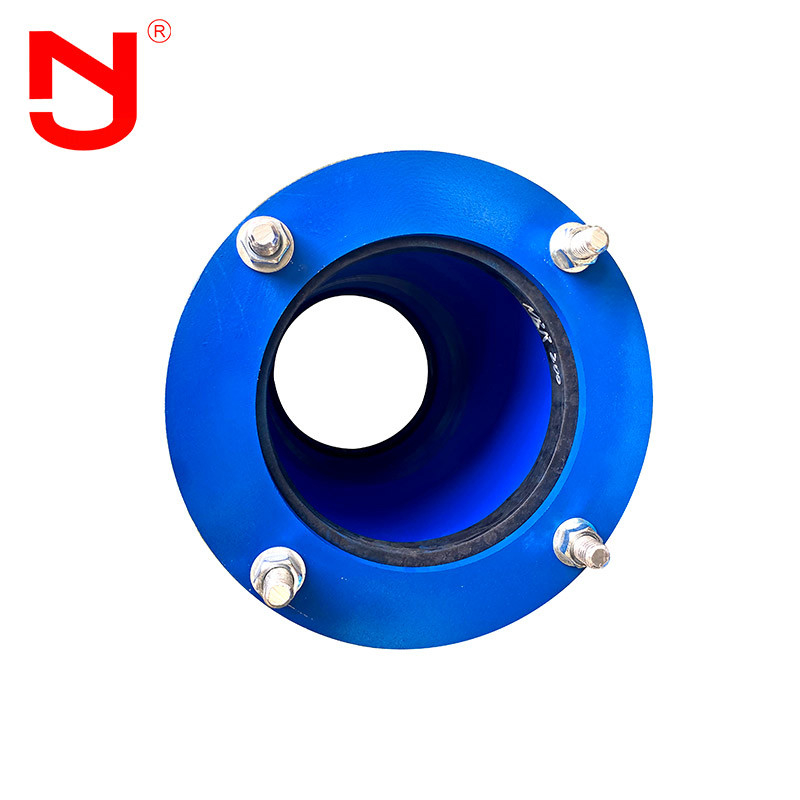

GL Type Pipe Dismantling Joint Quick Connector Joint High Tensile Compressive Strength

GL Type Pipe Dismantling Joint Quick Connector Joint High Tensile Compressive Strength
GL Type Pipe Dismantling Joint Quick Connector Joint High Tensile Compressive Strength
video play

Large Image :  GL Type Pipe Dismantling Joint Quick Connector Joint High Tensile Compressive Strength

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: VSSJAF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Detailed Product Description
Product Name: Dismantling Double Flanges Transmission Joint Keyword: Dismantling Double Flanges Transmission Joint
Size: DN40----DN3000 Material: Carbon Steel,Stainless Steel
Working Pressure: 0-6Mpa Flange Standard: DIN,ANSI,BS,JIS,AS
High Light:

GL type pipe quick connector

,

high compressive strength Pipe Dismantling Joint

,

high tensile Pipe Dismantling Joint

GL type pipe quick connector



Performance of GL type pipe quick connector

1. Use high-strength materials; Applicable to various models of 3-45 tonnage;

2. Use the safety device of hydraulic control one-way valve to ensure safety;

3. During installation, the configuration parts can be replaced without modification or removing the pin shaft, so the installation is fast and the work efficiency can be greatly improved



GL type pipe quick connector structure

GL Type Pipe Dismantling Joint Quick Connector Joint High Tensile Compressive Strength 0



Technical data of GL type pipe quick connector

Main data of GL type pipe quick connector

Nominal external

diameter(DN)

Diameter

D2

Compensation

L

Sleeve length

L1

Total length

L

40 55 20 70 106
50 65 20 70 108
65 81 20 70 110
80 93 20 80 125
100 118 20 80 127
125 143 20 80 127
150 169 20 80 127
200 220 20 90 142
250 271.6 25 100 154
300 322.8 30 110 164
350 374 35 120 176
400 425.6 40 130 188
450 476.8 45 140 198
500 528 50 150 210
600 630.8 60 170 232
700 733 70 200 270
800 6836 80 220 292
900 939 90 240 314
1000 1041 100 260 336
1200 1246 110 290 375
1400

Customized according to

customer requirements

120 310 400
1600 130 330 425
1800 140 360 464
2000 150 380 488
2200 160 410 528
2400 170 430 554
2600 180 450 578
2800 190 480 616
3000 200 500 640

Note:GL type pipe quick connector is suitable for connecting both sides with flange. During installation, adjust the connecting length of both ends of the product, tighten the gland bolts in turn and adjust the limit nuts. In this way, the pipeline can expand freely, lock the expansion, and ensure the safe operation of the pipeline.

GL type pipe quick connector production flow

Quick connector is a structural product, which is composed of main support, movable clamping block, hydraulic cylinder, pin shaft and other parts. The manufacturing process of quick connector includes blanking, turning, milling, drilling, forming, welding, grinding, sand blasting, spraying, assembly and other processes. The quick connector is a special industry equipment accessory, which requires special equipment to operate with high efficiency and high quality, such as NC plasma cutting machine, groove milling machine, plate bending machine, welding positioner, boring machine, hydraulic test bench, etc.

GL Type Pipe Dismantling Joint Quick Connector Joint High Tensile Compressive Strength 1

GL type pipe quick connector advantage

1. The product price is the ex factory price.

2. 18 years of manufacturing experience and 5 years of export experience.

3. Strict quality inspection, the quality far exceeds the industry standard.

4. The mold has a variety of specifications and supports customization and OEM.

5. Provide samples free of charge

6. There is a large amount of inventory.



GL type pipe quick connector application

GL type pipeline quick connector is mainly used for the connection between water pump valve and pipeline. GL type pipe quick connector adopts CAD. Because the expansion joint series products are metal products, which have high tensile and compressive strength, superior soft sealing performance, convenient loading and unloading and other functions, they are widely used in electric power, metallurgy, chemical industry, water supply and drainage, sewage treatment and other industries.

Contact Details
Shanghai Songjiang Jingning Shock Absorber Co.,Ltd.

Contact Person: Wu

Tel: +86 15093112546

Send your inquiry directly to us (0 / 3000)
