Product Details:
Payment & Shipping Terms:
|
| Product Name: | Marine Pipeline Quick Connector Expansion Joint | Keyword: | Quick Connector |
|---|---|---|---|
| Size: | DN40----DN3000 | Material: | Carbon Steel,Stainless Steel |
| Working Pressure: | 0-6Mpa | Flange Standard: | DIN，ANSI，BS，JIS，AS |
| High Light: | Marine pipeline quick connector expansion joint,hydraulic control Pipe Dismantling Joint,Stainless Steel Pipe Dismantling Expansion Joint |
||

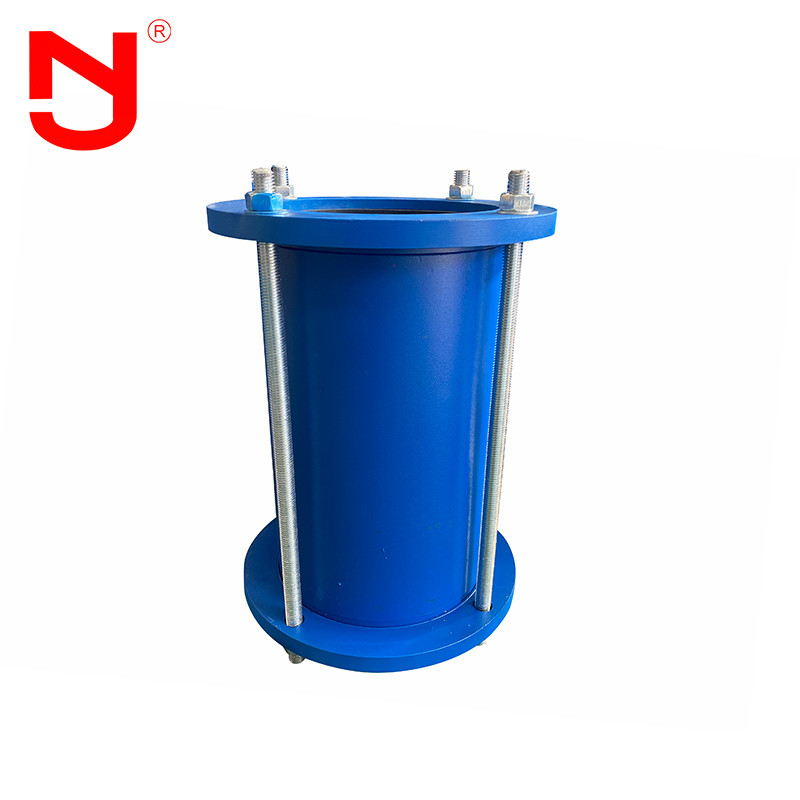

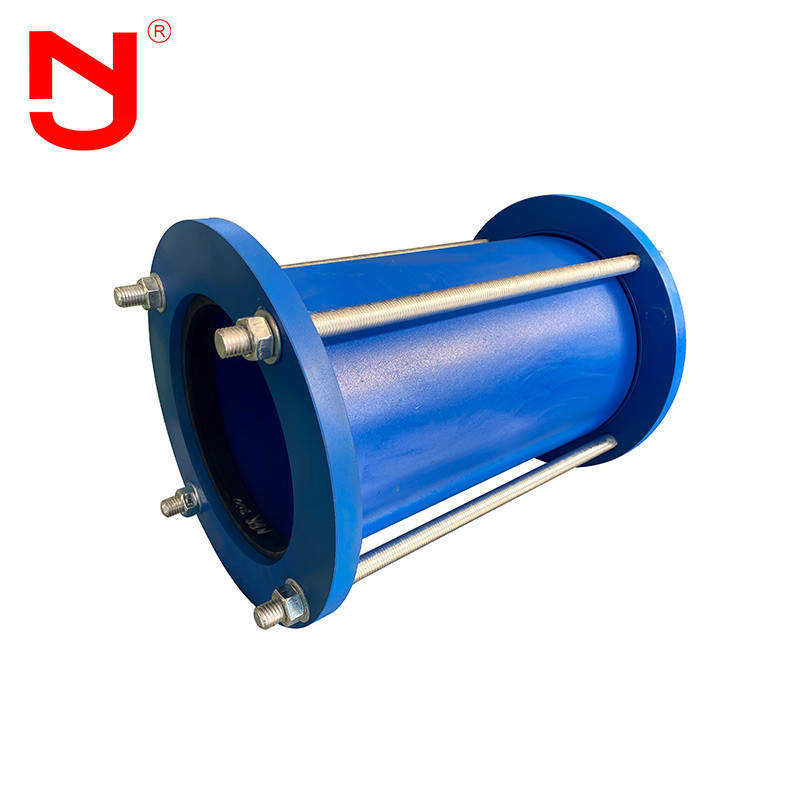

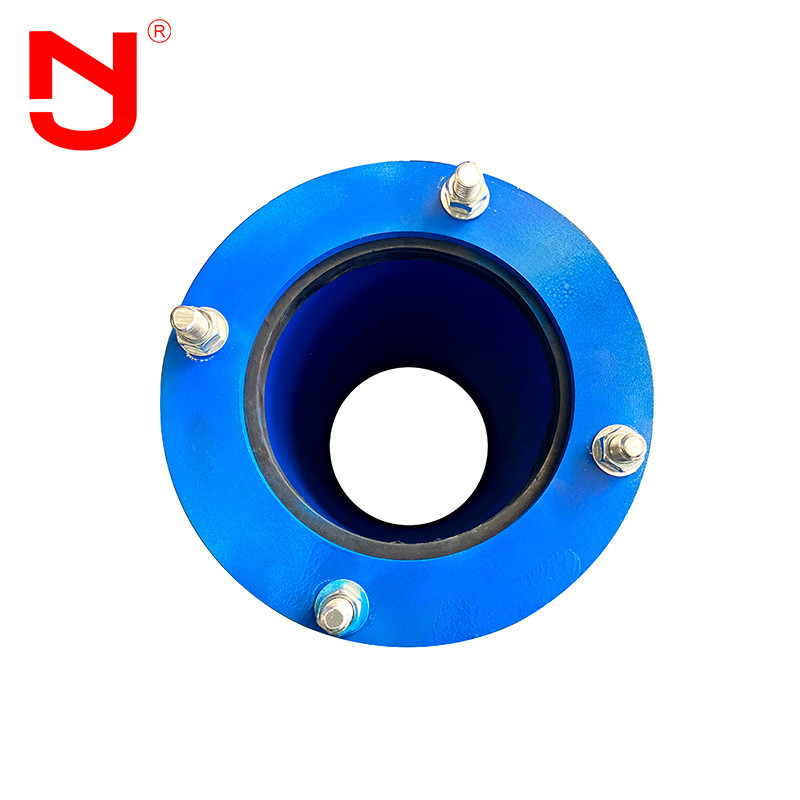

Marine pipeline quick connector expansion joint
The steel gland type loose sleeve expansion joint is a kind of marine joint. It is a loose sleeve expansion joint based on the original performance, with a limit device. The expansion of the gland type loose sleeve limit expansion joint is locked with double nuts. In this way, once the expansion joint exceeds the free limit of the expansion sleeve, the pipeline can work normally. This can effectively ensure the safe operation of the gland type loose sleeve limit expansion joint pipeline, especially suitable for the selection of vibration or certain slope and turning.
Performance of quick connector
1. Use high-strength materials; Applicable to various models of 3-45 tonnage;
2. Use the safety device of hydraulic control one-way valve to ensure safety;
3. During installation, the configuration parts can be replaced without modification or removing the pin shaft, so the installation is fast and the work efficiency can be greatly improved
Quick connector structure
Technical data of quick connector
| Main data of quick connector | ||||
|
Nominal external diameter(DN) |
Diameter D2 |
Compensation L |
Sleeve length L1 |
Total length L |
| 40 | 55 | 20 | 70 | 106 |
| 50 | 65 | 20 | 70 | 108 |
| 65 | 81 | 20 | 70 | 110 |
| 80 | 93 | 20 | 80 | 125 |
| 100 | 118 | 20 | 80 | 127 |
| 125 | 143 | 20 | 80 | 127 |
| 150 | 169 | 20 | 80 | 127 |
| 200 | 220 | 20 | 90 | 142 |
| 250 | 271.6 | 25 | 100 | 154 |
| 300 | 322.8 | 30 | 110 | 164 |
| 350 | 374 | 35 | 120 | 176 |
| 400 | 425.6 | 40 | 130 | 188 |
| 450 | 476.8 | 45 | 140 | 198 |
| 500 | 528 | 50 | 150 | 210 |
| 600 | 630.8 | 60 | 170 | 232 |
| 700 | 733 | 70 | 200 | 270 |
| 800 | 6836 | 80 | 220 | 292 |
| 900 | 939 | 90 | 240 | 314 |
| 1000 | 1041 | 100 | 260 | 336 |
| 1200 | 1246 | 110 | 290 | 375 |
| 1400 |
Customized according to customer requirements |
120 | 310 | 400 |
| 1600 | 130 | 330 | 425 | |
| 1800 | 140 | 360 | 464 | |
| 2000 | 150 | 380 | 488 | |
| 2200 | 160 | 410 | 528 | |
| 2400 | 170 | 430 | 554 | |
| 2600 | 180 | 450 | 578 | |
| 2800 | 190 | 480 | 616 | |
| 3000 | 200 | 500 | 640 | |
Note:GL type pipe quick connector is suitable for connecting both sides with flange. During installation, adjust the connecting length of both ends of the product, tighten the gland bolts in turn and adjust the limit nuts. In this way, the pipeline can expand freely, lock the expansion, and ensure the safe operation of the pipeline.
Quick connector production flow
Quick connector is a structural product, which is composed of main support, movable clamping block, hydraulic cylinder, pin shaft and other parts. The manufacturing process of quick connector includes blanking, turning, milling, drilling, forming, welding, grinding, sand blasting, spraying, assembly and other processes. The quick connector is a special industry equipment accessory, which requires special equipment to operate with high efficiency and high quality, such as NC plasma cutting machine, groove milling machine, plate bending machine, welding positioner, boring machine, hydraulic test bench, etc.
Quick connector advantage
1. The product price is the ex factory price.
2. 18 years of manufacturing experience and 5 years of export experience.
3. Strict quality inspection, the quality far exceeds the industry standard.
4. The mold has a variety of specifications and supports customization and OEM.
5. Provide samples free of charge
6. There is a large amount of inventory.
Quick connector application
The quick connector is suitable for transporting sea water, fresh water, cold and hot water, drinking water and domestic sewage. The temperature of product oil, steam and lubricating oil is not higher than 250 ℃.
