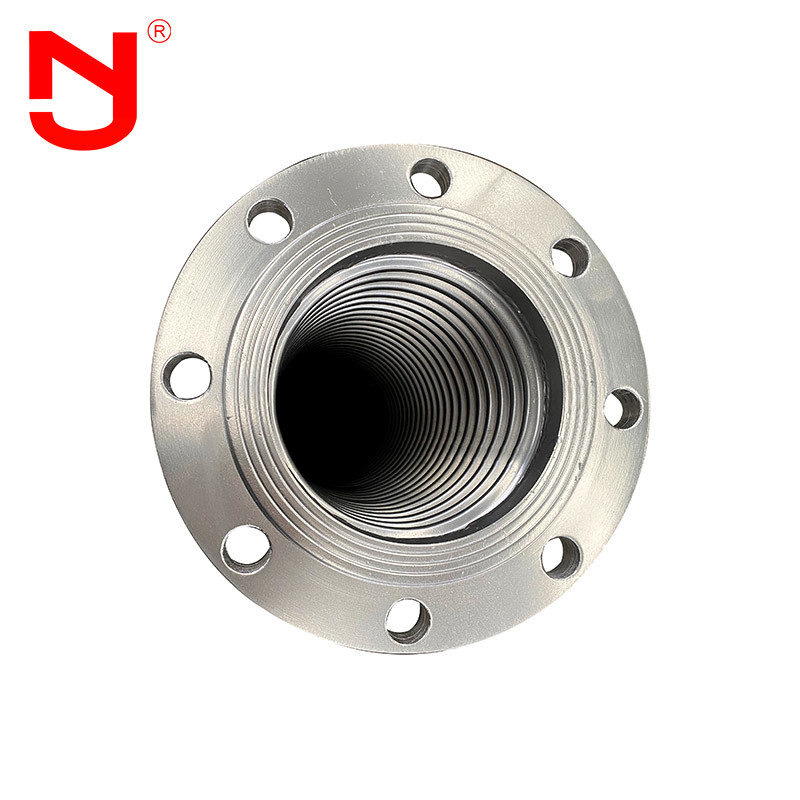

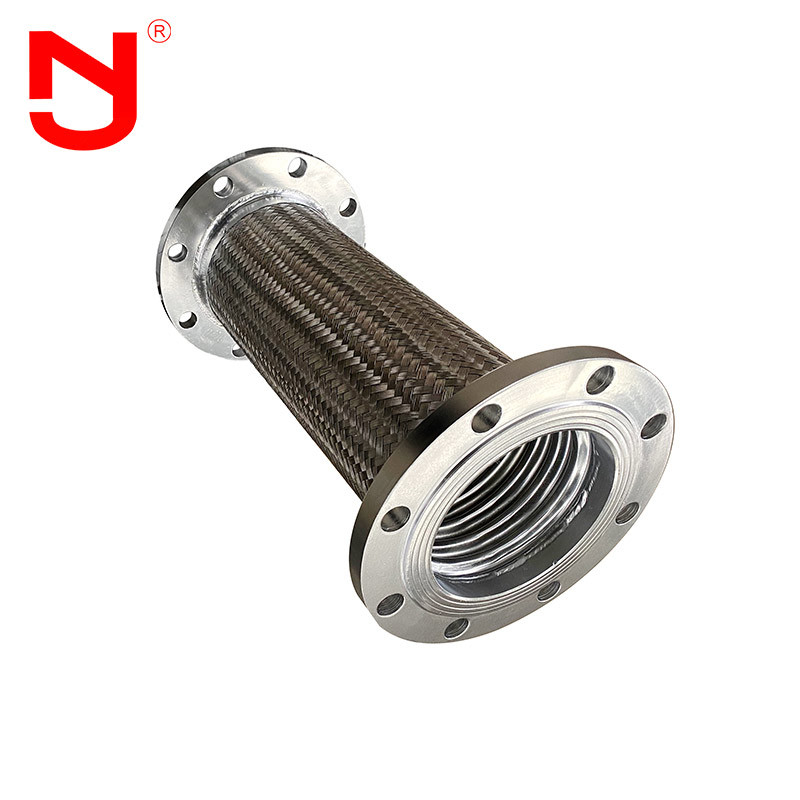

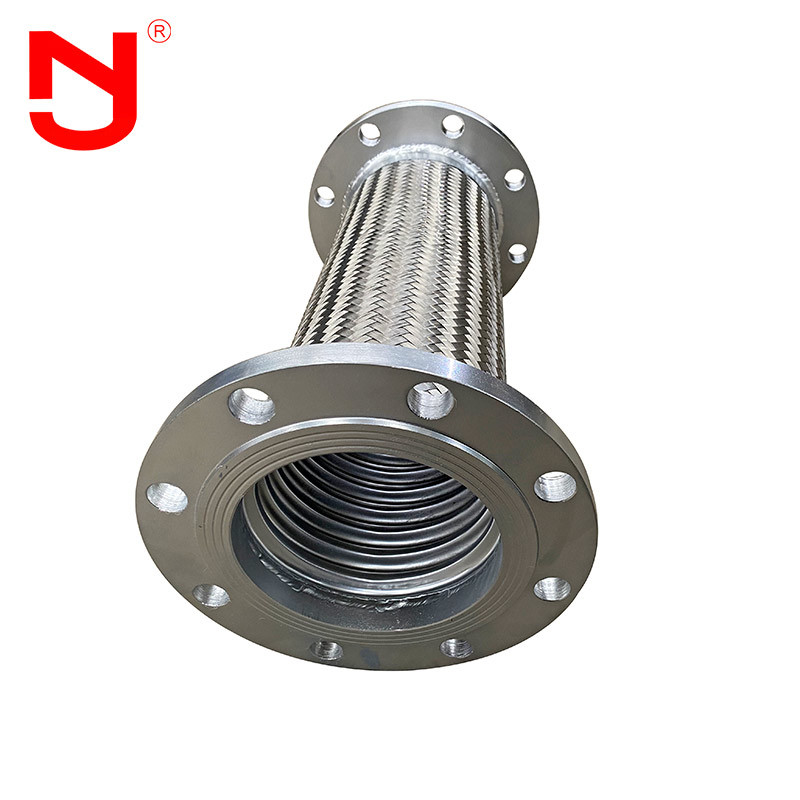

Stainless steel wire braided metal hose flexible with flange
Metal braided hose is a kind of high-quality hose in modern industry. The inner pipe is a spiral or circular thin-walled stainless steel bellows, and the outer braided net is composed of stainless steel wire and steel strip according to certain parameters. The joints or flanges at both ends match the joints or flanges of the user's pipeline. Corrugated pipe is the main body of metal braided hose, which plays a flexible role; The mesh sleeve plays a role of strengthening and shielding in the metal braided hose; The joint of rubber joint plays a connecting role. The hose is the main pressure bearing part of the hose installed in the pressure pipe, and it is also the sheath of the bellows. One or more layers of stainless steel wire or steel strip can be braided according to the pressure in the pipe and the place of use.
Metal hose flexible performance
1. Corrosion resistance
2. High and low temperature resistance (- 196 ℃ to 420 ℃)
3. Light weight
4. Small volume
Technique parameter of metal hose flexible
| Technical parameter of metal hose flexible | |||||||
| Nominal diameter DN |
Inner diameter (mm) |
Outer diameter | Minimum bending radius | Working pressure | |||
| Bellows | Braid mesh | Static | Dynamic | Single braid mesh | Double braid mesh | ||
| 8 | 8.8 | 13.2 | 14.4 | 50 | 110 | 15 | 20 |
| 10 | 11.7 | 16.5 | 17.7 | 65 | 145 | 185 | 20 |
| 15 | 13.5 | 19.5 | 21.1 | 80 | 180 | 18 | 20 |
| 20 | 20.0 | 27 | 28.6 | 120 | 270 | 10 | 15 |
| 25 | 27.0 | 34.5 | 36.1 | 160 | 360 | 6.3 | 10 |
| 32 | 32.0 | 40 | 41.6 | 175 | 400 | 4.0 | 6.3 |
| 40 | 39.6 | 52 | 53.6 | 225 | 510 | 4.0 | 6.3 |
| 50 | 49.7 | 62 | 63.6 | 280 | 640 | 3.0 | 5.0 |
| 65 | 61.2 | 80.2 | 81.8 | 410 | 915 | 3.0 | 5.0 |
| 80 | 79.0 | 96.3 | 97.9 | 486 | 1030 | 3.0 | 5.0 |
| 100 | 101.2 | 119.6 | 121.2 | 610 | 1340 | 2.5 | 4.0 |
| 125 | 124.1 | 145.3 | 146.9 | 700 | 1540 | 2.5 | 4.0 |
| 150 | 149.4 | 180.8 | 182.4 | 810 | 1780 | 2.5 | 4.0 |
| 200 | 176.0 | 240 | 243.2 | 1000 | 2000 | 2.5 | 4.0 |
| 250 | 248.0 | 290 | 294 | 1250 | 2500 | 2.5 | 4.0 |
| 300 | 298.0 | 350 | 354 | 1500 | 3000 | 1.6 | 2.5 |
| 350 | 347.0 | 400 | 404.8 | 1750 | 3500 | 1.6 | 2.5 |
| 400 | 397.6 | 460 | 464.8 | 2000 | 4000 | 1.6 | 2.5 |
Production process of metal hose flexible
Do you know how is a high quality metal hose flexible made?Let's see with JINGNING.
Metal braided hose inner Core: Corrugated Stainless Steel
Helical / Convoluted option available upon request
Metal braided hose inner outer Core:Braided Stainless Steel Layers
JINGNING has more than 17 years of design experience in manufacturing metal braided hose , rubber expansion joint, metal expansion joint, disassembly joint, pipeline and other industrial pipe fittings. The metal braided hose meets the international standards such as GB, ISO, DIN, ANSI, BS, JIS and the special requirements of customers.
Metal hose flexible advantages
1. Metal braided hose is ex factory price
2.17 years of manufacturing experience, 5 years of export experience
3. The metal bellows compensator has strict quality inspection, and the quality far exceeds the industry standard.
4. Various specifications of metal braided hose mould support customization and OEM
5. Provide free samples of metal braided hose.
6. The inventory of metal braided hose is large.
Metal hose flexible application
Metal braided hose products include oil suction hose, steam hose, sand blasting hose, acid-base hose, food hose, oxygen blowing hose and various special-shaped hose. Metal braided hose is widely used in machinery, chemical industry, petroleum, metallurgy, food and other industries. Metal braided hose is resistant to corrosion, high temperature and low temperature (- 196 ℃ ~ + 420 ℃), light weight, small volume and good flexibility. Metal braided hose is widely used in aviation, aerospace, petroleum, chemical, metallurgy, power, paper, wood, textile, construction, medicine, food, tobacco, transportation and other industries.
