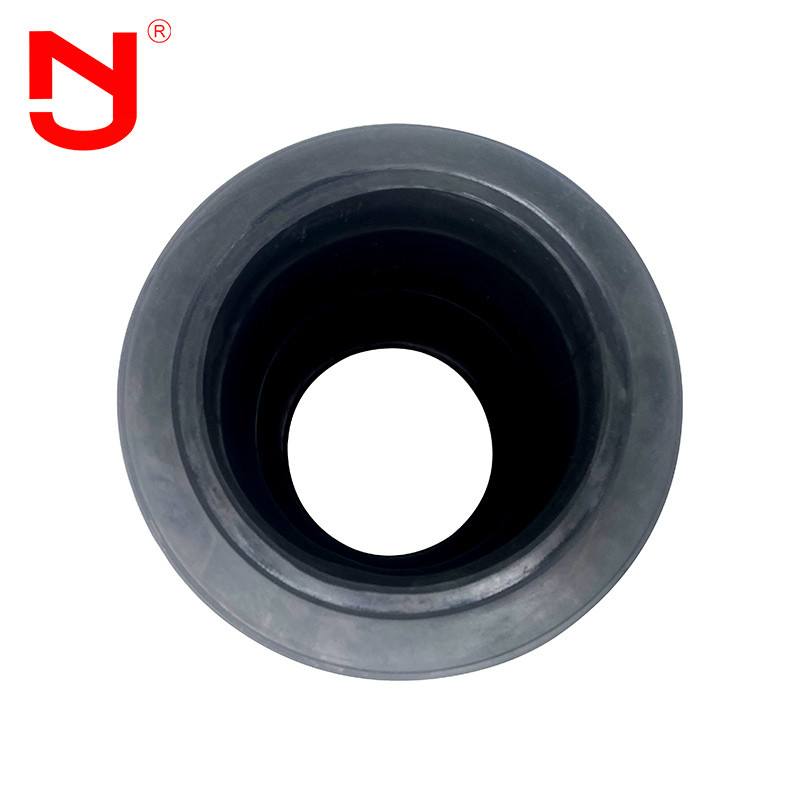

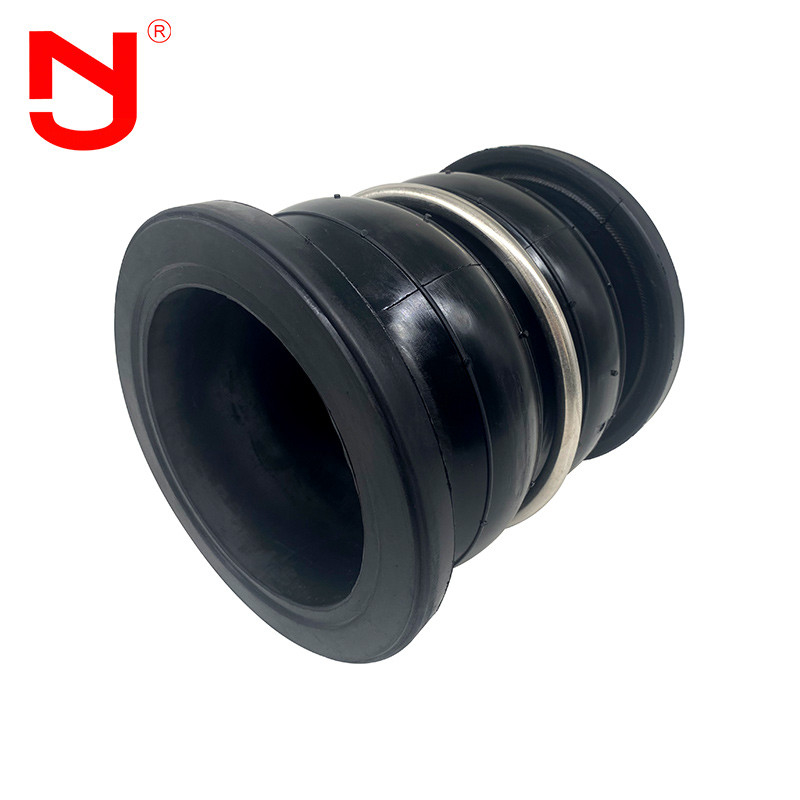

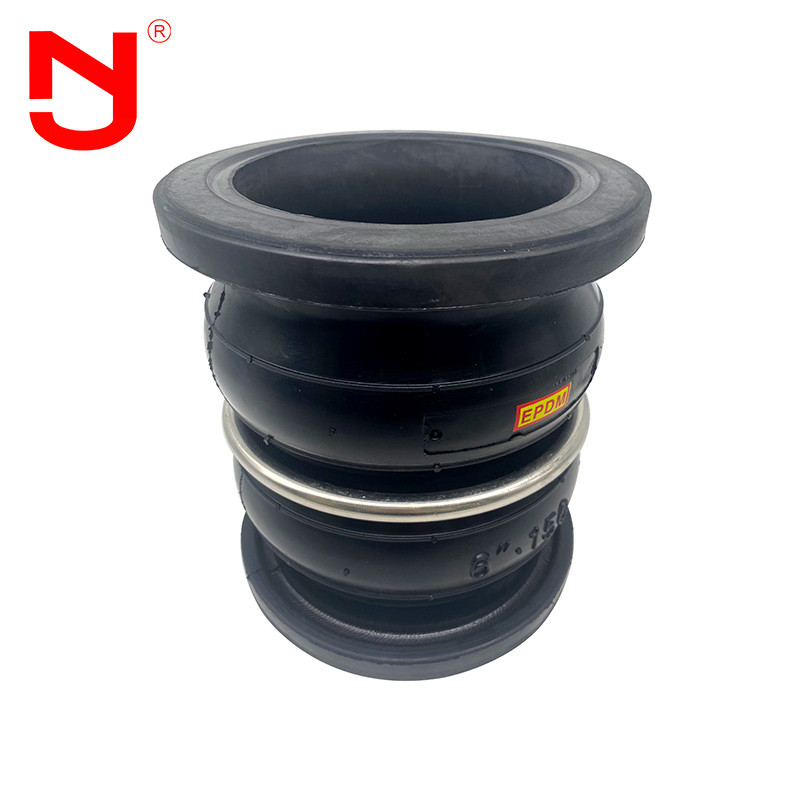

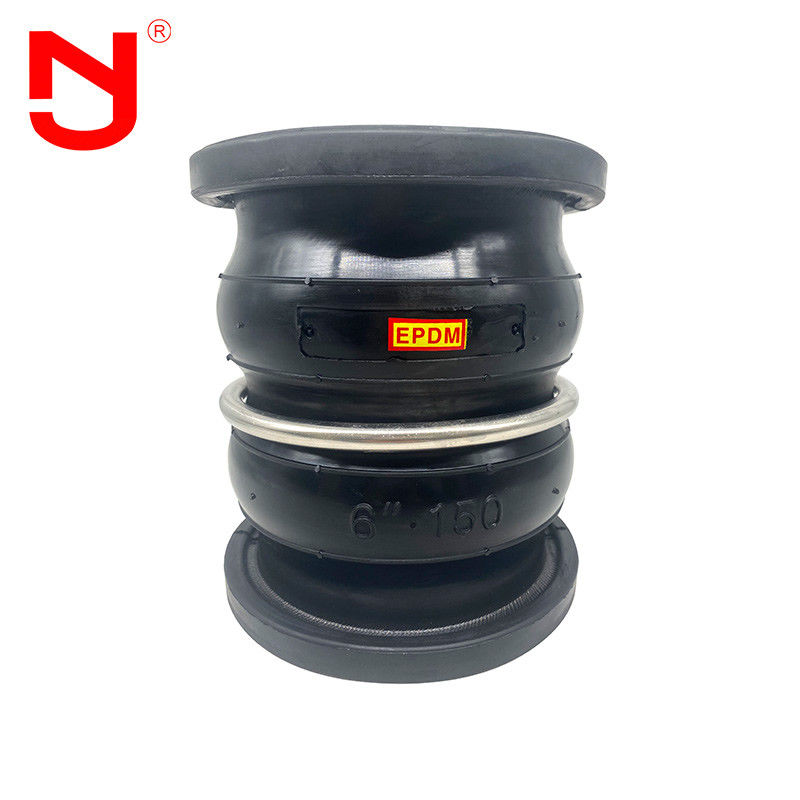

Expansion Bellows Double Sphere Rubber Joint For Pipes Ductile Iron

Expansion Bellows Double Sphere Rubber Joint For Pipes Ductile Iron
Expansion Bellows Double Sphere Rubber Joint For Pipes Ductile Iron
video play

Large Image :  Expansion Bellows Double Sphere Rubber Joint For Pipes Ductile Iron

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: RFJS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 15--1000 /Set
Packaging Details: Wooden Box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Sets/Week
Detailed Product Description
Product Name: Expansion Bellows For Pipes Flange Material: Carbon Steel,Ductile Iron,Stainless Steel, Aluminum, Plastic
Flange Standard: DIN,BS,ANSI Rubber Material: NBR,EPDM,SBR
Working Pressure: -0.2~4.5Mpa Size: DN40---DN1500
High Light:

Expansion bellows for pipes

,

Double Sphere Expansion Bellows

,

Ductile Iron Rubber Expansion Joint

Expansion bellows for pipes



The double ball rubber expansion joint is composed of rubber body and flange. The rubber material of the expansion joint is NR / NBR / EPDM / PTFE, which can be used for different media, such as EPDM with weak acid and weak alkali. Flange materials can be galvanized carbon steel, painted ductile iron, stainless steel 304 / 316, etc.



Expansion bellows for pipes performance



Using the advantages of high elasticity, high gaseous state, medium resistance, weather resistance and radiation resistance of rubber, the expansion joint can reduce the vibration and noise of pipeline and compensate the thermal expansion and cold contraction caused by temperature change.

1. Reduce vibration and noise of pipeline system; Completely solve various pipeline problems, such as pipeline displacement, axial bending, etc.

2. According to different material requirements, acid, alkali and corrosion resistant expansion joints can be made to adapt to different media and environments.

3. Good sealing performance, light weight, convenient installation and maintenance and long service life. However, please keep away from sharp metal to prevent the steel ball from breaking.



Part of expansion bellows for pipes technical data





Main data of expansion bellows for pipes



Nominal diameter(DN)

Length

Hole diameter quantitvd

Axial displacement(mm)

Horizontal displacement

Deflexion angle

mm

inch

mm



Extension

Compression

mm

(a1+a2)°

40

1 1/2

165

18-4

30

50

45

15°

50

2

165

18-4

30

50

45

15°

65

2 1/2

175

18-4

30

50

45

15°

80

3

175

18-8

35

50

45

15°

100

4

225

18-8

35

50

40

15°

125

5

225

18-8

35

50

40

15°

150

6

225

22-8

35

50

40

15°

200

8

325

22-8

35

60

40

15°

250

10

325

22-12

35

60

35

15°

300

12

325

22-12

35

60

35

15°

350

14

330

22-16

35

60

35

15°

400

16

330

26-16

35

60

35

15°

450

18

330

26-20

35

60

35

15°

500

20

350

26-20

35

60

35

15°

600

24

350

30-20

35

60

35

15°

700

28

350

30-24

35

60

35

30°

800

32

400

30-24

35

60

35

30°

Note: the special requirements of double ball rubber expansion joint can be customized according to the user's drawings. The flange standard is GB / t9115. 1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The rubber balls of expansion joints can be used as natural rubber, EPDM, neoprene, butyl rubber, butadiene rubber, fluororubber, etc. When the double ball rubber expansion joint of DN200 and above is used for suspended water supply, the pipeline must have fixed support or fixed support, otherwise, the double ball rubber expansion joint shall be equipped with anti falling device.



Expansion bellows for pipes details show



Expansion Bellows Double Sphere Rubber Joint For Pipes Ductile Iron 0



Production flow



Do you know how is a expansion bellows for pipes made?Let's see with JINGNING.

Expansion Bellows Double Sphere Rubber Joint For Pipes Ductile Iron 1



Expansion bellows for pipes advantage



1. The price is ex factory.

2. 17 years of manufacturing experience and 5 years of export experience.

3. Strict quality inspection, the quality far exceeds the industry standard.

4. It has a variety of specifications and supports customization and OEM.

5. Provide free samples.

6. There is a large amount of inventory.



Expansion bellows for pipes application



Because of its good comprehensive performance,double sphere rubber expansion joint is widely used in chemical engineering, construction, water supply, drainage, petroleum, industry, refrigeration, sanitation, water heating, fire protection, electric power and other basic engineering.



OEM&ODM



How to choose the appropriate double sphere rubber expansion joint? It is necessary to know the compatibility of the medium and the selected material, the range of full temperature, full pressure and full vacuum, the amount of movement required and the size between the pipe flanges. With this information, Jingning application engineers can help determine the ideal double sphere rubber expansion joint for any application.


Expansion Bellows Double Sphere Rubber Joint For Pipes Ductile Iron 2



































Note:The special requirements of double sphere rubber expansion joint can be customized.
