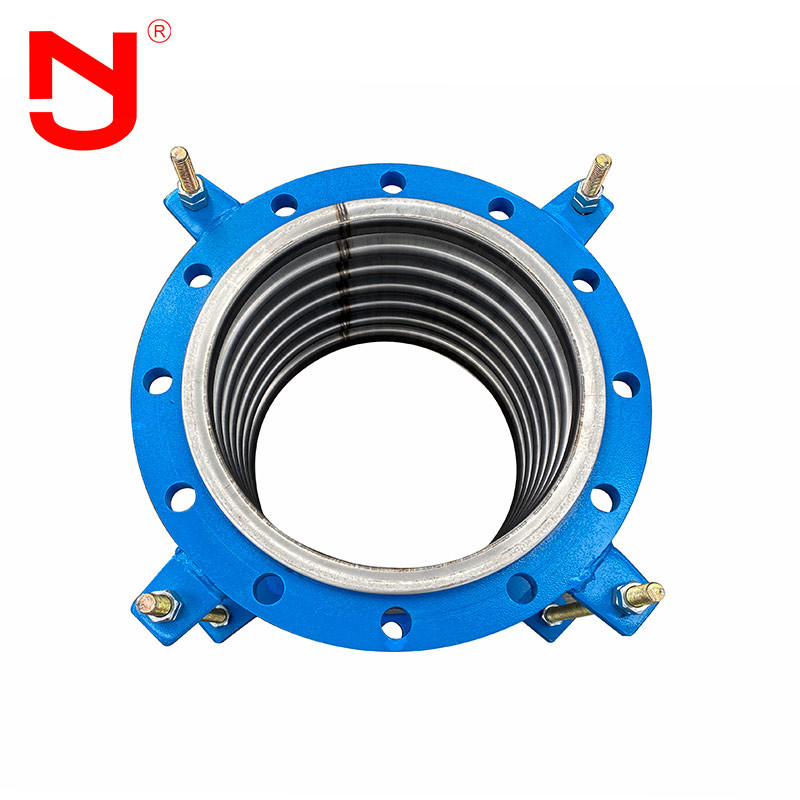

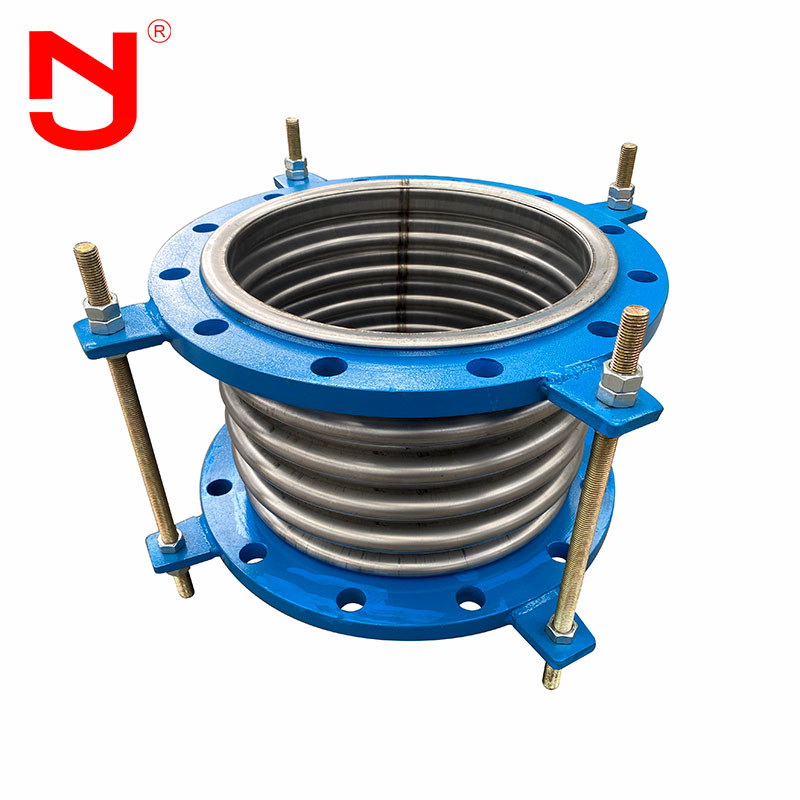

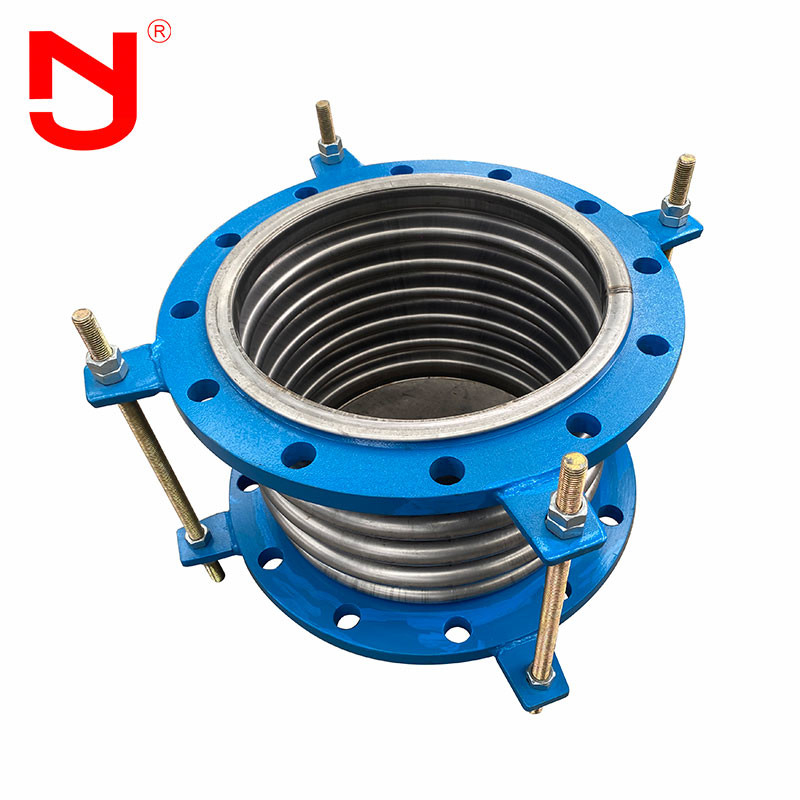

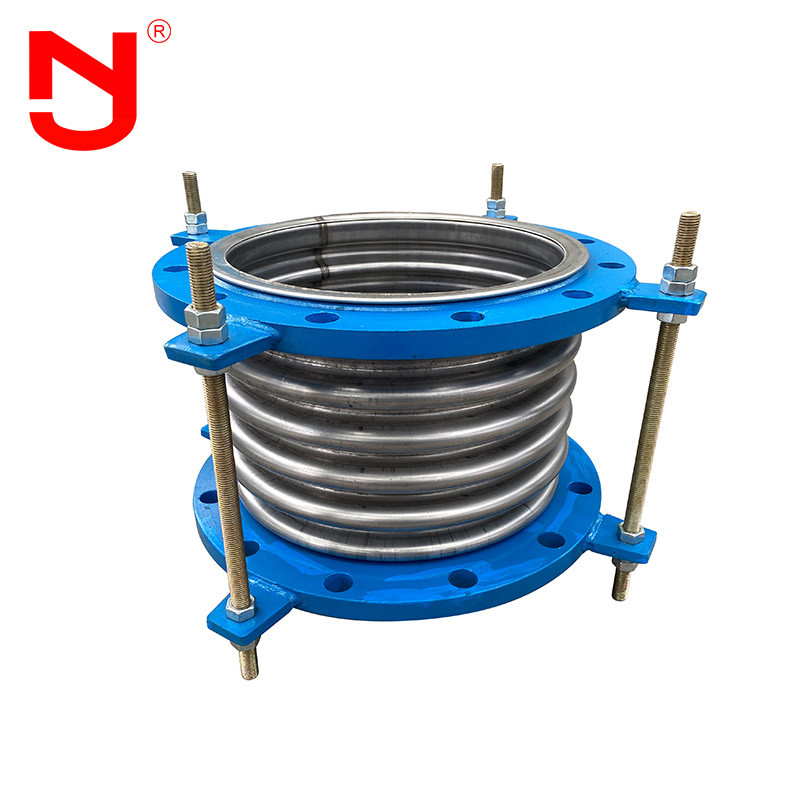

Bellows Type Metal Expansion Joint SS316 High Temperature Resistance

Bellows Type Metal Expansion Joint SS316 High Temperature Resistance
Bellows Type Metal Expansion Joint SS316 High Temperature Resistance
video play

Large Image :  Bellows Type Metal Expansion Joint SS316 High Temperature Resistance

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE、ZTC
Model Number: JDZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Detailed Product Description
Company Type: Factory Product Name: Bellows Type Expansion Joint
Bellows Material: SS304,SS316,SS321 OEM&ODM: Support
Flange Material: Stainless Steel,Carbon Steel Flange Standard: ANSI,DIN,BS,AS,JIS
High Light:

bellows type expansion joint

,

SS316 Bellows expansion joint

,

High Temperature Resistance bellows expansion joint

bellows type expansion joint



The corrugated compensator belongs to a compensation element. The effective expansion deformation of the bellows of its working body is used to absorb the dimensional changes of pipelines, conduits and containers caused by thermal expansion and cold contraction, or to compensate the axial, transverse and angular displacement of pipelines, conduits and containers. It can also be used for noise reduction and vibration reduction. It is widely used in modern industry.



Performance of metal bellows



1. Good compensation effect

2. High temperature resistance

3. Metal dust boot can reduce leakage

4. Vibration resistance and high-speed performance

5. The specific pressure of the spring can be reduced

6. Possible torque transmission

7. Through certain structural design, the sealing failure caused by scaling can be reduced



Technique Parameter of bellows type expansion joint





Main data of bellows type expansion joint



Diameter

(mm)



Pressure grade
(Mpa)

Available Area of Bellows

(c㎡)



Max Size of External Diameter
(mm)



Length
(mm)



1.0

1.6

2.5

Flange
Tube
32
20/26
18/63
15/98
16
225
160/250
264/280
40
20/24
18/89
15/98
23
244
164/259
269/289
50
20/70
18/70
15/106
37
259
172/276
282/306
65
26/44
22/55
15/138
55
270
215/294
300/322
80
34/33
28/41
19/68
81
284
240/338
344/366
100
40/75
35/93
25/54
121
304
235/317
323/345
125
38/59
34/74
29/117
180
334
282/314
316/342
150
40/62
34/78
29/92
257
364
282/339
338/367
200
59/52
53/58
46/65
479
442
340/402
402/426
250
87/35
79/39
48/78
769
507
393/459
493/399
300
87/37
79/41
71/47
1105
562
464/525
564/565
350
87/44
79/48
71/45
1307
622
509/564
609/604
400
87/43
79/47
71/47
1611
562
522/566
622/628
450
87/37
79/41
47/75
1972
700
403/498
503/523
500
87/68
79/75
71/45
2445
760
431/523
531/554
600
87/85
79/94
71/82
3534
835
478/548
578/588
700
87/77
79/85
71/103
4717
1110
490
590
800
102/102
94/112
71/95
5822
1265
502
602
900
102/97
94/107
80/123
7620
1186
/
698
1000
102/105
94/106
82/117
9043
1286
/
692



Production process of bellows type expansion joint

Do you know how is a high quality bellows type expansion joint made?Let's see with JINGNING.

Bellows Type Metal Expansion Joint SS316 High Temperature Resistance 0

Metal bellows can be processed into different types according to different needs

Metal bellows compensator Bellow Body: Stainless Steel 304, 316L.
◆ Metal bellows bellows flange Materials: Q235 carbon steel, 304, 316L stainless steel.

Jingning has more than 17 years of design experience in manufacturing metal bellows, rubber expansion joint, metal bellows joint, disassembly joint, pipeline and other industrial pipe fittings. The metal bellows meets the international standards such as GB, ISO, DIN, ANSI, BS, JIS and the special requirements of customers.



Metal bellows advantages



1. Metal bellows is ex factory price

2. 17 years manufacturing experience, 5 years export experience

3. The metal bellows has strict quality inspection, and the quality far exceeds the industry standard.

4. Various specifications of metal bellows mold base customization and OEM

5. Free metal bellows samples

6. Large inventory of metal bellows



Metal bellows compensator application



1. Pipeline deformation and deformation with large deformation of metal bellows and limited space position.

2. Large diameter pipeline with metal bellows has large deformation and displacement and low working pressure.

3. Metal bellowss require devices to limit nozzle load.

4. Metal bellowss are required to absorb or isolate high-frequency mechanical vibration.

5. Metal bellowss are pipes required to absorb earthquake or foundation settlement.

Contact Details
Shanghai Songjiang Jingning Shock Absorber Co.,Ltd.

Contact Person: Wu

Tel: +86 15093112546

Send your inquiry directly to us (0 / 3000)
