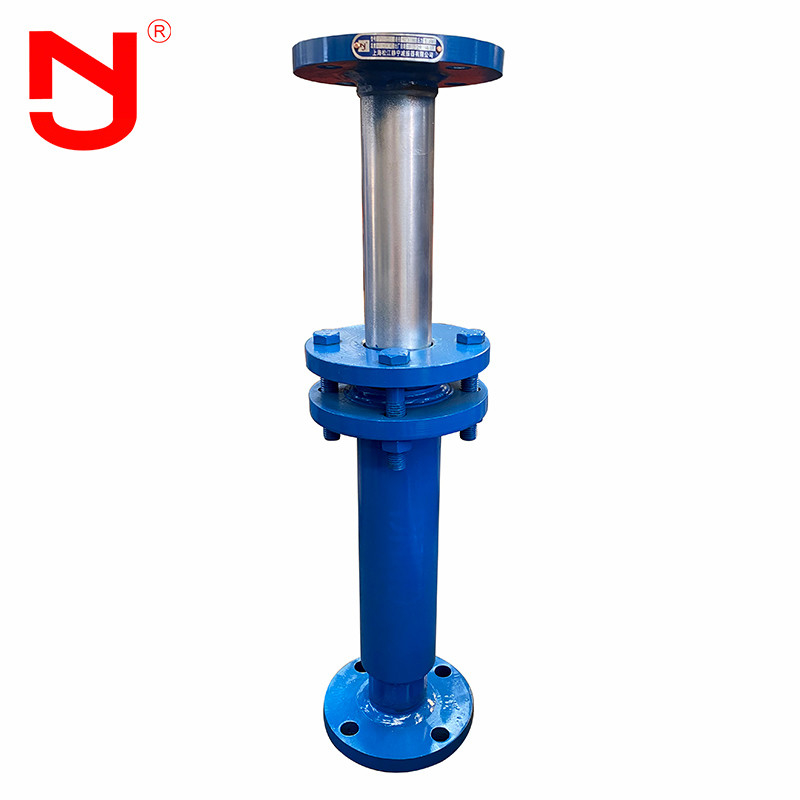

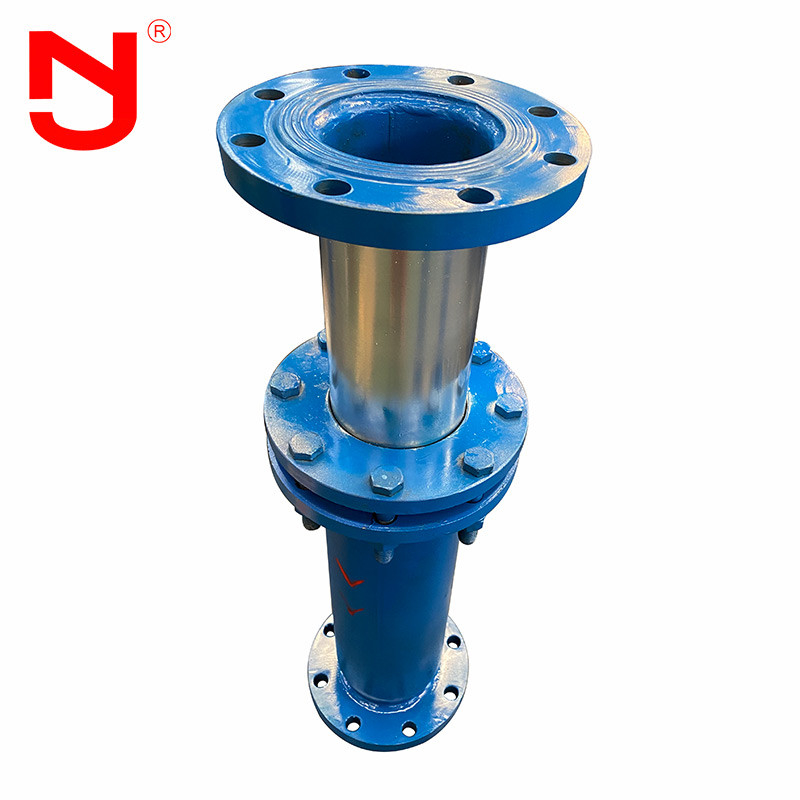

Flange Sleeve Elastic Rotary Compensator DN1000 Carbon Steel

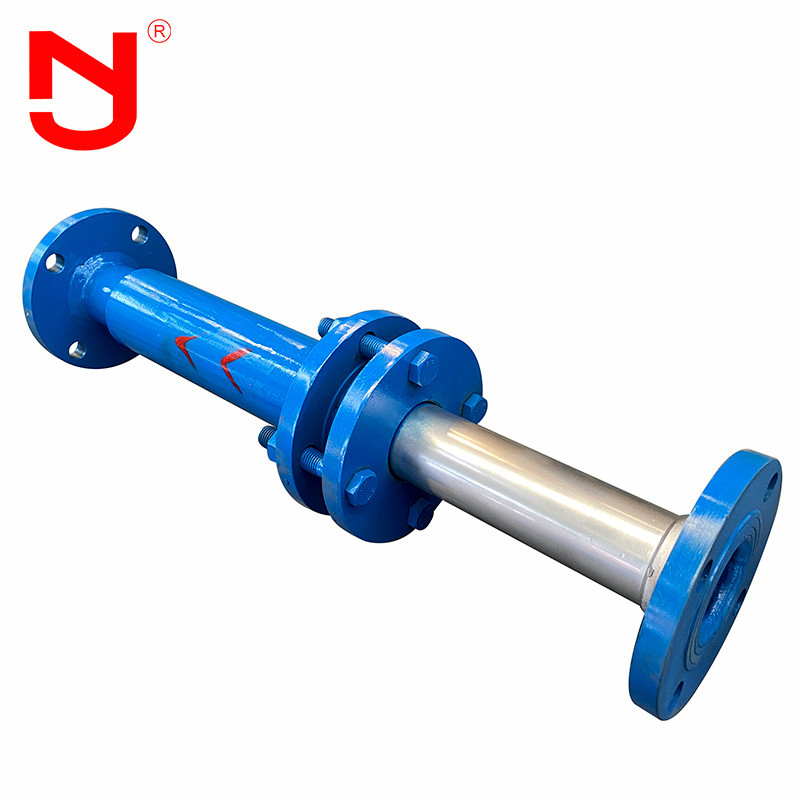

Flange Sleeve Elastic Rotary Compensator DN1000 Carbon Steel

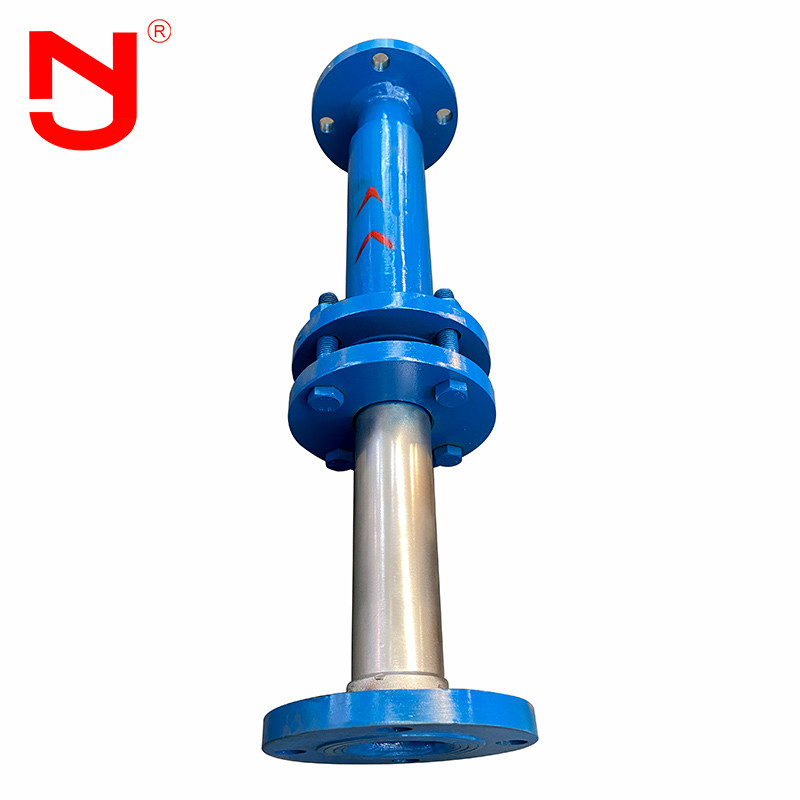

Flange Sleeve Elastic Rotary Compensator DN1000 Carbon Steel
video play

Large Image :  Flange Sleeve Elastic Rotary Compensator DN1000 Carbon Steel

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: VSSJAFG
Payment & Shipping Terms:
Minimum Order Quantity: 1
Detailed Product Description
OEM: 17Years' Experience Product Name: Flange Sleeve Compensator
Size: DN50--DN1000 Material: Carbon Steel,Stainless Steel
Working Pressure: 0-6Mpa Temperature: -20℃-+400℃
High Light:

Flange Sleeve Compensator

,

Carbon Steel Flange Sleeve Compensator

,

Elastic Rotary Compensator

Flange sleeve compensator



The sleeve compensator, known as the tubular shrinkable joint, is a compensation device for hot fluid pipeline. It is mainly used for absorption and compensation of axial thermal expansion displacement after the auxiliary installation of linear pipeline. It is a compensator directly installed in any pipeline conveying non corrosive unidirectional or multidirectional fluid. Sleeve compensator It is widely used in transmission pipelines in urban heating, metallurgy, mining, power generation, petrochemical, construction and other industries.



Performance of flange sleeve compensator



1. The sleeve compensator is designed with an anti breaking device, which can ensure that it will not be opened when it expands to the limited position, so as to greatly improve the stability of the operation of the whole pipe network and reduce hidden dangers.

2. The sleeve compensator adopts a new sealing material flexible graphite ring, which has the characteristics of high strength, low friction coefficient, no aging, good effect and convenient maintenance.



Flange sleeve compensator structure



Flange Sleeve Elastic Rotary Compensator DN1000 Carbon Steel 0

Technical data of flange sleeve compensator



Nominal

Diameter

Compensation

Single Way

Connection Tube

Outer Diameter

Maximum

Outer

Diameter

Length



L

Single Way

Friction

KN

mm mm mm mm mm 1.6Mpa
50 150 57 230 610 1.72
65 150 76 250 610 2.68
80 150 89 265 610 3.42
100 150 108 280 610 4.51
125 150 133 310 610 5.23
150 250 159 335 810 7.89
200 250 219 415 810 13.10
250 250 273 465 860 19.5
300 250 325 520 860 24.72
350 250 377 570 860 29.15
400 300 426 620 970 37.63
450 300 480 670 970 44.59
500 300 530 730 990 52.16
600 300 630 830 990 59.47
700 400 720 930 1280 65.12
800 400 820 1030 1280 78.37
900 400 920 1135 1280 96.53
1000 500 1020 1235 1550 133.5
1100 500 1120 1340 1550 147.21
1200 500 1220 1440 1550 158.32

Note:Flange supply according to GB/T 9119-2000 standard ,also can supply according to clients’other requirements.



Flange sleeve compensator advantage



1. The service life of the sleeve compensator is long, and the fatigue life is equivalent to that of the pipeline.

2. The sleeve compensator has no requirements for chloride ion content, and is especially suitable for systems with excessive chloride ion in medium or surrounding environment.

3. The sleeve compensator is divided into one-way compensation structure and two-way compensation structure. The two-way compensation structure is characterized in that no matter where the medium flows from the compensator, the sliding sleeves at both ends of the compensator always slide freely to achieve the function of two-way compensation and increase the amount of compensation.

4. The directly buried sleeve compensator can be directly buried underground, and the maintenance well can not be set during installation, so the project cost is low.



Flange sleeve compensator application



Sleeve compensator, also known as tubular expansion joint and pipeline expansion joint, is a compensation device for thermal fluid pipeline. It is mainly used for auxiliary equipment of linear pipeline. Suitable for hot water, steam, grease and other media. Thermal expansion compensation can be realized through the sliding movement of the sliding sleeve.
