| Company Type: | Factory | Product Name: | Stainless Steel Metal Flexible Connectors |
|---|---|---|---|
| Certificate: | CE ZTC | Bellows Material: | SS304,SS316,SS321 |
| OEM&ODM: | Support | Flange Material: | Stainless Steel,Carbon Steel |
| High Light: | SS304 Pipe Flexible Connector,Stainless Flexible Connector Lightweight,316L Metal Pipe Flexible Connector |
||

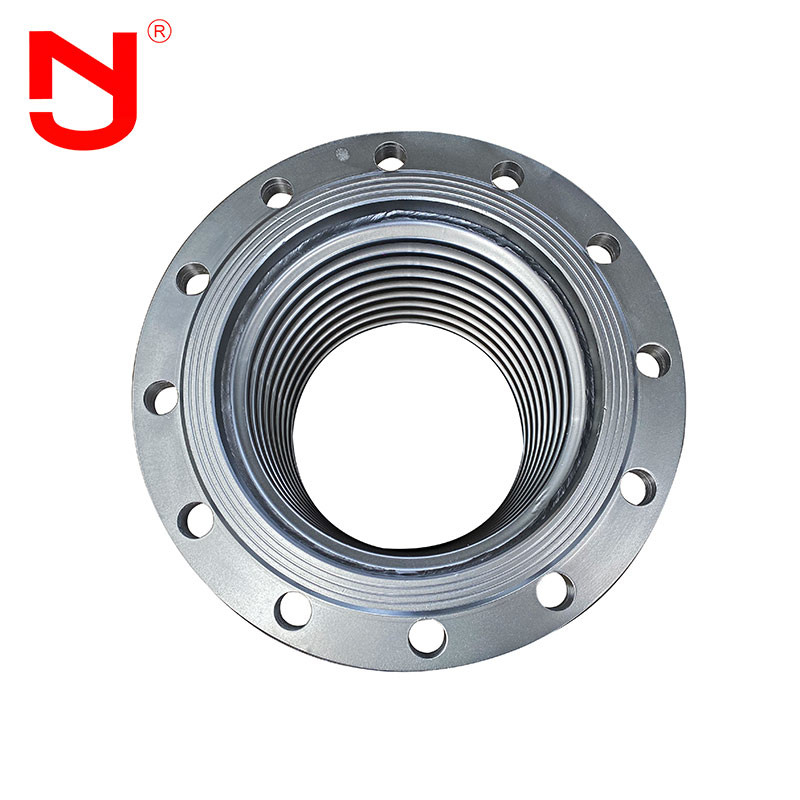

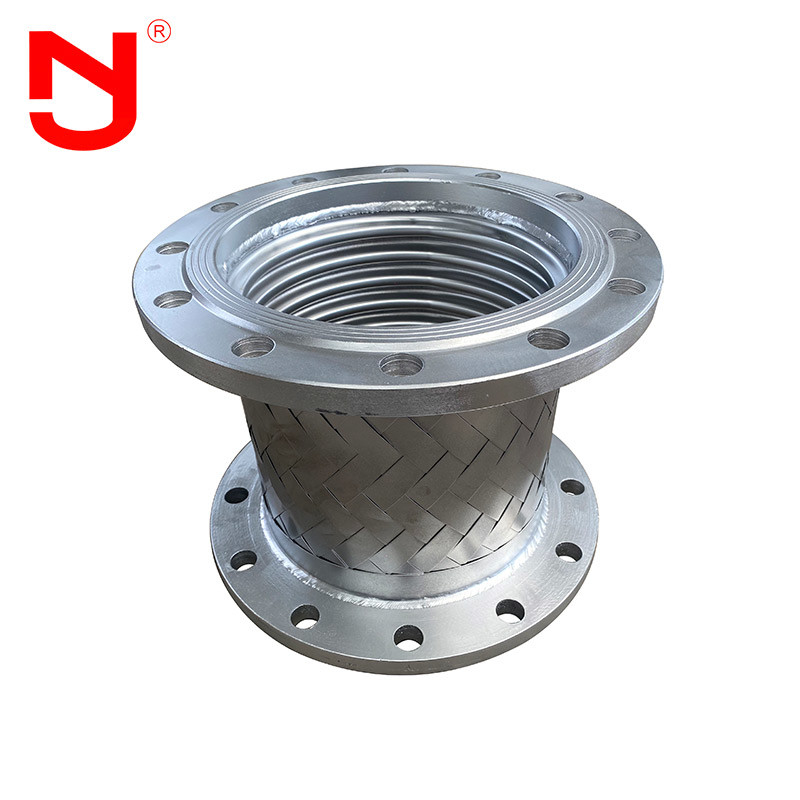

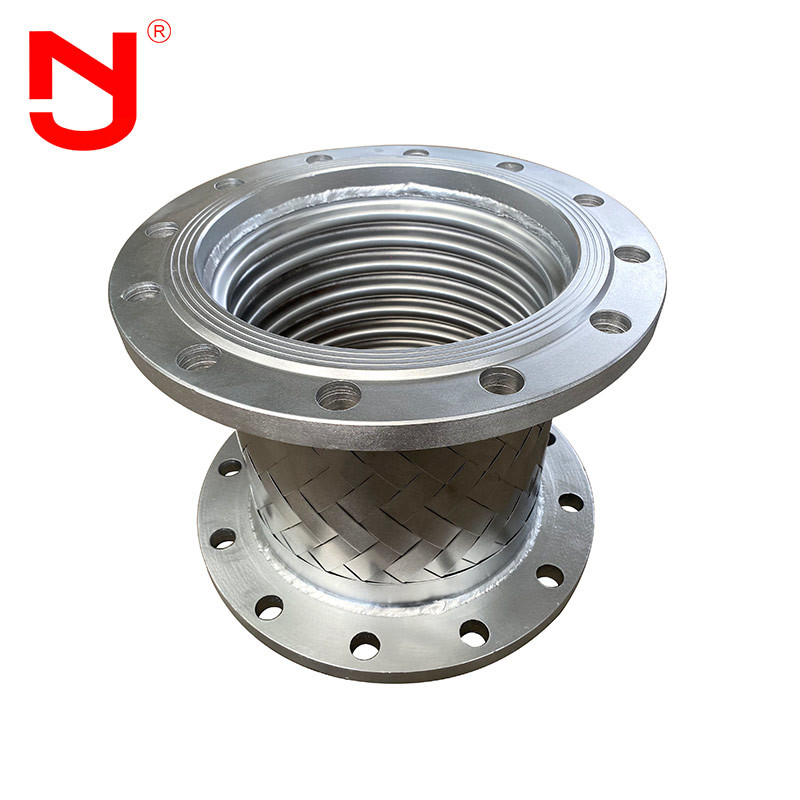

Factory direct price metal pipe flexible connector
The inner pipe of metal braided hose is spiral or circular thin-walled stainless steel bellows, and the outer braided net is composed of stainless steel wire and steel strip according to certain parameters. The joints or flanges at both ends match the joints or flanges of the user's pipeline. Corrugated pipe is the main body of metal braided hose, which plays a flexible role; The mesh sleeve plays a reinforcing and shielding role in the metal braided hose. One or more layers of stainless steel wire or steel strip can be woven according to the pressure in the pipeline and the place of use.
Performance of pipe flexible connector
1. Corrosion resistance
2. High and low temperature resistance (- 196 ℃ to 420 ℃)
3. Light weight
4. Small volume
Technique Parameter of pipe flexible connector
|
Main data of pipe flexible connectors |
|||||||
|
Nominal diameter DN |
Inner diameter (mm) |
Outer diameter | Minimum bending radius | Working pressure | |||
| Bellows | Braid mesh | Static | Dynamic | Single braid mesh | Double braid mesh | ||
| 8 | 8.8 | 13.2 | 14.4 | 50 | 110 | 15 | 20 |
| 10 | 11.7 | 16.5 | 17.7 | 65 | 145 | 185 | 20 |
| 15 | 13.5 | 19.5 | 21.1 | 80 | 180 | 18 | 20 |
| 20 | 20.0 | 27 | 28.6 | 120 | 270 | 10 | 15 |
| 25 | 27.0 | 34.5 | 36.1 | 160 | 360 | 6.3 | 10 |
| 32 | 32.0 | 40 | 41.6 | 175 | 400 | 4.0 | 6.3 |
| 40 | 39.6 | 52 | 53.6 | 225 | 510 | 4.0 | 6.3 |
| 50 | 49.7 | 62 | 63.6 | 280 | 640 | 3.0 | 5.0 |
| 65 | 61.2 | 80.2 | 81.8 | 410 | 915 | 3.0 | 5.0 |
| 80 | 79.0 | 96.3 | 97.9 | 486 | 1030 | 3.0 | 5.0 |
| 100 | 101.2 | 119.6 | 121.2 | 610 | 1340 | 2.5 | 4.0 |
| 125 | 124.1 | 145.3 | 146.9 | 700 | 1540 | 2.5 | 4.0 |
| 150 | 149.4 | 180.8 | 182.4 | 810 | 1780 | 2.5 | 4.0 |
| 200 | 176.0 | 240 | 243.2 | 1000 | 2000 | 2.5 | 4.0 |
| 250 | 248.0 | 290 | 294 | 1250 | 2500 | 2.5 | 4.0 |
| 300 | 298.0 | 350 | 354 | 1500 | 3000 | 1.6 | 2.5 |
| 350 | 347.0 | 400 | 404.8 | 1750 | 3500 | 1.6 | 2.5 |
| 400 | 397.6 | 460 | 464.8 | 2000 | 4000 | 1.6 | 2.5 |
Production process of pipe flexible connector
Do you know how is a high quality flexible connectors made?Let's see with JINGNING.
Inner Core: Corrugated Stainless Steel
Flexible connectors stainless steel core strengths are available in 304, 321 and 316L stainless steel ;Stainless steel tubing formed into corrugations parallel to one another.
Outer Core:Braided Stainless Steel Layers
Purchase corrugated core hose with no layers, single or double braided;Flexible connectors outer braid layers made from 304 stainless steel.
Pipe flexible connectors advantages
1. Metal braided hose is ex factory price
2.17 years of manufacturing experience, 5 years of export experience
3. The metal bellows compensator has strict quality inspection, and the quality far exceeds the industry standard.
4. Various specifications of metal braided hose mould support customization and OEM
5. Provide free samples of metal braided hose.
6. The inventory of metal braided hose is large.
Pipe flexible connectors application
Flexible connectors can be widely used in aviation, aerospace, petroleum, chemical industry, metallurgy, electric power, paper making, wood, textile, construction, medicine, food, tobacco, communication and other industries.
