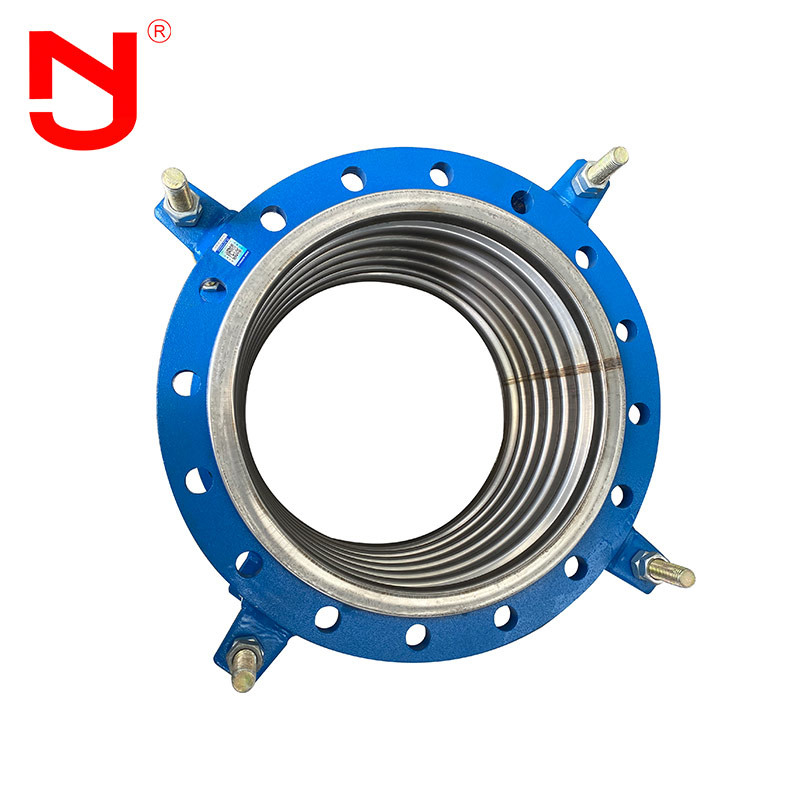

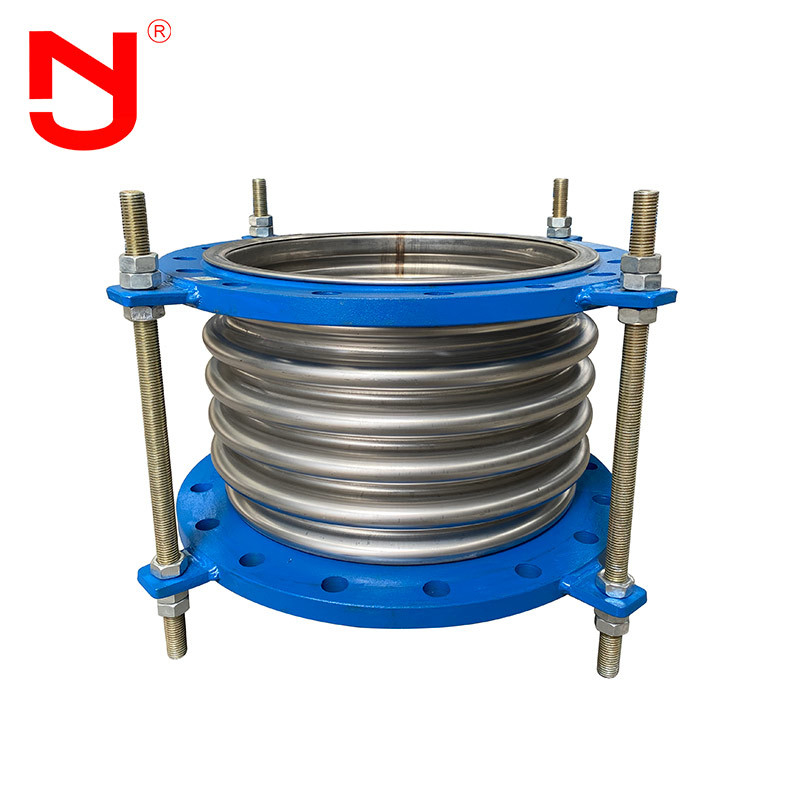

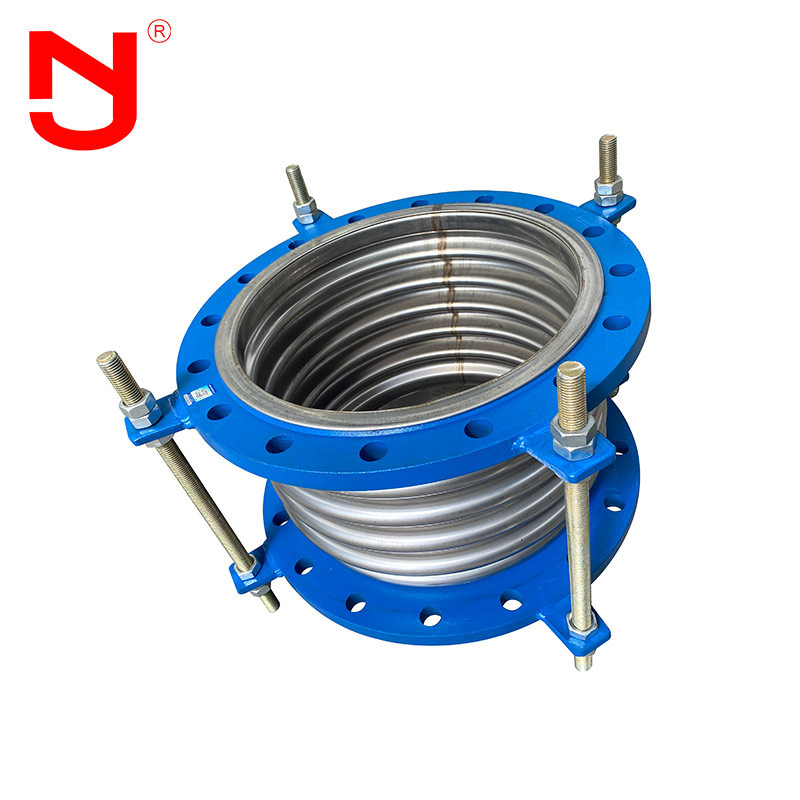

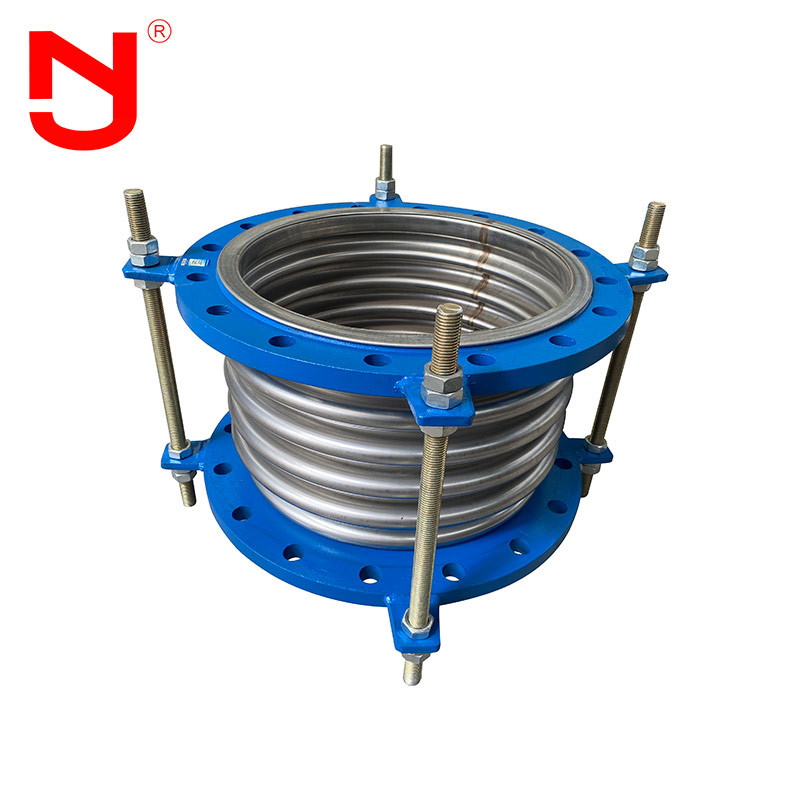

SS321 Expansion Bellows Joint Flange Connected For Pipes

SS321 Expansion Bellows Joint Flange Connected For Pipes
SS321 Expansion Bellows Joint Flange Connected For Pipes
video play

Large Image :  SS321 Expansion Bellows Joint Flange Connected For Pipes

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE、ZTC
Model Number: JDZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Detailed Product Description
Bellows Material: SS304,SS316,SS321 Company Type: Factory
OEM&ODM: Support Product Name: Flange Connected Metal Expansion Joint
Flange Material: Stainless Steel Working Pressure: 0---6.0Mpa
High Light:

Expansion Bellows Pipes

,

Flange Connected Expansion Bellows Joint

,

SS321 Expansion Bellows Joint

Expansion bellows for pipes



The corrugated compensator belongs to a compensation element. The effective expansion deformation of the bellows of its working body is used to absorb the dimensional changes of pipelines, conduits and containers caused by thermal expansion and cold contraction, or to compensate the axial, transverse and angular displacement of pipelines, conduits and containers. It can also be used for noise reduction and vibration reduction. It is widely used in modern industry.



Performance of expansion bellows for pipes



1. Good compensation effect

2. High temperature resistance

3. Metal dust boot can reduce leakage

4. Vibration resistance and high-speed performance

5. The specific pressure of the spring can be reduced

6. Possible torque transmission

7. Through certain structural design, the sealing failure caused by scaling can be reduced



Technique Parameter of expansion bellows for pipes





Main data of expansion bellows for pipes



Diameter

(mm)



Pressure grade
(Mpa)

Available Area of Bellows

(c㎡)



Max Size of External Diameter
(mm)



Length
(mm)



1.0

1.6

2.5

Flange
Tube
32
20/26
18/63
15/98
16
225
160/250
264/280
40
20/24
18/89
15/98
23
244
164/259
269/289
50
20/70
18/70
15/106
37
259
172/276
282/306
65
26/44
22/55
15/138
55
270
215/294
300/322
80
34/33
28/41
19/68
81
284
240/338
344/366
100
40/75
35/93
25/54
121
304
235/317
323/345
125
38/59
34/74
29/117
180
334
282/314
316/342
150
40/62
34/78
29/92
257
364
282/339
338/367
200
59/52
53/58
46/65
479
442
340/402
402/426
250
87/35
79/39
48/78
769
507
393/459
493/399
300
87/37
79/41
71/47
1105
562
464/525
564/565
350
87/44
79/48
71/45
1307
622
509/564
609/604
400
87/43
79/47
71/47
1611
562
522/566
622/628
450
87/37
79/41
47/75
1972
700
403/498
503/523
500
87/68
79/75
71/45
2445
760
431/523
531/554
600
87/85
79/94
71/82
3534
835
478/548
578/588
700
87/77
79/85
71/103
4717
1110
490
590
800
102/102
94/112
71/95
5822
1265
502
602
900
102/97
94/107
80/123
7620
1186
/
698
1000
102/105
94/106
82/117
9043
1286
/
692



Expansion bellows for pipes details show

SS321 Expansion Bellows Joint Flange Connected For Pipes 0

Production process of expansion bellows for pipes



Do you know how is a high quality expansion bellows for pipes made?Let's see with JINGNING.

SS321 Expansion Bellows Joint Flange Connected For Pipes 1



Expansion bellows for pipes application



Because of compensator's flexibility, metal compensator can compensate the temperature difference deformation or other deformation between equipment and pipeline, prevent vibration, reduce the thrust of pipeline on equipment, and adapt to the uneven settlement of oil tank foundation. The metal compensator can be widely used in chemical industry, oil refining, electric power, light industry, atomic energy, metallurgy, machinery, instrument, ship, aerospace and other departments. With the wide application of power pipeline and heat pipeline in industry and civil field, the requirement of metal compensator is higher and higher.
