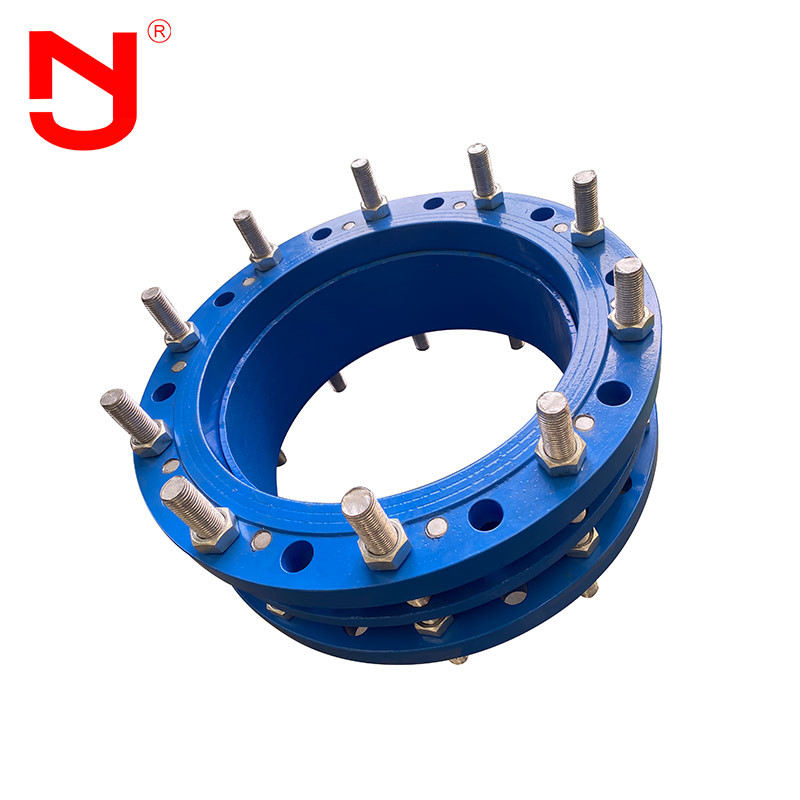

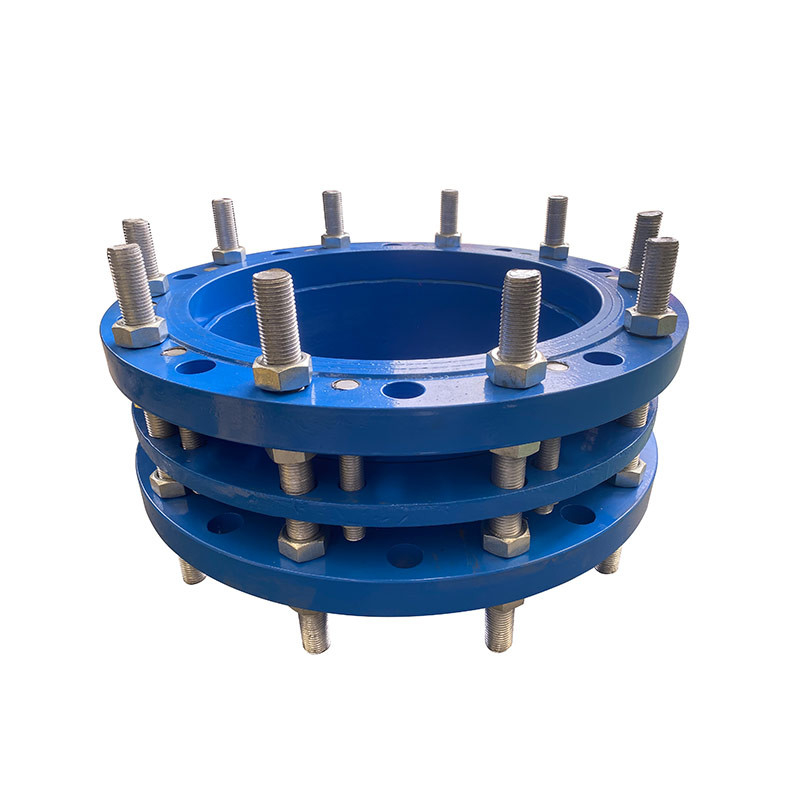

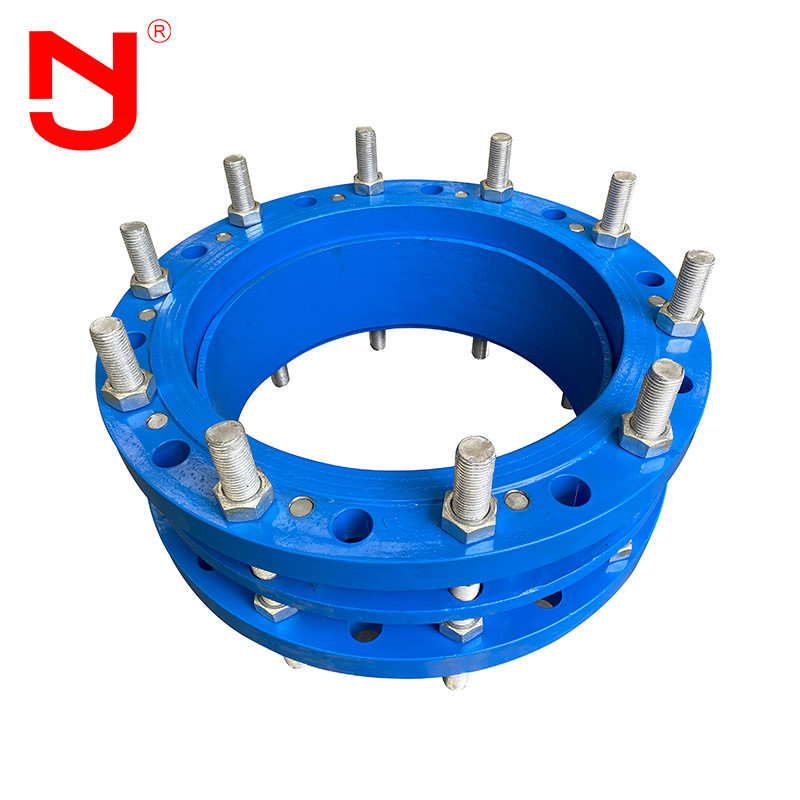

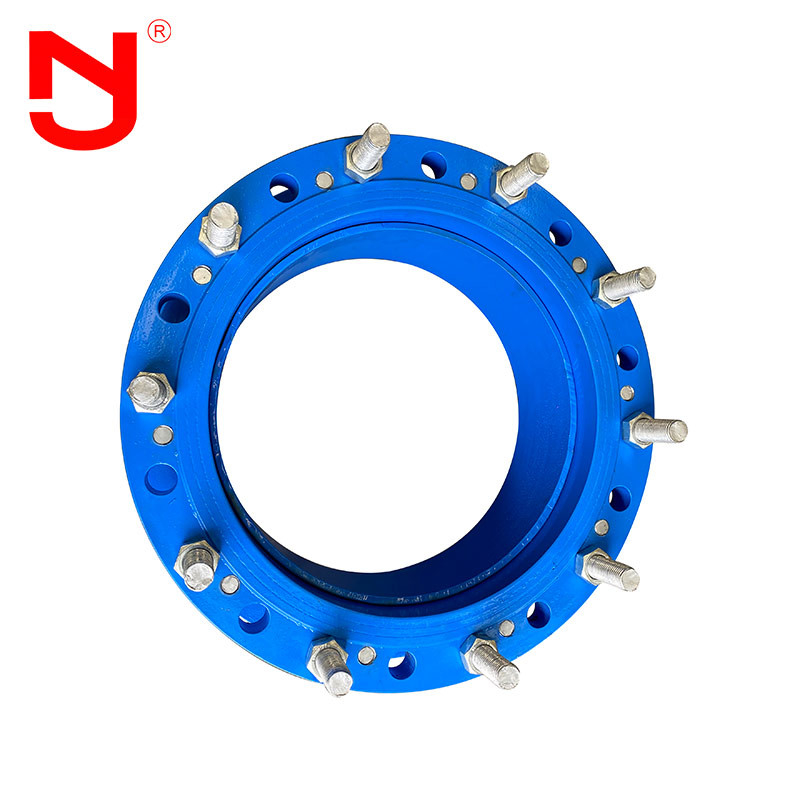

Double Flange Transmission Joint DN3000 VSSJAFC Detachable

Double Flange Transmission Joint DN3000 VSSJAFC Detachable
Double Flange Transmission Joint DN3000 VSSJAFC Detachable
video play

Large Image :  Double Flange Transmission Joint DN3000 VSSJAFC Detachable

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: VSSJAF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Detailed Product Description
Product Name: VSSJAFC Detachable Double Flange Transmission Joint Keyword: Double Flanges Transmission Joint
Size: DN80----DN3000 Material: Carbon Steel,Stainless Steel
Working Pressure: 0-6Mpa Flange Standard: DIN,ANSI,BS,JIS,AS
High Light:

Double Flange Transmission Joint

,

DN3000 Flange Transmission Joint

,

Detachable Transmission Joint

VSSJAFC detachable double flange transmission joint



The double flange transmission joint is composed of valve body, sealing ring, gland, telescopic short pipe and other main components. The joint is applicable to the pipe uniformly connected with flanges on both sides. During installation, adjust the installation length between the two ends of the joint and the flange, tighten the gland bolts diagonally and evenly to make them a whole with a certain displacement for installation. When repairing the transmission joint, it shall be adjusted according to the field dimensions. The double flange drive joint can transmit the reverse axial thrust to the entire pipeline in operation.



Performance of double flange transmission joint

1. It shall have high compression capacity to ensure the operation of the pipeline during crustal movement. It has high corrosion resistance. The expansion joints are buried underground all the year round, so it has high requirements for corrosion resistance.

2. It can move axially to eliminate the thermal expansion and cold contraction stress caused by seasonal changes or different media. The steel expansion joint is made of steel, and the rubber joint has strong corrosion resistance and flange connection.

3. It is easy to install and maintain, avoiding unnecessary trouble in the welding process. Special design process is adopted to strengthen the limit bolt to make the pipeline operation more reliable.



Double flange transmission joint structure

Double Flange Transmission Joint DN3000 VSSJAFC Detachable 0

Technical data of double flange transmission joint

Main data of double flange transmission joint

Nominal

iameter DN

External

diameter Dw

Length

Compen

-sation

△L

Flange connecting dimension
0.6Map 1.0Map
L L1 D D1 n-do D D1 n-do
65 76 340 105 50 160 130 4-Φ14 185 145 4-Φ18
80 89 190 150 4-Φ18 200 160 8-Φ18
100 108 210 170 220 180 8-Φ18
114 220 180 8-Φ18
125 133 265 200 8-Φ18 250 210 8-Φ18
140 250 210 8-Φ18
150 159 375 225 8-Φ18 285 240 8-Φ22
168 285 240 8-Φ22
200 219 321 280 340 295 8-Φ22
250 273 375 335 12-Φ18 395 350 12-Φ22
300 325 350 130 65 440 395 12-Φ22 445 400 12-Φ22
350 377 490 445 505 460 16-Φ26
400 426 540 495 16-Φ22 565 515 16-Φ26
450 480 595 550 615 565 20-Φ26
500 530 645 600 20-Φ22 670 620 20-Φ26
600 630 775 705 20-Φ26 780 725 20-Φ30
700 720 860 810 24-Φ26 895 840 24-Φ30
800 820 590 220 130 950 920 24-Φ30 1015 950 24-Φ33
900 920 1075 1020 1115 1050 28-Φ33
1000 1020 1175 1120 28-Φ30 1230 1160 28-Φ36
1200 1220 1405 1340 32-Φ33 1455 1380 32-Φ40
1400 1420 1630 1500 36-Φ36 1675 1590 36-Φ42
1500 1520 1730 1660 36-Φ36 36-Φ42
1600 1620 1830 1760 40-Φ40 1915 1820 40-Φ48
1810 1820 2045 1970 44-Φ42 2115 2020 44-Φ48
2000 2020 2265 2180 48-Φ42 2320 2230 48-Φ48
2200 2220 2475 2390 52-Φ42 2550 2440 52-Φ56
2400 2420 2685 2600 56-Φ42 2760 2650 60-Φ56
2600 2620 600 240 140 2905 2810 60-Φ48 2960 3070 64-Φ56
2800 2820 3115 3020 64-Φ48 3180 3290 68-Φ60
3000 3020 3315 3220 68-Φ48 3405
3200 3220 3525 3430 72-Φ48
3400 3420 3735 3640 76-Φ48
3600 3620 3970 3860 80-Φ56

Note:double flange transmission joint is suitable for connecting both sides with flange. During installation, adjust the connecting length of both ends of the product, tighten the gland bolts in turn and adjust the limit nuts. In this way, the pipeline can expand freely, lock the expansion, and ensure the safe operation of the pipeline.



Double flange transmission joint production flow

Double Flange Transmission Joint DN3000 VSSJAFC Detachable 1



Double flange transmission joint advantag

1. Ex factory price of connector.

2. 16 years of manufacturing experience and 5 years of export experience.

3. Strict quality inspection, the quality far exceeds the industry standard.

4. The joint mold has a variety of specifications and supports customization and OEM.

5. Provide free samples of transmission joints.

6. Large inventory.



Double flange transmission joint application

In the installation process of double flange drive joint, when the temperature changes or the pipeline vibrates, it can play the role of expansion compensation. When the foundation settles, the displacement can be compensated to a certain extent to ensure no leakage of the seal. Secondly, the installation and disassembly of the double flange transmission joint is very convenient, which makes it connected with the water supply and drainage pipeline and the water tower, providing great convenience for the installation and disassembly of the pump water meter.
