| Rubber Material: | EPDM | Flanges Material: | Carbon Steel |
|---|---|---|---|
| Drilling Standard: | PN10/16, ANSI 150LBS, JIS10K | Working Pressure: | 1.6Mpa |
| High Light: | EPDM Rubber Expansion Joint,Rubber Expansion Joint With Flanges,EPDM flange rubber expansion joint |
||

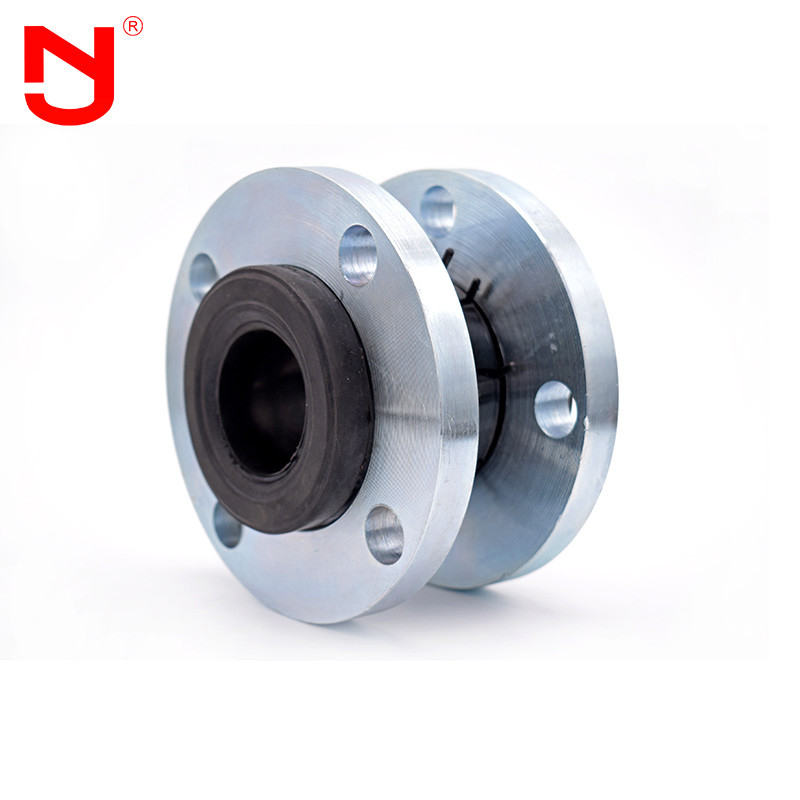

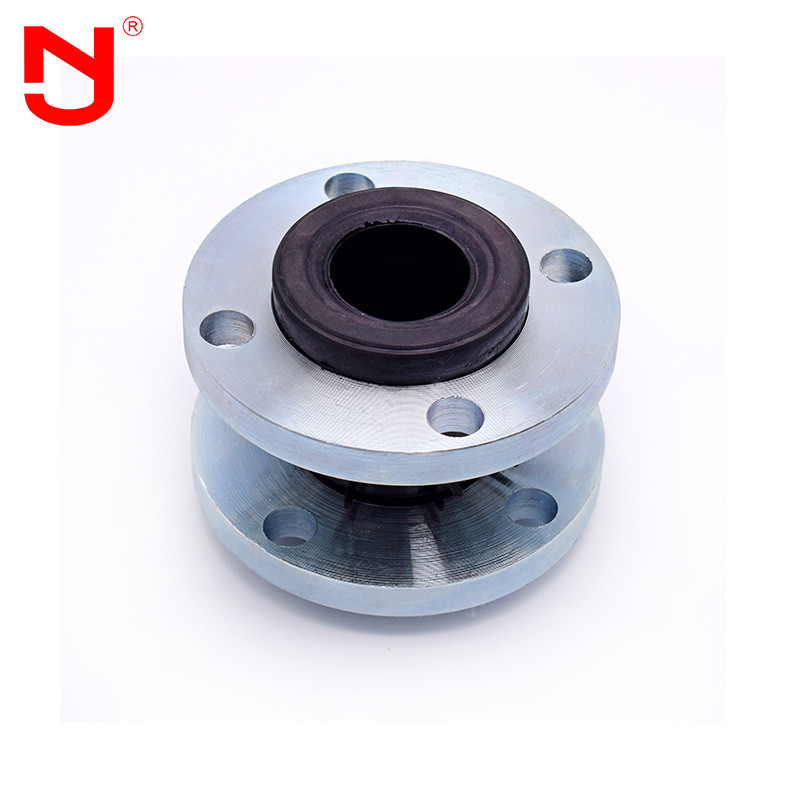

EPDM Rubber Expansion Joint With Galvanized Carbon Steel Flanges
| GENERAL CHARACTRISTICS | |
| Nominal Diameter | DN15-DN3000 |
| Working Pressure | PN6-PN25 |
| Working Temperature | -20℃-140℃ |
| Working Medium | Water,Oil,Acid,Alkali |
|
Main data of rubber expansion joint
|
||||||
|
Nominal diameter(DN)
|
Length
|
Axial displacement(mm)
|
Horizontal displacement
|
Deflexion angle
|
||
|
mm
|
inch
|
mm
|
Extension
|
Compression
|
mm
|
(a1+a2)°
|
|
32
|
1 1/4
|
95
|
6
|
9
|
9
|
15°
|
|
40
|
1 1/2
|
95
|
6
|
10
|
9
|
15°
|
|
50
|
2
|
105
|
7
|
10
|
10
|
15°
|
|
65
|
2 1/2
|
115
|
7
|
13
|
11
|
15°
|
|
80
|
3
|
135
|
8
|
15
|
12
|
15°
|
|
100
|
4
|
150
|
10
|
19
|
13
|
15°
|
|
125
|
5
|
165
|
12
|
19
|
13
|
15°
|
|
150
|
6
|
180
|
12
|
20
|
14
|
15°
|
|
200
|
8
|
210
|
16
|
25
|
22
|
15°
|
|
250
|
10
|
230
|
16
|
25
|
22
|
15°
|
|
300
|
12
|
245
|
16
|
25
|
22
|
15°
|
|
350
|
14
|
255
|
16
|
25
|
22
|
15°
|
|
400
|
16
|
255
|
16
|
25
|
22
|
15°
|
|
450
|
18
|
255
|
16
|
25
|
22
|
15°
|
|
500
|
20
|
255
|
16
|
25
|
22
|
15°
|
|
600
|
24
|
260
|
16
|
25
|
22
|
15°
|
