Home ProductsReduced Rubber Expansion Joint

Single Sphere Flexible Rubber Bellows For Piping High Temperature

China Shanghai Songjiang Jingning Shock Absorber Co.,Ltd. certification
China Shanghai Songjiang Jingning Shock Absorber Co.,Ltd. certification
Timely delivery,good quality products

—— Manul

We received rubber expansion joints,then test.Good quality!

—— Mike

Good quality and good price!

—— Sofia

I'm Online Chat Now

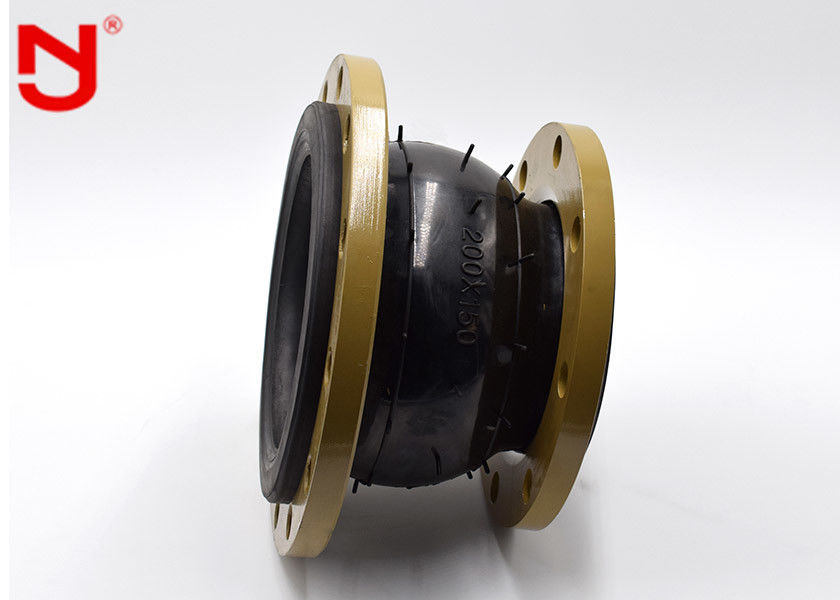

Single Sphere Flexible Rubber Bellows For Piping High Temperature

Single Sphere Flexible Rubber Bellows For Piping High Temperature
Single Sphere Flexible Rubber Bellows For Piping High Temperature

Large Image :  Single Sphere Flexible Rubber Bellows For Piping High Temperature

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: RFJY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 15--200/Set
Packaging Details: Wooden Box
Payment Terms: T/T, L/C, D/P, D/A, Western Union, MoneyGram
Detailed Product Description
Name: Flexible Rubber Bellows Size: DN50----DN1200
Rubber Material: EPDM,NBR,SBR,NR Flange Standard: DIN,BS,ANSI,JIS,AS
Flange Material: Carbon Steel,Stainless Steel Usage: Flexible Rubber Bellows For Piping
High Light:

Single Sphere Flexible Rubber Bellows

,

Flexible Rubber Bellows For Piping

,

High Temperature single sphere flex connector

Single Sphere Flexible Rubber Bellows For Piping High Temperature



Flexible Rubber Bellows are a kind of high elasticity, high air tightness, medium resistance and weather resistance. Pipe joints. This product takes advantage of rubber's elasticity, high air tightness, medium resistance, weather resistance and radiation resistance, etc.



Single Sphere Flexible Rubber Bellows For Piping High Temperature 0



Specifications of Flanged Flexible Rubber Expansion Joint



Material List
No. Name Material
1 Outer rubber layer IIR, CR, EPDM, NR, NBR
2 Inner rubber layer IIR, CR, EPDM, NR, NBR
3 Frame layer Polyester cord fabric
4 Flange Q235 304 316L
5 Reinforcement ring Bead ring
specification DN50~300 DN350~600
Working pressure (MPa) 0.25~1.6
Bursting pressure (MPa) ≤4.8
Vacuum (KPa) 53.3(400) 44.9(350)
Temperature (℃) -20~+115(for special condition -30~+250)
Applicable medium Air, compressed air, water, seawater, hot water, oil, acid-base, etc..
DN(large)×DN(small) Length Axial
displacement
(extension)
Axial
displacement
(compression)
Radial
displacement
Deflecting
angle
(a1+a2)°
50×32 180 15 18 45 35°
50×40 180 15 18 45 35°
65×32 180 15 18 45 35°
65×40 180 15 18 45 35°
65×50 180 15 18 45 35°
80×32 220 15 18 45 35°
80×50 180 20 30 45 35°
80×65 180 20 30 45 35°
100×40 220 20 30 45 35°
100×50 180 20 30 45 35°
100×65 180 22 30 45 35°
100×80 180 22 30 45 35°
125×50 220 22 30 45 35°
125×65 180 22 30 45 35°
125×80 180 22 30 45 35°
125×100 200 22 30 45 35°
150×50 240 22 30 45 35°
150×65 200 22 30 45 35°
150×80 180 22 30 45 35°
150×100 200 22 30 45 35°
150×125 200 22 30 45 35°
200×80 260 22 30 45 35°
200×100 200 25 35 40 30°
200×125 220 25 35 40 30°
200×150 200 25 35 40 30°
250×100 260 25 35 40 30°
250×125 220 25 35 40 30°
250×150 220 25 35 40 30°
250×200 220 25 35 40 30°
300×125 260 25 35 40 30°
300×150 220 25 35 40 30°
300×200 220 25 35 40 30°
300×250 220 25 35 40 30°
350×200 230 28 38 35 26°
350×250 230 28 38 35 26°
350×300 230 25 38 40 26°
400×200 230 25 38 40 26°
400×250 240 28 38 35 26°
400×300 240 28 38 35 26°
400×350 260 or 28 38 35 26°
285
450×250 280 28 38 35 26°
450×300 240 28 38 35 26°
450×350 240 28 38 35 26°
450×400 240 28 38 35 26°
500×250 280 28 38 35 26°
500×300 280 28 38 35 26°
500×350 240 28 38 35 26°
500×400 230 28 38 35 26°
500×450 240 28 38 35 26°
600×400 240 28 38 35 26°
600×450 240 28 38 35 26°
600×500 240 28 38 35 26°
