DN100 Single Sphere Rubber Flexible EPDM Connection Type For Rubber Bellows

DN100 Single Sphere Rubber Flexible EPDM Connection Type For Rubber Bellows

DN100 Single Sphere Rubber Expansion Joint

EPDM Single Sphere Rubber Expansion Joint

Place of Origin:

China

Brand Name:

JINGNING

Certification:

CE,ISO

Model Number:

RLJS

Contact Us

Request A Quote
Product Details
OEM:
20Years' Experience
Product Name:
DN100 Single Sphere Rubber Flexible EPDM Connection Type For Rubber Bellows
Working Pressure:
-0.2~4.5Mpa
Keyword:
Rubber Bellows
Working Temperature:
-30~120℃
Material:
EPDM,NBR,SBR,NR, PTFE,
Burst Pressure:
6.0Mpa
Size:
DN100
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton or wooden
Delivery Time
5--15 working days
Payment Terms
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability
10000 sets per week
Product Description

DN100 Single Sphere Rubber Flexible EPDM Connection Type For Rubber Bellows

Rubber bellows can also be called: flexible rubber joint, rubber soft joint, soft joint, flexible rubber joint, etc. it is a pipe connector with high elasticity, high air tightness, medium resistance and weather resistance. Rubber bellows is a kind of composite rubber pipe which is composed of inner rubber layer, fabric reinforcement layer (the reinforcement layer has multi-layer scraped nylon cord), middle rubber layer, outer rubber layer, end reinforced metal ring or steel ring, and loose combination with metal flange or parallel joint after high temperature and high pressure vulcanization. The rubber bellows makes use of the advantages of rubber, such as high elasticity, high gas resistance, medium resistance, weather resistance and radiation resistance. Rubber bellows can reduce the vibration and noise of the pipeline, and compensate the thermal expansion and cold contraction caused by temperature change.



Performance characteristics of Rubber Bellows

Rubber bellows can be divided into three categories: general, special and heat-resistant

1. Universal rubber bellows: suitable for transporting water at - 15 ℃ ~ 80 ℃ and acid or alkali solution with concentration less than 10%.

2. Special rubber bellows: suitable for special functions, such as oil resistance, plug resistance, ozone resistance, wear resistance or chemical corrosion resistance.

3. Heat resistant rubber bellows: suitable for transporting water with temperature higher than 80 ℃.



Technical data of Rubber Bellows

Main data of Rubber Bellows

Nominal diameter(DN) Length Axial displacement(mm) Horizontal displacement Deflexion angle
mm inch mm Extension Compression mm (a1+a2)°
32 1 1/4 95 6 9 9 15°
40 1 1/2 95 6 10 9 15°
50 2 105 7 10 10 15°
65 2 1/2 115 7 13 11 15°
80 3 135 8 15 12 15°
100 4 150 10 19 13 15°
125 5 165 12 19 13 15°
150 6 180 12 20 14 15°
200 8 210 16 25 22 15°
250 10 230 16 25 22 15°
300 12 245 16 25 22 15°
350 14 255 16 25 22 15°
400 16 255 16 25 22 15°
450 18 255 16 25 22 15°
500 20 255 16 25 22 15°
600 24 260 16 25 22 15°

Note: 1. The special requirements of flanged expansion joint can be customized according to user's drawing. Flange standard is GB / t9115.1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The rubber ball of flanged expansion joint can be used as natural rubber, EPDM, chloroprene rubber, butyl rubber, butadiene rubber, fluororubber, etc. when the flanged expansion joint above DN200 is used for suspension water supply, the pipeline must have fixed support or fixed support, otherwise the flanged expansion joint shall be installed with anti falling device.



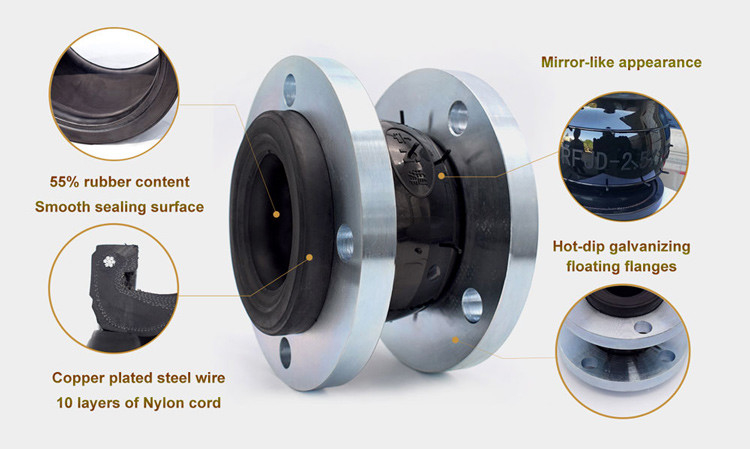

Rubber Bellows details show

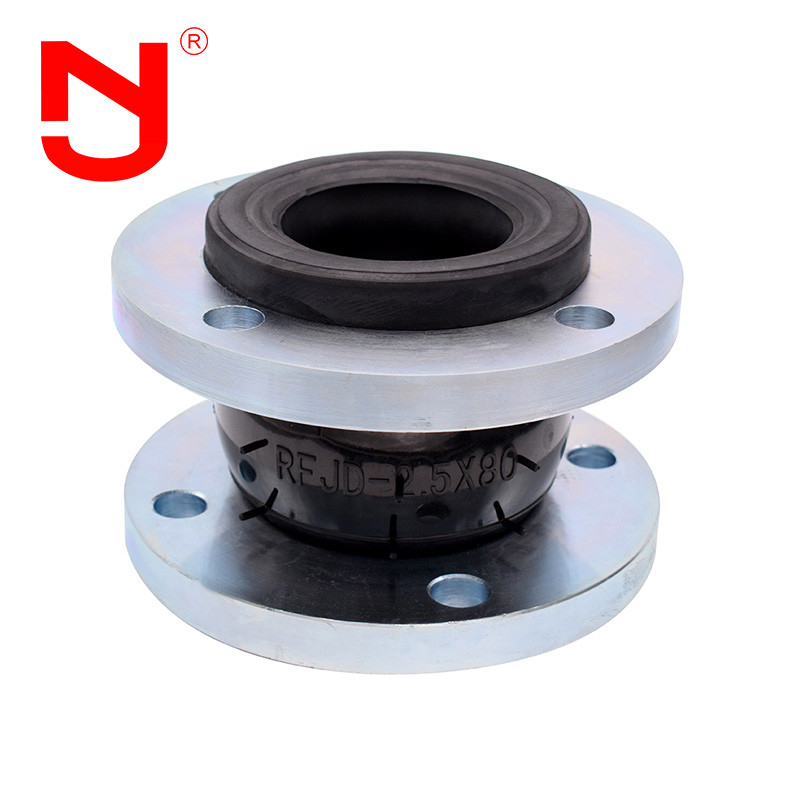

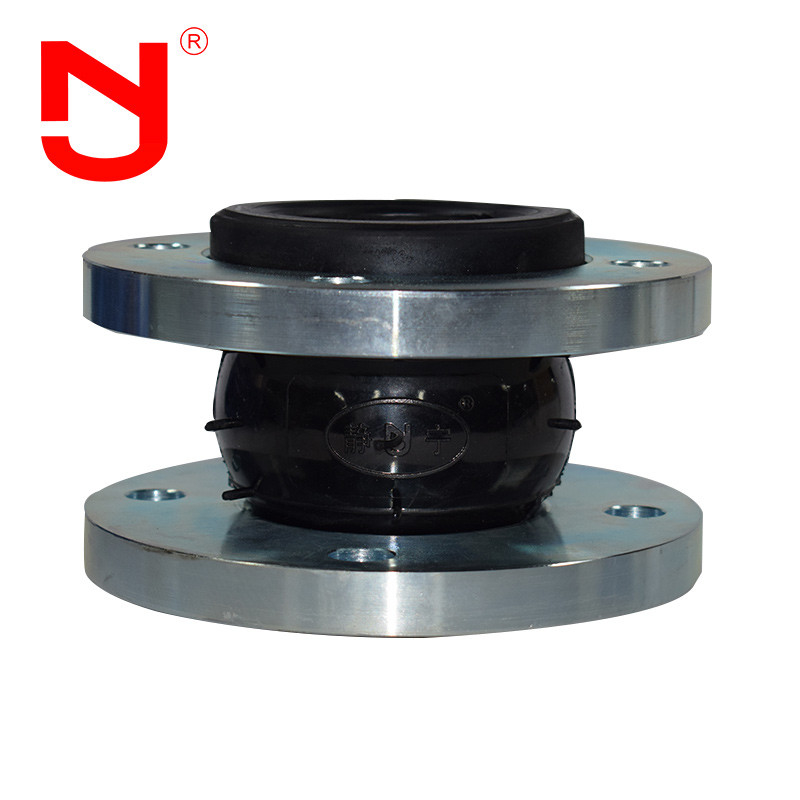

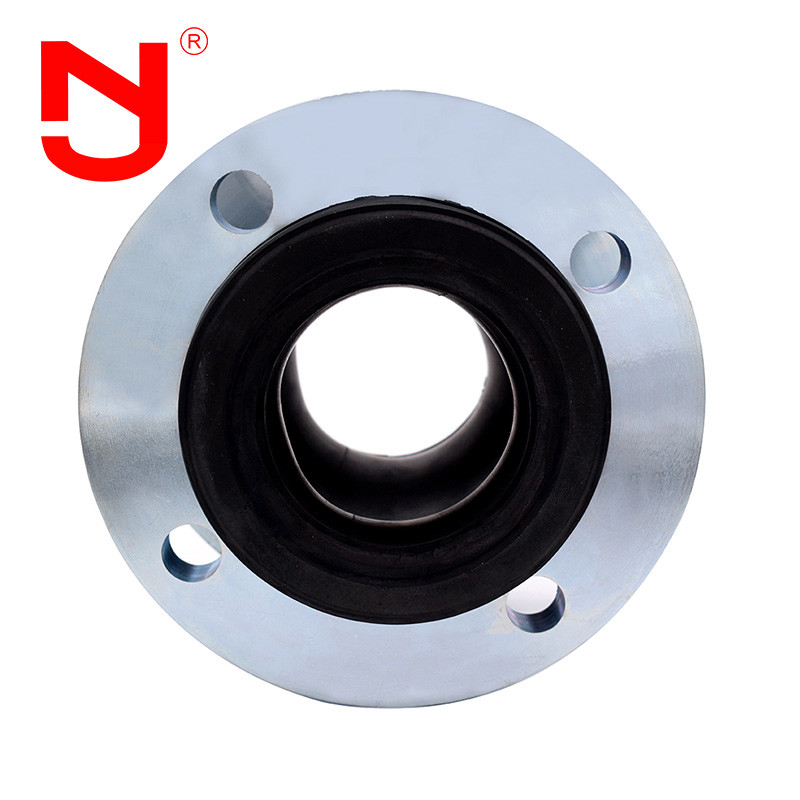

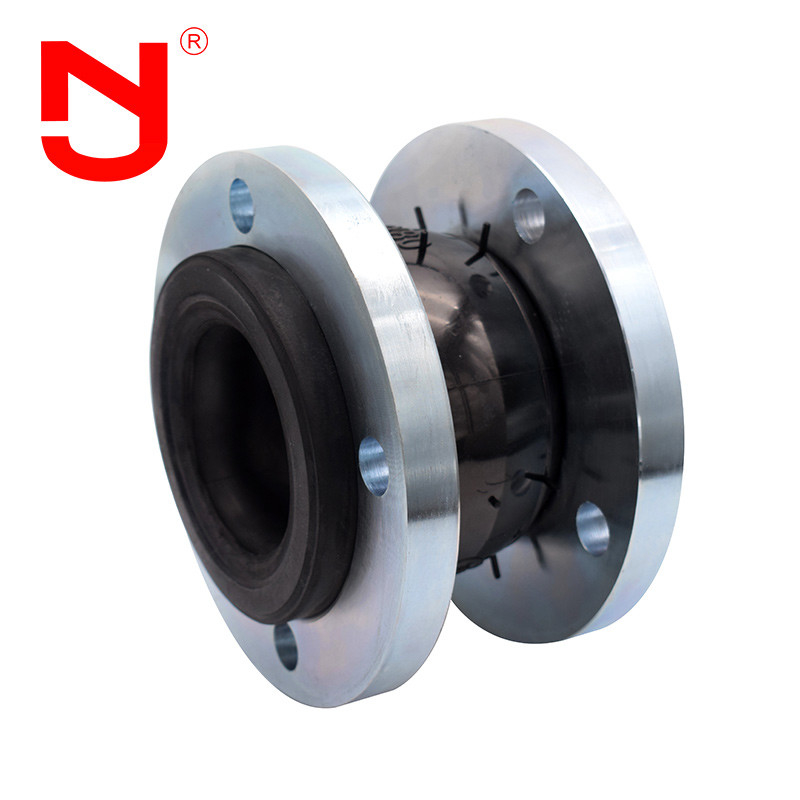

DN100 Single Sphere Rubber Flexible EPDM Connection Type For Rubber Bellows 0



Rubber Bellows production Flow

Do you know how is a Rubber Bellows made?Let's see with JINGNING.

DN100 Single Sphere Rubber Flexible EPDM Connection Type For Rubber Bellows 1

It is very important to select the appropriate rubber bellows, to understand the compatibility of the medium and the selected material of the rubber expansion joint, the range of full temperature, full pressure and full vacuum, the amount of movement required, and the size between the pipe flanges. With this information, JINGNING application engineers can help determine the ideal rubber expansion joint for any application.



Rubber Bellows advantage

1. Factory price of  rubber bellows.

2. 16 years of manufacturing experience, 5 years of export experience.

3. Strict quality inspection, the quality far exceeds the industry standard.

4. Rubber bellows mold has a variety of specifications, support customization, OEM.

5. Provide free samples of flanged expansion joint.

6. Rubber bellows are in large stock.



Rubber Bellows application

Rubber bellows are widely used in various pipeline systems, such as the connection of rubber bellows with pumps and valves, fire-fighting equipment and pipelines with large vibration. Pipes with frequent changes of heat and cold. Rubber bellows is mainly used for remote water and sewage lifting and transportation, water supply and cooling circulating water of thermal power plant, pipeline transportation of metallurgical industry, condensate water, chemical industry, cooling and dilution of petrochemical industry, and flexible connection between long and short distance pipelines in other industries. Because the rubber bellows has high wear resistance, rubber bellows is also suitable for all industries of granular and powdery and gas low temperature.
