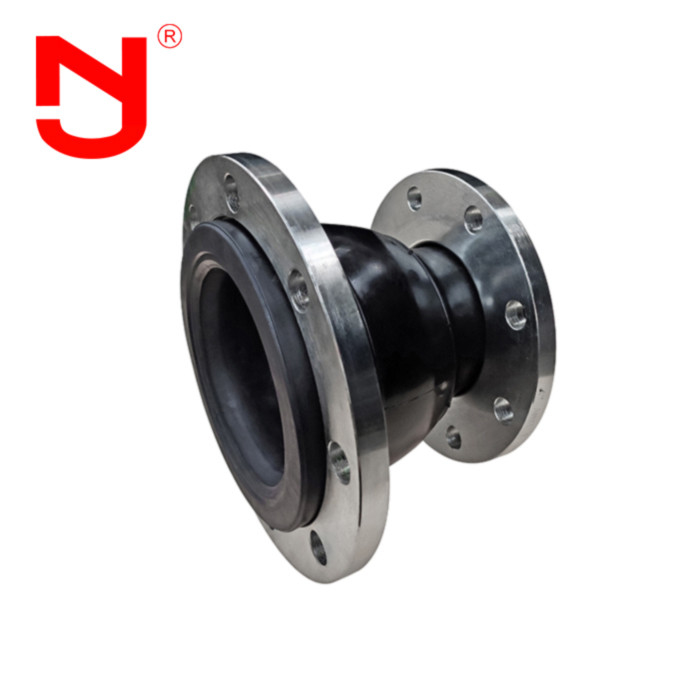

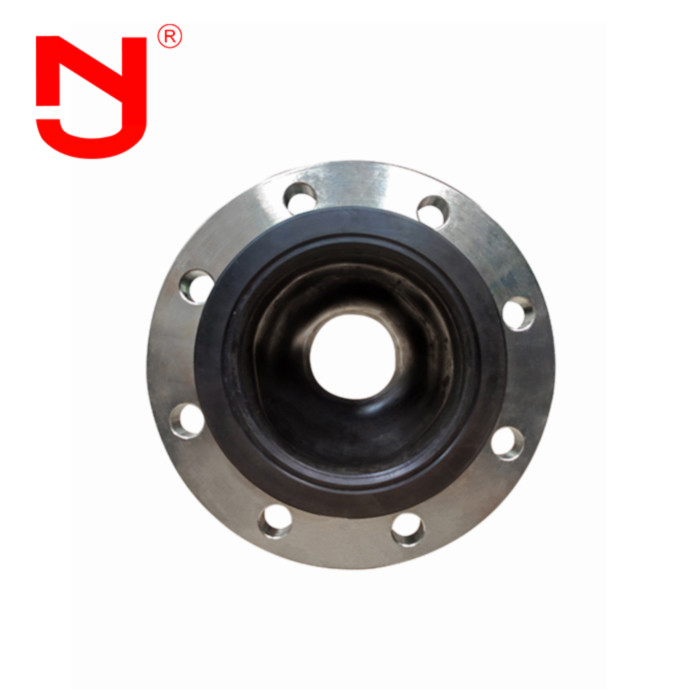

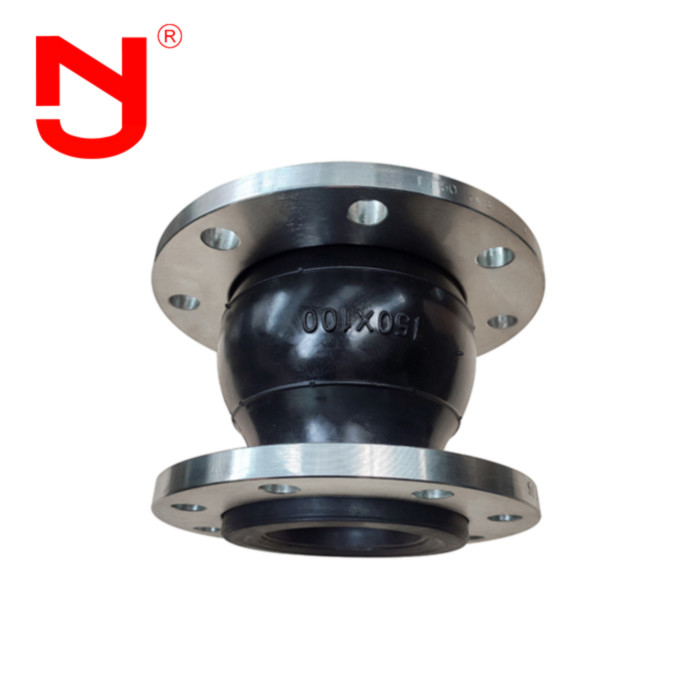

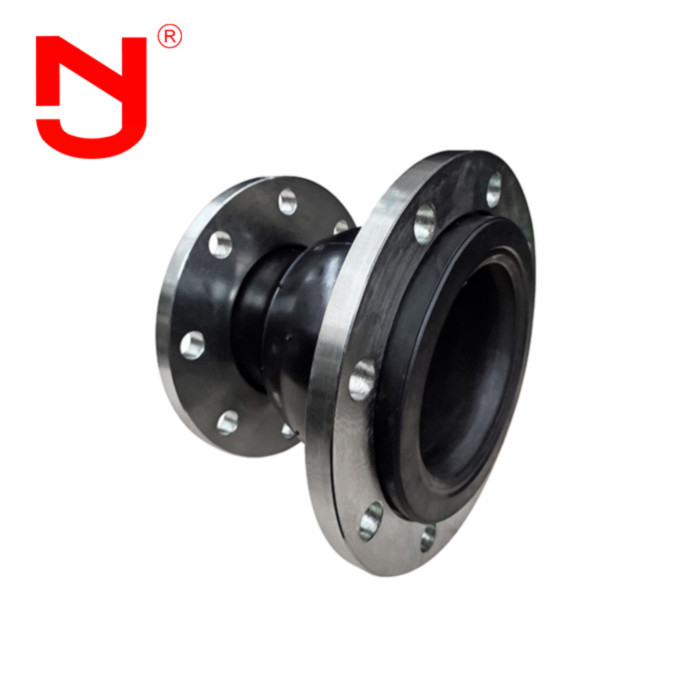

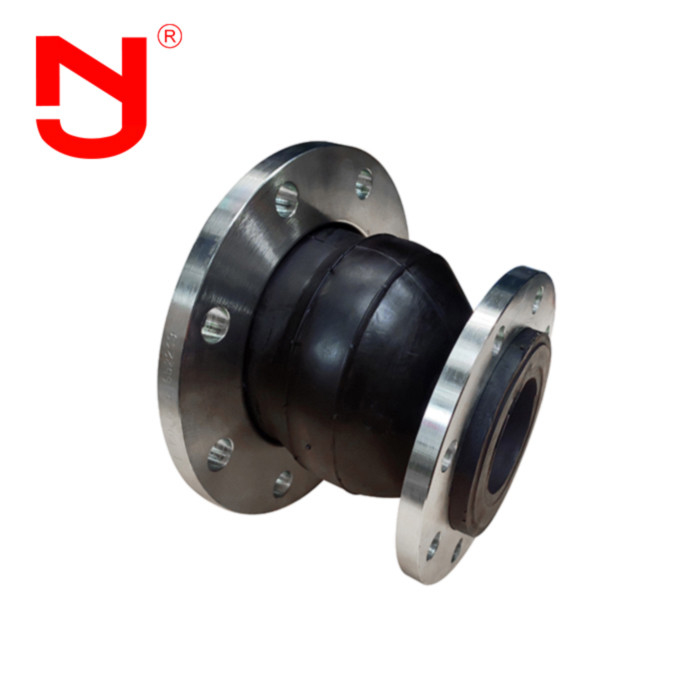

Concentric Reduced Rubber Joint High Temperature Resistance Pipe Expansion Joint
Rubber expansion joint are widely used in water supply, drainage, chemical, petroleum, pharmaceutical, HVAC, construction, light and heavy industry, refrigeration, sanitation, plumbing, fire fighting, electric power and other basic engineering fields. Especially in special fields such as high-rise buildings, shipbuilding, ocean engineering, its anti-vibration, anti-impact performance and corrosion resistance are given full play.
Characteristics of Concentric Reducer Pipe Expansion Joint
1. Small size, light weight, flexibility, convenient installation and maintenance
2. It reduces the transmission of structural noise and has strong shock absorption.
3. It has the ability of horizontal displacement, axial displacement and angular displacement, and has the characteristics of flange reconstruction and non parallelism.
4. Prevent the corrosion of the inner wall of concentric reducing rubber joints in high temperature, acid-base and oil resistant pipelines and prolong their service life.
Specification of Concentric Reducer Pipe Expansion Joint
| specification | DN50~300 | DN350~600 |
| Working pressure (MPa) | 0.25~1.6 | |
| Bursting pressure (MPa) | ≤4.8 | |
| Vacuum (KPa) | 53.3(400) | 44.9(350) |
| Temperature (℃) | -20~+115(for special condition -30~+250) | |
| Applicable medium | Air, compressed air, water, seawater, hot water, oil, acid-base, etc.. | |
Technical Data of Concentric Reducer Pipe Expansion Joint
| Main Data of Concentric Reducer Pipe Expansion Joint | |||||
| DN(large)×DN(small) | Length | Axial displacement (extension) |
Axial displacement (compression) |
Radial displacement |
Deflecting angle |
| (a1+a2)° | |||||
| 50×32 | 180 | 15 | 18 | 45 | 35° |
| 50×40 | 180 | 15 | 18 | 45 | 35° |
| 65×32 | 180 | 15 | 18 | 45 | 35° |
| 65×40 | 180 | 15 | 18 | 45 | 35° |
| 65×50 | 180 | 15 | 18 | 45 | 35° |
| 80×32 | 220 | 15 | 18 | 45 | 35° |
| 80×50 | 180 | 20 | 30 | 45 | 35° |
| 80×65 | 180 | 20 | 30 | 45 | 35° |
| 100×40 | 220 | 20 | 30 | 45 | 35° |
| 100×50 | 180 | 20 | 30 | 45 | 35° |
| 100×65 | 180 | 22 | 30 | 45 | 35° |
| 100×80 | 180 | 22 | 30 | 45 | 35° |
| 125×50 | 220 | 22 | 30 | 45 | 35° |
| 125×65 | 180 | 22 | 30 | 45 | 35° |
| 125×80 | 180 | 22 | 30 | 45 | 35° |
| 125×100 | 200 | 22 | 30 | 45 | 35° |
| 150×50 | 240 | 22 | 30 | 45 | 35° |
| 150×65 | 200 | 22 | 30 | 45 | 35° |
| 150×80 | 180 | 22 | 30 | 45 | 35° |
| 150×100 | 200 | 22 | 30 | 45 | 35° |
| 150×125 | 200 | 22 | 30 | 45 | 35° |
| 200×80 | 260 | 22 | 30 | 45 | 35° |
| 200×100 | 200 | 25 | 35 | 40 | 30° |
| 200×125 | 220 | 25 | 35 | 40 | 30° |
| 200×150 | 200 | 25 | 35 | 40 | 30° |
| 250×100 | 260 | 25 | 35 | 40 | 30° |
| 250×125 | 220 | 25 | 35 | 40 | 30° |
| 250×150 | 220 | 25 | 35 | 40 | 30° |
| 250×200 | 220 | 25 | 35 | 40 | 30° |
| 300×125 | 260 | 25 | 35 | 40 | 30° |
| 300×150 | 220 | 25 | 35 | 40 | 30° |
| 300×200 | 220 | 25 | 35 | 40 | 30° |
| 300×250 | 220 | 25 | 35 | 40 | 30° |
| 350×200 | 230 | 28 | 38 | 35 | 26° |
| 350×250 | 230 | 28 | 38 | 35 | 26° |
| 350×300 | 230 | 25 | 38 | 40 | 26° |
| 400×200 | 230 | 25 | 38 | 40 | 26° |
| 400×250 | 240 | 28 | 38 | 35 | 26° |
| 400×300 | 240 | 28 | 38 | 35 | 26° |
Concentric Reducer Concentric Reducer Pipe Expansion Joint details show
Do you know how is a high quality Concentric Reducer Pipe Expansion Joint made?Let's see with JINGNING.
All the Rubber expansion joint comfirm with the international standards, such as GB, ISO, DIN, ANSI, BS, JIS, as well as customers'special demand.
Concentric Reducer Pipe Expansion Joint Advantages
1. The connector price is the ex factory price
2.17 years of manufacturing experience and 5 years of export experience
3. Strict quality inspection, and the quality far exceeds the industry standard
4. Mold base customization and OEM of various specifications
5. Provide free pipe expansion joint samples
Concentric Reducer Pipe Expansion Joint Application
Concentric reducer pipe expansion joint is widely used in water heating and ventilation pipes, water supply and drainage and circulating water pipes, freezing pipes, Huagong anti-corrosion pipes, fire fighting and compressor pipes in various construction, mining, chemical, petroleum and other industries. Concentric reducer pipe expansion joint are used in laboratories, research institutes, ships, ships and other facilities for the protection and control of vibration isolation, noise reduction and displacement compensation of pipeline engineering.
FAQ
Q1: Can the concentric reducer pipe expansion joint be marked with customized logo?
A1: Yes,it can be marked with your logo. We could provide OEM&ODM service.
Q1: Can you provide drawings of concentric reducer pipe expansion joint?
A1: Yes,we could provide drawings for you.Please contact us to get the drawing of concentric reducer pipe expansion joint.
Q1: What certificates of concentric reducer pipe expansion joint can you provide?
A1: We could provide CE,ISO certificate.
Q1: Can we get a sample of concentric reducer pipe expansion joint?
A1: Yes,we could provide samples for you to test the quality.
