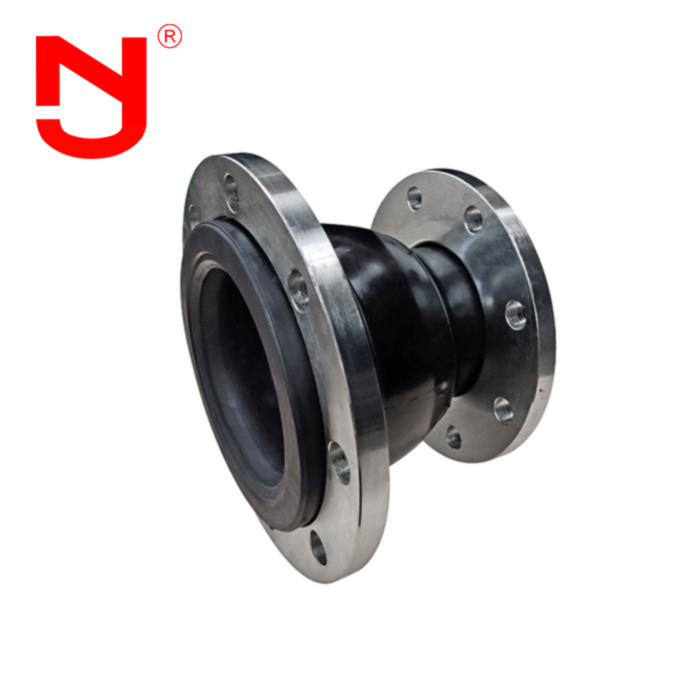

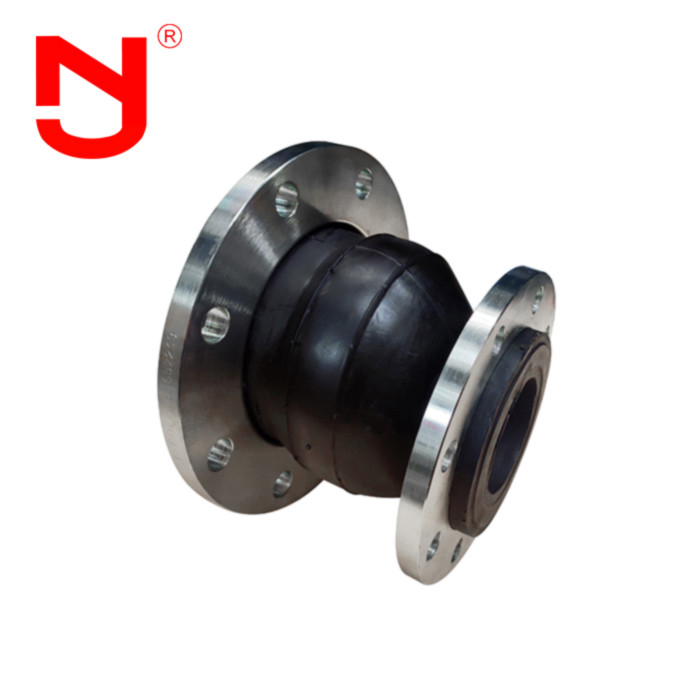

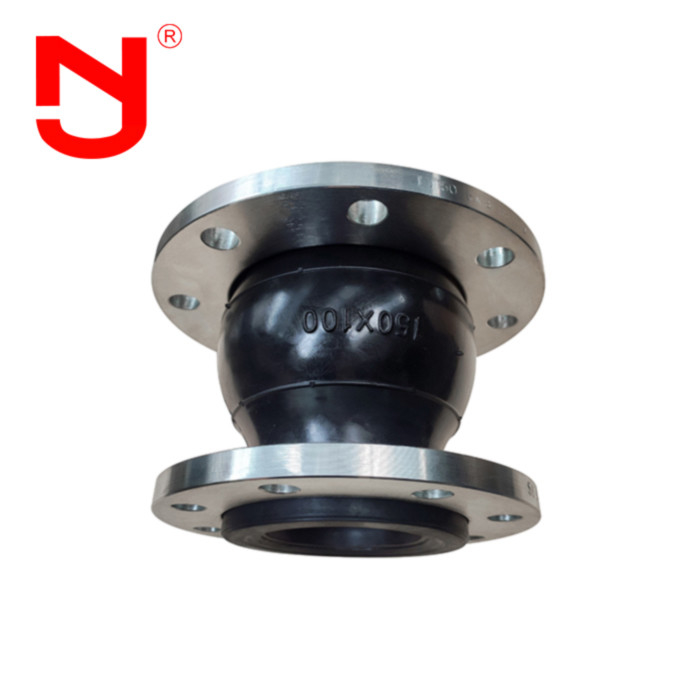

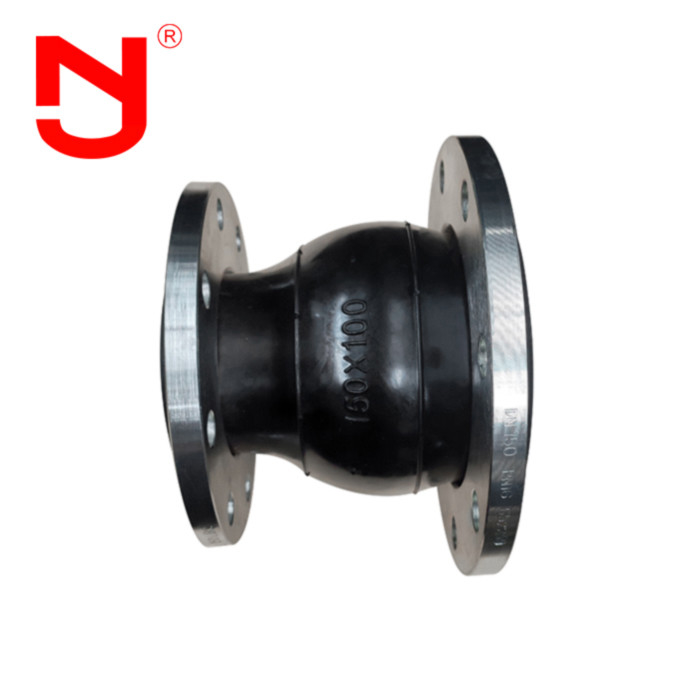

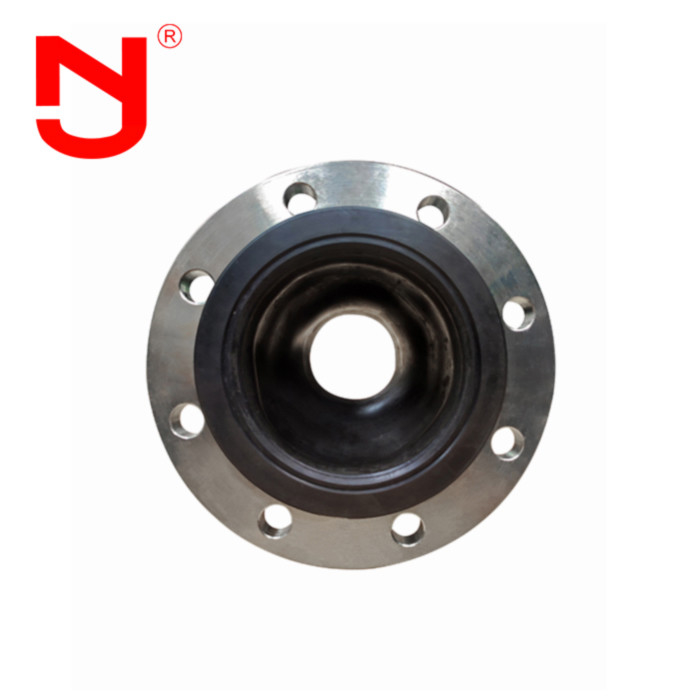

Concentric Reduced Rubber Joint High Temperature Resistance Bellows Rubber
The material selection of bellows rubber is crucial, which is directly related to the performance and service life of the joint. Generally speaking, natural rubber, nitrile rubber, chloroprene rubber and other materials are often used for the inner and outer layers, which have good elasticity, abrasion resistance, aging resistance and tear resistance. Enhancement layer is often used polyester cord fabric or steel wire ring and other high-strength materials, in order to improve the joint's pressure-bearing capacity and stability. With its unique structure and superior performance, concentric reducer rubber joint plays an important role in the pipeline system.
Characteristics of Concentric Reducer Bellows Rubber
1. Small size, light weight, flexibility, convenient installation and maintenance
2. It reduces the transmission of structural noise and has strong shock absorption.
3. It has the ability of horizontal displacement, axial displacement and angular displacement, and has the characteristics of flange reconstruction and non parallelism.
4. Prevent the corrosion of the inner wall of concentric reducing rubber joints in high temperature, acid-base and oil resistant pipelines and prolong their service life.
Specification of Concentric Reducer Bellows Rubber
| specification | DN50~300 | DN350~600 |
| Working pressure (MPa) | 0.25~1.6 | |
| Bursting pressure (MPa) | ≤4.8 | |
| Vacuum (KPa) | 53.3(400) | 44.9(350) |
| Temperature (℃) | -20~+115(for special condition -30~+250) | |
| Applicable medium | Air, compressed air, water, seawater, hot water, oil, acid-base, etc.. | |
Technical Data of Concentric Reducer Bellows Rubber
| Main Data of Concentric Reducer Bellows Rubber | |||||
| DN(large)×DN(small) | Length | Axial displacement (extension) |
Axial displacement (compression) |
Radial displacement |
Deflecting angle |
| (a1+a2)° | |||||
| 50×32 | 180 | 15 | 18 | 45 | 35° |
| 50×40 | 180 | 15 | 18 | 45 | 35° |
| 65×32 | 180 | 15 | 18 | 45 | 35° |
| 65×40 | 180 | 15 | 18 | 45 | 35° |
| 65×50 | 180 | 15 | 18 | 45 | 35° |
| 80×32 | 220 | 15 | 18 | 45 | 35° |
| 80×50 | 180 | 20 | 30 | 45 | 35° |
| 80×65 | 180 | 20 | 30 | 45 | 35° |
| 100×40 | 220 | 20 | 30 | 45 | 35° |
| 100×50 | 180 | 20 | 30 | 45 | 35° |
| 100×65 | 180 | 22 | 30 | 45 | 35° |
| 100×80 | 180 | 22 | 30 | 45 | 35° |
| 125×50 | 220 | 22 | 30 | 45 | 35° |
| 125×65 | 180 | 22 | 30 | 45 | 35° |
| 125×80 | 180 | 22 | 30 | 45 | 35° |
| 125×100 | 200 | 22 | 30 | 45 | 35° |
| 150×50 | 240 | 22 | 30 | 45 | 35° |
| 150×65 | 200 | 22 | 30 | 45 | 35° |
| 150×80 | 180 | 22 | 30 | 45 | 35° |
| 150×100 | 200 | 22 | 30 | 45 | 35° |
| 150×125 | 200 | 22 | 30 | 45 | 35° |
| 200×80 | 260 | 22 | 30 | 45 | 35° |
| 200×100 | 200 | 25 | 35 | 40 | 30° |
| 200×125 | 220 | 25 | 35 | 40 | 30° |
| 200×150 | 200 | 25 | 35 | 40 | 30° |
| 250×100 | 260 | 25 | 35 | 40 | 30° |
| 250×125 | 220 | 25 | 35 | 40 | 30° |
| 250×150 | 220 | 25 | 35 | 40 | 30° |
| 250×200 | 220 | 25 | 35 | 40 | 30° |
| 300×125 | 260 | 25 | 35 | 40 | 30° |
| 300×150 | 220 | 25 | 35 | 40 | 30° |
| 300×200 | 220 | 25 | 35 | 40 | 30° |
| 300×250 | 220 | 25 | 35 | 40 | 30° |
| 350×200 | 230 | 28 | 38 | 35 | 26° |
| 350×250 | 230 | 28 | 38 | 35 | 26° |
| 350×300 | 230 | 25 | 38 | 40 | 26° |
| 400×200 | 230 | 25 | 38 | 40 | 26° |
| 400×250 | 240 | 28 | 38 | 35 | 26° |
| 400×300 | 240 | 28 | 38 | 35 | 26° |
Concentric Reducer Concentric Reducer Bellows Rubber details show
Do you know how is a high quality Concentric Reducer Bellows Rubber made?Let's see with JINGNING.
All the bellows rubber comfirm with the international standards, such as GB, ISO, DIN, ANSI, BS, JIS, as well as customers'special demand.
Concentric Reducer Bellows Rubber Advantages
1. The connector price is the ex factory price
2.17 years of manufacturing experience and 5 years of export experience
3. Strict quality inspection, and the quality far exceeds the industry standard
4. Mold base customization and OEM of various specifications
5. Provide free bellows rubber samples
Concentric Reducer Bellows Rubber Application
Concentric reducer bellows rubber is widely used in water heating and ventilation pipes, water supply and drainage and circulating water pipes, freezing pipes, Huagong anti-corrosion pipes, fire fighting and compressor pipes in various construction, mining, chemical, petroleum and other industries. Concentric reducer bellows rubber are used in laboratories, research institutes, ships, ships and other facilities for the protection and control of vibration isolation, noise reduction and displacement compensation of pipeline engineering.
FAQ
Q1: Can the concentric reducer bellows rubber be marked with customized logo?
A1: Yes,it can be marked with your logo. We could provide OEM&ODM service.
Q1: Can you provide drawings of concentric reducer bellows rubber?
A1: Yes,we could provide drawings for you.
Q1: What certificates of concentric reducer bellows rubber can you provide?
A1: We could provide CE,ISO certificate.
Q1: Can we get a sample of concentric reducer rubber expansion joint ?
A1: Yes,we could provide samples for you to test the quality of our concentric reducer bellows rubber.
Send your inquiry directly to us
