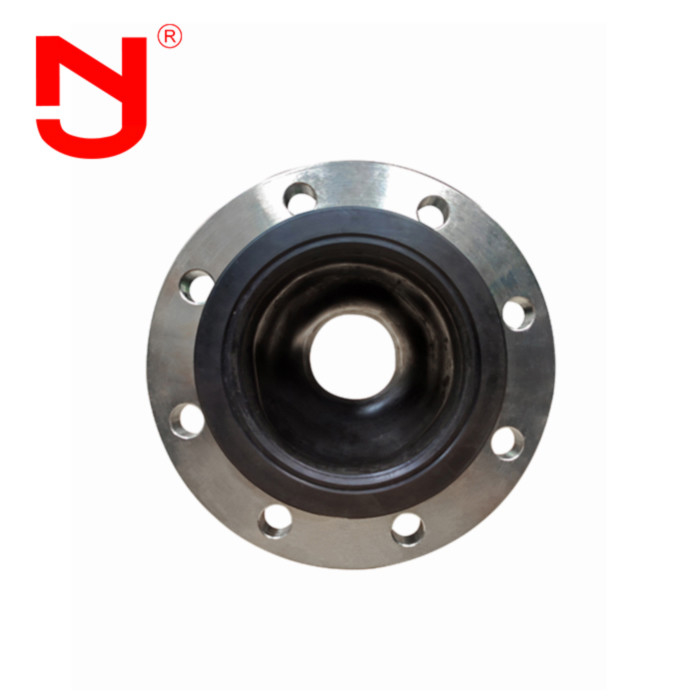

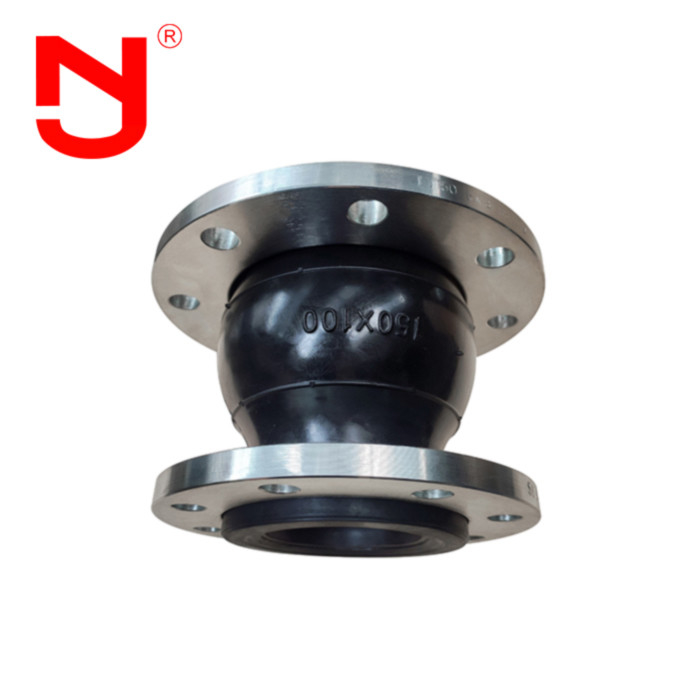

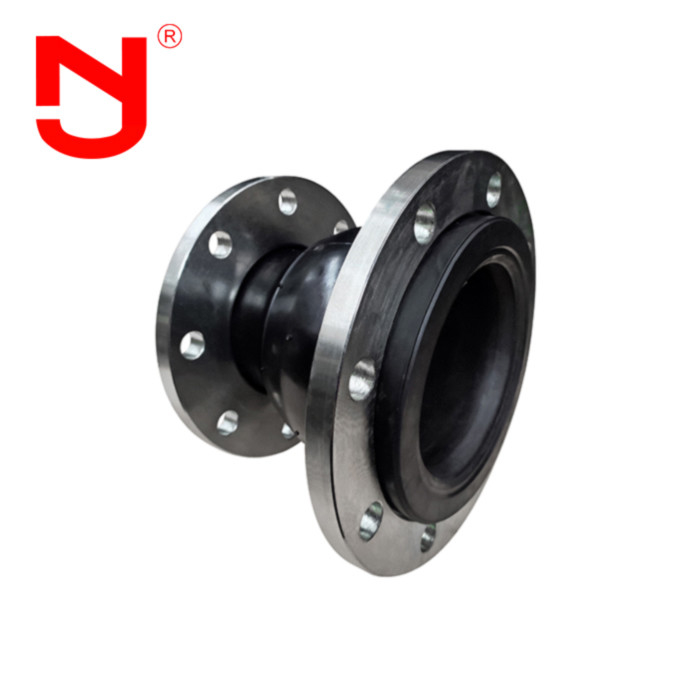

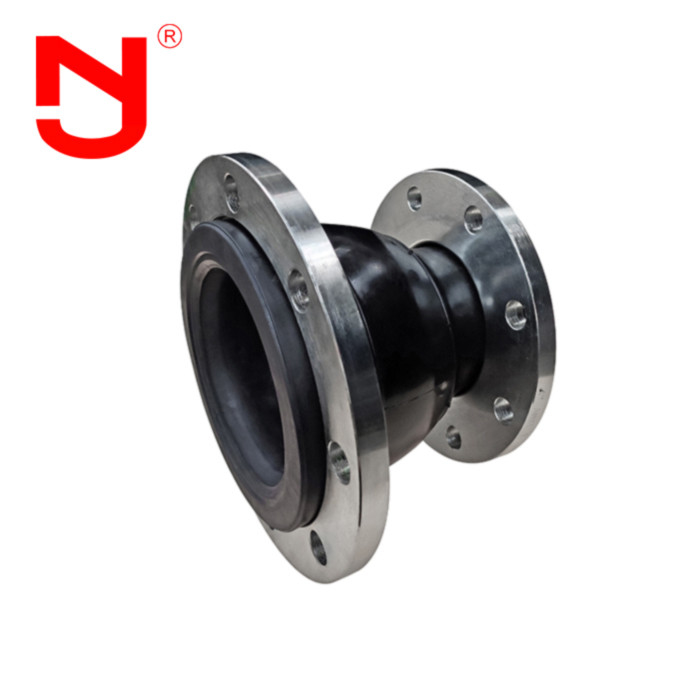

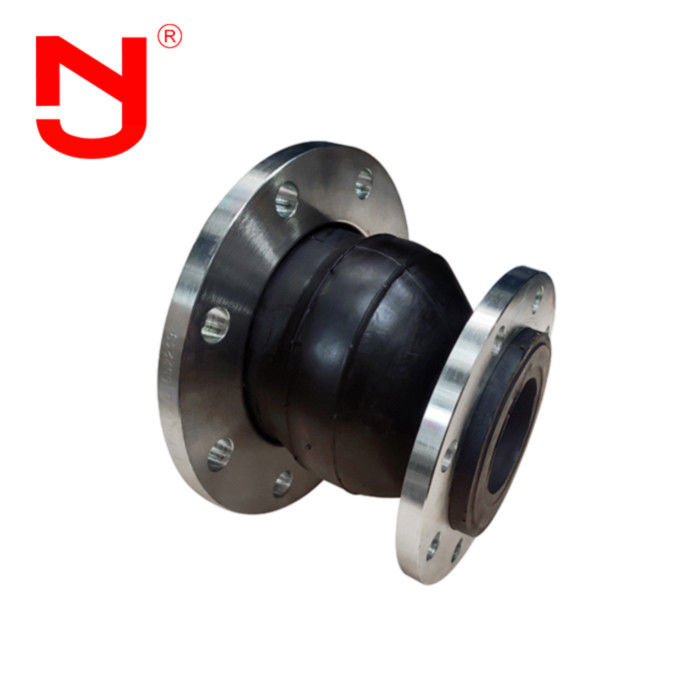

Concentric Reduced Rubber Joint High Temperature Resistance Expansion Joint for Pipe
Expansion joint for pipe alternatively referred to as a flexible coupling with concentric varying diameters, serves as a multifaceted element in piping systems, facilitating the connection of pipes of disparate sizes while preserving a centered alignment. By merging the adaptability of rubber with the accuracy of a concentric reducer, it emerges as a preferred option for a diverse array of industrial and commercial undertakings. This unique blend of flexibility and precision ensures seamless integration and efficient performance across various piping networks.
Characteristics of Concentric Reducer Expansion Joint for Pipe
1. Small size, light weight, flexibility, convenient installation and maintenance
2. It reduces the transmission of structural noise and has strong shock absorption.
3. It has the ability of horizontal displacement, axial displacement and angular displacement, and has the characteristics of flange reconstruction and non parallelism.
4. Prevent the corrosion of the inner wall of concentric reducing rubber joints in high temperature, acid-base and oil resistant pipelines and prolong their service life.
Specification of Concentric Reducer Expansion Joint for Pipe
| specification | DN50~300 | DN350~600 |
| Working pressure (MPa) | 0.25~1.6 | |
| Bursting pressure (MPa) | ≤4.8 | |
| Vacuum (KPa) | 53.3(400) | 44.9(350) |
| Temperature (℃) | -20~+115(for special condition -30~+250) | |
| Applicable medium | Air, compressed air, water, seawater, hot water, oil, acid-base, etc.. | |
Technical Data of Concentric Reducer Expansion Joint for Pipe
| Main Data of Concentric Reducer Expansion Joint for Pipe | |||||
| DN(large)×DN(small) | Length | Axial displacement (extension) |
Axial displacement (compression) |
Radial displacement |
Deflecting angle |
| (a1+a2)° | |||||
| 50×32 | 180 | 15 | 18 | 45 | 35° |
| 50×40 | 180 | 15 | 18 | 45 | 35° |
| 65×32 | 180 | 15 | 18 | 45 | 35° |
| 65×40 | 180 | 15 | 18 | 45 | 35° |
| 65×50 | 180 | 15 | 18 | 45 | 35° |
| 80×32 | 220 | 15 | 18 | 45 | 35° |
| 80×50 | 180 | 20 | 30 | 45 | 35° |
| 80×65 | 180 | 20 | 30 | 45 | 35° |
| 100×40 | 220 | 20 | 30 | 45 | 35° |
| 100×50 | 180 | 20 | 30 | 45 | 35° |
| 100×65 | 180 | 22 | 30 | 45 | 35° |
| 100×80 | 180 | 22 | 30 | 45 | 35° |
| 125×50 | 220 | 22 | 30 | 45 | 35° |
| 125×65 | 180 | 22 | 30 | 45 | 35° |
| 125×80 | 180 | 22 | 30 | 45 | 35° |
| 125×100 | 200 | 22 | 30 | 45 | 35° |
| 150×50 | 240 | 22 | 30 | 45 | 35° |
| 150×65 | 200 | 22 | 30 | 45 | 35° |
| 150×80 | 180 | 22 | 30 | 45 | 35° |
| 150×100 | 200 | 22 | 30 | 45 | 35° |
| 150×125 | 200 | 22 | 30 | 45 | 35° |
| 200×80 | 260 | 22 | 30 | 45 | 35° |
| 200×100 | 200 | 25 | 35 | 40 | 30° |
| 200×125 | 220 | 25 | 35 | 40 | 30° |
| 200×150 | 200 | 25 | 35 | 40 | 30° |
| 250×100 | 260 | 25 | 35 | 40 | 30° |
| 250×125 | 220 | 25 | 35 | 40 | 30° |
| 250×150 | 220 | 25 | 35 | 40 | 30° |
| 250×200 | 220 | 25 | 35 | 40 | 30° |
| 300×125 | 260 | 25 | 35 | 40 | 30° |
| 300×150 | 220 | 25 | 35 | 40 | 30° |
| 300×200 | 220 | 25 | 35 | 40 | 30° |
| 300×250 | 220 | 25 | 35 | 40 | 30° |
| 350×200 | 230 | 28 | 38 | 35 | 26° |
| 350×250 | 230 | 28 | 38 | 35 | 26° |
| 350×300 | 230 | 25 | 38 | 40 | 26° |
| 400×200 | 230 | 25 | 38 | 40 | 26° |
| 400×250 | 240 | 28 | 38 | 35 | 26° |
| 400×300 | 240 | 28 | 38 | 35 | 26° |
Concentric Reducer Concentric Reducer Expansion Joint for Ppie details show.
Do you know how is a high quality Concentric Reducer Rubber Expansion Joint made?Let's see with JINGNING.
All the expansion joint for pipe comfirm with the international standards, such as GB, ISO, DIN, ANSI, BS, JIS, as well as customers'special demand.
Concentric Reducer Expansion Joint for Pipe Advantages
1. The connector price is the ex factory price
2.17 years of manufacturing experience and 5 years of export experience
3. Strict quality inspection, and the quality far exceeds the industry standard
4. Mold base customization and OEM of various specifications
5. Provide free expansion joint for pipe samples
Concentric Reducer Expansion Joint for Pipe Application
Concentric reducer expansion joint for pipe is widely used in water heating and ventilation pipes, water supply and drainage and circulating water pipes, freezing pipes, Huagong anti-corrosion pipes, fire fighting and compressor pipes in various construction, mining, chemical, petroleum and other industries. Concentric reducer rubber expansion joint are used in laboratories, research institutes, ships, ships and other facilities for the protection and control of vibration isolation, noise reduction and displacement compensation of pipeline engineering.
FAQ
Q1: Can the concentric reducer expansion joint for pipe be marked with customized logo?
A1: Yes, we could provide OEM&ODM service.
Q1: Can you provide drawings of concentric reducer expansion joint for pipe?
A1: Yes,we could provide drawings for you.Please contact us to get the drawing of concentric reducer rubber joint.
Q1: What certificates of concentric reducer expansion joint for pipe can you provide?
A1: We could provide CE,ISO certificate.
Q1: Can we get a sample of concentric reducer expansion joint for pipe?
A1: Yes,we could provide samples for you to test the quality of our concentric reducer expansion joint for pipe.
