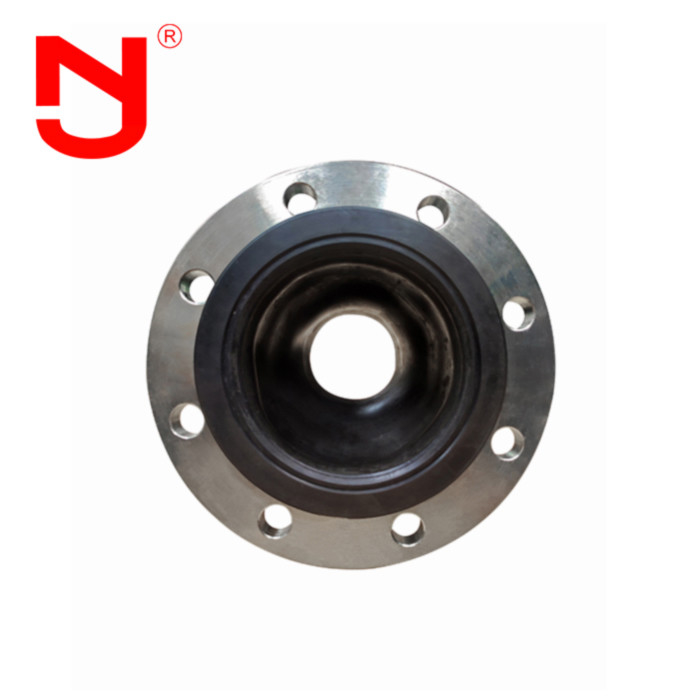

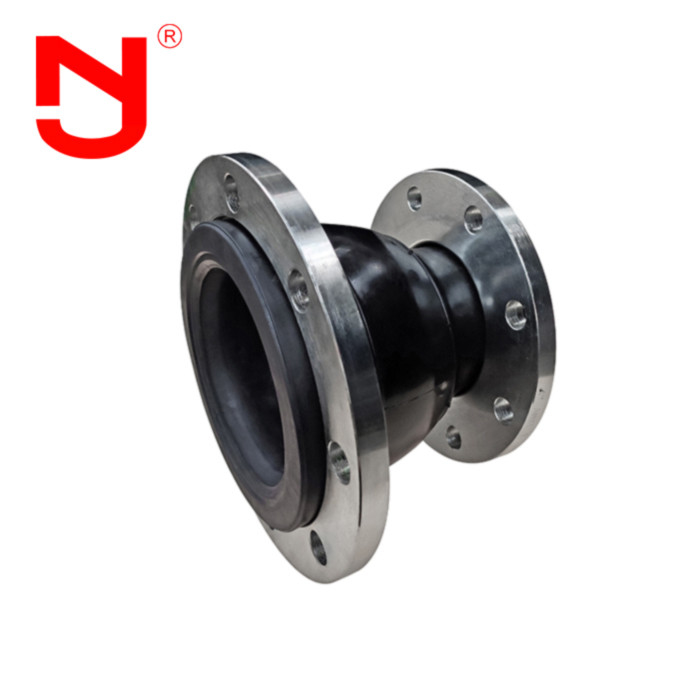

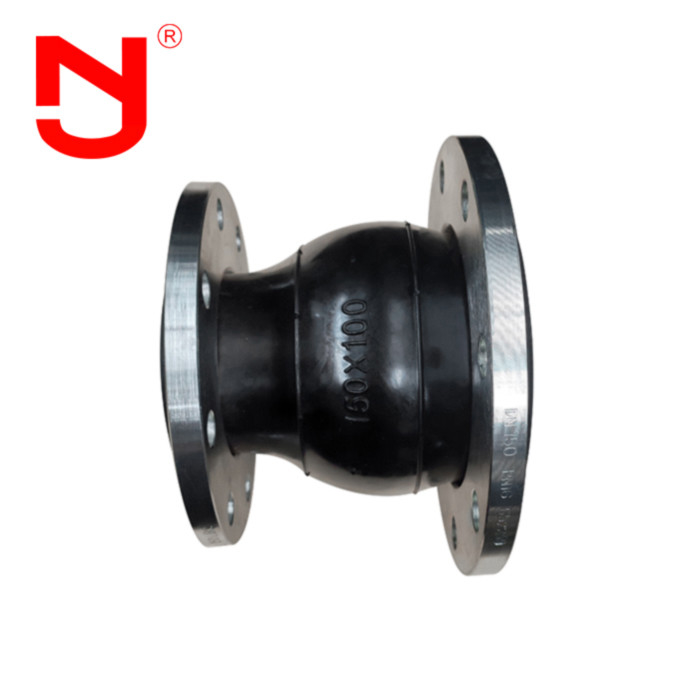

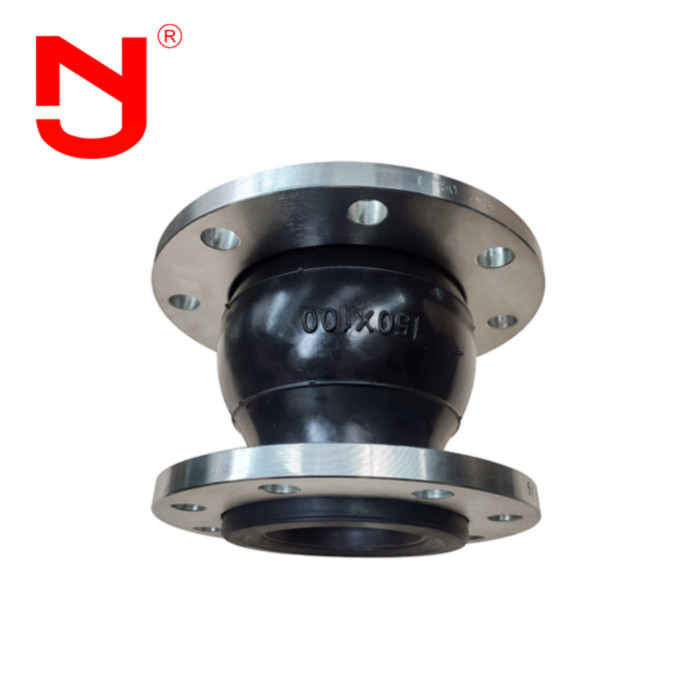

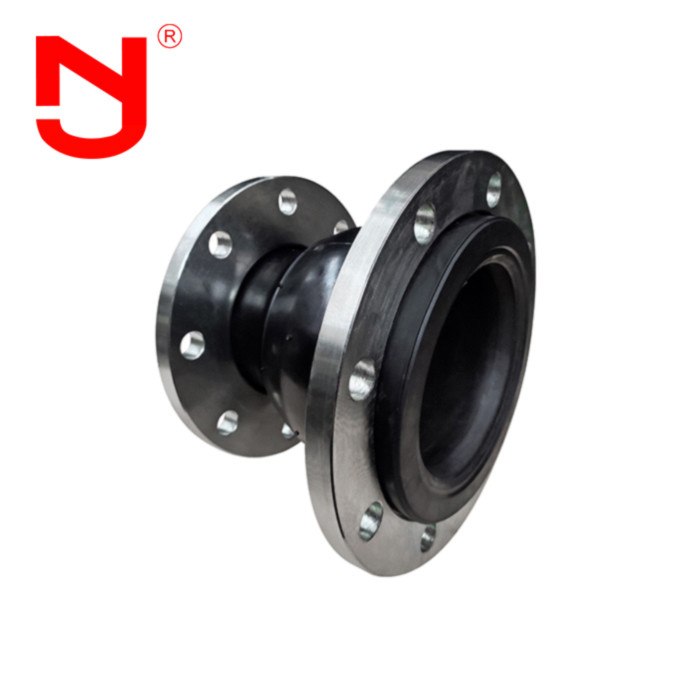

Concentric Reduced Rubber Joint High Temperature Resistance Pipe Flexible Connector
Pipe Flexible Connector is a kind of rubber joint used to connect two sections of pipes with different diameters. Its design is characterized by the fact that the diameter of the connection ports at both ends is different, but the centerline is on the same axis, i.e. concentric design. Pipe Flexible Connector is mainly used to compensate and relieve displacement, vibration and stress in piping system, while ensuring the sealing of piping system and continuity of fluid transmission. It is widely used in various industrial fields, such as petroleum, chemical, electric power, metallurgy, etc., as well as water supply and drainage, heating, ventilation and air-conditioning systems in construction and municipal engineering.
Characteristics of Concentric Reducer Pipe Flexible Connector
1. Small size, light weight, flexibility, convenient installation and maintenance
2. It reduces the transmission of structural noise and has strong shock absorption.
3. It has the ability of horizontal displacement, axial displacement and angular displacement, and has the characteristics of flange reconstruction and non parallelism.
4. Prevent the corrosion of the inner wall of concentric reducing rubber joints in high temperature, acid-base and oil resistant pipelines and prolong their service life.
Specification of Concentric Reducer Pipe Flexible Connector
| specification | DN50~300 | DN350~600 |
| Working pressure (MPa) | 0.25~1.6 | |
| Bursting pressure (MPa) | ≤4.8 | |
| Vacuum (KPa) | 53.3(400) | 44.9(350) |
| Temperature (℃) | -20~+115(for special condition -30~+250) | |
| Applicable medium | Air, compressed air, water, seawater, hot water, oil, acid-base, etc.. | |
Technical Data of Concentric Reducer Pipe Flexible Connector
| Main Data of Concentric Reducer Pipe Flexible Connector | |||||
| DN(large)×DN(small) | Length | Axial displacement (extension) |
Axial displacement (compression) |
Radial displacement |
Deflecting angle |
| (a1+a2)° | |||||
| 50×32 | 180 | 15 | 18 | 45 | 35° |
| 50×40 | 180 | 15 | 18 | 45 | 35° |
| 65×32 | 180 | 15 | 18 | 45 | 35° |
| 65×40 | 180 | 15 | 18 | 45 | 35° |
| 65×50 | 180 | 15 | 18 | 45 | 35° |
| 80×32 | 220 | 15 | 18 | 45 | 35° |
| 80×50 | 180 | 20 | 30 | 45 | 35° |
| 80×65 | 180 | 20 | 30 | 45 | 35° |
| 100×40 | 220 | 20 | 30 | 45 | 35° |
| 100×50 | 180 | 20 | 30 | 45 | 35° |
| 100×65 | 180 | 22 | 30 | 45 | 35° |
| 100×80 | 180 | 22 | 30 | 45 | 35° |
| 125×50 | 220 | 22 | 30 | 45 | 35° |
| 125×65 | 180 | 22 | 30 | 45 | 35° |
| 125×80 | 180 | 22 | 30 | 45 | 35° |
| 125×100 | 200 | 22 | 30 | 45 | 35° |
| 150×50 | 240 | 22 | 30 | 45 | 35° |
| 150×65 | 200 | 22 | 30 | 45 | 35° |
| 150×80 | 180 | 22 | 30 | 45 | 35° |
| 150×100 | 200 | 22 | 30 | 45 | 35° |
| 150×125 | 200 | 22 | 30 | 45 | 35° |
| 200×80 | 260 | 22 | 30 | 45 | 35° |
| 200×100 | 200 | 25 | 35 | 40 | 30° |
| 200×125 | 220 | 25 | 35 | 40 | 30° |
| 200×150 | 200 | 25 | 35 | 40 | 30° |
| 250×100 | 260 | 25 | 35 | 40 | 30° |
| 250×125 | 220 | 25 | 35 | 40 | 30° |
| 250×150 | 220 | 25 | 35 | 40 | 30° |
| 250×200 | 220 | 25 | 35 | 40 | 30° |
| 300×125 | 260 | 25 | 35 | 40 | 30° |
| 300×150 | 220 | 25 | 35 | 40 | 30° |
| 300×200 | 220 | 25 | 35 | 40 | 30° |
| 300×250 | 220 | 25 | 35 | 40 | 30° |
| 350×200 | 230 | 28 | 38 | 35 | 26° |
| 350×250 | 230 | 28 | 38 | 35 | 26° |
| 350×300 | 230 | 25 | 38 | 40 | 26° |
| 400×200 | 230 | 25 | 38 | 40 | 26° |
| 400×250 | 240 | 28 | 38 | 35 | 26° |
| 400×300 | 240 | 28 | 38 | 35 | 26° |
Concentric Reducer Concentric Reducer Pipe Flexible Connector details show
Do you know how is a high quality Concentric Reducer Pipe Flexible Connector made?Let's see with JINGNING.
All the Pipe Flexible Connector comfirm with the international standards, such as GB, ISO, DIN, ANSI, BS, JIS, as well as customers'special demand.
Concentric reducer Pipe Flexible Connector advantages
1. The connector price is the ex factory price
2.17 years of manufacturing experience and 5 years of export experience
3. Strict quality inspection, and the quality far exceeds the industry standard
4. Mold base customization and OEM of various specifications
5. Provide free rubber expansion joint samples
Concentric reducer Pipe Flexible Connector Application
Concentric reducer pipe flexible connector is widely used in water heating and ventilation pipes, water supply and drainage and circulating water pipes, freezing pipes, Huagong anti-corrosion pipes, fire fighting and compressor pipes in various construction, mining, chemical, petroleum and other industries. Concentric reducer rubber expansion joint are used in laboratories, research institutes, ships, ships and other facilities for the protection and control of vibration isolation, noise reduction and displacement compensation of pipeline engineering.
FAQ
Q1: Can the concentric reducer pipe flexible connector be marked with customized logo?
A1: Yes,it can be marked with your logo. We could provide OEM&ODM service.
Q1: Can you provide drawings of concentric reducer rubber expansion joint ?
A1: Yes,we could provide drawings for you.Please contact us to get the drawing of concentric reducer pipe flexible connector.
Q1: What certificates of concentric reducer pipe flexible connector can you provide?
A1: We could provide CE,ISO certificate.
Q1: Can we get a sample of concentric reducer rubber expansion joint ?
A1: Yes,we could provide samples for you to test the quality of our concentric reducer pipe flexible connector.
