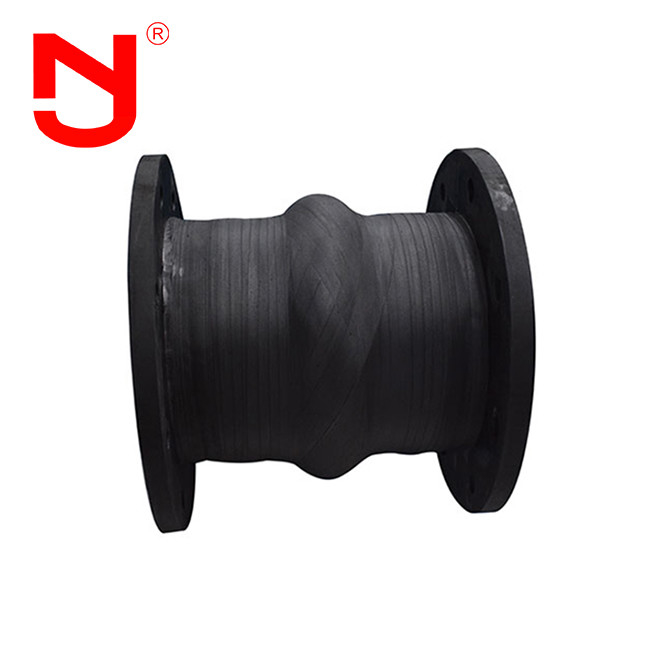

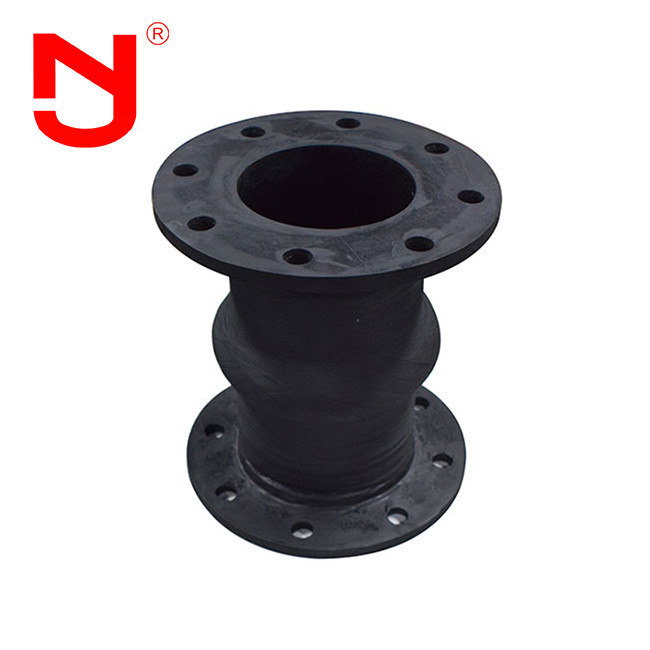

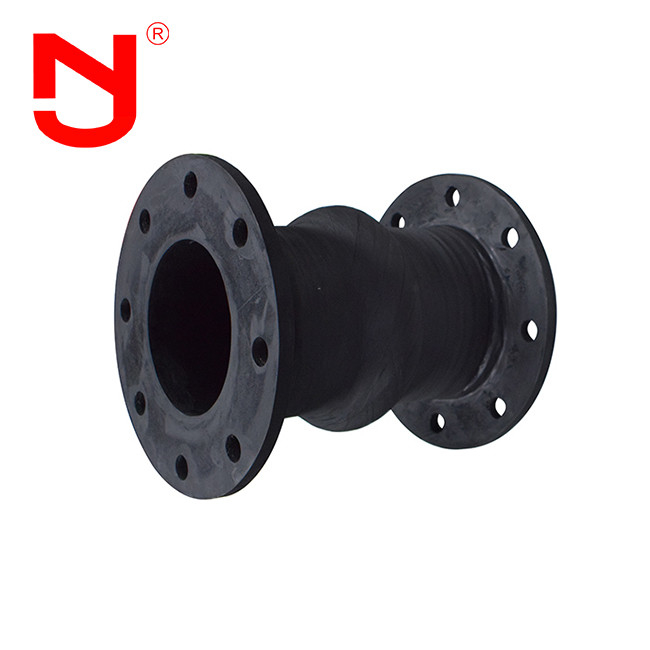

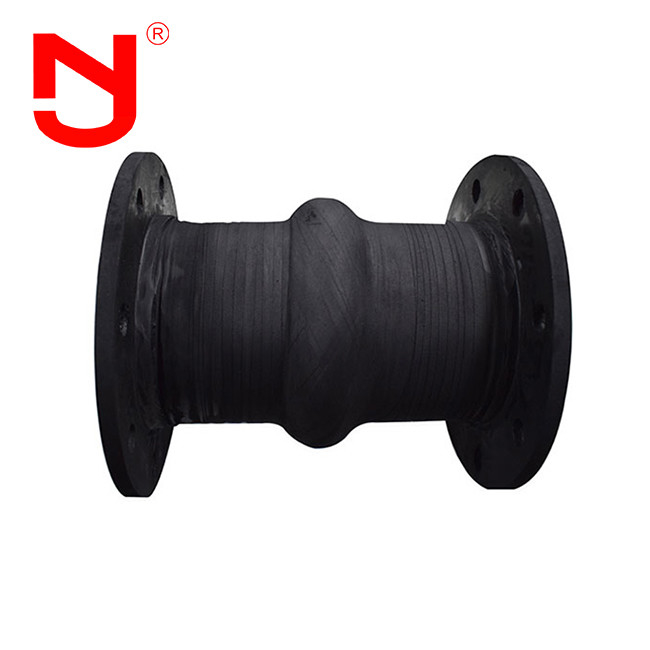

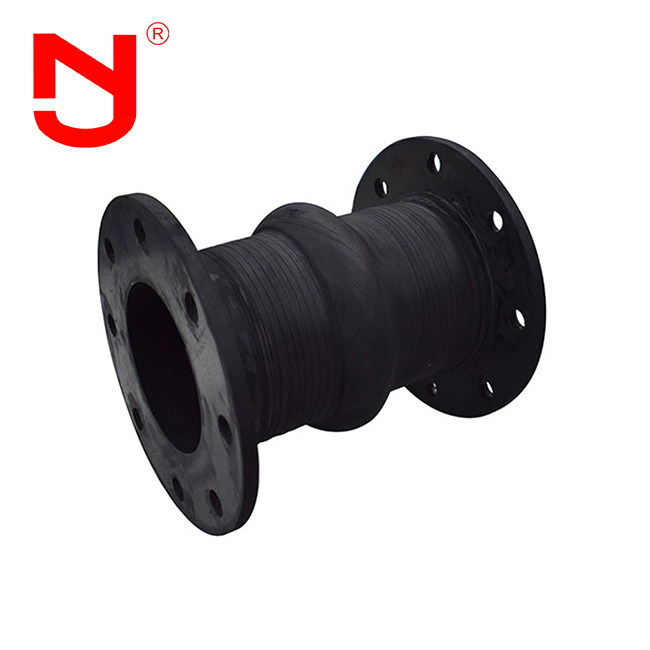

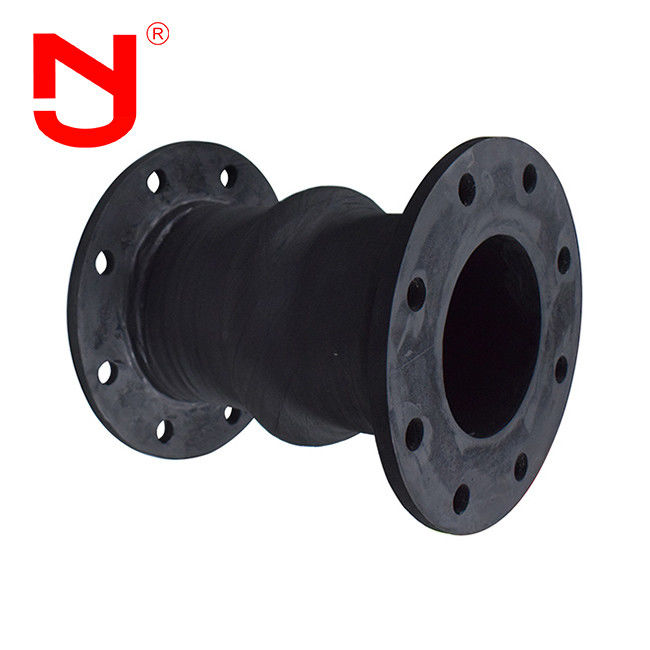

Hand Wrapped Bellows Expansion Joint Rubber with DIN, ANSI, JIS Flange Type
Product Description
Hand wrapped bellows expansion joint rubber is a kind of flexible pipe made by unique handmade craftsmanship, and its production process combines the essence of traditional skills and modern material science. Firstly, high quality rubber materials with high elasticity, aging resistance and corrosion resistance are selected, and through fine formulation and mixing, the base material of the pipe is ensured to have excellent physical properties and chemical stability.
Performance characteristics
1.High flexibility
Make the size, shape, and thickness of the reinforcement layer of the joint according to the needs
2.Diversified reinforcement materials
Hand wound rubber joints can use a variety of reinforcement materials to provide the required mechanical strength and corrosion resistance.
3.High pressure bearing capacity
Manual winding can ensure the structural uniformity of the joint, thereby improving its pressure bearing capacity and overall strength.
4.Easy maintenance and replacement
Usually equipped with flanges or threaded interfaces for easy installation and replacement, reducing downtime of pipeline systems.
Product Specification
| Size |
Length |
Allowable Movements in Operation |
| mm |
inch |
inch |
Axial Compression mm |
Axial Extension
mm |
Transverse Movement
mm
|
Angular Deflection mm |
| 50 |
2 |
6 |
20 |
12 |
14 |
35° |
| 65 |
2 1/2 |
6
|
20 |
12 |
14 |
35° |
| 80 |
3 |
6 |
20 |
12 |
14 |
35° |
| 100 |
4 |
6 |
20 |
12 |
14 |
33° |
| 125 |
5 |
6 |
20 |
12 |
14 |
28° |
| 150 |
6 |
6 |
20 |
12 |
14 |
22° |
| 200 |
8 |
6/8 |
20 |
12 |
14 |
18° |
| 250 |
10 |
6/8 |
20 |
12 |
14 |
15° |
| 300 |
12 |
6/8 |
25 |
16 |
22 |
15° |
| 350 |
14 |
6/8 |
25 |
16 |
22 |
15° |
| 400 |
16 |
6/8 |
25 |
16 |
22 |
15° |
| 450 |
18 |
6/8 |
25 |
16 |
22 |
15° |
| 500 |
20 |
6/8 |
25 |
16 |
22 |
15° |
| 600 |
24 |
6/8 |
25 |
16 |
22 |
15° |
| 700 |
28 |
8/10
|
25 |
16 |
22 |
15° |
| 800 |
32 |
8/10
|
25 |
16 |
22 |
15° |
| 900 |
36 |
8/10
|
25 |
16 |
22 |
15° |
|
Note: If the medium is oil, acidic or alkaline substances, and there are special requirements for the working temperature, you can customize it by sending a letter or drawing. Please specify when ordering
|
Product Details
Production Flow
|
1.Raw material
Top level CR/EPDM/NBR
rubber raw materials,
No recycled rubber
|
2.Plasticating and mixing
Special Formulation for better Bending with Nylon,For Better Strength,Sealing
|
3.Workblanks wraping
Cooper plated steel wire reinforcement prevent pull off
|
|
4.Vulcanizing
Automatic vulcanization machine ensure vulcanization time and pressure
|
5.Inspecting
100% strict inspection is to be responsible for consumers
|
6. Packaging
Protective Packaging for No
Rust and Breakage
|
Application
Hand wrapped bellows expansion joint rubber play an important role in pipeline systems due to their excellent sealing and compressive properties. This type of joint can effectively absorb the vibration and displacement of pipelines, reduce noise, so it is widely used in pipeline systems in the fields of water supply and drainage, sewage treatment, chemical industry, petroleum, sanitation, etc.
Our Services
1.24-hour online
2.Free samples provided
3.Support customization
4.Provide drawings
5.Multiple payment styles to choose from
6.Factory inspection (material, specifications, quantity, pressure, packaging)
7.Long warranty period
8.Suitable packaging for transportation
Our Customer
Certificate
FAQ
Q1:What’s the material of hand wrapped bellows expansion joint rubber?
A1:The material can be EPDM,NBR,CR,SBR..It depends on the working condition.
Q2:What’s the warranty period of hand wrapped bellows expansion joint rubber?
A2:We provide 18 months’ warranty.
Q3:What’s the working temperature of hand wrapped bellows expansion joint rubber?
A3:The working temperature is -20℃~100℃.
Q4:What’s the package of hand wrapped bellows expansion joint rubber?
A4:The package is carton box and strong plywooden case.
