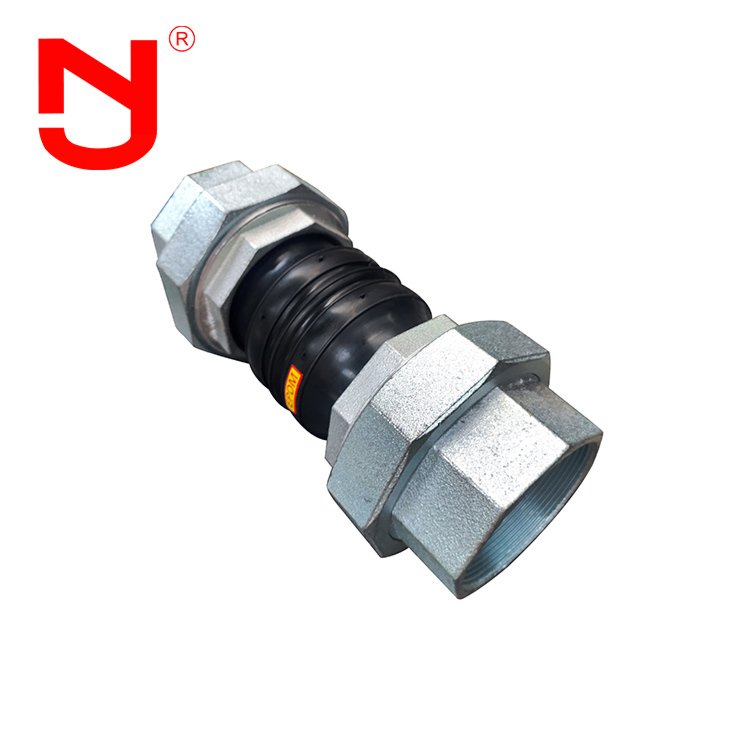

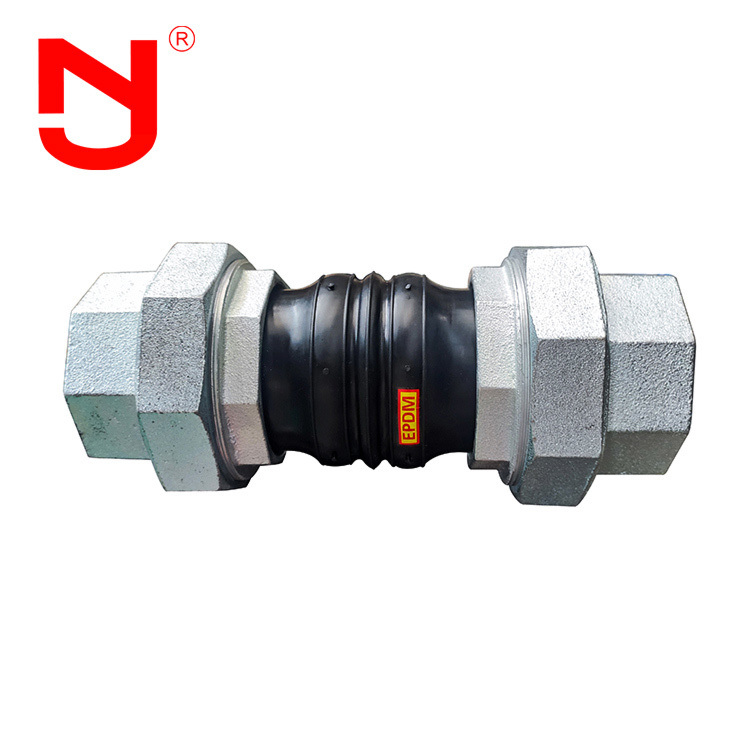

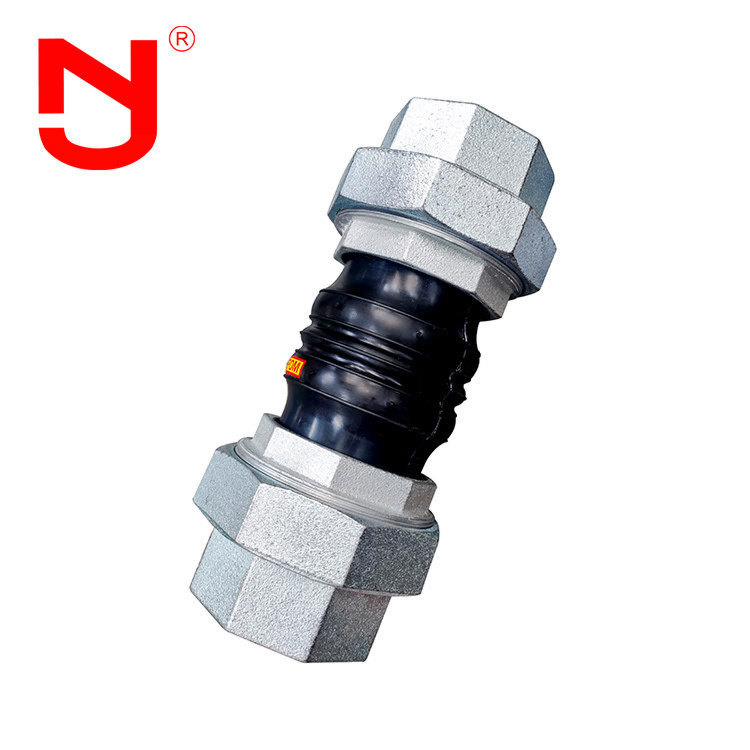

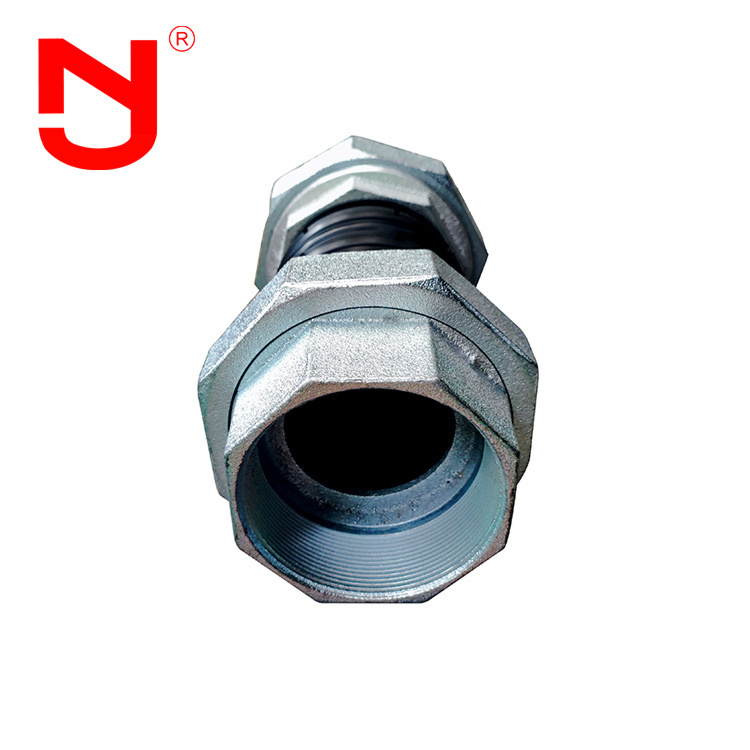

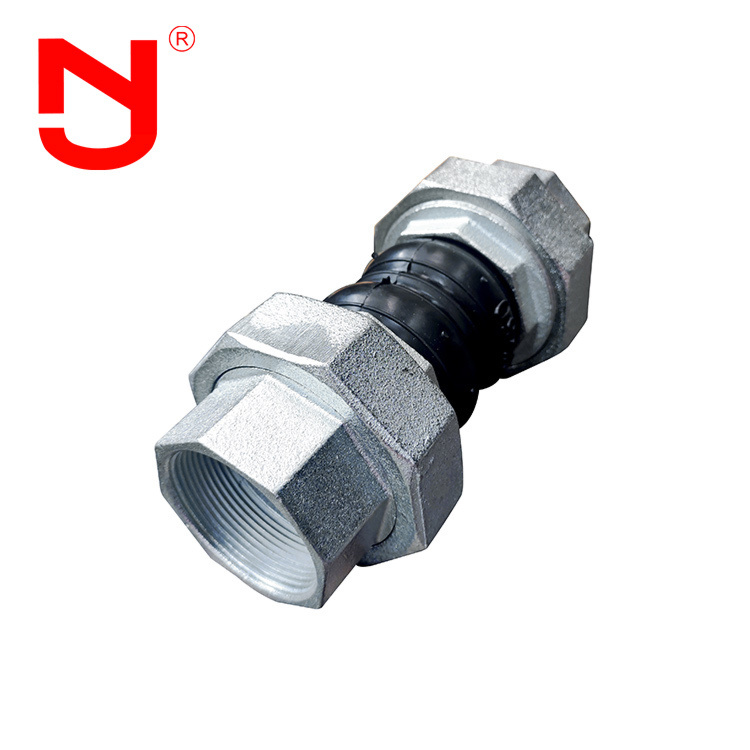

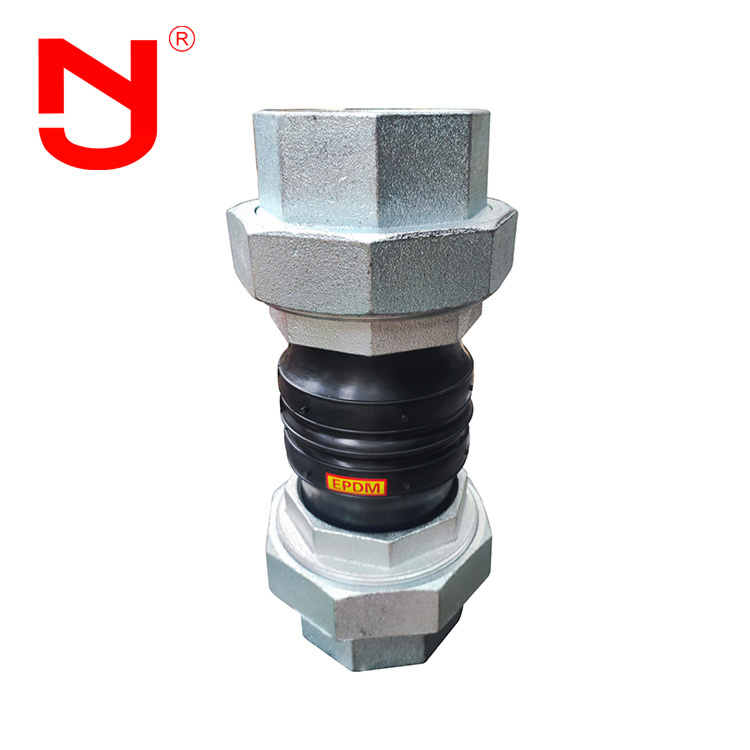

Pump Connectors Bspt Threaded Joint General Flexible Pipe Connectors Rubber
Pump Connectors are specialized components designed to join pumps to piping systems while accommodating mechanical stresses such as vibration, thermal expansion, and misalignment. Typically constructed from materials like stainless steel braided hoses, rubber, or elastomers, these connectors ensure leak-resistant fluid transfer, reduce noise and vibration transmission, and maintain system integrity under varying pressure and temperature conditions. They are widely used in HVAC, industrial, and hydraulic applications to protect equipment, optimize flow efficiency, and prevent premature failure caused by misalignment or excessive stress.
Performance characteristics of Pump Connectors
1. Flexible Pipe Connectors Rubber has the advantages of small volume, light weight, good elasticity and convenient equipment maintenance;
2. Flexible Pipe Connectors Rubber can have lateral, axial and angular displacement, and is not limited by the non centering of the pipe and the non parallel of the flange.
3. With the increase of temperature, the general rubber expansion joints will expand and contract;
4. Flexible Pipe Connectors Rubber can reduce the noise transmitted by the structure and has a strong damping capacity;
5. According to different scenarios, the general rubber expansion joints with different rubber materials can more effectively prevent the corrosion of corrosive media on the inner wall of rubber joints, and improve the service life.
Technical data of Pump Connectors
|
Main data of Pump Connectors
|
|
|
|
|
|
|
|
mm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Note: 1. The special requirements of threaded rubber expansion joint can be customized according to the user's drawing. Flange standard is GB / t9115.1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The rubber ball of threaded rubber expansion joint can be used as natural rubber, ethylene propylene diene monomer rubber, chloroprene rubber, butyl rubber, butadiene rubber, fluorine rubber, etc. When the threaded rubber expansion joint above DN200 is used for suspended water supply, the pipe must have fixed support or fixed support, otherwise the threaded rubber expansion joint shall be installed with anti falling device.
Pump Connectors details show
Pump Connectors production Flow
Do you know how is a Pump Connectors made?Let's see with JINGNING.
It is very important to select the appropriate flexible pipe connectors rubber of the pipeline, understand the compatibility of the medium with the selected material, the full temperature, pressure and vacuum range, the required movement and the size between the pipeline flanges. With this information, Jingning application engineers can help determine the ideal threaded rubber expansion joint for any application.
General Pump Connectors Advantage
1. The flexible pipe connectors rubber is galvanized for 15 minutes, resistant to high pressure, high temperature, oil, wear, corrosion, acid and alkali.
2. Flexible pipe connectors rubber are connected with pumps, valves, fire-fighting equipment, pipes with large vibration and pipes with frequent changes of cold and heat.
3. The natural rubber content of general rubber expansion joints is 47%, which can be used continuously for 15 years without aging.
We introduce foreign advanced technology and combine with China's production experience. In the general rubber expansion joints manufacturing operation, the inner side bears high pressure, and the nylon cord and the inner side rubber are combined better, which can bear higher pressure than the ordinary threaded rubber expansion joint. General rubber expansion joints is characterized by perfect combination of inner rubber layer, bright, clean and seamless; the label of general rubber expansion joints adopts vulcanization process, which perfectly matches the ball of general rubber expansion joints.
General Pump Connectors Application
Flexible pipe connectors rubber can be widely used in water supply and drainage, circulating water, HVAC, fire protection, paper making, pharmaceutical, petrochemical, ship piping system, water pump, compressor, fan and other piping systems. Ordinary flexible pipe connectors rubber is used to transport - 15 ℃ - 115 ℃ air, compressed air, water, water, seawater, oil, acid and alkali. Special type flexible pipe connectors rubber is used to transport medium, oil or strong alkali, strong acid and solid materials above - 30 ° C to 250 ° C.
FAQ
Q1: What`s the rubber material?
A1: EPDM,CR,NBR,etc.
Q2: Is the flange galvaized?
A2: Yes,we have electronic galvanized and hot dip galvanized flanges.We also have painted flanges.
Q3: Can I get a sample?
A3: Of cause. We could delivery by Express,by air or by sea.
Q4: What is the MOQ ?
A4: 1 Piece.
