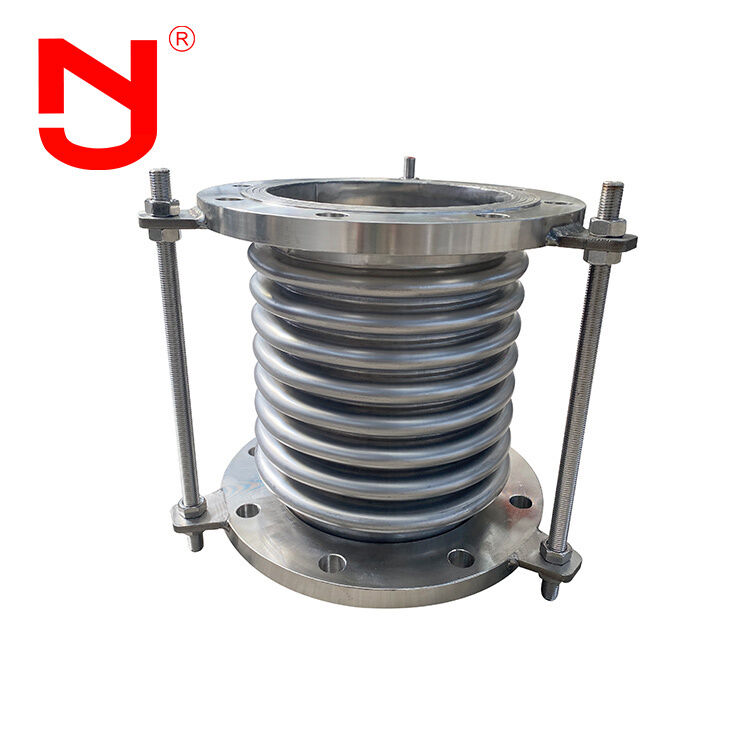

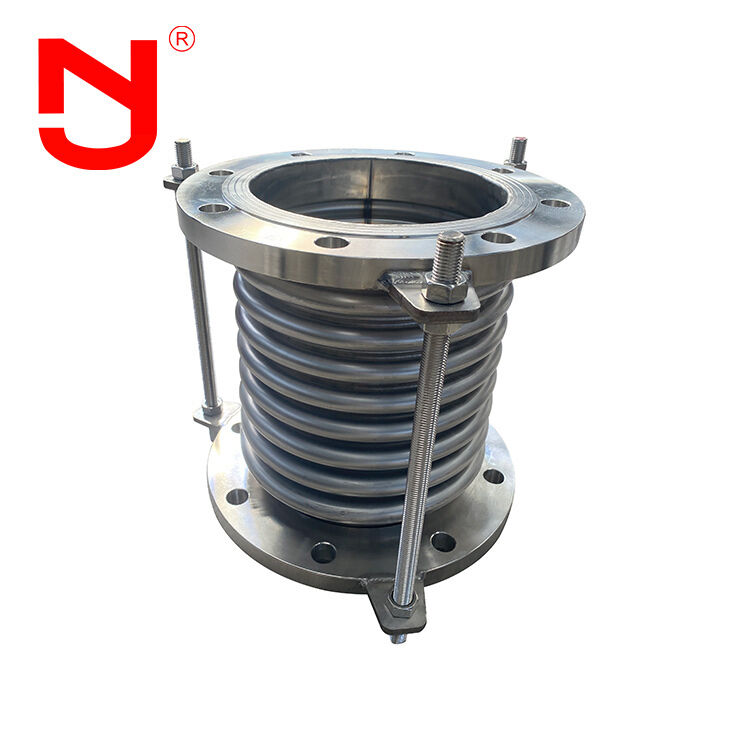

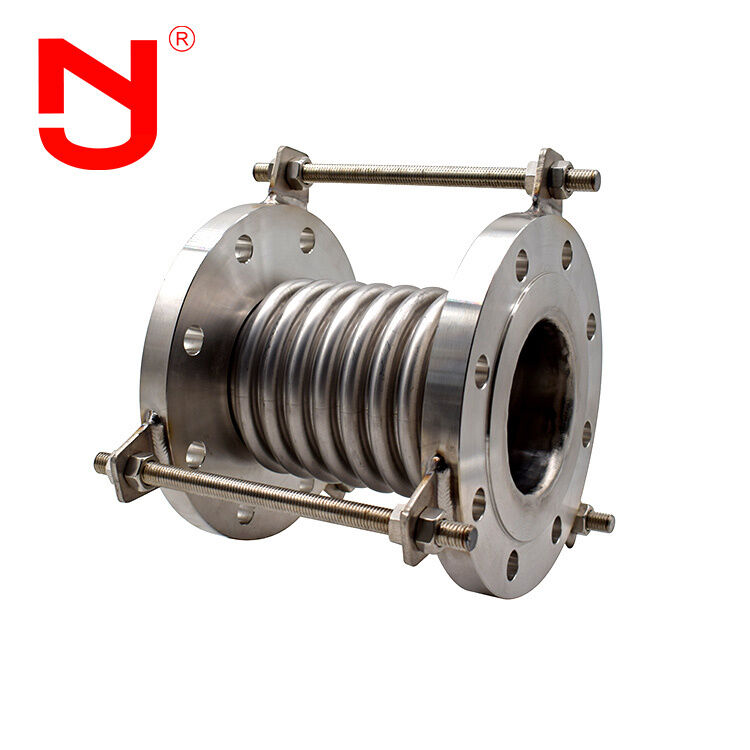

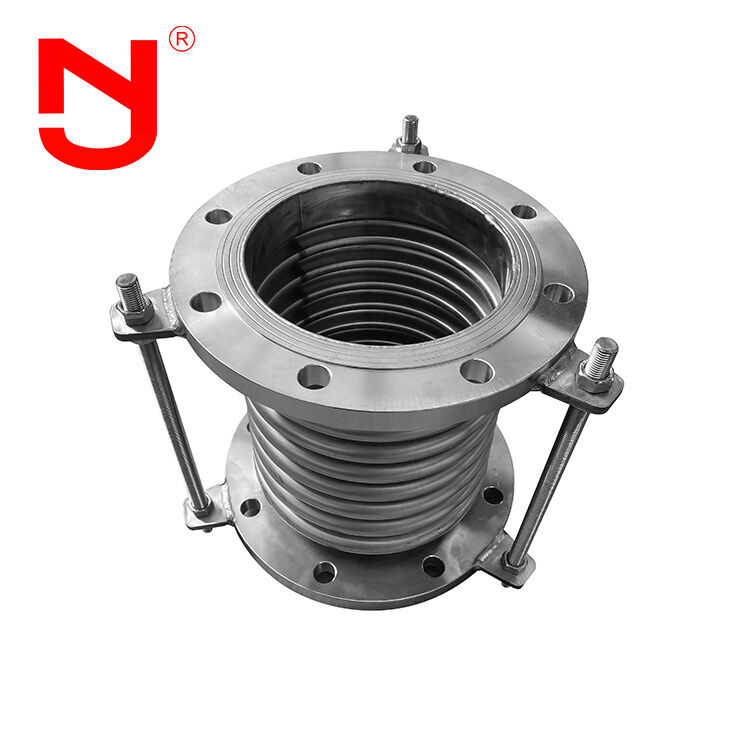

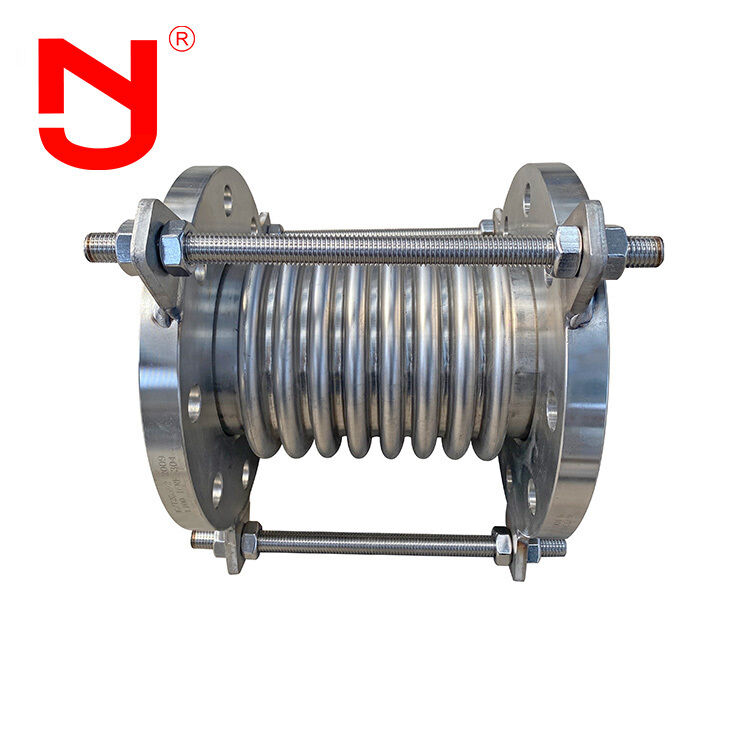

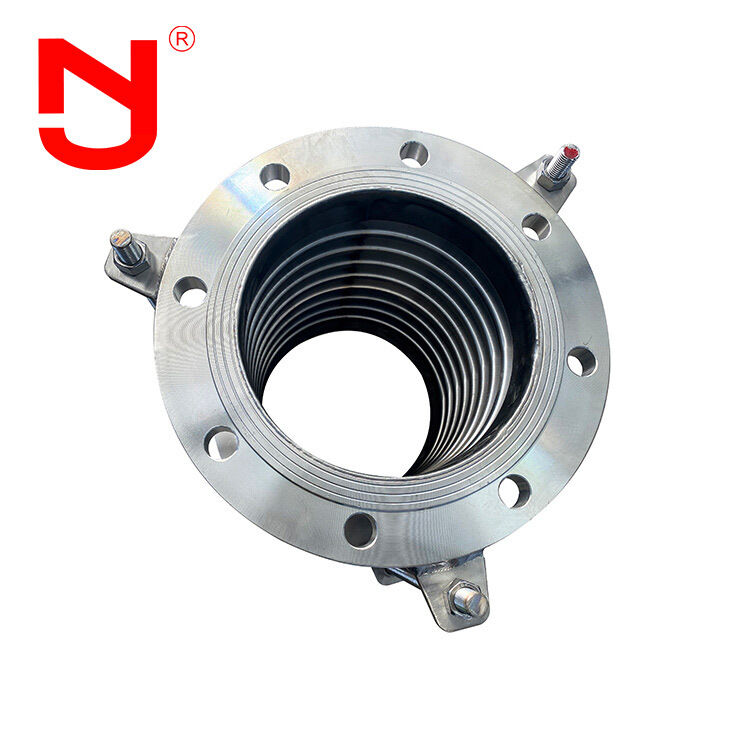

Thermal Expansion Joint Bellow Compensator
This flexible expansion joint is designed to absorb thermal movement, vibration, and mechanical stress in industrial pipeline systems. Featuring a multi-layer bellows structure, it provides excellent adaptability to axial, lateral, and angular displacement, protecting pipelines from damage caused by temperature changes and dynamic loads.
Key Performance Features
- Absorbs axial, transverse and angular thermal deformation
- Reduces equipment vibration impact on pipelines
- Compensates for pipeline deformation from seismic activity
- Protects against damage from land subsidence
Technical Specifications
| Diameter (mm) |
Pressure Grade (Mpa) |
Available Area (c㎡) |
Max External Diameter (mm) |
Length (mm) |
| 32 |
1.0/1.6/2.5 |
16 |
225 |
160-250/264-280 |
| 40 |
1.0/1.6/2.5 |
23 |
244 |
164-259/269-289 |
| 50 |
1.0/1.6/2.5 |
37 |
259 |
172-276/282-306 |
| 65 |
1.0/1.6/2.5 |
55 |
270 |
215-294/300-322 |
| 80 |
1.0/1.6/2.5 |
81 |
284 |
240-338/344-366 |
| 100 |
1.0/1.6/2.5 |
121 |
304 |
235-317/323-345 |
| 125 |
1.0/1.6/2.5 |
180 |
334 |
282-314/316-342 |
| 150 |
1.0/1.6/2.5 |
257 |
364 |
282-339/338-367 |
Manufacturing Process
Our thermal expansion joints are manufactured to meet international standards including GB, ISO, DIN, ANSI, and BS. With 17 years of design experience, we offer customized solutions for various industrial applications.
Material Options
- Bellow Body: Stainless Steel 304, 316L
- Flange Materials: Q235 carbon steel, 304, 316L stainless steel
Product Advantages
- Competitive factory direct pricing
- 17 years manufacturing experience with 5 years export experience
- Strict quality control exceeding industry standards
- Custom mold base and OEM services available
- Free samples available
- Large inventory for quick delivery
Applications
Our flexible expansion joints are widely used in chemical processing, oil refining, power generation, light industry, nuclear facilities, metallurgy, machinery, instrumentation, shipbuilding, and aerospace applications. They compensate for temperature differentials, prevent vibration, reduce pipeline thrust on equipment, and accommodate foundation settlement.
