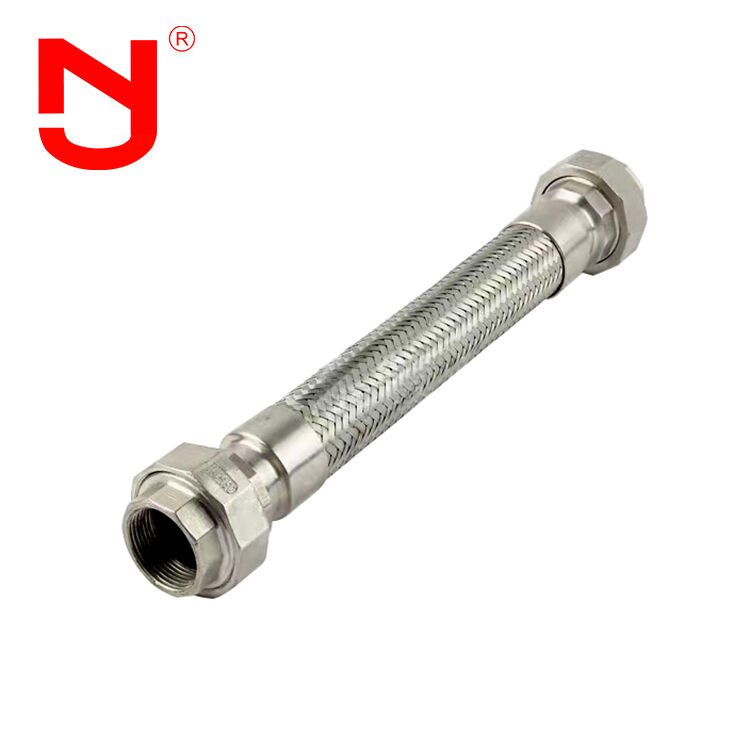

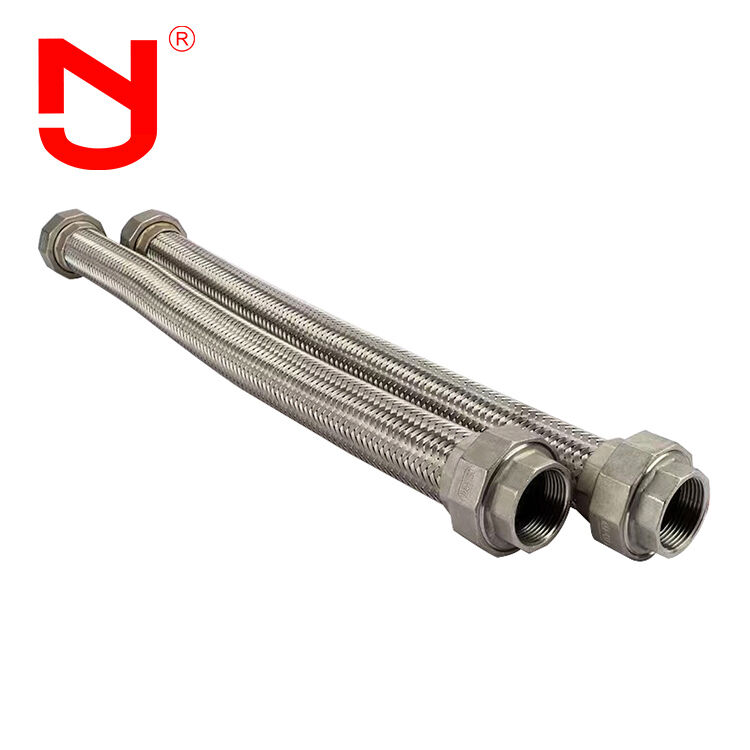

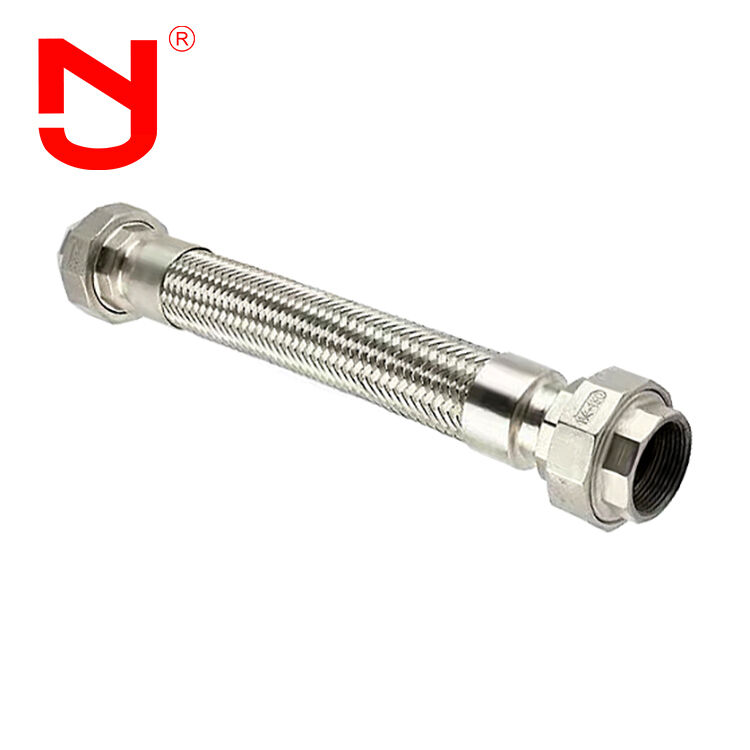

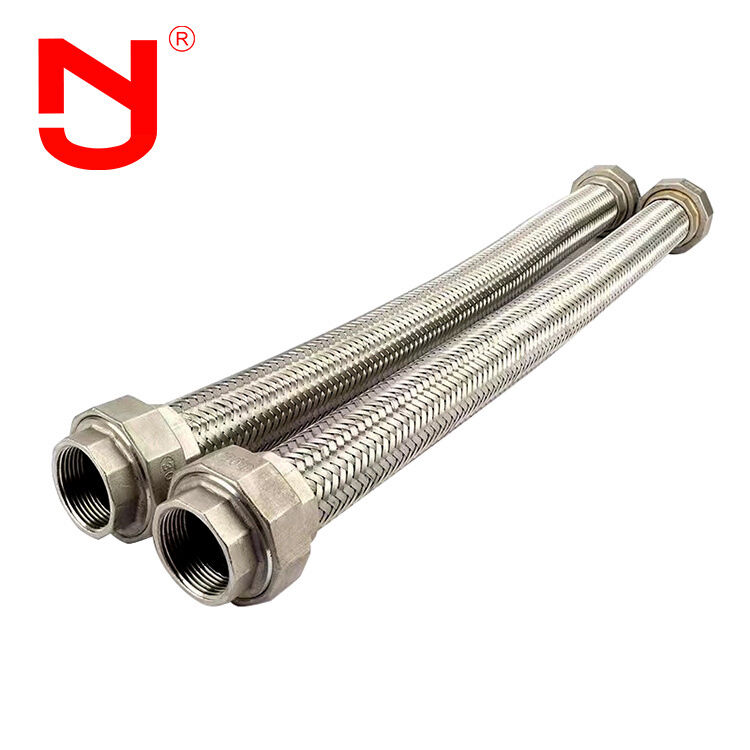

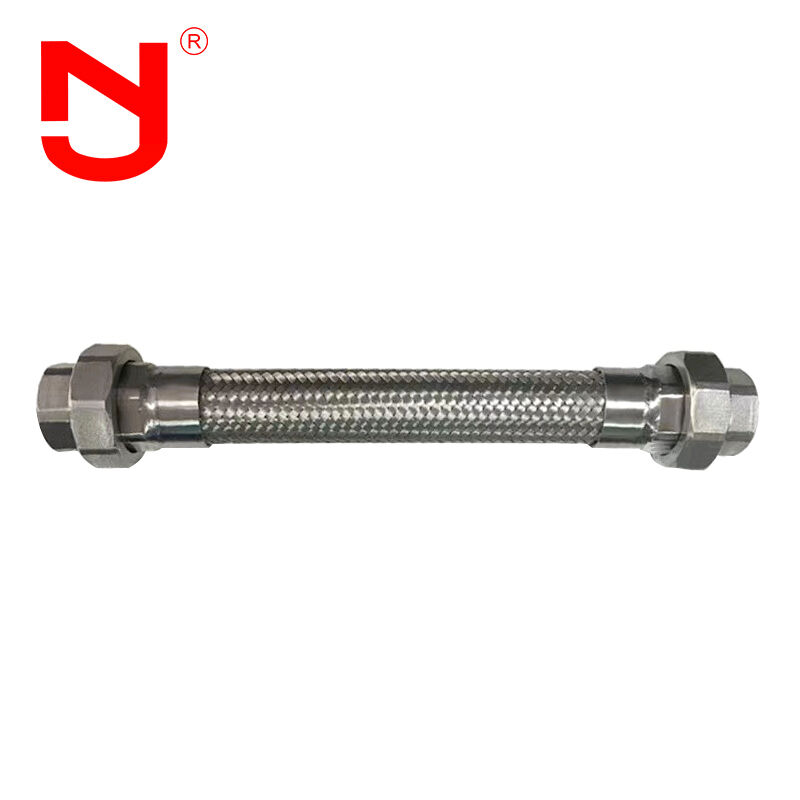

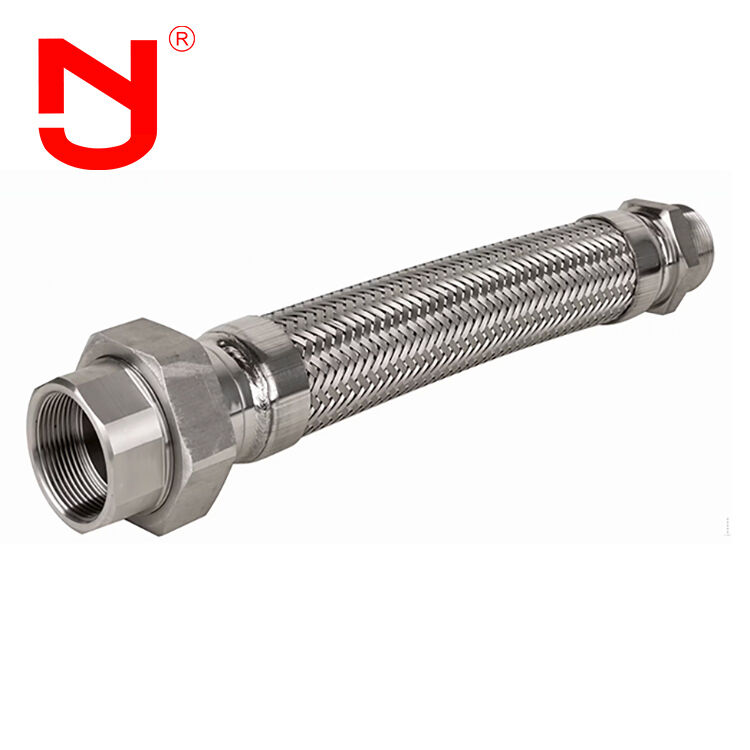

Wire Braided Flexible Metal Hose Union Type Stainless Steel Flexible Hoses
Union Type Stainless Steel Flexible Hoses are engineered with a stainless steel corrugated inner hose and stainless steel braided reinforcement, featuring union-type end connections for straightforward installation and removal. These hoses are designed to absorb vibration, thermal expansion, and misalignment in piping systems while delivering exceptional pressure resistance, corrosion resistance, and reliable leak-tight performance across demanding industrial applications.
Performance Characteristics
The primary elastic component of our flexible expansion joints is the stainless steel bellows. Through expansion and bending capabilities, these joints accommodate pipeline movements in axial, transverse, and angular directions, providing:
- Absorption of axial, transverse, and angular thermal deformation in pipelines
- Vibration absorption from equipment, minimizing pipeline impact
- Compensation for pipeline deformation caused by seismic activity and ground settlement
Technical Specifications
| Diameter (mm) |
Pressure Grade (MPa) |
Available Area of Bellows (cm²) |
Max External Diameter (mm) |
Length (mm) |
| 32 | 1.0/1.6/2.5 | 16 | 225 | 160-280 |
| 40 | 1.0/1.6/2.5 | 23 | 244 | 164-289 |
| 50 | 1.0/1.6/2.5 | 37 | 259 | 172-306 |
| 65 | 1.0/1.6/2.5 | 55 | 270 | 215-322 |
| 80 | 1.0/1.6/2.5 | 81 | 284 | 240-366 |
| 100 | 1.0/1.6/2.5 | 121 | 304 | 235-345 |
| 125 | 1.0/1.6/2.5 | 180 | 334 | 282-342 |
| 150 | 1.0/1.6/2.5 | 257 | 364 | 282-367 |
| 200 | 1.0/1.6/2.5 | 479 | 442 | 340-426 |
| 250 | 1.0/1.6/2.5 | 769 | 507 | 393-493 |
| 300 | 1.0/1.6/2.5 | 1105 | 562 | 464-565 |
| 350 | 1.0/1.6/2.5 | 1307 | 622 | 509-609 |
| 400 | 1.0/1.6/2.5 | 1611 | 562 | 522-628 |
| 450 | 1.0/1.6/2.5 | 1972 | 700 | 403-523 |
| 500 | 1.0/1.6/2.5 | 2445 | 760 | 431-554 |
| 600 | 1.0/1.6/2.5 | 3534 | 835 | 478-588 |
| 700 | 1.0/1.6/2.5 | 4717 | 1110 | 490-590 |
| 800 | 1.0/1.6/2.5 | 5822 | 1265 | 502-602 |
| 900 | 1.0/1.6/2.5 | 7620 | 1186 | 698 |
| 1000 | 1.0/1.6/2.5 | 9043 | 1286 | 692 |
Manufacturing Process
Our Union Type Stainless Steel Flexible Hoses are manufactured to meet diverse application requirements with precision engineering and quality materials.
Material Specifications:
• Bellows Body: Stainless Steel 304, 316L
• Flange Materials: Q235 carbon steel, 304, 316L stainless steel
With over 17 years of design expertise in manufacturing flexible expansion joints, rubber expansion joints, metal bellows joints, and industrial pipe fittings, JINGNING products comply with international standards including GB, ISO, DIN, ANSI, BS, JIS, and custom requirements.
Product Advantages
- Competitive factory-direct pricing
- 17 years manufacturing experience with 5 years export expertise
- Rigorous quality inspections exceeding industry standards
- Custom mold base configurations and OEM services
- Complimentary product samples available
- Extensive inventory for immediate availability
Industrial Applications
Due to their exceptional flexibility, our pipe flex connectors effectively compensate for temperature differentials and other deformations between equipment and pipelines. They prevent vibration transmission, reduce pipeline thrust on equipment, and accommodate uneven tank foundation settlement. These flexible expansion joints are widely utilized across chemical processing, oil refining, power generation, light industry, nuclear applications, metallurgy, machinery, instrumentation, marine, and aerospace sectors. As industrial and civil applications of power and heat pipelines continue to expand, the demand for high-performance pipe flex connectors continues to grow.
Frequently Asked Questions
Q1: Can the Union Type Stainless Steel Flexible Hoses be marked with customized logo?
A1: Yes, we provide comprehensive OEM & ODM services including custom logo marking.
Q2: What's the face to face length of Union Type Stainless Steel Flexible Hoses?
A2: Standard lengths include L130, L152, L203, with custom lengths available to meet specific requirements.
Q3: Can you provide drawings of Union Type Stainless Steel Flexible Hoses?
A3: Yes, we provide detailed technical drawings. Please contact us for specific pipe flex connector documentation.
Q4: What certificates of Union Type Gas Stainless Steel Flexible Hoses can you provide?
A4: We provide CE and ISO certifications to ensure product quality and compliance.
